Power Transformer Interview Questions and Answers

When interviewing for a position related to power transformers, questions will often cover the fundamentals of transformer theory, practical applications, and technical details. Below are some common interview questions related to power transformers along with example answers:

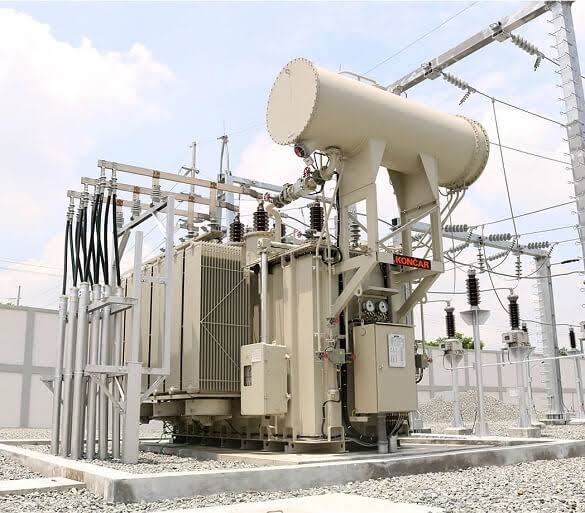

1. What is a power transformer, and where is it used?

Answer: A power transformer is an electrical device used to step up or step down voltage levels in power systems. It is designed for high voltage, high current applications and is used in power generation and distribution systems. Power transformers are typically used in transmission networks for stepping up or down the voltage between different levels to minimize energy loss during long-distance transmission.

2. What is the difference between a power transformer and a distribution transformer?

Answer: The main differences between power and distribution transformers are their application and design. Power transformers are used in transmission networks, operate at high voltages (more than 33 kV), and are designed for maximum efficiency during full load. Distribution transformers, on the other hand, are used to provide the final voltage transformation in the electric power distribution system, operating at lower voltages (less than 33 kV) and are designed for peak efficiency during partial load.

3. Why are power transformers rated in kVA instead of kW?

Answer: Power transformers are rated in kVA (kilovolt-amperes) because they are independent of the power factor. Transformers handle both active (real) and reactive power, and their ratings are based on voltage and current. The power factor depends on the load connected to the transformer and is not a factor of the transformer itself, making kVA a more accurate rating unit.

4. What are the losses in a power transformer?

Answer: The two main types of losses in a power transformer are:

• Iron Losses (Core Losses): These occur in the transformer core due to hysteresis and eddy currents when the core is magnetized. Iron losses depend on the core material and the frequency of the magnetic flux.
• Copper Losses (Winding Losses): These occur in the transformer windings due to the resistance of the wire when current flows through them. Copper losses depend on the current and the resistance of the windings and vary with the load.

5. What is the purpose of transformer oil?

Answer: Transformer oil serves two main purposes:

• Insulation: It provides electrical insulation between internal components, preventing short circuits.
• Cooling: It absorbs the heat generated by the core and windings, transferring it to the transformer tank, which then dissipates the heat into the environment.

6. What is a Buchholz relay, and how does it work?

Answer: A Buchholz relay is a safety device used in oil-immersed transformers to detect gas accumulation and oil flow due to internal faults like winding short circuits. It is installed between the transformer’s main tank and the conservator tank. When gas accumulates due to faults, it triggers the relay to send an alarm or trip the transformer to prevent damage.

7. Explain the concept of vector groups in transformers.

Answer: Vector groups describe the phase difference and winding configurations of transformer windings. They indicate the phase displacement between the primary and secondary windings, which is important for parallel operation of transformers. Common vector groups include Dyn11, Yd1, and Yy0. For instance, Dyn11 indicates a delta-connected primary winding and a star-connected secondary winding with a 30-degree phase shift.

8. What is the significance of the impedance in a transformer?

Answer: Transformer impedance, expressed as a percentage, affects the voltage drop and fault current levels in the transformer. It helps to limit short-circuit currents and determines the voltage regulation of the transformer under different loading conditions. Lower impedance means a higher short-circuit current, which could damage the transformer and connected equipment.

9. Why is the neutral grounding important in a transformer?

Answer: Neutral grounding in a transformer is important for:

• Safety: It helps in protecting the transformer and connected equipment from overvoltages during ground faults.
• Stability: It provides a stable reference point for the system voltage and improves the reliability of protection systems like differential and earth fault protection.
• Fault Protection: Grounding helps in the quick detection and isolation of earth faults in the transformer.

10. What is a tap changer, and why is it used in transformers?

Answer: A tap changer is a device used to adjust the turns ratio of a transformer to regulate the output voltage under varying load conditions. It can be an On-Load Tap Changer (OLTC), which adjusts the taps without interrupting the power supply, or an Off-Load Tap Changer, which requires the transformer to be de-energized before adjusting. Tap changers help maintain a consistent voltage level in the power network.

11. What are the insulation classes of transformers, and why are they important?

Answer: Insulation classes refer to the thermal limits of the insulation materials used in transformer windings. They are critical for determining the maximum operating temperature of a transformer. Common classes include Class A (105°C), Class B (130°C), and Class F (155°C). Selecting the appropriate insulation class ensures the reliability and lifespan of the transformer under varying operating conditions.

12. What is the purpose of a conservator tank in a transformer?

Answer: The conservator tank provides space for the expansion and contraction of transformer oil due to temperature changes. It helps maintain the appropriate oil level in the main tank as the oil heats up or cools down. It also reduces the contact between transformer oil and air, minimizing oxidation and moisture absorption, which can degrade the oil's insulating properties.

13. How do you perform a routine maintenance check on a power transformer?

Answer: Routine maintenance of a power transformer includes:

• Visual Inspection: Checking for oil leaks, rust, and damage to bushings and connectors.
• Oil Testing: Analyzing transformer oil for moisture content, dielectric strength, and dissolved gas analysis (DGA).
• Electrical Tests: Performing insulation resistance testing (megger test), turns ratio testing, and winding resistance measurement.
• Cooling System Check: Ensuring that cooling fans, pumps, and radiators are operating properly.

14. What is Differential Protection in a transformer?

Answer: Differential protection is a protection scheme that compares the current entering and leaving the transformer. It detects internal faults like winding short circuits by measuring the difference between the input and output currents. If the difference exceeds a preset threshold, the protection relay will trip and isolate the transformer to prevent damage.

15. How does a transformer handle inrush current, and why is it a concern?

Answer: Inrush current occurs when a transformer is energized, causing a surge of current much higher than its rated current due to the sudden magnetization of the core. It can cause false tripping of protection relays and mechanical stress on the windings. To handle inrush current, time-delay relays or inrush current limiting devices are often used to distinguish between inrush conditions and actual faults.

These questions cover a range of fundamental and advanced topics related to power transformers, providing a solid basis for understanding both the theoretical and practical aspects required for such roles.

When preparing for an interview focused on power transformer design, it's important to be ready for both technical and conceptual questions. Here are some common interview questions and their suggested answers that might come up during such a discussion:

1. What is a power transformer, and how does it differ from a distribution transformer?

• Answer: A power transformer is used in transmission networks with high voltages (above 33 kV) and is designed for maximum efficiency at or near full load. It typically has a larger power rating (above 100 MVA) compared to distribution transformers. Distribution transformers are used to step down the voltage for end-user consumption, usually at lower voltage levels (less than 33 kV), and operate more efficiently at partial load.

2. What factors do you consider while designing a power transformer?

• Answer: Several factors need to be considered during power transformer design, including:
  • Power rating: The transformer's capacity to handle power, usually specified in MVA.
  • Voltage rating: Rated for both the primary and secondary winding voltages.
  • Frequency: The operating frequency (typically 50 Hz or 60 Hz).
  • Insulation level: Determined by the operating voltage and desired insulation class.
  • Cooling method: Oil-immersed, air-cooled, or water-cooled.
  • Efficiency and losses: Core losses (no-load losses) and copper losses (load losses).
  • Impedance: The leakage impedance for fault current limitations and voltage regulation.
  • Thermal performance: The heat generation and dissipation in the transformer, affecting the cooling design.

3. What are the different types of losses in a power transformer, and how can they be minimized?

• Answer: The losses in a power transformer can be classified into:
  • Core losses (No-load losses): These are due to hysteresis and eddy currents in the core, occurring when the transformer is energized, regardless of load. Minimization can be achieved by using high-quality silicon steel with a lower hysteresis coefficient and by using thinner core laminations to reduce eddy current losses.
  • Copper losses (Load losses): These occur due to the resistance in the windings when current flows through them. Reducing copper losses can be achieved by using conductors with lower resistance (e.g., copper windings) and optimizing the winding design to reduce the length and resistance.
  • Stray losses: These are due to leakage fluxes that induce eddy currents in other metallic parts. Proper design and shielding of parts can help minimize stray losses.
  • Dielectric losses: These occur in the insulation system and can be reduced by using high-quality insulation materials.

4. What is the significance of the vector group of a transformer?

• Answer: The vector group of a transformer indicates the phase difference between the primary and secondary windings and the configuration of the windings (star or delta). It is crucial for ensuring compatibility with other transformers and systems in the grid. The vector group helps determine how the transformer will behave under certain load conditions and fault scenarios. For example, a commonly used vector group is Dyn11, which indicates a delta-connected primary and a star-connected secondary with a phase shift of 30 degrees.

5. Explain the importance of short-circuit impedance in a power transformer.

• Answer: Short-circuit impedance (or percentage impedance) of a transformer determines the voltage drop under load and limits the fault current during short-circuit conditions. A high impedance limits the fault current but increases voltage regulation, while a low impedance can cause high fault currents but better voltage regulation. Properly designing this impedance is crucial for system stability, protection coordination, and transformer performance under different operating conditions.

6. How do you select the core material for a power transformer?

• Answer: The core material is selected based on its magnetic properties, specifically its permeability and hysteresis loss characteristics. Commonly used materials include:
  • Silicon steel: It is widely used due to its low core loss, good magnetic permeability, and high saturation point.
  • Amorphous steel: It has lower hysteresis losses compared to silicon steel, making it suitable for high-efficiency designs, especially for lower-capacity transformers.
  • Nickel-iron alloys: These are used in special applications requiring very low core losses.
  • The choice depends on factors like transformer rating, required efficiency, and cost constraints.

7. What are the cooling methods for power transformers, and when would you use each?

• Answer: Common cooling methods include:
  • ONAN (Oil Natural Air Natural): Suitable for small and medium-sized transformers where natural convection of oil and air is sufficient for cooling.
  • ONAF (Oil Natural Air Forced): Fans are used to force air circulation, increasing cooling capacity. Suitable for transformers with higher power ratings.
  • OFWF (Oil Forced Water Forced): This method uses pumps and water cooling systems for large transformers where air cooling is insufficient.
  • The choice of cooling method depends on the transformer size, location, and the cooling requirement for maintaining a safe operating temperature.

8. What is the purpose of performing a short-circuit test on a transformer?

• Answer: A short-circuit test is conducted to determine the transformer's copper losses, equivalent impedance, and mechanical strength under short-circuit conditions. This helps assess how the transformer will behave under fault conditions and ensures that it is designed to handle the thermal and mechanical stresses caused by high fault currents without damage.

9. What is the difference between a conservator and a breather in a transformer?

• Answer:
  • Conservator: It is an expansion tank mounted on the transformer to accommodate the expansion and contraction of transformer oil due to temperature variations. It helps maintain the oil level in the main tank and prevents direct contact of oil with atmospheric air.
  • Breather: It is used to filter the air entering the conservator tank. The breather contains silica gel, which absorbs moisture from the incoming air, preventing moisture from contaminating the transformer oil.

10. How do you determine the insulation class of a transformer?

• Answer: The insulation class is determined based on the maximum temperature that the insulation material can withstand without degradation. It is selected according to the operating conditions, environment, and voltage rating of the transformer. For instance, class A insulation is rated for 105°C, while class H can handle up to 180°C. The choice of insulation class affects the design of the cooling system and the overall thermal performance of the transformer.

11. What is the significance of the Buchholz relay in a transformer?

• Answer: A Buchholz relay is a gas-operated protection device installed in oil-immersed transformers. It is used to detect internal faults, such as insulation failure or core overheating, by sensing the gas generated due to the decomposition of oil. It provides an early warning for minor faults and automatically trips the transformer for major faults, helping to prevent damage.

12. Why is tap-changing necessary in transformers, and what are the types?

• Answer: Tap changers are used to adjust the voltage ratio between the primary and secondary windings of a transformer to maintain a stable output voltage despite variations in input voltage or load.
  • Off-Load Tap Changers (OLTC): These are adjusted manually when the transformer is de-energized. They are simpler but not suitable for dynamic voltage regulation.
  • On-Load Tap Changers (OLTC): They allow for changing the tap position while the transformer is in service, making them suitable for maintaining a constant voltage in systems with fluctuating loads.

These questions cover essential aspects of power transformer design, helping to assess both theoretical knowledge and practical understanding of transformer operation and design considerations.

Power transformer testing is a critical area in the electrical engineering field. During interviews for roles related to power transformers, candidates may encounter a variety of technical and theoretical questions. Below are some common power transformer testing interview questions and their answers:

1. What is the purpose of transformer testing?

• Answer: Transformer testing is done to ensure the safety, reliability, and efficiency of a transformer. It helps to verify the design parameters, detect manufacturing defects, ensure compliance with industry standards, and determine the operational condition of the transformer to avoid failures during its service life.

2. What are the different types of transformer tests?

• Answer: Transformer tests can be classified into:
  • Type Tests: Conducted on a sample unit to ensure the design meets specifications. Examples include temperature rise test, dielectric tests, and lightning impulse tests.
  • Routine Tests: Conducted on every unit to ensure quality during manufacturing. Examples include ratio test, winding resistance test, insulation resistance test, and polarity test.
  • Special Tests: These tests are done on customer request or to verify special features. Examples include zero sequence impedance test, short-circuit test, and noise level test.

3. What is a ratio test in transformer testing, and how is it performed?

• Answer: A ratio test is performed to verify that the ratio of the primary voltage to the secondary voltage is correct and consistent with the designed turns ratio. It involves applying a known voltage to the primary winding and measuring the corresponding secondary voltage. The measured ratio is compared with the expected ratio calculated from the winding turns. The formula used is: $$\text{Turns Ratio} = \frac{\text{Voltage Primary}}{\text{Voltage Secondary}}$$ If the measured value is within acceptable limits (usually ±0.5% of the rated ratio), the test is considered successful.

4. What is the purpose of insulation resistance testing?

• Answer: Insulation resistance testing is performed to ensure the integrity of the insulation between the windings and between the windings and the core. It helps to detect insulation deterioration or moisture ingress. This test is performed using an instrument called a megger or insulation resistance tester. A high DC voltage is applied, and the resulting current is measured to determine the insulation resistance. A low insulation resistance may indicate moisture or insulation failure.

5. What is a vector group in a transformer, and why is it important?

• Answer: The vector group of a transformer indicates the phase difference between the primary and secondary windings. It is denoted by codes like Dyn11, Yd1, etc. Vector groups are crucial for parallel operation of transformers because mismatched vector groups can cause circulating currents or faults. During transformer testing, vector group testing helps verify the phase displacement and ensures the compatibility of transformers for parallel operation.

6. What is a short-circuit test on a transformer?

• Answer: The short-circuit test is performed to determine the transformer's impedance and losses under short-circuit conditions. In this test, the low-voltage side is short-circuited, and a reduced voltage is applied to the high-voltage side until the rated current flows through the transformer. The voltage, current, and power are measured during this process. It helps in determining parameters like impedance voltage, leakage reactance, and copper losses.

7. What is a no-load test, and what parameters does it determine?

• Answer: The no-load test (or open-circuit test) is conducted to measure the iron losses (core losses) in the transformer. It involves applying the rated voltage to the primary winding while keeping the secondary winding open (no load condition). This test measures the core losses, no-load current, and magnetizing reactance of the transformer. It helps in understanding the efficiency of the transformer when operating without a load.

8. What are dielectric tests in transformer testing?

• Answer: Dielectric tests are performed to evaluate the dielectric strength of the insulation system in transformers. They include:
  • Insulation Resistance Test: Measures the insulation resistance between windings and core.
  • Dielectric Breakdown Test: Applies a high voltage until the insulation fails to determine the breakdown voltage.
  • Induced Overvoltage Test: Applies higher-than-rated voltage to test the insulation between turns.
  • Power Frequency Withstand Test: Tests the ability of insulation to withstand power frequency voltage for a specified time.

9. What is a sweep frequency response analysis (SFRA)?

• Answer: SFRA (Sweep Frequency Response Analysis) is a diagnostic test used to detect mechanical deformations or winding displacements in transformers. A range of frequencies is applied to the windings, and the output response is measured. Any deviation in the response curve from the reference indicates a possible internal mechanical or electrical issue, such as winding displacement, core movement, or loose connections.

10. How is temperature rise tested in transformers?

• Answer: Temperature rise testing measures the temperature increase in transformer windings and oil under rated load conditions to ensure it remains within permissible limits. The test involves operating the transformer under load until thermal equilibrium is reached, and then measuring the temperature of the windings and oil using sensors. It ensures that the transformer can operate safely without overheating, which could degrade insulation over time.

11. What is the purpose of a polarity test in transformers?

• Answer: A polarity test determines the relative polarity (direction) of the primary and secondary windings of a transformer. It is essential for ensuring proper connection of transformers in parallel or during three-phase operations. The test involves applying a voltage to one winding and observing the polarity of the induced voltage in the other winding. It ensures correct phase relationships and avoids faults when connecting transformers together.

12. What are the common causes of transformer failure?

• Answer: Common causes of transformer failure include:
  • Insulation breakdown: Due to aging, overheating, or moisture ingress.
  • Overloading: Operating the transformer beyond its rated capacity.
  • Short circuits: Due to internal winding faults or external network conditions.
  • Mechanical stresses: Resulting from transportation or short-circuit forces.
  • Cooling system failure: Leading to overheating of the transformer.

13. What is the significance of oil testing in transformers?

• Answer: Oil testing is critical for monitoring the condition of the transformer’s insulating oil, which provides insulation and cooling. Tests like Dissolved Gas Analysis (DGA), moisture content measurement, and dielectric strength tests help detect potential issues such as arcing, overheating, and oil contamination. Analyzing dissolved gases can indicate developing faults like partial discharge or thermal faults.

14. What is a tan delta test in transformer testing?

• Answer: The tan delta test, also known as dissipation factor or power factor test, measures the quality of insulation in transformers. It assesses the insulation's ability to store and conduct electricity by measuring the phase difference between the applied voltage and resulting current. A higher tan delta value indicates deteriorating insulation quality due to factors like moisture or aging. This test is important for predictive maintenance.

15. Why is a transformer core tested, and what are the common tests performed?

• Answer: Transformer core testing ensures that the core is properly assembled, has good magnetic properties, and is free from defects that could affect its performance. Common tests include:
  • Magnetizing current test: Measures the current required to magnetize the core.
  • Core loss measurement: Evaluates the eddy current and hysteresis losses in the core material.
  • Flux distribution test: Ensures uniform flux distribution across the core.

These questions help assess a candidate's technical understanding of transformer testing and their ability to diagnose and resolve issues in transformer operation and maintenance. Being prepared with such knowledge can be crucial for a successful interview in the field of power transformer engineering.

When preparing for an interview focused on power transformer settings, it's important to understand both technical concepts and practical applications. Below are some common interview questions along with detailed answers that might be helpful.

1. What is a power transformer, and how does it function?

Answer:
A power transformer is a type of electrical transformer used to transfer electrical energy between two or more circuits through electromagnetic induction. It operates by changing the voltage level in power systems, stepping up or stepping down voltage levels as necessary for efficient transmission. A transformer consists of primary and secondary windings, usually wrapped around a magnetic core. When AC voltage is applied to the primary winding, it creates a magnetic field, inducing a voltage in the secondary winding, which can be at a different voltage level.

2. What are the main components of a power transformer?

Answer:
The main components of a power transformer include:

• Core: Made of laminated silicon steel to minimize eddy current losses.
• Windings: Copper or aluminum wire coils that carry current. The primary winding connects to the input voltage, while the secondary winding delivers the output voltage.
• Insulation: Materials that separate the windings and core to prevent short circuits and ensure safety.
• Tap Changer: A device that adjusts the number of turns in the winding, allowing for voltage regulation.
• Cooling System: Oil or air cooling mechanisms to dissipate heat generated during operation.

3. What factors do you consider when setting up a power transformer?

Answer:
When setting up a power transformer, consider the following factors:

• Voltage Ratings: Ensure compatibility with system voltage requirements.
• Power Rating: Choose a transformer rated for the required load capacity.
• Cooling Requirements: Select appropriate cooling methods based on the expected thermal load.
• Location and Environment: Assess site conditions, including space, ambient temperature, and humidity.
• Protection Devices: Implement protection measures such as circuit breakers, fuses, and relays.
• Grounding: Ensure proper grounding to avoid electrical faults and enhance safety.

4. What is a tap changer, and why is it important?

Answer:
A tap changer is a device in a transformer that allows for the adjustment of the turns ratio by selecting different tap points on the winding. This is crucial for voltage regulation, especially in systems where load conditions vary significantly. By adjusting the voltage output, the tap changer ensures that the voltage levels remain stable, which is essential for the efficient operation of electrical equipment and overall system stability.

5. Can you explain the difference between a Delta and a Wye connection?

Answer:
Delta and Wye (Star) are two common configurations for connecting transformer windings:

• Delta Connection: In a delta connection, the ends of each winding are connected to form a closed loop. This connection is suitable for high-load applications and can handle larger currents. It also provides a path for third harmonic currents, which can help in reducing the harmonic distortion in the system.

• Wye Connection: In a Wye connection, one end of each winding is connected to a common point (neutral), while the other ends are connected to the power system. This configuration is beneficial for balancing loads and provides a neutral point for grounding. It allows for voltage stepping down in distribution systems.

6. What are common testing methods for power transformers?

Answer:
Common testing methods for power transformers include:

• Transformer Turns Ratio (TTR) Test: Assesses the ratio of the primary to secondary windings to verify proper winding configuration.
• Insulation Resistance Test: Measures the insulation quality to ensure safety and reliability.
• Power Factor Test: Evaluates the power factor of the insulation system to detect any deterioration.
• Sweep Frequency Response Analysis: Analyzes the frequency response to identify any mechanical or electrical issues.
• Short-Circuit and Open-Circuit Tests: Used to determine the parameters of the transformer, such as resistance, reactance, and efficiency.

7. How do you handle transformer overload conditions?

Answer:
Handling transformer overload conditions involves several steps:

• Monitor Load: Continuously monitor load levels using instruments to detect overload conditions.
• Load Shedding: If overload occurs, implement load shedding strategies to reduce demand on the transformer.
• Cooling Enhancement: Activate additional cooling systems or fans to manage heat buildup.
• Protective Relays: Use protective relays to trip the transformer under extreme overload conditions to prevent damage.
• Evaluate Transformer Rating: If overload conditions are frequent, consider upgrading to a transformer with a higher power rating.

8. What are the safety precautions to take when working with power transformers?

Answer:
Safety precautions include:

• Personal Protective Equipment (PPE): Always wear appropriate PPE, such as gloves, helmets, and insulating boots.
• Lockout/Tagout Procedures: Implement lockout/tagout procedures to ensure that equipment is properly de-energized before maintenance.
• Proper Training: Ensure all personnel are adequately trained in transformer operations and safety protocols.
• Emergency Plans: Have an emergency response plan in place in case of accidents or failures.
• Routine Inspections: Regularly inspect transformers and surrounding areas for leaks, wear, and damage to ensure ongoing safety.

9. Explain the concept of harmonics in power transformers. How can they be mitigated?

Answer:
Harmonics are voltage or current waveforms that are integer multiples of the fundamental frequency. In power transformers, harmonics can cause overheating, increased losses, and equipment malfunction. Mitigation strategies include:

• Harmonic Filters: Use passive or active filters to reduce harmonic distortion.
• Phase Shifting Transformers: Implement transformers designed to cancel specific harmonic frequencies.
• Load Balancing: Ensure balanced loading across all three phases to minimize harmonics.
• Regular Monitoring: Continuously monitor harmonic levels to identify and address issues promptly.

10. What role do protective relays play in transformer settings?

Answer:
Protective relays are crucial in transformer settings as they monitor electrical parameters and detect faults or abnormal conditions. Their functions include:

• Overcurrent Protection: Trips the transformer circuit during excessive current flow.
• Differential Protection: Detects internal faults by comparing currents entering and leaving the transformer.
• Earth Fault Protection: Protects against ground faults that can cause damage or pose safety hazards.
• Temperature Monitoring: Some relays monitor temperature to prevent overheating and associated damage.

---

These questions and answers provide a solid foundation for understanding power transformers and can help candidates prepare for interviews in the field of electrical engineering or power systems.

When preparing for an interview focused on Dissolved Gas Analysis (DGA) in power transformers, it’s crucial to understand both the technical aspects of DGA testing and its importance in transformer maintenance. Here are some common interview questions along with suggested answers:

1. What is DGA and why is it important for power transformers?

Answer: Dissolved Gas Analysis (DGA) is a diagnostic tool used to analyze the gases dissolved in the insulation oil of power transformers. It is essential because the presence of certain gases can indicate various types of faults or issues within the transformer, such as overheating, arcing, or insulation breakdown. Regular DGA testing helps in predictive maintenance, allowing for early detection of potential failures, which can prevent costly outages and extend the lifespan of the transformer.

2. What gases are typically analyzed in a DGA test?

Answer: The key gases analyzed in a DGA test include:

• Hydrogen (H2): Indicates overheating or arcing.
• Methane (CH4): Associated with low-energy arcing or partial discharge.
• Ethane (C2H6): Can indicate low-energy faults.
• Ethylene (C2H4): Indicates overheating and severe thermal degradation.
• Acetylene (C2H2): Signifies high-energy arcing.
• Carbon Monoxide (CO) and Carbon Dioxide (CO2): Related to cellulose insulation degradation.

3. Describe the DGA testing procedure.

Answer: The DGA testing procedure typically involves the following steps:

1. Sample Collection: Oil samples are collected from the transformer under proper conditions to avoid contamination.
2. Gas Extraction: The dissolved gases are extracted from the oil, often using methods like headspace analysis or a gas chromatograph.
3. Analysis: The extracted gases are analyzed to determine their concentrations.
4. Interpretation: The results are interpreted using established guidelines (e.g., IEEE C57.104 or IEC 60599) to assess the condition of the transformer.
5. Reporting: A comprehensive report is generated, detailing the gas concentrations and any recommendations for maintenance or further investigation.

4. What is the significance of the DGA Ratios?

Answer: DGA Ratios are used to interpret the relative concentrations of specific gases to diagnose the type of fault present in the transformer. Common ratios include:

• Hydrogen to Methane (H2/CH4): High ratios indicate arcing conditions.
• Ethylene to Acetylene (C2H4/C2H2): A high ratio suggests high-energy faults.
• Methane to Ethylene (CH4/C2H4): Low ratios indicate severe thermal faults.

These ratios help narrow down the potential issues and guide maintenance decisions.

5. How often should DGA testing be performed on power transformers?

Answer: The frequency of DGA testing can vary based on the transformer's operating conditions and age. Typically, it is recommended to perform DGA testing at least once a year. However, for critical transformers or those operating under severe conditions, more frequent testing (every 6 months or even quarterly) may be advisable. Continuous online monitoring systems can also be implemented for real-time analysis.

6. Can you explain the correlation between DGA results and transformer failures?

Answer: DGA results provide insight into the operating conditions of a transformer. For instance, an increase in hydrogen levels may suggest overheating, which could lead to insulation failure. A spike in acetylene concentrations often indicates an impending catastrophic failure due to arcing. By correlating specific gas concentrations with historical failure data, maintenance teams can identify trends and implement preventive measures before actual failures occur.

7. What are the limitations of DGA testing?

Answer: While DGA is a powerful diagnostic tool, it has some limitations, including:

• False Positives/Negatives: Gases may be present without an actual fault or vice versa.
• Sample Collection Issues: Contamination during sampling can lead to inaccurate results.
• Interpretation Complexity: Correctly interpreting DGA results requires experience and understanding of the transformer’s operational history.
• Not Comprehensive: DGA alone does not provide a complete picture of transformer health; it should be part of a broader maintenance strategy, including other tests like insulation resistance and power factor testing.

8. What is the role of DGA in the overall maintenance strategy of transformers?

Answer: DGA plays a critical role in a transformer maintenance strategy by enabling predictive maintenance. By identifying potential issues before they escalate into serious problems, DGA allows for timely interventions. This approach reduces unplanned outages, minimizes repair costs, and extends the operational life of the transformer. It complements other maintenance practices, creating a comprehensive reliability-centered maintenance program.

---

Preparing for an interview with these questions and answers can help demonstrate your understanding of DGA in power transformers and highlight your ability to contribute effectively to the maintenance and reliability of these critical components in the power system.

The Dissolved Gas Analysis (DGA) test is a crucial diagnostic tool used for assessing the health of power transformers. It helps in identifying potential faults by analyzing the types and quantities of gases dissolved in the insulating oil. Here’s a summary of common interview questions and answers related to DGA testing for power transformers.

Interview Questions and Answers on DGA Testing

1. What is DGA, and why is it important?

Answer: DGA stands for Dissolved Gas Analysis. It is important because it helps detect faults in power transformers, such as overheating, arcing, and insulation breakdown. By analyzing the gases dissolved in the transformer oil, technicians can identify potential issues early, allowing for timely maintenance and reducing the risk of transformer failure.

2. What are the common gases analyzed in a DGA test?

Answer: The common gases analyzed include:

• Hydrogen (H2)
• Methane (CH4)
• Ethylene (C2H4)
• Acetylene (C2H2)
• Ethane (C2H6)
• Carbon monoxide (CO)
• Carbon dioxide (CO2)
• Oxygen (O2)

Each gas has specific implications regarding the type of fault occurring within the transformer.

3. What does the presence of hydrogen in transformer oil indicate?

Answer: The presence of hydrogen typically indicates thermal fault conditions. It may result from overheating of the oil or insulation materials, which can lead to further degradation if not addressed.

4. How can DGA results be interpreted?

Answer: DGA results are interpreted using several methods, including:

• Key Gas Analysis: Identifying specific gases to indicate types of faults (e.g., high acetylene suggests arcing).
• Ratio Analysis: Comparing the ratios of gases to detect fault severity (e.g., the Duval Triangle method).
• IEC and IEEE Standards: Comparing results against established thresholds to determine the condition of the transformer.

5. What are the most common failure modes detected by DGA?

Answer: The common failure modes include:

• Overheating
• Electrical discharges (arcing)
• Insulation breakdown
• Moisture ingress
• Mechanical faults

6. What is the role of moisture in transformer oil, and how does it affect DGA results?

Answer: Moisture in transformer oil can significantly degrade insulation properties and lead to accelerated aging. It also contributes to the formation of gases, complicating DGA interpretation. Elevated moisture levels are often associated with insulation failure or leakage issues.

7. How often should DGA tests be performed on power transformers?

Answer: The frequency of DGA testing can vary based on the transformer’s age, service history, and operating conditions. Generally, it is recommended to perform DGA tests annually or biannually for routine monitoring, while more frequent testing may be necessary if previous tests indicated potential issues.

8. What sampling techniques are used for DGA testing?

Answer: Common sampling techniques include:

• Online sampling: Continuous monitoring using installed DGA monitors.
• Offline sampling: Taking samples from the transformer oil at regular intervals and analyzing them in a laboratory.

Proper sampling techniques are essential to ensure accurate results.

9. What equipment is used for conducting DGA tests?

Answer: The equipment used includes:

• Gas chromatographs (GC) for analyzing gas composition.
• Portable DGA analyzers for field testing.
• Oil sampling equipment and containers to collect samples without contamination.

10. How do you ensure the accuracy of DGA test results?

Answer: Ensuring accuracy involves:

• Using proper sampling techniques and clean equipment.
• Conducting tests in controlled environments to prevent contamination.
• Regular calibration and maintenance of testing instruments.
• Following standardized procedures and guidelines.

Conclusion

DGA testing is a critical aspect of transformer maintenance and reliability assessment. Interviewers may focus on technical knowledge, problem-solving abilities, and familiarity with industry standards. Understanding the fundamentals of DGA and its implications for transformer health will help candidates demonstrate their expertise during interviews.

The Power Transformer Power Factor (PF) or Power Factor Angle (PI) test is essential for assessing the insulation condition of transformers. Below are some common interview questions related to PI tests, along with detailed answers.

Interview Questions and Answers

1. What is a PI test, and why is it conducted on power transformers?

Answer:
A PI test, or Power Factor Insulation test, evaluates the insulation resistance of a transformer’s windings and core. The test involves applying a specific voltage and measuring the power factor, which indicates the quality of the insulation. A lower power factor suggests better insulation quality, while a higher value may indicate moisture, contamination, or degradation in insulation.

2. What equipment is used for conducting a PI test?

Answer:
A PI test is performed using a power factor test set or insulation tester, which typically includes:

• A high-voltage AC source.
• Measuring instruments (e.g., digital multimeter).
• A phase angle meter.
• Connection cables and probes.

3. What is the significance of the PI ratio?

Answer:
The PI ratio, calculated as the insulation resistance at 10 minutes divided by the resistance at 1 minute, helps determine the insulation condition. A higher PI ratio indicates good insulation quality, while a lower ratio signifies potential issues. A PI ratio of 1.0 or greater is generally considered acceptable for healthy insulation.

4. What are the standard procedures for conducting a PI test?

Answer:
The standard procedure includes:

• Disconnecting the transformer from the power source.
• Ensuring all safety measures are in place.
• Connecting the test equipment to the transformer windings.
• Applying the test voltage for specified durations (usually 1 minute and 10 minutes).
• Recording the insulation resistance and power factor values.
• Analyzing the results to assess insulation condition.

5. What factors can affect the PI test results?

Answer:
Several factors can influence PI test results, including:

• Temperature: Higher temperatures can reduce resistance.
• Humidity: Moisture ingress can lower insulation quality.
• Contamination: Dirt or dust can affect insulation performance.
• Previous maintenance history and insulation material used.

6. What are the acceptable power factor values for transformer insulation?

Answer:
Acceptable power factor values can vary, but generally:

• A power factor below 0.5 is considered good.
• Values between 0.5 and 1.0 indicate moderate insulation quality.
• A power factor above 1.0 suggests potential insulation problems and requires further investigation.

7. How do you interpret high PI test results?

Answer:
High PI test results (e.g., PI ratio significantly above 1.0) generally indicate good insulation health. However, if the results show an abrupt change compared to previous tests, it may suggest new issues that require further investigation.

8. What actions should be taken if the PI test results indicate poor insulation?

Answer:
If PI test results indicate poor insulation, actions may include:

• Performing further diagnostic tests, such as sweep frequency response analysis or insulation resistance testing.
• Evaluating the transformer for moisture or contamination.
• Considering drying methods, such as vacuum drying or using heat.
• Planning maintenance or replacement if issues persist.

9. Can you explain the difference between PI testing and insulation resistance testing?

Answer:
PI testing measures the power factor of the insulation under AC voltage, providing insight into the insulation's dielectric losses and quality. In contrast, insulation resistance testing measures the overall resistance of the insulation without considering losses, typically under DC voltage. Both tests complement each other in evaluating transformer insulation health.

10. What safety precautions should be taken during PI testing?

Answer:
Safety precautions include:

• Ensuring the transformer is isolated from the power source.
• Using appropriate personal protective equipment (PPE).
• Following lockout/tagout (LOTO) procedures.
• Maintaining clear communication among team members during testing.
• Keeping the testing area free from unauthorized personnel.

Conclusion

A thorough understanding of the PI test and its significance in transformer maintenance is crucial for engineers and technicians working in power systems. These interview questions can help assess a candidate's knowledge and experience with transformer testing procedures and their implications for equipment reliability and safety.

Preparing for an interview about power transformer stability tests requires a solid understanding of both theoretical concepts and practical applications. Here’s a compilation of potential interview questions and their answers:

1. What is a power transformer stability test?

Answer:
A power transformer stability test evaluates the transformer's ability to maintain its performance under varying load conditions and fault scenarios. This test assesses the transformer's voltage regulation, thermal performance, and dynamic response to disturbances, ensuring reliable operation in the electrical grid.

2. Why is transformer stability important?

Answer:
Transformer stability is crucial to prevent failures that can lead to equipment damage, system outages, or safety hazards. It ensures that transformers can handle load variations and transient conditions without experiencing significant voltage fluctuations or overheating.

3. What are the common types of stability tests conducted on power transformers?

Answer:
Common stability tests include:

• Short-Circuit Test: Measures the transformer's response to short-circuit conditions.
• Open-Circuit Test: Assesses the no-load characteristics and losses.
• Load Test: Evaluates performance under various loading conditions.
• Dynamic Stability Tests: Examine the response to sudden disturbances, including voltage dips and harmonics.

4. Explain the short-circuit test procedure.

Answer:
The short-circuit test involves:

1. Connecting the transformer secondary winding to a short circuit.
2. Applying a reduced voltage on the primary side to ensure the rated current flows through the transformer.
3. Measuring the current, voltage, and losses during the test.
4. Analyzing the results to determine parameters like impedance and short-circuit characteristics.

5. What is voltage regulation in transformers, and how is it measured?

Answer:
Voltage regulation refers to the change in secondary voltage when the load varies from no-load to full-load conditions, expressed as a percentage of full-load voltage. It is measured using the formula:

$$\text{Voltage Regulation} = \frac{V_{\text{no-load}} - V_{\text{full-load}}}{V_{\text{full-load}}} \times 100\%$$

6. What are the main factors affecting transformer stability?

Answer:
Factors affecting transformer stability include:

• Load Variations: Rapid changes in load can impact stability.
• Impedance: The transformer's impedance affects voltage regulation and fault tolerance.
• Cooling System Efficiency: Adequate cooling is necessary to manage heat generated during operation.
• Harmonics and Transients: Distortions in the voltage waveform can lead to instability.

7. How do you assess thermal stability in transformers?

Answer:
Thermal stability is assessed by monitoring the temperature rise of transformer windings and insulation during operation. This is done using temperature sensors and infrared thermography. The thermal performance is evaluated against specified limits to ensure safe operation and longevity.

8. What role do protection relays play in transformer stability?

Answer:
Protection relays detect abnormal conditions, such as overloads, short circuits, and ground faults, to protect transformers from damage. They help maintain stability by isolating faulty sections of the network and preventing cascading failures, ensuring safe operation under various conditions.

9. Can you explain the importance of the transformer’s impulse voltage test?

Answer:
The impulse voltage test checks the transformer's ability to withstand voltage surges due to lightning or switching events. This test verifies insulation integrity and helps predict the transformer's behavior during transient conditions, which is critical for ensuring reliability in the power system.

10. What measures can be taken to enhance transformer stability?

Answer:
To enhance transformer stability, the following measures can be taken:

• Implementing advanced protection schemes and automation.
• Regular maintenance and testing to identify and mitigate potential issues.
• Utilizing synchronous condensers or capacitor banks to improve voltage support.
• Optimizing transformer sizing and selection for specific load conditions.

Conclusion

Being well-prepared for these questions can help demonstrate your knowledge of power transformer stability testing during an interview. Emphasizing both theoretical concepts and practical applications will showcase your comprehensive understanding of the subject.

When preparing for an interview focused on power transformers, candidates should be ready to answer questions covering fundamental principles, calculations, and practical applications. Here’s a compilation of potential interview questions and answers regarding power transformer calculations:

1. What is a power transformer, and what are its primary functions?

Answer: A power transformer is an electrical device used to transfer electrical energy between two or more circuits through electromagnetic induction. Its primary functions are to step up (increase) or step down (decrease) voltage levels in electrical power systems, thus enabling efficient power transmission over long distances and maintaining system stability.

2. Explain the basic principles of transformer operation.

Answer: Transformers operate on the principle of electromagnetic induction. When an alternating current (AC) flows through the primary winding, it creates a magnetic field that induces a voltage in the secondary winding. The voltage transformation ratio is determined by the ratio of turns in the primary and secondary coils.

3. What is the formula for calculating transformer turns ratio?

Answer: The turns ratio (TR) can be calculated using the formula:

$$TR = \frac{V_p}{V_s} = \frac{N_p}{N_s}$$

Where:

• $V_p$ = Primary voltage
• $V_s$ = Secondary voltage
• $N_p$ = Number of turns in the primary winding
• $N_s$ = Number of turns in the secondary winding

4. How do you calculate the output voltage of a transformer given its input voltage and turns ratio?

Answer: The output voltage ($V_s$) can be calculated using the formula:

$$V_s = \frac{N_s}{N_p} \times V_p$$

This shows that the secondary voltage is proportional to the turns ratio and the primary voltage.

5. What are the losses in a transformer, and how do you calculate them?

Answer: The main losses in a transformer are:

• Copper Losses: Due to the resistance of the windings and can be calculated using:

  $$P_{cu} = I^2 R$$

  Where $I$ is the current through the winding and $R$ is the resistance.

• Core Losses: These include hysteresis and eddy current losses, calculated using:

  $$P_{core} = P_h + P_e$$

  Where $P_h$ is hysteresis loss and $P_e$ is eddy current loss. Core losses can often be determined using manufacturer's specifications or tested values.

6. What is the efficiency of a transformer, and how is it calculated?

Answer: The efficiency ($\eta$) of a transformer is the ratio of output power to input power and can be calculated using the formula:

$$\eta = \frac{P_{out}}{P_{in}} \times 100\%$$

Where $P_{out}$ is the power delivered to the load and $P_{in}$ is the power supplied to the transformer. Efficiency can also be calculated considering losses:

$$\eta = \frac{P_{out}}{P_{out} + P_{loss}} \times 100\%$$

7. How do you perform short-circuit testing on a transformer?

Answer: Short-circuit testing is performed to determine the transformer’s impedance and copper losses. The secondary winding is shorted, and a reduced voltage is applied to the primary until rated current flows. Measurements of voltage, current, and power are taken to calculate the short-circuit impedance and losses.

8. Can you explain the difference between single-phase and three-phase transformers?

Answer: A single-phase transformer has two windings (primary and secondary) and is used in residential or light commercial applications. A three-phase transformer consists of three sets of primary and secondary windings and is used in industrial and large commercial applications for higher power ratings. Three-phase transformers are more efficient for power distribution due to better load balancing.

9. What is the significance of the transformer impedance?

Answer: Transformer impedance is crucial for voltage regulation and determining the short-circuit current. It affects the performance of the transformer under load conditions, influencing how much the voltage drops when the transformer is supplying current. Impedance is generally expressed as a percentage of the rated voltage and can be calculated from short-circuit test results.

10. How do you calculate the kVA rating of a transformer?

Answer: The kVA rating of a transformer can be calculated using the formula:

$$kVA = \frac{V \times I}{1000}$$

Where:

• $V$ = Voltage (in volts)
• $I$ = Current (in amperes)

The kVA rating indicates the apparent power capacity of the transformer, which is critical for determining load compatibility.

Conclusion

Being well-versed in these concepts and calculations is essential for demonstrating your knowledge of power transformers during an interview. Understanding practical applications and implications of these calculations can further enhance your responses and showcase your expertise in the field.

Here’s a list of common interview questions and their answers related to power transformer losses:

1. What are the main types of losses in a power transformer?

Answer: The main types of losses in a power transformer are:

• Copper Losses (I²R losses): These occur in the windings due to the resistance of the copper wire when current flows through it. Copper losses increase with the square of the load current.

• Core Losses (Iron Losses): These consist of hysteresis and eddy current losses in the transformer core. Hysteresis loss occurs due to the magnetization and demagnetization of the core material, while eddy current loss is caused by circulating currents induced in the core.

• Stray Losses: These are due to leakage flux that induces currents in non-magnetic parts of the transformer, like the tank and supporting structures.

2. How can transformer losses be minimized?

Answer: Transformer losses can be minimized through:

• Using High-Quality Materials: Employing better grade electrical steel for the core can reduce hysteresis loss, while using conductors with lower resistance helps minimize copper losses.

• Optimal Design: Designing the transformer with adequate insulation and proper winding configurations can improve efficiency and reduce losses.

• Regular Maintenance: Ensuring the transformer is regularly maintained and any issues (like hot spots or damaged insulation) are addressed promptly can help minimize losses.

• Cooling Systems: Implementing effective cooling systems can help maintain lower operational temperatures, thereby reducing resistance and losses.

3. What is the significance of the no-load test and short-circuit test in determining losses?

Answer: The no-load test and short-circuit test are crucial for assessing transformer losses:

• No-load Test: Conducted with the secondary winding open, this test measures the core losses (hysteresis and eddy current losses) as the primary winding is energized at rated voltage. The power consumed during this test indicates the core loss.

• Short-circuit Test: Performed with the primary winding shorted, this test measures copper losses. By applying a reduced voltage to the primary, the current can be kept low, allowing the determination of copper losses under full-load conditions.

4. What factors affect copper losses in a transformer?

Answer: Copper losses in a transformer are affected by:

• Load Current: As load increases, the current through the windings increases, leading to higher copper losses (I²R losses).

• Temperature: The resistance of copper increases with temperature, which can also increase copper losses.

• Winding Resistance: The inherent resistance of the copper windings affects copper losses; lower resistance results in lower losses.

5. How do you calculate the efficiency of a transformer considering losses?

Answer: The efficiency of a transformer can be calculated using the formula:

$$\text{Efficiency} (\eta) = \frac{\text{Output Power}}{\text{Output Power} + \text{Total Losses}} \times 100$$

Where total losses include both copper and core losses. It's often expressed in percentage.

6. What is the impact of temperature on transformer losses?

Answer: Temperature impacts transformer losses significantly:

• Copper Losses: As temperature increases, the resistance of the copper windings rises, leading to increased copper losses.

• Core Losses: Core losses (hysteresis and eddy currents) can also be affected by temperature, as the properties of the core material may change, impacting hysteresis loss.

• Overall Efficiency: Higher temperatures can decrease efficiency, leading to more significant energy losses during operation.

7. Explain the relationship between load and losses in a transformer.

Answer: The relationship between load and losses in a transformer is as follows:

• At No Load: Core losses (constant losses) dominate, as they occur regardless of the load.

• At Full Load: Copper losses become significant and increase with the square of the load current (I²R losses).

• Overall: Total losses increase with load, but the proportion of copper losses to core losses changes. At low loads, core losses are higher relative to copper losses, while at high loads, copper losses dominate.

8. What is a transformer’s heat rise, and how does it relate to losses?

Answer: Heat rise in a transformer refers to the increase in temperature above ambient conditions due to losses. It is directly related to:

• Copper and Core Losses: These losses convert electrical energy into heat. The more significant the losses, the higher the heat rise.

• Cooling Mechanisms: Effective cooling is essential to dissipate this heat. Excessive heat can lead to insulation failure and reduced transformer life.

Understanding and managing heat rise is critical for maintaining transformer efficiency and longevity.

Conclusion

These questions provide a solid foundation for understanding power transformer losses, critical for anyone preparing for interviews in electrical engineering or related fields.
