Voltage Drop in Cables: Understanding the Basics

Voltage drop refers to the reduction in electrical voltage that occurs as electric current flows through a cable or conductor. This phenomenon is a common issue in electrical installations, particularly when long cable runs are involved. Voltage drop can affect the performance of electrical devices, leading to inefficient operation or even potential damage if not properly managed.

What Causes Voltage Drop?

Voltage drop is primarily caused by the resistance of the conductor material and the current flowing through it. The key factors contributing to voltage drop include:

1. Conductor Material: Different materials have different electrical resistances. Copper is commonly used for its low resistance, while aluminum, though cheaper, has higher resistance.
2. Length of the Cable: The longer the cable, the higher the resistance, and thus a greater voltage drop. This is why long cable runs require thicker cables to minimize voltage loss.
3. Cross-sectional Area (Cable Size): A larger cross-sectional area results in lower resistance, thereby reducing voltage drop. For this reason, larger cables are used when a higher current flow is expected or when covering longer distances.
4. Current Flow (Amperage): The higher the current flowing through a conductor, the more significant the voltage drop. This is because more electrons flowing through the conductor create more resistance.

Formula for Calculating Voltage Drop

The voltage drop across a cable can be calculated using the formula:

$$\text{Voltage Drop (V)} = \frac{2 \times \text{Length (L)} \times \text{Current (I)} \times \text{Resistance (R)}}{1000}$$

Where:

• L = length of the cable (in meters)
• I = current (in amperes)
• R = resistance of the conductor (in ohms per kilometer)

The factor of 2 accounts for the fact that the current must travel through the cable and back (in a closed circuit).

Effects of Voltage Drop

1. Reduced Efficiency: Excessive voltage drop can cause electrical equipment to operate below their intended voltage, reducing their efficiency.
2. Heat Generation: Voltage drop also contributes to heat generation in cables, which can be dangerous if it reaches a level where insulation or the conductor is compromised.
3. Equipment Damage: Sensitive equipment can be damaged or experience shortened lifespan if exposed to continuous voltage drops below their operating range.

Permissible Voltage Drop Limits

Different standards and codes provide guidelines for the maximum allowable voltage drop. For instance:

• In general lighting circuits, a maximum voltage drop of around 3% is recommended.
• For power circuits and motor loads, a voltage drop of 5% is often considered acceptable.

These guidelines ensure that the voltage supplied to devices is within acceptable limits, avoiding operational issues.

How to Reduce Voltage Drop

1. Use Larger Cables: Increasing the cross-sectional area of the conductor reduces resistance and thus voltage drop.
2. Shorten Cable Runs: Keeping cables as short as possible helps minimize the resistance and the associated voltage drop.
3. Use Lower Resistance Materials: Using conductors with lower resistivity, such as copper, can significantly reduce voltage drop.
4. Consider Higher Voltages: Using higher voltage levels for power transmission can reduce the current required, thereby decreasing the voltage drop over long distances.

Practical Applications

Voltage drop calculations are particularly important in the design of power distribution systems, solar panel installations, and industrial electrical setups. For example, when designing a solar power system, voltage drop calculations ensure that the energy generated by the panels is efficiently delivered to the batteries or the grid. Similarly, in industrial settings, long cable runs require precise calculations to ensure machinery operates safely and efficiently.

By understanding and managing voltage drop, engineers and electricians can ensure that electrical systems are both safe and efficient, avoiding costly issues and maintaining proper operation.

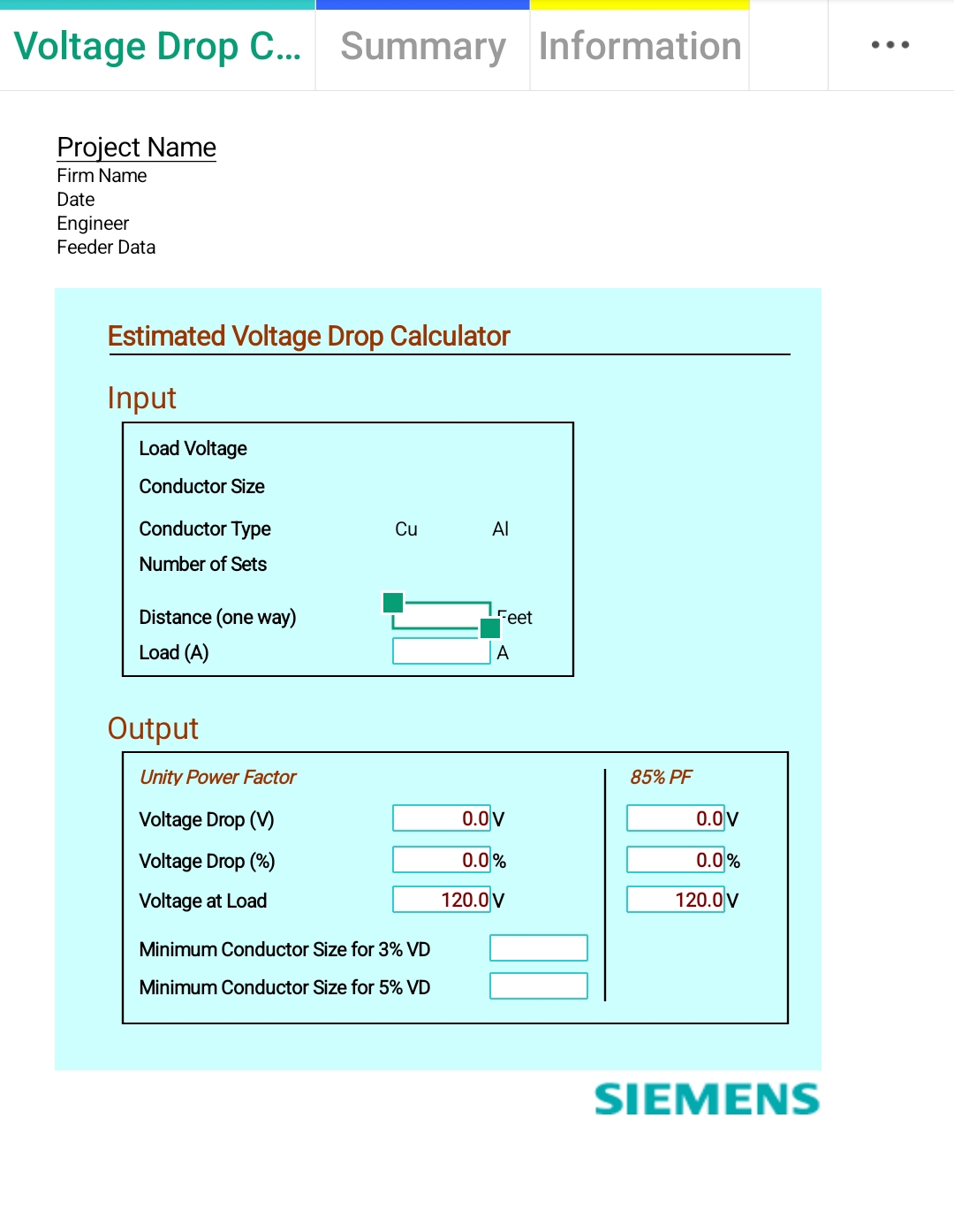

The Estimated Voltage Drop Calculator is a tool designed to estimate the reduction in voltage that occurs as electricity flows through a conductor, such as a wire, from a power source to a load (e.g., appliances, machinery). This voltage drop happens due to the resistance of the conductor material and the length of the wire, which causes some energy to be lost as heat.

Key Factors in Voltage Drop Calculations:

1. Conductor Material: Common materials include copper and aluminum, which have different levels of electrical resistance. Copper typically has lower resistance than aluminum, making it more efficient in minimizing voltage drop.

2. Wire Size (AWG - American Wire Gauge): The thickness of the wire significantly affects the voltage drop. Larger wires (lower AWG numbers) have lower resistance and thus result in a smaller voltage drop compared to thinner wires (higher AWG numbers).

3. Length of the Conductor: The longer the wire, the greater the resistance, which increases the voltage drop. This factor is particularly important when designing circuits for longer distances, such as between buildings or across large industrial facilities.

4. Current (Amperage): Higher currents cause greater voltage drops since more electricity is flowing through the conductor. Estimating the amperage is crucial to determining the correct wire size to minimize voltage loss.

5. Voltage of the System: The system’s operating voltage (e.g., 120V, 240V) is used as a reference point for determining what constitutes an acceptable voltage drop. The voltage drop is often calculated as a percentage of the original voltage.

How the Estimated Voltage Drop Calculator Works:

The calculator typically uses the following formula to estimate voltage drop:

$$\text{Voltage Drop (V)} = \frac{2 \times L \times I \times R}{1000}$$

Where:

• $L$ = Length of the conductor in feet (round-trip distance)
• $I$ = Current in amperes (A)
• $R$ = Resistance per 1000 feet of the wire based on its material (Ohms)

Some calculators also include fields for selecting conductor type (copper or aluminum) and system voltage, allowing for more tailored results.

Practical Uses:

• Electrical Design: Electricians, engineers, and contractors use these calculators to ensure that voltage drops stay within acceptable limits (usually less than 3-5%). This ensures efficient power delivery, reducing the risk of equipment malfunction or damage.
• Compliance with Standards: Building codes often have guidelines for acceptable voltage drops, and the calculator can help ensure compliance with these standards.
• Cost Efficiency: It helps in selecting the right wire size to avoid overspending on unnecessarily large wires while preventing the issues caused by undersized wires.

In summary, an Estimated Voltage Drop Calculator is an essential tool for ensuring safe and efficient electrical installations by providing insights into the potential energy loss through conductors, enabling users to choose the correct wiring and optimize their electrical systems.

Click here (Download)

Estimated-Voltage-Drop-Calculator-SIEMENS

The Estimated Voltage Drop refers to the reduction in voltage as electrical current travels through conductors, such as wires or cables, over a certain distance. This drop occurs due to the resistance or impedance of the conductors, which causes some of the electrical energy to be lost as heat. Understanding and calculating voltage drop is critical in designing electrical systems, especially when ensuring that devices or appliances receive the proper voltage to operate effectively.

Factors Affecting Voltage Drop

1. Conductor Length: Longer distances cause a greater voltage drop. The further electricity has to travel through a wire, the more resistance it encounters, which results in a greater reduction in voltage.
2. Conductor Material: Copper and aluminum are common conductor materials, with copper having a lower resistance and thus a lower voltage drop compared to aluminum for the same size and length of wire.
3. Conductor Size (Gauge): Thicker wires (lower gauge numbers) have less resistance, which means they cause a lower voltage drop. For longer runs or higher current requirements, using a thicker wire can help minimize the voltage drop.
4. Current Flow (Amperage): Higher current flow increases the voltage drop. As the amount of current (measured in amperes) increases, the resistance in the wire generates more heat, leading to a higher voltage loss.
5. Temperature: Higher temperatures can increase the resistance of a conductor, further contributing to the voltage drop. This is particularly important in environments where temperature variations are significant.

Formula for Estimating Voltage Drop

The voltage drop in a conductor can be estimated using the following formula:

$$\text{Voltage Drop (V)} = \frac{2 \times I \times L \times R}{1000}$$

Where:

• $I$: Current in amperes (A)
• $L$: Length of the conductor (one-way distance) in meters or feet
• $R$: Resistance per unit length (ohms per meter or feet) for the conductor material

The factor of 2 accounts for the return path of the circuit (outgoing and return conductors).

Importance of Managing Voltage Drop

• Safety: Excessive voltage drop can cause electrical components and devices to underperform or even fail, which might lead to safety hazards such as overheating or fire risks.
• Efficiency: Minimizing voltage drop improves the efficiency of electrical systems by ensuring that the maximum possible voltage is available at the end-use point.
• Regulatory Compliance: Many electrical codes specify allowable voltage drop limits for different types of installations to ensure that circuits function properly and maintain safety.

In general, a voltage drop of 3% or less is considered acceptable for branch circuits, while a total of 5% is often the maximum allowed for the entire circuit, including the feeder and branch circuits.
