Electrical Wiring Interview Questions and Answers

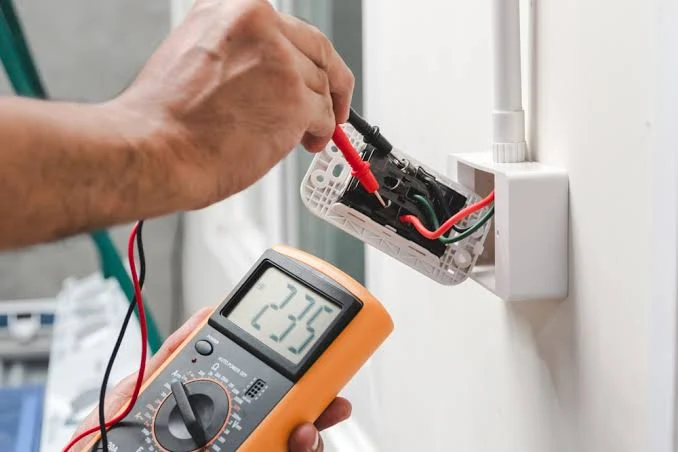

Preparing for an interview on electrical wiring requires understanding basic principles, safety protocols, and some technical know-how. Below are some common interview questions related to electrical wiring along with suggested answers to help guide you through:

1. What is electrical wiring?

• Answer: Electrical wiring refers to the system of conductors and devices used to distribute electrical power throughout a building. It includes cables, wires, switches, outlets, and more, and it connects various devices to the power source, ensuring a safe and efficient flow of electricity.

2. What are the types of electrical wiring systems?

• Answer: Common types of electrical wiring systems include:
  • Cleat Wiring: Uses PVC or porcelain cleats for temporary wiring.
  • Conduit Wiring: Wires are encased in metal or plastic conduits, providing protection and durability.
  • Casing and Capping Wiring: A traditional method where PVC or wooden channels cover the wiring.
  • Batten Wiring: Wires are secured to wooden battens using clips.
  • Lead Sheathed Wiring: Wires are covered with a lead sheath for protection.

3. What is the importance of grounding (earthing) in electrical wiring?

• Answer: Grounding provides a safe path for electrical currents to disperse into the ground, preventing electrical shocks and damage to appliances. It helps in protecting both people and equipment from high voltage surges and lightning strikes by stabilizing voltage levels.

4. What are some common wiring materials used?

• Answer: The most commonly used materials in electrical wiring include:
  • Copper Wires: Known for high conductivity and durability, ideal for most residential and commercial applications.
  • Aluminum Wires: Lighter than copper and used in specific cases, though it has a lower conductivity.
  • PVC Insulation: Provides insulation for wires to prevent electrical shocks and short circuits.
  • Metal Conduits: Used to house wires and protect them from physical damage and environmental factors.

5. What is a circuit breaker, and how does it work?

• Answer: A circuit breaker is a safety device designed to protect an electrical circuit from damage caused by overcurrent, overload, or short circuits. It works by automatically cutting off the electrical flow when it detects a fault, preventing potential fire hazards and equipment damage.

6. Explain the difference between a single-phase and three-phase system.

• Answer:
  • Single-Phase System: Typically used in residential wiring, it has one live wire and one neutral wire. It provides less power and is suitable for household appliances.
  • Three-Phase System: Commonly used in industrial and commercial settings, it has three live wires and one neutral wire. It can deliver higher power efficiently over long distances and is suitable for heavy machinery and equipment.

7. What is the color coding for electrical wiring?

• Answer: Color codes help identify the type of wire in an electrical system, and they can vary by country. For example:
  • Live wire: Red, Black, or Brown.
  • Neutral wire: Blue or White.
  • Earth wire (Ground): Green or Green with a Yellow stripe.
  • It’s essential to follow local electrical codes to ensure safety and consistency.

8. What is a GFCI, and where is it used?

• Answer: A Ground Fault Circuit Interrupter (GFCI) is a device designed to protect against electrical shock by quickly shutting off power when it detects a ground fault or leakage current. It is commonly used in areas with water exposure, such as bathrooms, kitchens, and outdoor outlets, where the risk of electric shock is higher.

9. What safety precautions should be taken while working with electrical wiring?

• Answer: Safety is paramount when dealing with electrical systems. Key precautions include:
  • Turning off the main power before starting any work.
  • Using insulated tools.
  • Wearing protective gear like rubber gloves and safety glasses.
  • Testing circuits with a voltage tester before touching wires.
  • Following local electrical codes and guidelines for installations.
  • Avoiding water or damp areas while working on live circuits.

10. How do you calculate the load capacity of a circuit?

• Answer: To calculate the load capacity, use the formula: Wattage = Voltage x Current (Amperes). For example, if you have a 120-volt circuit with a 15-amp breaker, the load capacity is:
  • Wattage = 120V x 15A = 1800 watts.
  • It’s advisable to only use about 80% of a circuit's capacity for safety, which would be around 1440 watts in this example.

11. What is a short circuit, and how can it be prevented?

• Answer: A short circuit occurs when a live wire comes into contact with a neutral wire, causing an unintended high current flow that can damage the wiring and cause fires. To prevent short circuits:
  • Regularly inspect wiring for damage or wear.
  • Use circuit breakers or fuses.
  • Properly insulate wires.
  • Avoid overloading circuits.

12. What is the difference between AC and DC wiring?

• Answer:
  • AC (Alternating Current): Current changes direction periodically, used in homes and businesses for general power supply.
  • DC (Direct Current): Current flows in one direction, used in batteries and electronics. Wiring for DC systems typically requires consideration of polarity, while AC systems focus on phase and grounding.

13. What tools do you use for electrical wiring?

• Answer: Essential tools for electrical wiring include:
  • Wire Strippers: To remove insulation from wires.
  • Voltage Testers: For checking if a circuit is live.
  • Multimeter: Measures voltage, current, and resistance.
  • Fish Tape: For pulling wires through conduit.
  • Screwdrivers and Pliers: For connecting wires and securing connections.
  • Conduit Benders: For shaping metal conduits.

14. How do you handle troubleshooting in electrical wiring?

• Answer: Troubleshooting involves a systematic approach:
  • Identify the Problem: Check for tripped breakers, blown fuses, or faulty switches.
  • Inspect Wiring: Look for loose connections, damaged insulation, or exposed wires.
  • Use a Multimeter: Measure continuity and voltage to identify faulty circuits.
  • Replace Faulty Components: Replace damaged outlets, switches, or wires.

15. What is a junction box, and why is it used?

• Answer: A junction box is an enclosure used to house and protect wire connections. It serves as a central point where wires join and is crucial for safety as it prevents accidental contact with live wires and protects the connections from dust, moisture, and mechanical damage.

These questions cover a range of basic concepts and safety measures associated with electrical wiring, helping you demonstrate both technical knowledge and awareness of best practices. Understanding these topics will better prepare you for questions that may arise during the interview.

Interview questions related to electrical wiring rules often focus on safety standards, installation practices, and regulatory knowledge. Here’s a compilation of potential questions and answers that might be asked during an interview for an electrician or an electrical technician position:

1. What is the purpose of electrical wiring rules?

• Answer: Electrical wiring rules provide guidelines and standards for the installation, testing, and maintenance of electrical systems. They ensure safety, prevent electrical hazards like shocks and fires, and help in maintaining uniformity in electrical installations. Adhering to these rules is crucial for compliance with local regulations and safety codes.

2. What are some of the common electrical wiring standards?

• Answer: Common standards include the National Electrical Code (NEC) in the United States, IEC (International Electrotechnical Commission) standards, and AS/NZS 3000 (Australian/New Zealand Wiring Rules). These standards cover wiring methods, safety protocols, and guidelines for electrical installations in residential, commercial, and industrial settings.

3. What is the importance of earthing/grounding in electrical systems?

• Answer: Earthing (grounding) is crucial for protecting people and equipment from electrical faults. It ensures that any stray voltage or fault currents are directed safely to the ground, preventing electric shocks and reducing the risk of electrical fires. It also stabilizes the voltage levels in the system.

4. What is the difference between a circuit breaker and a fuse?

• Answer: A circuit breaker is an automatic switch that opens a circuit when it detects an overload or short circuit, and it can be reset after tripping. A fuse contains a metal wire or strip that melts when excessive current flows through it, breaking the circuit. Fuses must be replaced once they blow, while circuit breakers can be reused.

5. Explain the difference between single-phase and three-phase wiring.

• Answer: Single-phase wiring uses a single alternating voltage, suitable for smaller residential and light commercial loads. It typically operates at 120V or 240V. Three-phase wiring, on the other hand, uses three alternating currents, each phase separated by 120 degrees. It is more efficient for delivering high power loads and is commonly used in industrial and large commercial installations.

6. What are the color codes for electrical wiring in residential installations?

• Answer: The color codes for electrical wiring vary by region:
  • In the USA, Black or Red is used for live wires, White for neutral, and Green or Bare wire for grounding.
  • In the UK, Brown is used for live, Blue for neutral, and Green/Yellow for earth.
  • In Australia, Brown is used for active (live), Blue for neutral, and Green/Yellow for earth.

7. What is an RCD, and why is it important?

• Answer: An RCD (Residual Current Device), also known as a GFCI (Ground Fault Circuit Interrupter), is a safety device that detects leakage currents and disconnects the circuit if a fault occurs. It prevents electrocution by cutting off power if it detects a difference between the live and neutral currents, indicating a potential leak to earth.

8. What is a short circuit, and how can it be prevented?

• Answer: A short circuit occurs when a low-resistance path allows current to flow between two points at different potentials, bypassing the normal load. This can cause excessive current flow, leading to overheating and potential fires. To prevent short circuits, insulation should be checked regularly, conductors should be properly separated, and protective devices like circuit breakers should be installed.

9. How do you calculate the size of the wire required for a particular electrical load?

• Answer: The size of the wire depends on the current-carrying capacity of the wire, the length of the run, and the voltage drop considerations. To calculate the wire size, you can use formulas or reference tables from standards like the NEC, which specify the ampacity of conductors based on material (copper or aluminum), insulation type, and ambient temperature.

10. What is the role of conduit in electrical installations?

• Answer: Conduits protect electrical wires from mechanical damage, moisture, and chemical exposure. They also help maintain an organized routing of wires and cables. Conduits can be made from various materials, such as PVC, steel, or flexible plastic, depending on the environment and type of installation.

11. What is a three-way switch, and where is it used?

• Answer: A three-way switch allows control of a single light or a group of lights from two different locations. It is commonly used in staircases, hallways, and large rooms where it is convenient to control lighting from multiple points. It uses two three-way switches with a traveler wire connecting them.

12. What safety measures should be taken before working on an electrical system?

• Answer: Some key safety measures include:
  • Turning off the main power supply and locking it out.
  • Using proper personal protective equipment (PPE) like insulated gloves and safety glasses.
  • Testing circuits with a multimeter to ensure no voltage is present.
  • Ensuring proper grounding and use of insulated tools.

13. What is voltage drop, and why is it important to consider in wiring?

• Answer: Voltage drop refers to the reduction in voltage as electricity travels through a conductor due to the resistance of the wire. Excessive voltage drop can cause inefficient operation of electrical devices and increased energy consumption. It is important to consider the length and size of the wire to minimize voltage drop, especially in long runs.

14. Can you explain the difference between series and parallel circuits?

• Answer: In a series circuit, components are connected end-to-end, so the same current flows through each component. A break in the circuit stops the entire current flow. In a parallel circuit, components are connected across the same voltage source, allowing the current to flow through multiple paths. A break in one branch doesn’t affect the others, making parallel circuits more common in household wiring.

15. What is the significance of load balancing in three-phase systems?

• Answer: Load balancing ensures that each phase in a three-phase system carries an equal amount of electrical load. This minimizes the risk of overloading a single phase, reduces energy losses, and ensures that the power supply is more stable and efficient. It also helps in prolonging the life of electrical equipment by reducing strain on the system.

These questions cover a range of fundamental and technical aspects related to electrical wiring rules, aimed at testing knowledge and practical understanding. Interviewers often look for candidates who not only know the rules but also understand their application in real-world scenarios.

Here is a list of common interview questions related to electrical wiring earthing (grounding) along with suggested answers:

1. What is Earthing in Electrical Systems?

• Answer: Earthing (or grounding) refers to the process of connecting the non-current-carrying parts of electrical equipment to the ground. This helps prevent electrical shocks, protects equipment, and ensures safety by directing fault currents safely into the earth.

2. Why is Earthing Important in Electrical Installations?

• Answer: Earthing is crucial because it ensures safety for people and equipment. It provides a path for fault currents to flow to the earth, minimizing the risk of electric shock, preventing fires, and protecting equipment from damage due to voltage surges.

3. What are the Types of Earthing?

• Answer: The main types of earthing are:
  • Pipe Earthing: Uses a GI pipe buried in a pit to provide a low resistance path to earth.
  • Plate Earthing: Uses a metal plate (GI or copper) buried in the ground to achieve earthing.
  • Rod Earthing: Uses a copper rod or GI rod driven into the ground.
  • Strip or Wire Earthing: Involves burying strips or wires of GI or copper in a trench to achieve a grounding system.

4. What is a Grounding Electrode, and How is It Used?

• Answer: A grounding electrode is a conductor, such as a rod, pipe, or plate, that is in direct contact with the ground to provide a path for fault current. It ensures that any leakage or fault current is safely directed into the earth, reducing the risk of electrical hazards.

5. What is the Difference Between Earthing, Grounding, and Neutral?

• Answer:
  • Earthing: It connects the equipment to the ground to prevent shock.
  • Grounding: It usually refers to the system's reference point, like the ground point in a substation.
  • Neutral: It is a return path for current in an AC system and is usually connected to the earth at a point to maintain stability in the system.

6. What is a Good Earthing Resistance Value?

• Answer: The ideal value of earth resistance for a safe installation is typically below 1 ohm for large installations like substations. For general residential installations, an earth resistance value of up to 5 ohms is acceptable. The lower the earth resistance, the better the earthing.

7. How Can You Measure Earthing Resistance?

• Answer: Earthing resistance can be measured using an instrument called an earth resistance tester or megger. The commonly used methods include the fall-of-potential method, clamp-on method, and three-point method. The fall-of-potential method is the most accurate among them.

8. What is the Function of an Earthing Pit?

• Answer: An earthing pit is a location where the grounding electrode (like a rod or plate) is buried. The pit is usually filled with a mixture of salt and charcoal or other conductive materials to reduce the resistance between the earth and the electrode, thus ensuring effective grounding.

9. What Materials are Commonly Used for Earthing Electrodes?

• Answer: Common materials include:
  • Copper rods or plates for their high conductivity and corrosion resistance.
  • Galvanized Iron (GI) rods or pipes for a cost-effective solution.
  • Stainless steel rods in certain applications where corrosion resistance is needed.

10. What are the Main Components of an Earthing System?

• Answer: The main components include:
  • Earth Electrode: A conductor placed in contact with the ground.
  • Earthing Conductor: A conductor connecting the electrical installation to the earthing electrode.
  • Earth Continuity Conductor: Connects various metallic parts of the system to the main earthing terminal.

11. What is a Ground Fault?

• Answer: A ground fault occurs when there is an unintentional connection between an energized conductor and the ground or an equipment frame. This can cause the flow of a large amount of current, which, if not properly grounded, can lead to electric shocks or fire hazards.

12. What is the Difference Between TT, TN, and IT Earthing Systems?

• Answer:
  • TT System: Has a direct connection to earth at the consumer side.
  • TN System: The neutral is earthed at the transformer and connected to the equipment.
  • IT System: The transformer or generator has an isolated or impedance grounded neutral with an earth connection at the equipment end.

13. How Does a Surge Protector Relate to Earthing?

• Answer: A surge protector diverts excess voltage (caused by lightning strikes or power surges) to the earth, protecting the electrical devices from damage. For this to work effectively, the grounding system must have low resistance to provide an easy path for the surge current to flow into the earth.

14. What are the Standard Earthing Colors?

• Answer: Earthing wires are typically colored green or green-yellow to easily distinguish them from phase and neutral conductors. This color coding helps ensure safety and proper connections during installation and maintenance.

15. What is the Role of a Grounding Grid in High Voltage Installations?

• Answer: A grounding grid is a network of conductors laid in the ground to provide a low-resistance path for fault currents in high-voltage installations like substations. It ensures the safety of personnel and equipment by maintaining the potential difference between the earth and nearby conductive surfaces to a safe level.

16. What are the Consequences of Poor Earthing?

• Answer: Poor earthing can lead to:
  • Electric shock hazards for people.
  • Equipment damage due to overvoltages.
  • Fires from arcing faults.
  • Malfunctioning of electrical protection devices like circuit breakers and RCDs.

17. How Do You Maintain an Earthing System?

• Answer: Regular maintenance involves:
  • Checking the earth resistance periodically.
  • Inspecting the condition of the grounding electrode and earthing pit.
  • Ensuring all connections are tight and free of corrosion.
  • Replacing any corroded components as needed.

18. What is Step and Touch Potential?

• Answer:
  • Step Potential: The voltage difference between two points on the ground when a fault current flows through the earth.
  • Touch Potential: The voltage difference between a grounded object and the feet of a person touching that object. Proper earthing reduces these potentials to safe levels.

19. Can Earthing be Done on a Rocky Terrain?

• Answer: Yes, earthing can be done on rocky terrain, but it requires special measures such as using multiple grounding rods, chemical earthing, or using additional conductive materials to lower the earth resistance.

20. What is Chemical Earthing, and When is It Used?

• Answer: Chemical earthing involves using backfill compounds like bentonite or conductive powders to enhance conductivity around the earth electrode. It is used in areas where the soil resistivity is high, such as dry or rocky regions, to achieve a low-resistance earthing system.

These questions cover a broad range of topics related to electrical earthing, and preparing answers like these will help candidates demonstrate their knowledge during interviews.

Interview questions about electrical wiring rules in India often focus on standards, safety practices, and technical details related to wiring installation, maintenance, and compliance with regulations. Below is an overview of typical questions that may be asked during such interviews, along with suggested answers.

1. What is the Indian Standard (IS) code for electrical wiring?

• Answer: The primary Indian Standard code for electrical wiring is IS 732, which provides guidelines for electrical wiring in residential and commercial buildings. It covers general wiring practices, the installation of wiring systems, and safety measures to ensure a secure electrical setup. Additionally, National Electrical Code (NEC) 2011 (IS: 732) is also referenced for safe installation practices in various conditions.

2. What are the key safety precautions while doing electrical wiring?

• Answer: Key safety precautions include:
  • Switching off the power supply before starting work.
  • Using insulated tools.
  • Ensuring proper earthing to prevent shock.
  • Double-checking the circuit to ensure no live wires are exposed.
  • Using high-quality, fire-resistant wires as per IS standards.
  • Following the appropriate color codes for live (red), neutral (black), and earth (green or yellow-green) wires.

3. What is the importance of earthing in electrical installations?

• Answer: Earthing is crucial as it provides a low-resistance path for fault currents, helping to protect people from electric shock. It ensures that in case of a short circuit, the excess current flows to the ground, reducing the risk of electrical fires and damage to electrical appliances. It is mandatory as per IS 3043, which specifies the guidelines for earthing practices in India.

4. What is the standard color coding for wires in India?

• Answer: The standard color coding for wires in India is:
  • Red: Live or Phase wire
  • Black: Neutral wire
  • Green or Yellow-Green: Earth wire
  • This color coding is essential to avoid confusion and ensure safety during maintenance or repairs.

5. What is the difference between single-phase and three-phase wiring?

• Answer:
  • Single-Phase Wiring: It involves one live wire and one neutral wire. It is typically used for residential and light commercial buildings where the power requirements are lower.
  • Three-Phase Wiring: It includes three live wires and one neutral wire. It is used in industrial settings or large commercial spaces with higher power needs as it can carry more current and distribute it evenly, providing better efficiency.

6. What factors should be considered when selecting cable sizes for wiring?

• Answer: Cable size selection depends on:
  • Load Requirement: The total load (current and voltage) to be supplied determines the cross-sectional area of the cable.
  • Length of the Cable Run: Longer cables require larger sizes to reduce voltage drop.
  • Type of Wiring Installation: The environment (like concealed or open wiring) and the installation method impact the size due to different heat dissipation needs.
  • Standards: Compliance with IS 694 (for PVC-insulated cables) and IS 1554 (for rubber-insulated cables) ensures the cables meet safety and performance standards.

7. What is a Residual Current Device (RCD), and why is it used?

• Answer: An RCD or Residual Current Device is a safety device that quickly cuts off the electrical circuit in case of a leakage current or a ground fault, protecting against electric shocks and potential fires. It is highly effective in preventing injuries and damages caused by faulty wiring or insulation. In India, its use is recommended for domestic circuits as per safety standards.

8. What is the permissible voltage drop in a domestic electrical installation as per Indian standards?

• Answer: As per IS 732, the permissible voltage drop in a domestic electrical installation should not exceed 2% for lighting circuits and 3% for power circuits from the main supply to the farthest point. This helps ensure that the end appliances receive adequate voltage for proper functioning.

9. What are the different types of electrical conduits used in wiring?

• Answer: The common types of conduits used in India include:
  • PVC Conduits: Lightweight, corrosion-resistant, and commonly used for indoor wiring.
  • GI Conduits: Galvanized Iron conduits are stronger and used in areas where mechanical protection is needed.
  • Flexible Conduits: Useful for areas where rigid conduits cannot be used, such as in curved spaces or where flexibility is needed.

10. What is the difference between MCB and MCCB?

• Answer:
  • MCB (Miniature Circuit Breaker): It is used for low current circuits, typically up to 100 amps. It automatically switches off during overload or short circuits in residential and small-scale applications.
  • MCCB (Molded Case Circuit Breaker): It is used for higher current capacities (up to 2500 amps) and offers better protection for industrial and commercial installations. It provides both overload and short-circuit protection and is suitable for larger electrical systems.

11. What is the role of the Bureau of Indian Standards (BIS) in electrical wiring?

• Answer: The Bureau of Indian Standards (BIS) is responsible for formulating and publishing standards related to electrical wiring, such as IS 732, IS 3043, and other codes that ensure safety, reliability, and performance in electrical installations. BIS standards help maintain uniformity and quality in wiring practices across the country.

12. What is the significance of the IS 694 standard in wiring?

• Answer: IS 694 is the Indian standard for PVC insulated cables used for wiring. It specifies the construction, performance, and testing requirements of PVC-insulated cables to ensure safe operation, insulation properties, and fire resistance. Cables complying with IS 694 are widely used in domestic and industrial wiring in India.

13. What is a loop-in wiring system, and where is it used?

• Answer: A loop-in wiring system is a method where the live wire loops into every switch and terminal before connecting to the fixture, such as lights or fans. It is commonly used in lighting circuits because it simplifies the wiring process, reduces the need for multiple junction boxes, and allows easier fault detection.

14. What are the common types of electrical wiring methods used in India?

• Answer: Common wiring methods include:
  • Cleat Wiring: Used for temporary wiring.
  • Conduit Wiring: Protects the wires inside metal or PVC conduits, suitable for permanent installations.
  • Casing and Capping Wiring: Wires are laid inside wooden or plastic casing channels.
  • Surface Wiring: Wires run along the walls with clips or channels, mainly for exposed installations.

15. What are the consequences of not adhering to Indian electrical wiring standards?

• Answer: Not following standards can lead to:
  • Increased risk of electrical shocks and fires.
  • Damage to electrical appliances due to improper voltage levels.
  • Penalties and legal issues as non-compliance is a violation of safety regulations.
  • Higher maintenance costs due to frequent breakdowns and failures.

Conclusion

Understanding these concepts helps to ensure safety and compliance in electrical installations. Preparing for such interview questions involves knowing technical details, codes, and best practices, which are essential for anyone working in the field of electrical wiring in India.
