Electrical Transmission System Interview Questions and Answers

When interviewing for a position related to electrical transmission systems, you'll likely face questions that test both your theoretical understanding and practical knowledge of how these systems operate. Below are common questions and suggested answers to help you prepare.

1. What is an Electrical Transmission System?

Answer: An electrical transmission system is responsible for the bulk transfer of electrical power from generation sources (such as power plants) to distribution systems, which then deliver electricity to consumers. The transmission system typically operates at high voltages (above 69 kV) to minimize energy losses over long distances.

2. What are the typical voltage levels used in transmission systems?

Answer: Common voltage levels in transmission systems include 69 kV, 132 kV, 230 kV, 345 kV, 500 kV, and 765 kV. High-voltage transmission is used to efficiently transport electrical power over long distances with reduced losses due to the lower current required at higher voltages.

3. Why are high voltages used in transmission systems?

Answer: High voltages are used to reduce energy losses due to resistance in the transmission lines. Power loss is proportional to the square of the current (P = I²R). By increasing the voltage, the current is reduced for the same amount of power, thus minimizing losses.

4. What are transmission losses and how can they be minimized?

Answer: Transmission losses occur due to the resistance of the conductors, corona discharge, and heating effects. These losses can be minimized by using higher voltages, employing better conductor materials (like aluminum alloy), maintaining proper conductor spacing, and ensuring efficient load management.

5. What is the difference between transmission and distribution systems?

Answer: The transmission system carries electricity from the power generation plants to substations, typically over long distances at high voltages. Distribution systems, on the other hand, operate at lower voltages and deliver electricity from substations to end consumers.

6. What are the types of transmission lines?

Answer: Transmission lines are generally classified into:

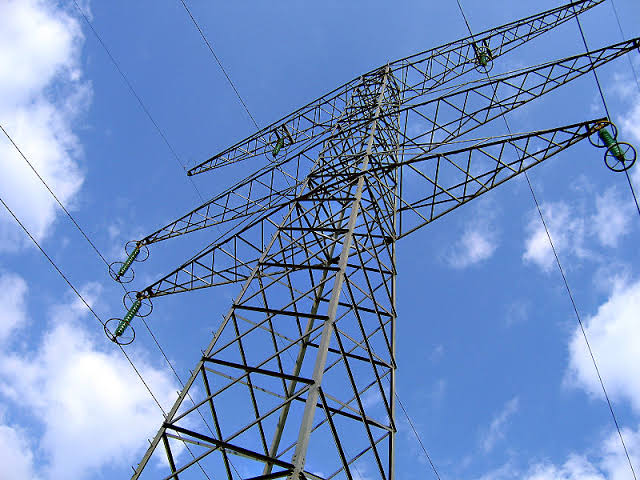

Overhead Transmission Lines: These use towers and conductors strung between them. They are widely used due to lower costs and easier maintenance.
Underground Transmission Lines: These are used in urban areas to avoid visual pollution and reduce space constraints. However, they are more expensive and harder to maintain.

7. What are the main components of an electrical transmission system?

Answer:

Transmission Lines: These carry electricity over long distances.
Transformers: Used to step up or step down voltage levels at different stages of transmission.
Substations: These switch, transform, and control electrical power flows.
Circuit Breakers: Protect the system by disconnecting the flow of electricity in case of faults.
Conductors: Aluminum or copper wires that physically carry the electrical current.
Insulators: Prevent current from leaking into the ground or nearby objects.

8. What is a Grid, and how does it function?

Answer: A grid is an interconnected network for delivering electricity from producers to consumers. It consists of transmission lines, substations, and distribution systems. The grid is designed to balance supply and demand while ensuring reliability, allowing electricity to be transported from areas of surplus generation to areas of high demand.

9. What is reactive power, and why is it important in transmission?

Answer: Reactive power is the component of electrical power that oscillates between the source and load but does not perform useful work. It is important in transmission systems because it helps maintain voltage levels necessary for the stable operation of the grid. Capacitors and inductors are used to manage reactive power.

10. What is a load flow study in transmission systems?

Answer: A load flow study (or power flow analysis) determines the voltages, currents, real and reactive power flows, and losses in the transmission system. This analysis is crucial for planning and ensuring the system operates efficiently under various load conditions.

11. What is the role of a substation in the transmission system?

Answer: Substations play a critical role in controlling and transforming electrical power as it moves through the transmission and distribution network. They are responsible for stepping up or stepping down voltage levels, as well as switching and routing power to different parts of the network.

12. Explain the concept of a Smart Grid.

Answer: A Smart Grid integrates advanced communication and control technologies into the traditional electrical grid, allowing for more efficient management of electricity demand, distribution, and generation. It includes real-time monitoring, automated controls, and the ability to incorporate renewable energy sources more effectively.

13. What is a HVDC transmission system, and when is it used?

Answer: HVDC (High Voltage Direct Current) transmission is used for long-distance transmission of electrical power where AC transmission would suffer significant losses or is impractical. HVDC is more efficient over long distances and is often used for undersea cables or connecting different national grids.

14. How do you ensure the reliability of an electrical transmission system?

Answer: Ensuring reliability involves regular maintenance, system redundancy (such as having multiple transmission paths), real-time monitoring, and performing load flow and stability analyses. Protective relays and circuit breakers are also essential for detecting and isolating faults to prevent widespread outages.

15. What safety considerations should be taken in electrical transmission systems?

Answer: Safety in transmission systems includes ensuring proper grounding, maintaining safe distances between lines, using appropriate insulators, conducting regular equipment inspections, and ensuring workers follow safety protocols. Arc flash protection and fault detection systems also play a key role in safety.

By reviewing and preparing answers to these questions, you'll be better equipped to demonstrate your understanding of electrical transmission systems in an interview setting.

In an interview for an electrical transmission system role, candidates may encounter a variety of technical and conceptual questions related to electrical transmission systems, their components, design, operation, and challenges. Below are common questions with answers that could be helpful for preparation:

1. What is an Electrical Transmission System?

Answer: An electrical transmission system is responsible for transferring electrical power from generation stations (power plants) to substations located near consumers. It operates at high voltage to minimize power losses over long distances and consists of transmission lines, towers, substations, transformers, and other related equipment.

2. What are the different types of transmission systems?

Answer: The main types of electrical transmission systems are:

AC Transmission System: Alternating current transmission is the most widely used method for transmitting electricity due to ease of voltage transformation and reduced equipment costs.
DC Transmission System: Direct current transmission is used for long distances (like submarine cables) and where high efficiency is required. It is typically more expensive but reduces losses for long-distance transmission.
Hybrid System: Combines both AC and DC transmission in certain networks to optimize efficiency.

3. What is the difference between primary and secondary transmission?

Answer:

Primary Transmission: This involves transmitting power from a generating station to a substation using very high voltage, typically between 132 kV and 765 kV, to minimize losses over long distances.
Secondary Transmission: This step reduces the voltage to a lower level (typically 33 kV or 11 kV) for transmission to distribution substations nearer to the load centers.

4. What is the significance of using high voltage for transmission?

Answer: High voltage is used to reduce the current for a given power transmission. Lower current means lower energy losses (I²R losses) in transmission lines, improving the efficiency of the system. High voltage also allows for thinner conductors and reduces the cost of the infrastructure.

5. Explain the difference between transmission and distribution systems.

Answer:

Transmission System: Transports electricity from power plants to substations over long distances, operating at high voltages (typically above 132 kV).
Distribution System: Transmits electricity from substations to end consumers at lower voltages (typically below 33 kV).

6. What are transmission line losses, and how can they be reduced?

Answer: Transmission line losses include:

Resistive losses (I²R): Due to the resistance of conductors.
Corona losses: Occur when the electric field around the conductors ionizes the surrounding air.
Leakage losses: In transmission insulators and cables. Losses can be reduced by:
Using higher voltage levels.
Using high-quality conductors (e.g., aluminum or copper).
Proper insulation and regular maintenance.
Use of FACTS (Flexible AC Transmission Systems) devices to improve voltage regulation.

7. What are the advantages of HVDC transmission over HVAC?

Answer:

Lower losses: HVDC experiences lower line losses compared to HVAC.
No reactive power: In HVDC, reactive power management is simpler as there is no inductive or capacitive reactance.
Long-distance efficiency: HVDC is more efficient for long-distance, especially in submarine or underground cables.
Interconnection of different frequency grids: HVDC can interconnect two AC grids with different frequencies.

8. What is a Transformer in the Transmission System?

Answer: A transformer is a static electrical device that steps up (increases) or steps down (decreases) the voltage level in the electrical transmission system without changing the frequency. Transformers play a crucial role in reducing the voltage before distribution to end users and increasing voltage for efficient long-distance transmission.

9. What are the main components of a transmission line?

Answer: The main components of a transmission line include:

Conductors: Typically made of aluminum or copper, these carry electrical power.
Insulators: Support the conductors and prevent leakage currents.
Towers/Pylons: Provide mechanical support to conductors and insulators.
Ground Wire: Protects the transmission line from lightning strikes.
Substations: Step up or step down voltage levels and regulate the flow of electricity.

10. Explain what is meant by “Sag” in transmission lines.

Answer: Sag is the vertical distance between the highest point of a transmission tower and the lowest point of the conductor (line). It is critical in transmission line design because it affects the mechanical strength of the line and prevents the conductor from coming too close to the ground or obstacles. Adequate sag ensures reliability and safety in power transmission.

11. What is a FACTS device, and why is it used?

Answer: FACTS (Flexible AC Transmission System) devices are electronic-based systems that enhance the controllability and increase the power transfer capability of transmission networks. They are used for voltage control, improving the stability of the network, and optimizing power flow. Examples include STATCOM (Static Synchronous Compensator) and SVC (Static Var Compensator).

12. What is a Substation, and what are its types?

Answer: A substation is a facility in the transmission system where voltage is stepped up or down, and switching, protection, and control operations are performed. Types of substations include:

Step-up Substation: Increases voltage for long-distance transmission.
Step-down Substation: Reduces voltage for distribution.
Distribution Substation: Supplies power to local consumers.
Switching Substation: Used for switching lines in and out of the network without changing voltage.

13. What are the different types of insulators used in transmission lines?

Answer: The different types of insulators used in transmission lines include:

Pin Insulators: Typically used in low-voltage transmission lines.
Suspension Insulators: Used for high-voltage transmission; consists of several insulator discs connected in series.
Strain Insulators: Used where the transmission line is subjected to significant mechanical stress.
Shackle Insulators: Commonly used in low-voltage distribution networks.

14. What is load flow analysis in a power system?

Answer: Load flow analysis (also known as power flow analysis) is a numerical analysis method used to determine the steady-state voltage, current, and power in an electrical system. It helps engineers optimize the generation and distribution of electricity in transmission networks. It is crucial for planning, operation, and control of power systems.

15. How does a Circuit Breaker differ from a Fuse in a transmission system?

Answer:

Circuit Breaker: A switch that can automatically or manually interrupt the flow of electricity in the event of a fault. It is resettable and used in both low and high voltage systems.
Fuse: A simple protective device that melts when excessive current flows through it, breaking the circuit. It needs to be replaced after a fault.

By familiarizing yourself with these key concepts, you will be better prepared to handle the technical aspects of an electrical transmission system interview.

Interview Questions and Answers on Electrical Transmission System Losses

Understanding losses in the electrical transmission system is essential for optimizing power distribution and improving efficiency. Below are common interview questions and model answers on this topic:

1. What are the main types of losses in the electrical transmission system?

Answer: The main types of losses in a transmission system are:

Technical losses: These occur naturally due to the physical properties of electrical components. They include:
- Resistive (I²R) losses: Caused by the resistance of transmission lines.
- Corona losses: Due to ionization of air around conductors.
- Dielectric losses: Losses in the insulating material of cables.
- Magnetic losses: Occur in transformers and inductive components due to hysteresis and eddy currents.
Non-technical losses: Also called commercial losses, these are caused by factors like electricity theft, metering inaccuracies, and billing errors.

2. How can we reduce I²R losses in transmission lines?

Answer: I²R losses, or copper losses, can be reduced by:

Using conductors with lower resistance, such as increasing the conductor's cross-sectional area or using materials with higher conductivity (e.g., aluminum or copper).
Increasing the transmission voltage, which reduces the current for the same power transfer, thus lowering resistive losses.
Shortening transmission distances, which reduces the total resistance in the transmission path.
Improving conductor quality, by minimizing defects and maintaining proper insulation.

3. What is corona loss, and how can it be minimized?

Answer: Corona loss occurs when the electric field around a conductor is strong enough to ionize the surrounding air, causing power loss. This typically happens at high voltages.

To minimize corona loss:

Increase the conductor size, which lowers the electric field intensity around the conductor.
Use bundled conductors, which spread the electric field over a larger area.
Improve conductor spacing to reduce the electric field between conductors.
Use smooth conductors to prevent sharp edges that can intensify the electric field.

4. What is the significance of power factor in reducing transmission losses?

Answer: The power factor represents the efficiency of power usage, specifically the ratio of real power (kW) to apparent power (kVA). A low power factor means more current is needed to deliver the same amount of power, leading to higher I²R losses in transmission lines.

To reduce losses:

Improve the power factor using capacitors or synchronous condensers.
Correct phase imbalances, which ensures that all phases are contributing equally to power transfer.
Install power factor correction equipment at various points in the transmission and distribution system.

5. What are non-technical losses, and how can utilities address them?

Answer: Non-technical losses (NTL) include electricity theft, meter tampering, faulty metering, and billing errors. These losses do not involve the actual transmission of power but still impact the overall efficiency of the system.

To address NTLs:

Install smart meters with tamper detection capabilities.
Perform regular meter audits and recalibrations to ensure accuracy.
Implement remote monitoring systems for real-time tracking of power usage and theft detection.
Educate consumers on the implications of theft and unmetered usage.
Enforce strict penalties for theft and fraud.

6. How do transmission losses change with increasing distance?

Answer: Transmission losses, particularly resistive (I²R) losses, increase with the distance of transmission because the resistance of the conductor is proportional to its length. The longer the distance, the higher the total resistance, leading to more losses. To mitigate this:

Use higher voltage transmission, which reduces current and, in turn, resistive losses.
Install more substations to shorten transmission paths.
Use high-voltage direct current (HVDC) transmission for long-distance power transfer, as HVDC has lower losses over large distances compared to AC transmission.

7. What is the role of transformers in transmission system losses?

Answer: Transformers are used to step up or step down voltage in the transmission system. Transformer losses consist of:

Core (iron) losses, due to hysteresis and eddy currents in the transformer's core.
Copper losses, due to resistance in the windings.

To minimize transformer losses:

Use high-efficiency transformers designed with low-loss cores.
Regular maintenance to ensure optimal performance.
Minimize overloading, which increases copper losses significantly.

8. What are eddy current and hysteresis losses in transformers, and how can they be reduced?

Answer:

Eddy current losses are induced currents that circulate within the transformer's core, causing heat and power loss. These can be reduced by using laminated cores, which increase the resistance to these currents.
Hysteresis losses occur due to the magnetization and demagnetization of the core material as the transformer operates. These can be minimized by using core materials with lower hysteresis loss, such as silicon steel.

9. What are dielectric losses, and in which components are they most common?

Answer: Dielectric losses occur in insulating materials (dielectrics) used in cables, transformers, and capacitors. These losses happen due to the molecular polarization of the insulating material under the influence of an electric field.

Dielectric losses can be reduced by:

Using high-quality insulation materials with low dielectric loss factors.
Ensuring proper installation and maintenance to prevent degradation of the insulating materials.

10. Can high-voltage direct current (HVDC) transmission reduce losses?

Answer: Yes, HVDC transmission is more efficient than alternating current (AC) for long-distance transmission. HVDC reduces losses by:

Lowering resistive losses, since DC current flows uniformly across the conductor's cross-section, unlike AC, which suffers from skin effect.
Eliminating reactive power losses, which are inherent in AC transmission due to capacitance and inductance.
Improving stability for interconnections between distant grids, minimizing the risk of power surges.

These questions cover key concepts about transmission system losses and their mitigation, providing a solid foundation for interviews in the electrical engineering and energy sectors.

Electrical Transmission System Insulator Interview Questions and Answers

When interviewing for a role related to electrical transmission systems, particularly focusing on insulators, you may encounter technical and practical questions. Below are some common questions and suggested answers to help you prepare for the interview.

1. What is the purpose of insulators in an electrical transmission system?

Answer: Insulators are used in electrical transmission systems to prevent the flow of electricity to unwanted areas, such as transmission tower structures or the ground. They provide mechanical support to conductors and ensure safe separation of the energized wires from the grounded parts of the system.

2. What types of insulators are used in transmission lines?

Answer: There are several types of insulators used in transmission lines, including:

Pin Insulators: Used for lower voltage lines, mounted directly on poles.
Suspension Insulators: Used for high-voltage transmission lines, where a string of insulators is used to hold the conductor.
Strain Insulators: Used at tension points or where a change in direction occurs in the line.
Shackle Insulators: Commonly used in low-voltage distribution lines.

3. How do you select the appropriate insulator for a specific voltage level?

Answer: The selection of insulators is based on:

Voltage Rating: Higher voltages require longer or more insulators to prevent arcing.
Mechanical Strength: Insulators must support the weight of conductors and withstand environmental stresses such as wind and ice.
Environmental Conditions: Areas with high pollution levels may require insulators with better performance, such as composite insulators, to prevent flashovers.

4. What are the key materials used in the construction of transmission system insulators?

Answer: Insulators are commonly made from the following materials:

Porcelain: Provides high mechanical strength and good resistance to weathering.
Glass: Known for good electrical properties and high resistance to thermal shock.
Composite/Polymer: Lightweight and resistant to vandalism, with superior pollution performance.

5. What are the common causes of insulator failure in transmission lines?

Answer: Common causes of insulator failure include:

Contamination: Dust, dirt, or pollution can cause flashovers.
Cracks or Chips: Damage to the insulator body can result in reduced insulation performance.
Mechanical Stress: Over time, mechanical stress can cause insulators to fail.
Aging: Materials can degrade over time due to environmental exposure, leading to performance issues.

6. How can you prevent insulator flashovers in high-pollution environments?

Answer: In high-pollution areas, flashover can be minimized by:

Using composite insulators: These perform better under contaminated conditions.
Increasing the creepage distance: This provides more surface area for electrical discharge to travel, reducing the likelihood of flashovers.
Regular cleaning and maintenance: Keeping the insulator surface clean helps prevent the buildup of conductive pollution.

7. What is creepage distance, and why is it important in insulator design?

Answer: Creepage distance is the shortest path between two conductive parts along the surface of the insulator. It is crucial in insulator design to ensure that the distance is long enough to prevent flashover, especially in contaminated environments where the insulator surface may become conductive.

8. How do you test the reliability of transmission system insulators?

Answer: Insulator reliability is tested using various methods, such as:

Flashover Testing: Testing for the voltage level at which a flashover occurs.
Mechanical Load Testing: Ensuring the insulator can withstand the mechanical stresses it will encounter in service.
Thermal Cycling Tests: Subjecting the insulator to extreme temperature changes to assess durability.
Pollution Testing: Simulating contamination to evaluate performance under different environmental conditions.

9. What is the difference between pin-type and suspension-type insulators?

Answer:

Pin-type Insulators: Are mounted directly on poles and are used for lower voltage applications. They have a shorter height and are limited by voltage capacity.
Suspension-type Insulators: Consist of a string of insulators connected together to form a chain, supporting higher voltage levels. These are used in high-voltage transmission lines because they can be stacked to increase the insulator’s total length and insulation capacity.

10. What challenges are faced when installing insulators in high-voltage transmission lines?

Answer: Some challenges include:

Ensuring proper alignment: Improper installation can lead to mechanical failure or inefficient electrical performance.
Access to remote locations: Transmission towers are often in remote or difficult-to-reach areas, requiring specialized equipment for installation.
Weather conditions: Adverse weather can impact both installation and the long-term performance of the insulator.
Safety concerns: Working with high-voltage systems requires strict safety measures to protect workers during installation.

11. Can you explain the difference between puncture and flashover in an insulator?

Answer:

Puncture: This is a permanent breakdown of the insulator's internal structure due to the high voltage exceeding the insulator's material strength, causing current to pass through it.
Flashover: A temporary arc between the conductor and the grounded structure that occurs on the surface of the insulator, often due to external factors like contamination or moisture.

12. What are the latest advancements in insulator technology?

Answer: Recent advancements include:

Composite Insulators: These are gaining popularity due to their lightweight design, resistance to vandalism, and better performance in polluted environments.
Self-Cleaning Insulators: New coatings or materials that reduce the buildup of contaminants and reduce the need for manual cleaning.
Smart Insulators: Equipped with sensors to monitor temperature, voltage, and current, providing real-time data for better maintenance and operation.

These are just a few common questions that may arise in an interview for a role focusing on electrical transmission system insulators. Preparing answers to these questions will demonstrate your technical understanding and readiness for the position.

In an interview for an Electrical Transmission Conductor role, candidates are often assessed on their knowledge of electrical systems, safety protocols, technical skills, and problem-solving abilities. Here are some common interview questions, along with sample answers:

1. What are the different types of electrical transmission conductors?

Answer: There are several types of electrical transmission conductors, including:

Aluminum Conductor Steel Reinforced (ACSR): It consists of aluminum strands around a steel core, providing strength and conductivity.
All-Aluminum Conductor (AAC): Made entirely of aluminum and used primarily for low-voltage distribution.
Aluminum Conductor Alloy Reinforced (ACAR): This uses a core made of aluminum alloy, offering a balance of strength and conductivity.
Copper Conductor: Though expensive, copper has high conductivity and is used in short spans and underground cables.

2. Why is aluminum used more often than copper for transmission lines?

Answer: Aluminum is used more frequently due to its lower cost, lighter weight, and acceptable conductivity. While copper has better conductivity, aluminum’s cost-effectiveness and ease of handling for long-distance transmission lines make it a more practical choice.

3. Explain the difference between transmission and distribution lines.

Answer: Transmission lines carry electricity over long distances from power plants to substations. These lines operate at high voltages, typically 110 kV and above, to reduce energy losses. Distribution lines, on the other hand, carry electricity from substations to consumers at lower voltages, generally between 4 kV and 33 kV.

4. What is the purpose of the ground wire in transmission lines?

Answer: The ground wire, often known as the earth wire or static wire, is installed at the top of transmission towers. Its purpose is to protect the transmission lines from lightning strikes by providing a low-resistance path to the ground, preventing damage to the conductors and minimizing interruptions in service.

5. What are the key factors to consider when selecting a conductor for transmission lines?

Answer: Key factors include:

Current-carrying capacity: The conductor should be able to handle the anticipated load.
Tensile strength: This is important for long spans to prevent sagging.
Conductor resistance: Lower resistance means reduced losses and improved efficiency.
Cost: The conductor’s cost must be balanced with performance requirements.
Environmental conditions: Temperature, wind, and corrosion resistance are essential in different climates.

6. How do you calculate the sag in transmission lines?

Answer: Sag is calculated using the formula:

$\text{Sag} = \frac{W L^2}{8 T}$

Where:

$W$ is the weight of the conductor per unit length,
$L$ is the span length,
$T$ is the tension in the conductor.

The calculation ensures that the sag remains within safe limits to avoid clearance issues and reduce mechanical stress on the conductor.

7. What is corona discharge, and how can it be minimized in transmission lines?

Answer: Corona discharge is the ionization of air around a conductor that occurs when the electric field exceeds a critical value. This leads to energy loss, noise, and interference. To minimize it, the following methods can be used:

Increasing the conductor diameter,
Using bundled conductors,
Ensuring proper spacing between conductors,
Using conductors with smooth surfaces to reduce electric field intensity.

8. What is the role of insulators in transmission lines?

Answer: Insulators in transmission lines prevent the flow of current from the conductor to the supporting structures (like towers or poles). They are typically made of materials with high electrical resistance such as porcelain, glass, or composite materials, and are designed to withstand both mechanical stress and environmental conditions.

9. How do you perform thermal rating calculations for a transmission conductor?

Answer: Thermal rating calculations involve determining the maximum current a conductor can carry without exceeding its temperature limit. This depends on factors such as:

Conductor material properties,
Ambient temperature,
Wind speed,
Solar radiation,
Heat dissipation (through radiation and convection).

Software tools like PLS-CADD or manual calculation methods based on IEEE or IEC standards can be used.

10. What are the common maintenance activities for transmission lines?

Answer: Common maintenance activities include:

Inspection of conductors for wear and corrosion,
Monitoring and tightening of sag,
Checking insulators for cracks or contamination,
Monitoring ground clearance,
Vegetation management to prevent interference.

11. Explain the difference between AC and DC transmission lines.

Answer:

AC Transmission: Alternating current transmission is the most common method. It allows for easier voltage transformation (using transformers) and is cheaper for short and medium distances.
DC Transmission: Direct current transmission is more efficient for very long distances and underwater cables. It requires less conductor material for the same amount of power and has fewer losses, but the initial cost of conversion equipment is higher.

12. How do you ensure safety while working on or near transmission conductors?

Answer: Safety procedures include:

Lockout/tagout procedures to ensure the line is de-energized before work.
Using personal protective equipment (PPE) such as insulated gloves, helmets, and boots.
Maintaining proper grounding and ensuring no induced voltage is present.
Adhering to clearance distances when working near live lines.
Regular training on emergency procedures and hazard recognition.

13. What are bundled conductors, and why are they used?

Answer: Bundled conductors involve multiple conductors per phase, which increases the overall diameter of the phase conductor. This reduces the electric field intensity, decreases corona losses, and improves the overall efficiency of the transmission line. They are commonly used in high-voltage transmission to reduce losses and improve stability.

14. How do you assess the condition of aging transmission conductors?

Answer: To assess the condition, you perform:

Visual inspections for signs of corrosion or wear,
Thermal imaging to detect hot spots or resistive losses,
Conductor tension measurements to check for sag or elongation,
Electrical resistance tests to evaluate the conductor’s performance.

15. What software tools are commonly used in the design and analysis of transmission lines?

Answer: Common software tools include:

PLS-CADD for line design and analysis,
ETAP and PSCAD for electrical system simulations,
CDEGS for grounding and electromagnetic interference studies,
PowerWorld Simulator for power flow and stability analysis.

Conclusion:

Preparing for an electrical transmission conductor interview involves understanding technical concepts like conductor types, sag calculations, and corona effects, as well as safety procedures, maintenance practices, and industry standards. Having a solid grasp of both the theoretical and practical aspects of the role will help you succeed in the interview.

Electrical transmission design interviews are generally focused on evaluating your technical knowledge, problem-solving abilities, and understanding of electrical systems, including transmission lines, power distribution, and system stability. Here are some common interview questions along with sample answers to help you prepare:

1. What is electrical transmission, and how does it differ from electrical distribution?

Answer: Electrical transmission refers to the bulk transfer of electrical energy from generating stations to substations, where it is then stepped down to lower voltages for distribution to consumers. Transmission lines operate at higher voltages (typically above 69 kV) and over longer distances, ensuring minimal energy losses. Distribution, on the other hand, occurs at lower voltages and involves delivering electricity from substations to end users, such as homes and businesses.

2. What are the key components of a transmission line?

Answer: The key components of a transmission line include:
- Conductors: These carry the electric power. Common materials used are aluminum and copper.
- Insulators: These prevent electrical leakage by insulating the conductors from the transmission towers.
- Towers/Pylons: Structures that support the conductors above the ground.
- Ground wires: Provide protection from lightning strikes.
- Transformers: Step-up and step-down transformers are used at the generation and distribution ends, respectively, to adjust voltage levels.

3. What are the different types of transmission lines?

Answer: Transmission lines are classified based on their voltage levels and the distance they cover:
- Short transmission lines: Less than 50 km, operating below 69 kV.
- Medium transmission lines: Between 50 km to 150 km, operating between 69 kV and 200 kV.
- Long transmission lines: More than 150 km, operating above 200 kV.

4. What is the Ferranti effect, and when does it occur?

Answer: The Ferranti effect is an increase in voltage at the receiving end of a transmission line compared to the sending end, especially under light load or no-load conditions. It occurs due to the capacitance of the transmission line, where the charging current becomes significant, causing a voltage rise. This is more pronounced in long transmission lines.

5. What factors affect the performance of a transmission line?

Answer: Several factors influence transmission line performance, including:
- Line length: Longer lines have more resistance and reactance, leading to voltage drops and power losses.
- Line capacitance and inductance: These affect the voltage regulation and power flow stability.
- Conductor material: High-conductivity materials like aluminum or copper reduce resistive losses.
- Weather conditions: Temperature, wind, and humidity can affect conductor sag, resistance, and insulation.
- Load conditions: Heavy loads can lead to voltage drops and system instability.

6. What is reactive power, and why is it important in transmission systems?

Answer: Reactive power is the power that oscillates between the source and load, which does not do useful work but is essential for maintaining voltage levels in the system. It is important because insufficient reactive power can lead to voltage instability and even system collapse. Reactive power is managed using equipment like capacitor banks, reactors, and synchronous condensers.

7. Explain the concept of corona discharge and its effect on transmission lines.

Answer: Corona discharge occurs when the electric field around a conductor is strong enough to ionize the surrounding air, causing a faint glow and producing noise and power loss. It is more prominent in high-voltage transmission lines and leads to energy losses, electromagnetic interference, and audible noise. Corona effects can be minimized by increasing the conductor size, using bundled conductors, or increasing the spacing between conductors.

8. What is a bundle conductor, and why is it used?

Answer: A bundle conductor consists of two or more conductors per phase, separated by spacers, and is used in high-voltage transmission lines. Bundle conductors are used to reduce corona discharge, decrease resistance and reactance, and improve power transfer capability. They also help in reducing line losses and increasing system stability.

9. How do you select the appropriate conductor size for a transmission line?

Answer: The conductor size is selected based on factors like:
- Current-carrying capacity: The conductor must be able to carry the expected load current without excessive heating.
- Voltage drop: To ensure that the voltage at the receiving end remains within acceptable limits.
- Thermal limits: Conductors must not exceed their maximum allowable temperature under operational conditions.
- Economic considerations: A balance between the cost of the conductor and the operational losses must be found.

10. What is the significance of load flow analysis in transmission system design?

Answer: Load flow analysis, or power flow analysis, is used to determine the voltage, current, power flow, and losses in each part of a transmission system under steady-state conditions. It is crucial for:
- Planning system expansions and ensuring reliable operation.
- Optimizing power flows to reduce losses and maintain voltage levels.
- Identifying potential bottlenecks or areas of system stress.

11. What are the protection systems used in transmission lines?

Answer: Transmission lines are protected using various protection schemes, including:
- Distance protection: Detects faults by measuring the impedance to the fault point.
- Overcurrent protection: Trips the line when excessive current flows due to faults.
- Differential protection: Compares the current at both ends of the line to detect abnormalities.
- Auto-reclosure: Automatically restores power after temporary faults like lightning strikes.

12. Explain the significance of FACTS devices in transmission systems.

Answer: FACTS (Flexible AC Transmission Systems) devices enhance the controllability and power transfer capacity of transmission networks. They help manage power flow, improve voltage stability, and reduce losses. Examples include:
- SVC (Static Var Compensator): Controls reactive power and maintains voltage levels.
- STATCOM (Static Synchronous Compensator): Provides fast reactive power compensation.
- UPFC (Unified Power Flow Controller): Controls both real and reactive power flow in the system.

13. What are the challenges in designing underground transmission systems?

Answer: Underground transmission systems, though aesthetically pleasing and less affected by weather, face several challenges:
- Higher costs: Installation and maintenance of underground cables are more expensive than overhead lines.
- Heat dissipation: Underground cables have limited air circulation, leading to heat build-up and requiring careful thermal management.
- Fault detection: Locating and repairing faults in underground cables is more complex and time-consuming.

14. What software tools are commonly used in electrical transmission design?

Answer: Common software tools used include:
- PSCAD/EMTDC: For electromagnetic transient studies.
- PSS/E (Power System Simulator for Engineering): Used for load flow, fault analysis, and dynamic stability studies.
- ETAP (Electrical Transient Analyzer Program): For load flow analysis, short circuit analysis, and protection coordination.
- MATLAB/Simulink: Used for power system modeling and control system design.

15. What is line impedance, and how is it calculated?

Answer: Line impedance is the combination of resistance (R), inductance (L), and capacitance (C) that affects the transmission of electrical power. It is calculated as:

$Z = R + j(X_L - X_C)$

Where:

R is the line resistance.
X_L is the inductive reactance.
X_C is the capacitive reactance. The impedance impacts voltage drop and losses along the transmission line.

Preparing for these questions can help you demonstrate your expertise in electrical transmission design and your ability to tackle real-world engineering challenges.

In an interview for a role focused on electrical transmission protection, candidates are typically assessed on their knowledge of electrical engineering principles, protection systems, fault detection, and practical experience in the field. Below are some common interview questions along with sample answers.

1. What is electrical transmission protection, and why is it important?

Answer: Electrical transmission protection involves the implementation of systems that protect transmission lines and equipment from faults or abnormal conditions, ensuring system stability and reliability. It is crucial because it helps in preventing equipment damage, reduces downtime, and ensures the safety of personnel and the system during fault conditions.

2. Can you explain different types of faults in transmission systems?

Answer: Common types of faults in transmission systems include:
- Single Line-to-Ground Fault (SLG): Occurs when one phase comes into contact with the ground.
- Line-to-Line Fault (LL): Occurs when two phases short-circuit with each other.
- Double Line-to-Ground Fault (DLG): Two phases short-circuit to the ground.
- Three-phase Fault: All three phases short-circuit simultaneously, which is rare but can cause severe damage.

3. What are the main types of protective relays used in transmission systems?

Answer: The main types of protective relays include:
- Overcurrent Relays: Respond to excessive current flow, commonly used for phase and ground faults.
- Distance Relays: Measure impedance to detect faults based on distance from the relay location.
- Differential Relays: Compare currents at two different points (e.g., both ends of a transformer or line) and trigger protection if there’s a discrepancy.
- Directional Relays: Used to determine the direction of fault current, useful in systems with multiple sources of power.

4. Explain the working principle of a distance relay.

Answer: A distance relay measures the impedance between its location and the fault point by comparing voltage and current. During a fault, the impedance decreases, and if the calculated impedance is below the relay's set threshold, it indicates a fault within the relay’s zone of protection and trips the circuit. Distance relays are typically used in high-voltage transmission lines.

5. What is the difference between primary and backup protection in transmission systems?

Answer:
- Primary Protection: This is the first line of defense and is responsible for detecting and isolating faults quickly and locally. It typically includes relays designed to protect a specific section of the network.
- Backup Protection: Acts as a secondary layer in case the primary protection fails. It may operate with some delay and covers a wider area to ensure the fault is cleared even if the primary system doesn’t act.

6. How does a differential relay work in protecting transformers?

Answer: A differential relay works on the principle of comparing the current entering and leaving the transformer. Under normal operating conditions, the input and output currents are equal (ignoring minor losses), but during a fault inside the transformer, these currents become unbalanced. The relay detects this difference and trips to isolate the transformer.

7. What are the challenges of protecting a transmission line?

Answer:
- Long Distance: Transmission lines can cover long distances, which can introduce latency in fault detection and complications in distinguishing between local and remote faults.
- High Voltage: The high voltage used in transmission lines requires robust equipment and fast response times.
- Communication Dependency: Modern protection systems often rely on communication between substations, and any disruption in these communication links can affect the performance of protection schemes.
- External Factors: Weather conditions, lightning, and vegetation can introduce transient faults that may challenge the sensitivity of protection systems.

8. What is the significance of the "reach" in distance relays?

Answer: The "reach" of a distance relay refers to the maximum distance along the transmission line that the relay can effectively protect. It is determined by the impedance setting of the relay. If a fault occurs beyond the relay's reach, it will not trip, and backup protection will need to act.

9. What is a power swing, and how can it affect distance relay performance?

Answer: A power swing is a variation in the power flow, typically caused by large disturbances, such as sudden load changes or system faults. During a power swing, the impedance measured by the distance relay may temporarily fluctuate, which can lead to false tripping. To prevent this, most modern relays include power swing blocking (PSB) features to distinguish between a power swing and an actual fault.

10. What is auto-reclosing in transmission lines, and why is it used?

Answer: Auto-reclosing is a function that automatically attempts to reclose a circuit breaker after it has tripped due to a fault. This is often used in transmission systems because many faults, like those caused by lightning strikes, are transient and clear themselves after a short period. Auto-reclosing improves system reliability by restoring power quickly without manual intervention.

11. What are CTs (Current Transformers) and PTs (Potential Transformers), and how are they used in protection?

Answer:
- Current Transformers (CTs): Reduce high transmission line currents to a lower, manageable level for protection relays and meters. They provide accurate current information for fault detection.
- Potential Transformers (PTs): Step down the high transmission line voltage to a lower level suitable for relays and meters, ensuring the voltage is within measurable limits.

12. What is Zone Protection, and how is it applied in distance relaying?

Answer: Zone protection divides the transmission line into several zones based on distance. Each zone has a different reach and time delay.
- Zone 1: Covers immediate faults close to the relay and operates instantaneously.
- Zone 2: Covers faults further along the line and operates after a time delay.
- Zone 3: Provides backup protection for the next section of the line or for failures in the primary protection. This zonal approach ensures selective and time-coordinated fault clearance.

13. What is the importance of relay coordination in transmission protection?

Answer: Relay coordination ensures that the correct relay operates for a fault, preventing unnecessary outages. The goal is to allow the nearest relay to the fault to operate first (selectivity) while ensuring backup protection if the primary relay fails. Proper coordination avoids system-wide blackouts and minimizes disruptions.

By preparing for these types of questions, candidates can demonstrate their technical knowledge and readiness for roles related to electrical transmission protection.
