Pneumatic Systems Interview Questions and Answers

Pneumatic Systems: Interview Questions and Answers

1. What is a pneumatic system?

Answer:
A pneumatic system uses compressed air to transmit and control energy. These systems are commonly used in industries where air compressors generate high-pressure air, which is then used to power machines, tools, or actuators.

2. What are the main components of a pneumatic system?

Answer:
The key components of a pneumatic system include:

Compressor: Generates compressed air.
Reservoir (Air tank): Stores compressed air.
Valves: Control the direction, pressure, and flow of air.
Actuators: Convert compressed air into mechanical motion (e.g., pneumatic cylinders).
Pipes and Fittings: Transport air between components.
Air Filters: Remove contaminants from the air.
Lubricators: Add lubrication to reduce wear in the system.

3. What are the advantages of pneumatic systems?

Answer: Pneumatic systems offer several advantages, including:

Clean and safe: Air is a clean medium and non-flammable, making it safer than hydraulics or electrical systems in some environments.
Simple design and low maintenance: Pneumatic systems are relatively simple, reducing the cost and effort required for maintenance.
Fast action: Pneumatic systems provide quick, high-speed operations.
Durability and reliability: The components are less prone to wear in most conditions.

4. What are the disadvantages of pneumatic systems?

Answer:

Limited pressure: Pneumatic systems operate at lower pressures compared to hydraulic systems, limiting their power.
Energy inefficiency: Compressing air is less energy-efficient, resulting in energy losses.
Noise: Pneumatic equipment can be noisy, requiring noise suppression or silencers.
Moisture and contamination: If not filtered properly, moisture and contaminants in the air can cause corrosion or malfunction.

5. What is the function of a compressor in a pneumatic system?

Answer:
The compressor is the heart of the pneumatic system. It converts electrical or mechanical energy into potential energy by compressing air, which is then stored in a tank and used to power various components, such as valves and actuators.

6. What is the difference between pneumatic and hydraulic systems?

Answer:

Medium: Pneumatic systems use air (gas), while hydraulic systems use oil (liquid).
Pressure range: Pneumatic systems typically operate at lower pressures (up to 100 psi), whereas hydraulic systems work at much higher pressures (up to 5000 psi or more).
Energy transmission: Pneumatics is best suited for lightweight, fast operations, whereas hydraulics is used for high-power, slower-moving applications.

7. What are the different types of pneumatic actuators?

Answer:
Common pneumatic actuators include:

Single-acting cylinders: Use compressed air to move in one direction, with a spring return.
Double-acting cylinders: Use air for movement in both directions.
Rotary actuators: Produce rotational motion using air pressure.
Vacuum actuators: Utilize negative pressure to create motion.

8. What is a solenoid valve and how is it used in pneumatic systems?

Answer:
A solenoid valve is an electromechanical valve controlled by an electric current. In pneumatic systems, solenoid valves control the flow of compressed air to various parts of the system by opening or closing the valve based on signals from control units. These valves are widely used in automation.

9. Why are air filters and lubricators important in pneumatic systems?

Answer:

Air filters: Prevent contaminants like dirt and moisture from entering the system, ensuring the system runs smoothly and extending the life of components.
Lubricators: Add a fine mist of oil to the air, reducing friction and wear on moving parts like actuators and valves.

10. What safety precautions should be taken when working with pneumatic systems?

Answer:

Ensure all components are rated for the pressure of the system.
Regularly inspect for leaks or wear.
Use proper Personal Protective Equipment (PPE), such as goggles and gloves.
Shut off and depressurize the system before performing any maintenance.
Avoid exceeding recommended operating pressure to prevent burst pipes or malfunction.

11. What is the role of a pressure regulator in a pneumatic system?

Answer:
A pressure regulator maintains a set pressure level within the pneumatic system by reducing the input pressure from the compressor to a desired level. This ensures consistent performance and protects sensitive components from damage due to excess pressure.

12. What factors affect the efficiency of pneumatic systems?

Answer:

Leakage: Air leaks can reduce system efficiency.
Compressor performance: An inefficient compressor will use more energy.
Air quality: Contaminated air can reduce efficiency by causing wear and tear on components.
Proper lubrication: Lack of lubrication increases friction, reducing efficiency.

13. How is pneumatic control achieved?

Answer:
Pneumatic control is achieved using various types of valves (directional, flow control, pressure control) and actuators. These components work together to control the movement and direction of air, and therefore, the motion of the actuator, often through a combination of mechanical, electrical, and manual controls.

14. What is the significance of flow rate in a pneumatic system?

Answer:
The flow rate of compressed air affects the speed and performance of the actuators. Higher flow rates allow for faster motion of cylinders or other tools, whereas lower flow rates slow down the system. Proper flow rate control ensures that the system operates efficiently.

15. How do you troubleshoot a pneumatic system?

Answer:
Troubleshooting a pneumatic system involves:

Checking for leaks in pipes or fittings.
Inspecting filters and ensuring air quality is adequate.
Ensuring valves are functioning correctly.
Verifying the air pressure and ensuring the regulator is set correctly.
Examining actuators for smooth operation and ensuring they are properly lubricated.

These questions and answers cover essential knowledge on pneumatic systems and can help you prepare for technical interviews in industries that rely on this technology.

Pneumatic FRL (Filter, Regulator, Lubricator) units are critical components in pneumatic systems, ensuring clean, regulated, and lubricated air supply to downstream equipment. During interviews, employers typically assess candidates' technical knowledge of pneumatic systems, troubleshooting skills, and understanding of how FRL units function within a pneumatic system. Below are some common interview questions and their corresponding answers related to pneumatic FRL units.

1. What is a Pneumatic FRL Unit, and why is it important?

Answer: A pneumatic FRL unit is a combination of three essential devices used to condition the air in pneumatic systems:

Filter: Removes contaminants such as dust, dirt, and moisture from the air supply.
Regulator: Controls and maintains a consistent air pressure to ensure stable operation.
Lubricator: Adds a fine mist of oil into the air to lubricate internal moving components, reducing wear and friction.

FRL units are important because they ensure that pneumatic systems operate efficiently, with clean air at the right pressure and proper lubrication, extending the lifespan of the components and preventing failures.

2. What is the purpose of the filter in an FRL unit?

Answer: The filter in an FRL unit removes solid particles like dust, dirt, and water droplets from the compressed air. Without a filter, these contaminants could clog or damage pneumatic equipment, leading to inefficiencies and breakdowns.

3. How does a pneumatic regulator work, and why is it necessary?

Answer: A pneumatic regulator controls the pressure of air flowing through the system. It uses a diaphragm and spring mechanism to adjust and maintain a set pressure level. Regulators are necessary to ensure that the pneumatic system operates at a safe and optimal pressure, avoiding damage from excessive air pressure or system instability caused by fluctuations.

4. Explain the working principle of the lubricator in an FRL unit.

Answer: A lubricator introduces a small amount of oil into the compressed air, typically in the form of a mist. As the air passes through the lubricator, the oil mist mixes with the air, ensuring that downstream components such as valves, cylinders, and actuators are lubricated. This reduces friction, prevents corrosion, and extends the life of moving parts.

5. What are the consequences of not using an FRL unit in a pneumatic system?

Answer: Without an FRL unit, the following issues may arise:

Contaminants like dirt and moisture could damage pneumatic equipment, leading to wear and tear.
Inconsistent air pressure could cause erratic equipment behavior or even equipment failure.
Lack of lubrication could increase friction in moving parts, causing overheating, excessive wear, and component failure.

6. How do you select the correct FRL unit for a pneumatic system?

Answer: To select the correct FRL unit, consider the following factors:

Flow rate: The FRL must handle the maximum air flow required by the pneumatic system.
Operating pressure: Ensure that the FRL can operate within the system's pressure range.
Port size: The size of the FRL unit's ports should match the air supply line to avoid pressure loss or air restriction.
Air quality requirements: Depending on the sensitivity of the equipment, you may need higher-grade filtration and lubrication.

7. What are the common troubleshooting steps for a malfunctioning FRL unit?

Answer: Common troubleshooting steps include:

Check the filter: Ensure the filter is not clogged or saturated with water. Replace it if necessary.
Inspect the regulator: Verify that the regulator is set to the correct pressure and isn’t damaged. Look for signs of leaks or irregular pressure drops.
Examine the lubricator: Check if the oil level is sufficient and if the oil mist is being delivered correctly. Clean or replace parts if necessary.

8. How often should you perform maintenance on an FRL unit?

Answer: The frequency of maintenance depends on the operating environment and usage of the system. In general, filters should be checked and cleaned or replaced regularly (e.g., every 6 months or as needed). Regulators should be inspected for proper pressure control, and lubricators should be checked to ensure oil levels are adequate and the oil mist is functioning properly. Maintenance schedules may also be determined by the manufacturer’s recommendations.

9. Can the order of the Filter, Regulator, and Lubricator be changed in an FRL unit?

Answer: No, the order of the Filter, Regulator, and Lubricator in an FRL unit is designed to be in a specific sequence:

Filter first to remove contaminants.
Regulator next to control pressure.
Lubricator last to introduce oil into clean, regulated air. Changing the order could result in unclean air entering the system, improper regulation, or ineffective lubrication.

10. What are some signs that an FRL unit needs to be replaced?

Answer:

Filter clogging: If the filter becomes clogged frequently and cleaning no longer improves performance.
Inconsistent pressure: If the regulator is unable to maintain the desired pressure consistently.
No oil mist: If the lubricator stops delivering oil despite adequate oil levels.
Visible damage or leaks: If any component of the FRL shows physical damage or air leakage.

By preparing for these questions, you’ll be better equipped to demonstrate your knowledge and understanding of pneumatic FRL systems during interviews.

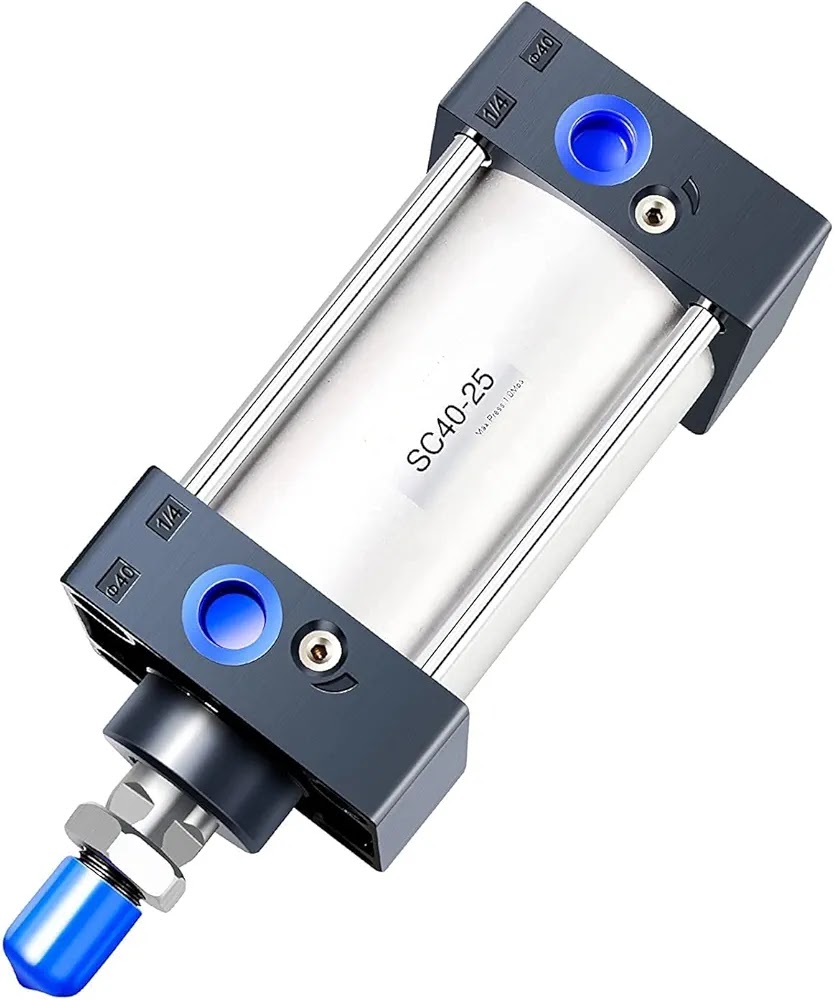

Pneumatic Cylinder Interview Questions and Answers

1. What is a pneumatic cylinder?

Answer: A pneumatic cylinder, also known as an air cylinder, is a mechanical device that converts compressed air energy into linear motion. It operates by using compressed air to move a piston within a cylinder, which in turn produces force to perform mechanical work.

2. What are the types of pneumatic cylinders?

Answer: The main types of pneumatic cylinders are:
- Single-acting cylinders: Air pressure is applied in one direction only, and the piston returns to its original position using a spring or external force.
- Double-acting cylinders: Air pressure is applied alternately on both sides of the piston to create a push and pull effect.
- Telescoping cylinders: These have multiple stages, allowing for an extended range of motion in a compact design.
- Rodless cylinders: The piston is enclosed, and the motion is transferred externally without a rod.

3. How does a single-acting pneumatic cylinder work?

Answer: In a single-acting pneumatic cylinder, compressed air is supplied to one side of the piston, causing it to move in one direction (usually extending the rod). A spring or external force then returns the piston to its original position when the air pressure is released.

4. What is the purpose of cushioning in pneumatic cylinders?

Answer: Cushioning in pneumatic cylinders is used to reduce the impact at the end of the stroke, ensuring smooth operation and minimizing wear. It slows down the piston’s speed as it approaches the cylinder’s end cap to prevent damage and noise from hard stops.

5. What are the typical materials used for pneumatic cylinder construction?

Answer: Pneumatic cylinders are typically made from materials such as:
- Aluminum: Lightweight and corrosion-resistant, commonly used for standard applications.
- Stainless steel: Used in environments requiring resistance to corrosion and high pressure.
- Brass: Used in certain specialty applications where corrosion or conductivity needs to be controlled.
- Polymer or composites: Used in lightweight or low-cost applications.

6. What factors affect the force produced by a pneumatic cylinder?

Answer: The force produced by a pneumatic cylinder is influenced by:
- Air pressure (PSI or Bar): Higher air pressure results in more force.
- Cylinder bore size: A larger bore creates more surface area for the air to act upon, increasing force.
- Friction: Internal friction can reduce the effective force.
- Stroke length: While stroke length does not affect force directly, it influences the cylinder’s range of motion.

7. How do you calculate the force of a pneumatic cylinder?

Answer: The force of a pneumatic cylinder can be calculated using the formula: $\text{Force (N)} = \text{Pressure (Pa)} \times \text{Piston Area (m²)}$ In practical terms: $\text{Force (N)} = \text{Pressure (PSI)} \times \text{Piston Area (in²)} \times 6.89476$ Where the pressure is the applied air pressure, and the piston area is calculated from the bore size of the cylinder.

8. What is the difference between a pneumatic and a hydraulic cylinder?

Answer: The key differences between pneumatic and hydraulic cylinders are:
- Medium used: Pneumatic cylinders use compressed air, while hydraulic cylinders use liquid (typically oil).
- Pressure range: Pneumatic systems typically operate at lower pressures (up to around 100 PSI) compared to hydraulic systems, which can go much higher (up to thousands of PSI).
- Force output: Hydraulic cylinders provide more force due to the incompressibility of fluids, while pneumatic cylinders are limited by air pressure.
- Speed and control: Pneumatic systems tend to be faster but less precise, while hydraulic systems are slower but offer better control and precision.

9. What is the role of seals in pneumatic cylinders?

Answer: Seals in pneumatic cylinders are used to prevent air leakage and maintain pressure inside the cylinder. Proper sealing ensures the efficient operation of the cylinder by preventing the loss of compressed air and protecting internal components from dust, dirt, and moisture.

10. What are the potential causes of pneumatic cylinder failure?

Answer: Common causes of pneumatic cylinder failure include:
- Seal wear: Worn or damaged seals can lead to air leakage and reduced performance.
- Corrosion: Exposure to moisture or chemicals can corrode the internal components.
- Improper lubrication: Lack of proper lubrication can increase friction and lead to component wear.
- Overloading: Operating the cylinder beyond its designed load capacity can lead to mechanical failure.
- Contaminated air: Dirty or moist air can introduce contaminants that damage internal components.

11. How do you maintain a pneumatic cylinder?

Answer: Maintenance of a pneumatic cylinder involves:
- Regularly inspecting and replacing worn seals.
- Ensuring proper lubrication of moving parts.
- Checking for air leaks and maintaining the correct air pressure.
- Keeping the air supply clean and dry with filters and dryers to avoid contamination.
- Inspecting for corrosion or physical damage and replacing affected parts as necessary.

12. What is a rodless pneumatic cylinder and when is it used?

Answer: A rodless pneumatic cylinder does not have a piston rod extending from the cylinder body. Instead, the piston is coupled to an external carriage that moves along the cylinder’s body. Rodless cylinders are used in applications where space is limited, as they provide the same stroke length as traditional cylinders without the additional length of an extended rod.

13. How does a telescopic pneumatic cylinder work?

Answer: A telescopic pneumatic cylinder consists of multiple stages (usually nested tubes) that extend in sequence. This allows for a longer stroke in a more compact retracted form. These cylinders are commonly used in applications requiring a large range of motion in a confined space.

14. What are the advantages of pneumatic cylinders over other types of actuators?

Answer: Advantages of pneumatic cylinders include:
- Speed: Pneumatic cylinders can achieve fast cycle times compared to other types of actuators.
- Simplicity and low cost: Pneumatic systems are generally simpler and cheaper than hydraulic or electrical systems.
- Clean operation: Since they use air, pneumatic cylinders do not involve oils or liquids, making them suitable for clean environments.
- Safety: Pneumatic systems are less hazardous in explosive environments compared to hydraulic systems, as they do not use combustible fluids.

15. How do you select the right pneumatic cylinder for a specific application?

Answer: Selecting the right pneumatic cylinder involves considering:
- Load requirements: Calculate the required force based on the load.
- Stroke length: Ensure the cylinder can cover the necessary range of motion.
- Bore size: Select a bore size that can generate the required force at the available air pressure.
- Mounting style: Choose the appropriate mounting style for the application (e.g., clevis, flange, or trunnion).
- Operating environment: Consider the environment, such as temperature, humidity, and presence of corrosive materials, to select appropriate materials and seals.

These questions and answers should help prepare for an interview regarding pneumatic cylinders, covering both the basic principles and practical aspects of their design, operation, and maintenance.

Pneumatic Cylinder Maintenance Interview Questions and Answers

When interviewing for a position involving pneumatic cylinder maintenance, it's crucial to be well-prepared to demonstrate your knowledge and expertise. Here are some common questions and possible answers to help you prepare:

1. What is a pneumatic cylinder, and how does it work?

Answer:
A pneumatic cylinder is a mechanical device that uses compressed air to produce a linear motion. It works by applying pressure from compressed air to a piston inside a cylinder, which forces the piston to move in a straight line. The air is typically controlled by a valve system that directs the flow, allowing for precise control of the motion.

2. What are the types of pneumatic cylinders, and where are they used?

Answer:
Pneumatic cylinders come in several types:

Single-acting cylinders: These use compressed air to move the piston in one direction, with a spring returning it to its original position.
Double-acting cylinders: These use compressed air for motion in both directions, one side for extension and the other for retraction.
Rodless cylinders: These are used where space is limited, as they do not have a piston rod protruding from the cylinder.
Telescopic cylinders: These are used when a long stroke length is needed in a compact space.

Applications: Pneumatic cylinders are widely used in industrial automation, automotive manufacturing, and packaging machines.

3. What are the common issues encountered in pneumatic cylinders?

Answer:
Some common issues include:

Air leaks: Caused by worn seals, improper fittings, or damaged hoses.
Contaminants in the air supply: Dirt or moisture in the compressed air can cause wear on the cylinder components.
Rod misalignment: Misalignment can cause side loading, leading to premature wear of the seals or rod.
Seal damage: Seals can wear out over time, leading to leaks and loss of pressure.

4. How would you troubleshoot a pneumatic cylinder that isn't moving?

Answer:
First, check the air supply to ensure that there is sufficient pressure. Next, inspect the valves to confirm they are functioning properly and that there are no blockages. Then, check the cylinder seals for damage or air leaks. Finally, ensure that the rod is not misaligned or obstructed and that the lubrication is sufficient.

5. What preventive maintenance steps should be taken for pneumatic cylinders?

Answer:
Preventive maintenance includes:

Regular inspection of seals and rods: Look for wear and replace seals as needed.
Lubrication: Keep the cylinder well-lubricated to reduce friction and wear.
Check for air leaks: Regularly check fittings, hoses, and connections for air leaks.
Clean air supply: Ensure that the air used is clean and free of moisture and contaminants by using air filters or dryers.
Alignment checks: Verify the proper alignment of the piston rod to prevent side loading.

6. How do you replace seals in a pneumatic cylinder?

Answer:
To replace the seals:

First, depressurize the system and remove the cylinder from the machine.
Disassemble the cylinder carefully, removing the piston and rod.
Inspect the old seals and replace them with new ones of the correct size and material.
Reassemble the cylinder, ensuring that all components are properly aligned, and then test the cylinder for proper operation and air tightness before reinstalling.

7. How do you ensure the correct alignment of a pneumatic cylinder?

Answer:
To ensure correct alignment:

Check the mounting points of the cylinder to ensure that they are level and properly aligned with the load.
Ensure that the rod is moving in a straight line and that there is no side loading, which can damage seals and reduce cylinder life.
Use precision measuring tools such as dial indicators to verify alignment.

8. What role does lubrication play in pneumatic cylinder performance?

Answer:
Lubrication reduces friction between the piston and cylinder walls, as well as between the rod and seals. Proper lubrication increases the life of the seals, reduces wear, and improves cylinder efficiency. Regularly checking and maintaining the lubrication system is critical for smooth operation and preventing premature failure.

9. How do you size a pneumatic cylinder for a specific application?

Answer:
When sizing a pneumatic cylinder:

Calculate the force required: Use the formula Force = Pressure x Area, where the area is the piston surface area and the pressure is the air pressure available.
Determine stroke length: Based on the distance the load needs to be moved.
Check speed requirements: Ensure that the cylinder can achieve the required speed by considering the air supply and valve flow rate.
Account for mounting options: Choose the appropriate mounting style (flange, clevis, trunnion, etc.) based on the application’s mechanical layout.

10. What safety precautions should be followed during pneumatic cylinder maintenance?

Answer:
Safety precautions include:

Depressurizing the system before beginning any maintenance work to avoid accidents.
Lockout/tagout procedures to ensure that the machine cannot be started while maintenance is in progress.
Wearing appropriate PPE (Personal Protective Equipment), such as safety glasses and gloves.
Avoiding high-speed disassembly: Pneumatic systems can store energy in compressed air, so release the pressure gradually to prevent accidents.
Ensuring proper training on handling pneumatic systems.

By preparing answers to these common interview questions, you can show your technical knowledge and practical skills in pneumatic cylinder maintenance, increasing your chances of success in an interview setting.

Here are some common pneumatic cylinder calculation interview questions along with their suggested answers:

1. What is a pneumatic cylinder, and how does it work?

Answer: A pneumatic cylinder, also known as an air cylinder, is a mechanical device that uses compressed air to produce a force in a reciprocating linear motion. It consists of a piston, cylinder body, and valves. Compressed air enters the cylinder, pushing the piston, which moves to either extend or retract, depending on the application.

2. How do you calculate the force produced by a pneumatic cylinder?

Answer: The force produced by a pneumatic cylinder is calculated using the formula:
$F = P \times A$
Where:
- F = Force (in Newtons)
- P = Pressure of the compressed air (in Pascals or bar)
- A = Effective area of the piston (in square meters or square centimeters)
For single-acting cylinders (with one effective area):
$A = \pi \times \frac{d^2}{4}$
Where d is the diameter of the piston.
For double-acting cylinders (where air applies pressure on both sides of the piston), you must consider the rod side area:
$A_{rod} = \pi \times \frac{d_{rod}^2}{4}$
So, force on the rod side is:
$F = P \times (A_{piston} - A_{rod})$

3. What factors affect the performance of a pneumatic cylinder?

Answer: Several factors affect pneumatic cylinder performance:
- Air pressure: Higher pressure produces more force.
- Piston size: Larger pistons have more surface area, generating more force.
- Stroke length: The distance the piston can travel affects how far the load can be moved.
- Friction and sealing: Friction losses reduce cylinder efficiency.
- Load: The cylinder needs to overcome both the load and any opposing forces.
- Air quality: Dirty or contaminated air can reduce efficiency and damage seals.

4. How do you calculate the speed of a pneumatic cylinder?

Answer: The speed of a pneumatic cylinder depends on the air flow rate and the size of the cylinder. The flow rate required to move the piston can be determined using:
$Q = A \times v$
Where:
- Q = Air flow rate (in liters per minute or cubic meters per second)
- A = Effective piston area (in square meters)
- v = Velocity or speed of the piston (in meters per second)
Rearranging this formula, you can calculate the piston speed:
$v = \frac{Q}{A}$
The air supply and exhaust flow rates, as well as the cylinder size, control the speed.

5. What is the significance of the rod diameter in pneumatic cylinder calculations?

Answer: The rod diameter plays a crucial role, especially in double-acting cylinders. It reduces the effective area on the side where the rod is located, thus affecting the force produced during the retract stroke. The smaller effective area means the retracting force will be less than the extending force for the same air pressure.

6. What is the difference between a single-acting and a double-acting pneumatic cylinder?

Answer: A single-acting cylinder applies air pressure to only one side of the piston, providing movement in one direction. The return stroke is typically achieved through a spring or external force. A double-acting cylinder, on the other hand, applies air pressure to both sides of the piston, allowing controlled movement in both directions (extend and retract).

7. How do you calculate the air consumption of a pneumatic cylinder?

Answer: Air consumption for pneumatic cylinders is calculated based on the volume displaced by the piston during each stroke. The formula for air consumption is:
$V = A \times S$
Where:
- V = Volume of air consumed (in cubic meters or liters)
- A = Effective piston area (in square meters)
- S = Stroke length (in meters)
For double-acting cylinders, air consumption must be calculated for both extend and retract strokes, considering the reduced area on the rod side.

8. What is the relationship between pressure and flow rate in a pneumatic system?

Answer: In pneumatic systems, pressure and flow rate are interdependent. Pressure provides the force required to move the load, while flow rate determines the speed of movement. A higher pressure produces more force, but without sufficient flow rate, the piston will move slowly. Increasing flow rate allows faster movement but may reduce available pressure.

9. How would you choose the appropriate pneumatic cylinder for a specific application?

Answer: Choosing the right pneumatic cylinder requires considering several factors:
- Load capacity: Ensure the cylinder can generate enough force to move the load.
- Stroke length: The required movement distance.
- Operating pressure: Match the cylinder to the available air supply pressure.
- Speed requirements: Choose a cylinder that can achieve the desired movement speed based on the air flow rate.
- Mounting configuration: Consider how the cylinder will be mounted and if it fits the application.
- Rod diameter: Ensure it provides sufficient retract force if using a double-acting cylinder.

10. What are some common troubleshooting steps if a pneumatic cylinder is not performing as expected?

Answer: Common troubleshooting steps include:
- Check air supply: Ensure adequate air pressure and flow.
- Inspect for leaks: Leaks can reduce pressure and affect performance.
- Examine seals and lubricants: Worn or dry seals can cause friction and reduce efficiency.
- Look for obstructions: Ensure the cylinder’s path is clear.
- Test the valves: Ensure that the control valves are functioning properly and directing air as needed.
- Inspect the load: Ensure that the load is within the cylinder’s capacity and is not misaligned.

These questions will help demonstrate a solid understanding of pneumatic cylinder operations, calculations, and performance in an interview setting.

When interviewing for a position that involves working with pneumatic systems, particularly pneumatic cylinders, a candidate is often tested on both their theoretical knowledge and practical troubleshooting abilities. Below are some common interview questions related to pneumatic cylinder troubleshooting and their answers:

1. What is a pneumatic cylinder, and how does it work?

Answer: A pneumatic cylinder is a mechanical device that uses compressed air to produce a linear force and motion. The basic working principle involves air entering the cylinder chamber, pushing a piston forward or backward to move an external object. The cylinder converts the potential energy of compressed air into mechanical energy for applications like lifting, pushing, pulling, and rotating.

2. What are the common types of pneumatic cylinders?

Answer:

Single-acting cylinder (SAC): Air is applied to one side of the piston to perform work, and a spring or external force returns it to its original position.
Double-acting cylinder (DAC): Air is applied alternately to both sides of the piston to move it in both directions.
Rodless cylinders: The piston moves along the length of the cylinder without the need for an external rod.
Telescoping cylinders: They provide a long stroke from a compact retracted length by using multiple stages of smaller-diameter tubes.

3. What are some common problems encountered with pneumatic cylinders?

Answer: Common issues include:

Air leaks
Slow or inconsistent movement
Cylinder not extending or retracting fully
Cylinder stalling or jamming
Seal wear or failure
Excessive noise during operation
Contamination in the air supply
Insufficient air pressure

4. How would you troubleshoot a pneumatic cylinder that is not extending or retracting fully?

Answer:

Check air supply: Ensure that there is adequate air pressure reaching the cylinder. Low air pressure can prevent full extension or retraction.
Inspect for air leaks: Check hoses, fittings, and connections for any air leaks that could reduce performance.
Check for physical obstructions: Inspect the cylinder rod and piston for damage or debris that may impede movement.
Inspect valve functionality: Ensure that the directional control valve is functioning properly and supplying air to the correct side of the cylinder.
Examine the seals and piston rod: Worn seals or a damaged rod can cause friction or air bypass, leading to incomplete motion.

5. What might cause a pneumatic cylinder to move slowly or jerk during operation?

Answer:

Air leaks: Any leaks in the air supply or cylinder can cause slow movement due to reduced pressure.
Inadequate lubrication: Lack of proper lubrication can create excess friction between moving parts, causing slow or jerky motion.
Contaminants in air supply: Dirt, dust, or water in the air supply can interfere with smooth cylinder operation.
Flow control settings: Improper adjustment of flow control valves could lead to unsteady or slow cylinder action.
Valve issues: Malfunctioning or partially stuck directional control valves can cause inconsistent air supply to the cylinder.

6. What is the function of a cushion in a pneumatic cylinder, and how do you troubleshoot issues with it?

Answer: Cushions are used in pneumatic cylinders to slow the piston down near the end of the stroke, preventing impact and reducing wear.

To troubleshoot:

Check adjustment settings: Ensure that the cushion adjustment screw is correctly set to provide the right amount of damping.
Inspect seals and components: If the cushion isn’t effective, it may be due to worn or damaged seals or parts inside the cushion mechanism.
Air pressure: Ensure the air supply is sufficient for the cushion to function correctly.

7. How do you check for air leaks in a pneumatic system?

Answer:

Visual inspection: Look for signs of wear, damage, or misalignment in hoses and fittings.
Soapy water method: Spray soapy water on connections and fittings. If bubbles form, it indicates an air leak.
Pressure drop test: Monitor the system for a drop in pressure when the system is idle. A significant pressure drop could indicate a leak.
Ultrasonic leak detectors: Specialized tools can detect leaks by picking up the sound of escaping air.

8. Why might a pneumatic cylinder produce excessive noise during operation?

Answer:

Air leaks: Air escaping from the system can cause hissing or whistling sounds.
Loose components: Vibration from loose fittings or mounts can generate noise.
Improper cushioning: If the cylinder is not cushioned properly at the end of the stroke, it may cause a loud impact noise.
Insufficient lubrication: Lack of lubrication can cause grinding or squeaking sounds due to metal-on-metal contact.
Damaged seals or piston rod: A damaged piston rod or worn seals can create noise as they move through the cylinder bore.

9. How do you maintain a pneumatic cylinder for optimal performance?

Answer:

Regular inspection: Periodically check the cylinder for signs of wear, damage, or leaks.
Proper lubrication: Lubricate moving parts according to manufacturer recommendations to reduce friction and prevent wear.
Air filtration: Ensure that the air supply is free from contaminants by using proper air filters and regularly draining water traps.
Seal replacement: Replace worn or damaged seals promptly to prevent air leaks and maintain cylinder efficiency.
Check alignment: Ensure that the cylinder is properly aligned with its load to prevent side loads, which can cause premature wear or failure.

10. How do you determine if a cylinder's seals need to be replaced?

Answer:

Air leaks: One of the primary indicators is air leaking from the cylinder.
Decreased performance: Slow or incomplete extension/retraction may indicate worn seals.
Fluid leaks (for air-oil systems): If fluid is leaking externally or internally, seals may be compromised.
Excessive friction or noise: Worn seals can cause increased friction, which may result in noise or erratic movement.

These interview questions test a candidate's practical understanding of pneumatic cylinder operation and troubleshooting techniques, reflecting their ability to diagnose and resolve real-world problems in pneumatic systems.

Pneumatic fittings are essential components in systems that use compressed air for power transmission. If you're preparing for an interview related to pneumatic fittings, here are some common questions and detailed answers to help you:

1. What is a pneumatic fitting?

Answer: A pneumatic fitting is a connector used in pneumatic systems to join sections of tubing or piping for the transfer of compressed air. These fittings are designed to ensure a secure and leak-proof connection, which is critical for maintaining system efficiency.

2. What are the types of pneumatic fittings?

Answer: Pneumatic fittings come in various types, including:
- Push-to-connect fittings: Allow quick connection and disconnection of tubing.
- Barbed fittings: Have ridges that grip the inside of a tube to create a tight seal.
- Compression fittings: Use a nut and ferrule to secure tubing.
- Quick-connect couplings: Provide fast and easy connections without tools.
- Threaded fittings: Connect threaded sections of tubing and components.

3. What materials are pneumatic fittings made of?

Answer: Pneumatic fittings are made from a variety of materials, such as:
- Brass: Known for its durability and corrosion resistance.
- Stainless steel: Highly resistant to rust and corrosion, used in demanding applications.
- Plastic: Lightweight and resistant to certain chemicals, ideal for lower pressure environments.
- Nickel-plated brass: Combines the strength of brass with additional corrosion resistance.

4. How do you choose the correct pneumatic fitting for an application?

Answer: The correct pneumatic fitting is chosen based on several factors:
- Tube or pipe size: The fitting must match the size of the tubing or pipe.
- Pressure rating: The fitting must withstand the pressure of the pneumatic system.
- Material compatibility: The material of the fitting must be compatible with the system’s working environment and medium.
- Temperature range: The fitting should operate effectively within the system’s temperature limits.
- Connection type: Whether a push-to-connect, threaded, or barbed connection is needed.

5. What are some common issues with pneumatic fittings, and how do you resolve them?

Answer: Some common issues include:
- Leaks: Caused by improper installation or wear and tear. Solutions include tightening the fitting or replacing worn-out seals.
- Corrosion: Especially in environments with moisture. Solutions involve using corrosion-resistant materials like stainless steel or nickel-plated brass.
- Blockages: Can occur if debris enters the system. Regular maintenance and using filters can help prevent this.

6. What is the significance of thread types in pneumatic fittings?

Answer: Thread type plays a crucial role in ensuring the compatibility of fittings in a pneumatic system. Common thread types include:
- NPT (National Pipe Thread): Tapered thread commonly used in North America for a secure seal.
- BSP (British Standard Pipe): Used mainly in Europe and Asia, available in tapered (BSPT) or parallel (BSPP) threads.
- Metric threads: Used globally, often for fittings with specific size requirements.

7. How does a push-to-connect pneumatic fitting work?

Answer: A push-to-connect fitting works by allowing the user to push the tubing directly into the fitting, where a collet and a seal inside the fitting lock the tubing in place. These fittings are designed for ease of use and can be disconnected by pushing a release ring.

8. What is the role of seals in pneumatic fittings?

Answer: Seals are critical in pneumatic fittings to prevent air leakage and maintain pressure within the system. Common types of seals used in pneumatic fittings include O-rings and gaskets, which provide a tight and durable seal at the connection points.

9. How do you prevent leaks in pneumatic fittings?

Answer: To prevent leaks, you can:
- Ensure that the fittings are properly tightened.
- Use thread sealant or Teflon tape on threaded fittings.
- Regularly inspect fittings for wear or damage.
- Ensure that tubing is cut cleanly and inserted fully into push-to-connect fittings.

10. What is the maximum pressure that pneumatic fittings can handle?

Answer: The maximum pressure depends on the type of fitting and the material. Standard pneumatic fittings typically handle pressures between 100-150 PSI (pounds per square inch), but high-pressure fittings can handle much higher pressures, often up to 300-500 PSI or more.

11. How do you troubleshoot a pneumatic system with fitting issues?

Answer:
- Step 1: Check for audible leaks or hissing sounds to locate problematic fittings.
- Step 2: Visually inspect the connections for any loose or damaged fittings.
- Step 3: Ensure that tubing is correctly inserted and not damaged.
- Step 4: Use soapy water to detect leaks by applying it to suspected areas and observing for bubbles.
- Step 5: Replace or reseal any faulty fittings.

12. Can pneumatic fittings be reused?

Answer: Some pneumatic fittings, like push-to-connect fittings, can be reused multiple times if they are not damaged or worn out. However, other types, like compression fittings, may deform during installation and are not suitable for reuse.

13. What are the safety considerations when working with pneumatic fittings?

Answer:
- Always ensure fittings are rated for the pressure of the system to avoid failure.
- Release pressure from the system before disconnecting fittings to prevent injury.
- Inspect fittings regularly for wear, cracks, or other damage.
- Ensure proper installation to prevent leaks, which can lead to inefficiency or hazards.

14. What role does tubing play in pneumatic systems, and how does it interact with fittings?

Answer: Tubing is the medium through which compressed air flows in a pneumatic system. Fittings are used to connect different sections of tubing, ensuring there is no air loss and the system functions correctly. The compatibility between the tubing material and the fitting type (size, pressure rating, material) is essential for system performance.

15. What is the difference between pneumatic and hydraulic fittings?

Answer: While both pneumatic and hydraulic fittings are used to connect tubing in fluid power systems, there are key differences:
- Pneumatic fittings are designed for air (gases) and typically operate at lower pressures (up to 150 PSI in most cases).
- Hydraulic fittings are used for liquid systems and can handle much higher pressures (up to several thousand PSI).

These questions cover the fundamentals and some technical aspects of pneumatic fittings that could come up in an interview. Being familiar with these concepts will help you demonstrate a strong understanding of pneumatic systems and components.

Pneumatic Cylinder Pressure Calculation: Interview Questions and Answers

Pneumatic cylinder pressure calculations are critical in determining the force output and operational efficiency of pneumatic systems. Here are some common interview questions and answers on this topic:

1. What is a pneumatic cylinder, and how does it work?

Answer:
A pneumatic cylinder is a mechanical device that uses compressed air to produce linear motion. The compressed air exerts pressure on a piston within the cylinder, causing it to move. The motion can be used for various industrial tasks like lifting, pressing, or pushing objects.

2. What is the basic formula to calculate the force exerted by a pneumatic cylinder?

Answer:
The basic formula to calculate the force exerted by a pneumatic cylinder is:

$\text{Force (F)} = \text{Pressure (P)} \times \text{Area (A)}$

Where:

F is the force in Newtons (N),
P is the pressure in Pascals (Pa) or Bar (1 Bar = 100,000 Pa),
A is the area of the piston in square meters (m²).

For a circular piston: $A = \pi \times (r^2)$ Where:

r is the radius of the piston.

3. How do you calculate the area of a piston in a pneumatic cylinder?

Answer:
To calculate the area of a piston in a pneumatic cylinder, you use the formula for the area of a circle:

$A = \pi \times (r^2)$

Where:

A is the area,
r is the radius of the piston (which is half of the piston diameter),
π is approximately 3.1416.

For example, if the piston diameter is 0.1 meters, the area would be:

$A = 3.1416 \times (0.05)^2 = 0.00785 \, \text{m²}$

4. If a pneumatic cylinder has a piston diameter of 50 mm and an operating pressure of 6 Bar, what is the force it can exert?

Answer:
First, convert the diameter to meters (50 mm = 0.05 m) and calculate the area of the piston:

$A = \pi \times (0.025^2) = 0.00196 \, \text{m²}$

Next, convert the pressure from Bar to Pascals (6 Bar = 600,000 Pa) and use the force formula:

$F = 600,000 \, \text{Pa} \times 0.00196 \, \text{m²} = 1,176 \, \text{N}$

So, the force is 1,176 Newtons.

5. What factors affect the performance and force output of a pneumatic cylinder?

Answer:
Several factors affect the performance and force output of a pneumatic cylinder, including:

Operating Pressure: Higher pressure results in greater force output.
Cylinder Diameter: Larger diameters provide greater surface area for pressure to act on, increasing the force.
Stroke Length: Determines the total distance the piston can travel.
Air Supply Quality: Clean, dry air improves efficiency.
Friction and Seals: Worn seals or excessive friction can reduce the effective force.
Load Conditions: The weight and nature of the load (e.g., static vs. dynamic) can impact performance.

6. How does backpressure affect the force of a double-acting pneumatic cylinder?

Answer:
In a double-acting pneumatic cylinder, backpressure occurs when air is not properly exhausted from the side opposite to the pressure being applied. This creates resistance that opposes the motion of the piston, reducing the net force available. Effective exhaust management is necessary to ensure the cylinder operates with maximum efficiency.

7. What is the difference between theoretical and actual force in a pneumatic cylinder?

Answer:

Theoretical Force: This is the force calculated using the pressure and piston area without accounting for losses. It assumes perfect conditions and no friction.
Actual Force: This considers real-world factors like friction, backpressure, and air leakage, which reduce the effective force. Actual force is typically lower than theoretical force due to these inefficiencies.

8. How do you calculate the effective force in a double-acting cylinder?

Answer:
In a double-acting cylinder, the force on the extension stroke and the retraction stroke differs because the piston rod occupies part of the cylinder on the retraction side, reducing the effective area.

For the extension stroke: $F_{\text{extension}} = P \times A$

For the retraction stroke: $F_{\text{retraction}} = P \times (A - A_{\text{rod}})$

Where:

A is the area of the piston,
A₍rod₎ is the cross-sectional area of the piston rod.

9. How does temperature affect pneumatic cylinder pressure and performance?

Answer:
Temperature can influence the density and pressure of compressed air. As temperature increases, air molecules move faster, causing pressure to rise (if the volume remains constant). Conversely, low temperatures can reduce pressure and cause issues like moisture buildup and icing, affecting the cylinder's performance.

10. Can you explain how Boyle's Law is relevant to pneumatic systems?

Answer:
Boyle’s Law states that the pressure of a gas is inversely proportional to its volume, provided the temperature is constant. In pneumatic systems, as air is compressed (volume decreases), the pressure increases. This relationship is crucial in designing and understanding the behavior of pneumatic cylinders, especially during air compression and expansion cycles.

11. What safety factors should be considered when calculating pneumatic cylinder pressure?

Answer:
Safety factors are essential to account for unforeseen stress or fluctuations in the system. Common considerations include:

Overpressure Risks: Ensuring the cylinder and components can handle pressure surges.
Load Safety Factor: Typically, a safety factor of 1.5 to 2 times the expected load is used.
Material Strength: Verifying that the materials used for the cylinder and seals can withstand the operating conditions without failure.

These questions and answers provide a solid foundation for understanding pneumatic cylinder pressure calculations and their relevance in industrial applications.

Pneumatic Component Interview Questions and Answers

When preparing for an interview related to pneumatic components, you should expect questions that gauge your knowledge of pneumatic systems, components, design principles, and practical applications. Below are some common questions you may encounter, along with sample answers to help you prepare.

1. What are pneumatic systems?

Answer: Pneumatic systems use compressed air to generate mechanical motion or power. These systems are often used in automation, manufacturing, and material handling. The compressed air is supplied to actuators, which convert the energy into mechanical work such as moving a piston or rotating a shaft.

2. What are the main components of a pneumatic system?

Answer: The primary components of a pneumatic system include:

Compressor: Generates compressed air.
Air reservoir: Stores compressed air.
Air filter: Removes contaminants from the air.
Pressure regulator: Controls air pressure in the system.
Control valves: Direct the flow of air to actuators.
Actuators: Convert compressed air into mechanical motion (e.g., cylinders, motors).
Lubricator: Adds oil mist to the air for lubricating moving parts (optional in some systems).
Tubing/Piping: Transfers the air throughout the system.

3. What is the difference between single-acting and double-acting cylinders?

Answer:

Single-acting cylinder: Uses compressed air to move the piston in one direction, and a spring returns it to its original position.
Double-acting cylinder: Uses compressed air to move the piston in both directions, providing more control over the motion.

4. What are the advantages and disadvantages of pneumatic systems?

Answer: Advantages:

Simple design and easy to maintain.
Relatively safe, as air is non-flammable and non-explosive.
Can operate in a wide range of environments, including those with high moisture or dust levels.
Quick response time due to the compressibility of air.

Disadvantages:

Compressed air can be expensive due to energy consumption in generating air pressure.
Pneumatic systems are less energy-efficient compared to hydraulic or electrical systems.
Limited force output compared to hydraulics due to lower operating pressures.

5. How do you control the speed of a pneumatic actuator?

Answer: The speed of a pneumatic actuator can be controlled using flow control valves. These valves adjust the rate at which compressed air enters or leaves the actuator, allowing you to control the speed of the piston’s movement. Common types of flow control valves include throttle valves and needle valves.

6. What is a pneumatic relay, and when is it used?

Answer: A pneumatic relay is a device that amplifies or switches pneumatic signals in a system. It is often used when the input signal is too weak to operate a component directly, or when there is a need to amplify the signal to drive a larger actuator. Pneumatic relays are typically used in complex automation systems where multiple control signals are required.

7. What is the role of a pressure regulator in a pneumatic system?

Answer: A pressure regulator maintains a consistent output pressure despite variations in input pressure or system demand. It ensures that the pneumatic components receive air at the correct pressure for optimal operation, preventing damage to the system or inefficient operation due to overpressure or underpressure.

8. What is a FRL unit, and why is it important?

Answer: An FRL unit stands for Filter, Regulator, Lubricator. It is a combination of components used to prepare compressed air before it enters the pneumatic system:

Filter: Removes contaminants such as dust, dirt, and water from the compressed air.
Regulator: Maintains the desired air pressure.
Lubricator: Adds a small amount of oil to the air to lubricate internal components and reduce friction. The FRL unit is essential for ensuring the longevity and reliable operation of pneumatic systems by protecting sensitive components from contamination and wear.

9. How does a solenoid valve work in a pneumatic system?

Answer: A solenoid valve is an electrically operated valve that controls the flow of air within a pneumatic system. It consists of a coil (the solenoid) and a valve mechanism. When an electric current passes through the coil, it generates a magnetic field that moves the valve spool, opening or closing the valve to control the direction of airflow.

10. What safety considerations are important in pneumatic systems?

Answer: Safety in pneumatic systems is crucial to prevent accidents and damage. Key considerations include:

Ensuring that all components, such as hoses and fittings, are rated for the operating pressure.
Properly securing all connections to prevent leaks.
Using pressure relief valves to prevent overpressure in the system.
Regularly inspecting components for wear, damage, or leaks.
Implementing proper shutdown procedures and emergency stops in case of system failure.

11. What is the purpose of a pneumatic circuit diagram, and how do you read one?

Answer: A pneumatic circuit diagram shows how different components in a pneumatic system are connected and interact with each other. It uses standardized symbols to represent components such as compressors, valves, actuators, and regulators. Reading a pneumatic circuit diagram requires understanding these symbols and knowing how air flows through the system to perform a specific function.

12. What are the most common causes of failure in pneumatic systems?

Answer: Common causes of failure in pneumatic systems include:

Air leaks: Leaking air can reduce efficiency and power output.
Contaminated air: Dirt, moisture, or oil in the air can damage components.
Improper pressure settings: Operating at incorrect pressures can lead to inefficient operation or damage.
Lack of lubrication: Insufficient lubrication can cause increased wear and friction on moving parts.
Component wear: Over time, seals, valves, and cylinders can wear out and need to be replaced.

By reviewing these common questions and answers, you'll be better prepared to demonstrate your understanding of pneumatic systems and components during an interview. Focus on both theoretical knowledge and practical experience with pneumatic systems to make a strong impression.

In an interview focused on Pneumatic Directional Control Valves (DCV), candidates might be assessed on their technical knowledge and practical experience. Here are some commonly asked questions, along with answers:

1. What is a Pneumatic Directional Control Valve (DCV)?

Answer: A Pneumatic DCV is a valve that controls the flow of compressed air in a pneumatic system. Its primary function is to direct air to various parts of a system to control the movement of actuators like cylinders and motors. It determines the path taken by air, often allowing or stopping airflow depending on the position of the valve.

2. What are the types of Pneumatic DCVs?

Answer: Common types of Pneumatic DCVs include:

2/2 Valve: Two ports, two positions (On/Off control).
3/2 Valve: Three ports, two positions (usually for controlling single-acting cylinders).
4/2 Valve: Four ports, two positions (for controlling double-acting cylinders).
5/2 Valve: Five ports, two positions (also for double-acting cylinders with additional exhaust).
5/3 Valve: Five ports, three positions (allows more control over the actuator movement).

3. Explain the function of a 5/2 Pneumatic DCV.

Answer: A 5/2 Pneumatic DCV has five ports and two positions. It is primarily used to control double-acting cylinders. The two positions either direct compressed air to one side of the cylinder to extend it or to the opposite side to retract it. The extra two ports are for exhaust, allowing air to exit the system.

4. What are the actuation methods for Pneumatic DCVs?

Answer: Pneumatic DCVs can be actuated in various ways, such as:

Manual Actuation: Via a lever or button.
Mechanical Actuation: Through cams or rollers.
Electrical Actuation (Solenoid): Via an electrical signal to a solenoid coil.
Pneumatic Actuation: Using compressed air to move the valve.
Hydraulic Actuation: Using hydraulic pressure to operate the valve.

5. What are the common symbols used for Pneumatic DCVs in schematics?

Answer: The symbols represent the valve's number of ports and positions. The positions are represented by boxes, and the ports are shown by arrows or lines connecting to the boxes. For example:

A 3/2 valve has three ports (shown as lines) and two positions (represented by two boxes).
A 5/2 valve symbol will have five port connections and two position boxes with flow paths indicated.

6. What factors should be considered when selecting a Pneumatic DCV?

Answer: Key factors include:

Flow Rate: The amount of air the valve can handle, typically measured in cubic feet per minute (CFM) or liters per minute (LPM).
Pressure Rating: The maximum operating pressure the valve can withstand.
Actuation Type: Whether the system requires manual, solenoid, or mechanical actuation.
Port Size: The size of the inlet/outlet ports.
Response Time: How quickly the valve can switch positions.
Mounting and Installation: How and where the valve will be installed in the system.

7. What are the advantages of using pneumatic systems over hydraulic or electrical systems?

Answer: Pneumatic systems are:

Cleaner: They use air, so there's no risk of oil leakage like in hydraulics.
Simple and Cost-Effective: Pneumatic systems are simpler in design and maintenance compared to electrical systems.
Safe: Air is a non-flammable medium, reducing the risk of fire.
High Speed: Pneumatic systems can operate at high speeds, making them suitable for rapid actuation.

8. Can you explain the difference between a spring-return and a double-acting Pneumatic DCV?

Answer:

Spring-return (Single-Acting): These valves have a spring that automatically returns the valve to its default position when the actuating force (air or mechanical) is removed.
Double-Acting: These require external force (air) to move the valve in both directions. There's no spring involved, and both positions are maintained by air pressure.

9. What is a pilot-operated DCV, and where is it used?

Answer: A pilot-operated DCV uses a smaller pilot valve to control the movement of a larger main valve. The pilot valve directs compressed air to either side of the main valve to actuate it. Pilot-operated DCVs are commonly used when the main valve needs to handle higher flow rates or when remote control of the valve is required.

10. What maintenance issues might arise with pneumatic DCVs, and how can they be prevented?

Answer: Common issues include:

Air Leaks: Can occur from worn seals or connections. Regular inspection and maintenance help prevent leaks.
Contamination: Dirt or moisture in the compressed air can clog or damage the valve. Using proper air filtration systems can prevent contamination.
Wear and Tear: Over time, mechanical parts can wear out. Scheduled maintenance and timely replacement of parts can prevent breakdowns.

11. What is the role of a flow control valve in a pneumatic system?

Answer: A flow control valve regulates the speed at which air flows through the system, thus controlling the speed of actuators like cylinders. They are essential for fine-tuning the operation of pneumatic equipment to ensure smooth and efficient functioning.

12. How does a solenoid-operated DCV work?

Answer: A solenoid-operated DCV uses an electromagnetic coil (the solenoid) to actuate the valve. When an electrical current passes through the solenoid, it generates a magnetic field that moves a plunger or spool inside the valve, changing its position and controlling the airflow.

13. What are the main components of a Pneumatic DCV?

Answer: The key components of a Pneumatic DCV include:

Body: The outer casing that houses all the internal parts.
Spool or Poppet: The moving part inside the valve that directs airflow.
Seals: Prevent air leakage between different parts of the valve.
Actuator: Mechanism used to move the spool (e.g., manual lever, solenoid, pneumatic actuator).
Ports: Connections for the air supply, actuators, and exhaust.

These questions cover the basics of Pneumatic DCVs, their operation, types, and associated components, helping candidates demonstrate their understanding of these essential pneumatic system components in interviews.
