Electrical Substation Interview Questions and Answers

Electrical Substation Interview Questions and Answers

Here are some of the common interview questions related to electrical substations, along with suggested answers. These will help prepare for interviews focused on the substation design, maintenance, and operation:

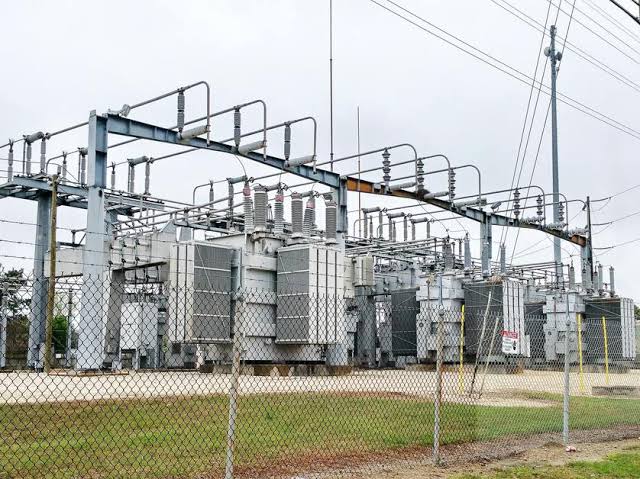

1. What is an electrical substation?

Answer: An electrical substation is a part of an electrical generation, transmission, and distribution system. It transforms voltage from high to low or the reverse using transformers. Substations are critical in controlling power flow and ensuring the safe and efficient distribution of electricity. They also house equipment such as circuit breakers, switches, and protection devices.

2. What are the main components of an electrical substation?

Answer: Key components include:

Transformers: Step-up or step-down voltage levels.
Circuit Breakers: Protect the system by interrupting fault currents.
Isolators/Disconnect Switches: Allow parts of the system to be isolated for maintenance.
Busbars: Conduct electricity between incoming and outgoing lines.
Current and Voltage Transformers (CTs & VTs): Provide protection and metering by reducing high voltage or current levels to measurable amounts.
Capacitors and Reactors: Used for reactive power compensation.
Control and Protection Panels: Used for controlling substation equipment and protecting the system from faults.

3. Explain the types of substations based on service requirement.

Answer:

Step-up Substation: Increases voltage from the power plant for transmission.
Step-down Substation: Reduces high transmission voltages for distribution.
Distribution Substation: Lowers the voltage for end-user supply.
Switching Substation: No voltage transformation; used for controlling the power flow.
Conversion Substation: Used to convert AC to DC or vice versa, for systems like HVDC.

4. What is the difference between a switchgear and a substation?

Answer: A switchgear is a combination of electrical disconnect switches, fuses, and circuit breakers used to control, protect, and isolate electrical equipment. A substation is a broader concept, which includes switchgear but also other equipment like transformers, busbars, and protection systems for transforming and distributing power.

5. How do you ensure safety in a substation?

Answer: Safety is ensured through:

Grounding Systems: To prevent dangerous voltages.
Circuit Breakers and Protective Relays: For fault detection and isolation.
Physical Barriers and Fencing: To prevent unauthorized access.
Regular Maintenance and Testing: Ensures proper functioning of all equipment.
Personal Protective Equipment (PPE): For personnel working inside substations.

6. What is the importance of grounding in a substation?

Answer: Grounding provides a safe path for fault currents to flow into the earth, preventing equipment damage and protecting personnel from electric shocks. It also ensures proper functioning of protective devices and reduces electromagnetic interference.

7. What are the different types of transformers used in substations?

Answer:

Power Transformers: Used for stepping up or down voltage in transmission and distribution.
Distribution Transformers: Used to step down voltage for end-users.
Current Transformers (CTs): Used for measuring current and providing inputs to protection devices.
Potential/Voltage Transformers (VTs): Used to measure high voltage levels and provide inputs to meters and relays.

8. Explain the role of a circuit breaker in a substation.

Answer: A circuit breaker is a switching device that can open or close a circuit under both normal and fault conditions. It automatically trips and isolates the faulty section of the system when it detects overcurrent or short circuits, preventing damage to equipment and ensuring safety.

9. What is a busbar, and what is its function in a substation?

Answer: A busbar is a conductor that distributes power from the incoming feeders to the outgoing feeders in a substation. Its function is to allow a single point of connection for multiple circuits, facilitating efficient power distribution and providing flexibility for switching circuits in or out for maintenance or fault isolation.

10. What are the different types of substation layouts?

Answer:

Single Bus: Simple and low cost but offers no redundancy.
Double Bus Double Breaker: Provides higher reliability but is more expensive.
Main and Transfer Bus: Offers flexibility for maintenance without service interruptions.
Ring Bus: Each circuit is connected to two adjacent circuits, offering high reliability.
Breaker and a Half: Allows any two circuits to share one breaker with redundancy.

11. What is load shedding, and why is it important?

Answer: Load shedding refers to the deliberate reduction of electrical load to prevent the system from overloading. It is important because it maintains the stability of the grid during peak demand or when there is insufficient generation capacity, preventing widespread blackouts.

12. What are the protection systems used in substations?

Answer:

Overcurrent Protection: Protects against excessive current caused by short circuits.
Distance Protection: Measures the impedance and protects lines from faults.
Differential Protection: Detects differences in current entering and leaving a device, such as a transformer, to detect faults.
Backup Protection: Activates when the primary protection fails.

13. What is SCADA and its role in substations?

Answer: SCADA (Supervisory Control and Data Acquisition) is a system used to monitor and control substations remotely. It collects data from substation equipment, such as voltage levels, current, and status of breakers, and allows operators to make real-time decisions for managing the electrical grid.

14. What is the role of a relay in substation protection?

Answer: A relay is a protection device that detects abnormal conditions (e.g., overcurrent, under-voltage, faults) in the electrical system and sends a signal to the circuit breaker to trip and isolate the faulty section. It helps prevent damage to equipment and ensures the safety of the system.

15. What is meant by a transformer’s impedance?

Answer: Transformer impedance is a measure of the transformer’s opposition to alternating current flow, resulting in voltage drop under load conditions. It is essential in determining how fault currents are distributed in the system and impacts the fault levels and protection settings in substations.

These questions cover a broad range of topics to prepare for interviews in the field of electrical substations. It's essential to be familiar with both the theoretical aspects and practical applications related to substation operations, equipment, and safety protocols.

Here’s a detailed guide on potential electrical substation protection interview questions and answers. The questions generally focus on the design, functioning, and protection schemes used in electrical substations.

1. What is the purpose of a substation in the power system?

Answer: Substations are essential in the electrical power system for transforming voltage levels between high transmission voltages and lower distribution voltages. They serve various purposes, including stepping up the voltage for transmission, stepping down for distribution, controlling and isolating electrical equipment, and protection through circuit breakers, transformers, and protective relays.

2. What is the difference between a switchyard and a substation?

Answer: A switchyard is part of the substation where power is controlled and directed. It contains switching devices like circuit breakers and disconnectors but usually doesn’t change voltage levels. A substation, on the other hand, may include the switchyard along with transformers to step up or step down voltage.

3. What is the importance of substation protection?

Answer: Substation protection is vital to ensure the safe and reliable operation of the power system. Protection systems detect abnormal conditions such as faults, overcurrent, or overvoltages and isolate the faulty section to prevent damage to equipment and ensure the continuous supply of electricity. This minimizes outages and ensures safety.

4. What are the common protection devices used in a substation?

Answer: Common protection devices include:
- Circuit breakers: Automatically interrupt fault currents.
- Relays: Detect abnormal conditions and signal the circuit breaker to open.
- Fuses: Protect equipment by melting in case of overloads.
- Current and voltage transformers (CTs and VTs): Provide inputs to protective relays.
- Lightning arresters: Protect against voltage surges.

5. Can you explain the different types of protective relays?

Answer:
- Overcurrent relay: Trips the circuit when current exceeds a preset value.
- Differential relay: Detects differences between incoming and outgoing current in equipment, indicating faults.
- Distance relay: Operates based on the impedance between the substation and the fault point.
- Under/Overvoltage relay: Activates when voltage drops below or rises above specified limits.

6. What is the role of CTs and VTs in a protection system?

Answer: Current Transformers (CTs) and Voltage Transformers (VTs) step down the high current and voltage in power systems to measurable levels for relays and meters. CTs provide the relays with proportional current, while VTs provide proportional voltage to help detect faults.

7. What is the difference between primary and backup protection in a substation?

Answer: Primary protection is the main protection scheme designed to isolate faults as soon as they occur. Backup protection serves as a failsafe if the primary protection fails or is slow to operate. Backup protection can be local or remote, providing redundancy in the system.

8. What are the typical types of faults in a substation?

Answer:
- Short-circuits (line-to-ground, line-to-line, and three-phase faults).
- Overcurrent and overvoltage conditions.
- Transformer winding faults.
- Breaker failure.
- Bus faults.

9. How does a differential protection scheme work in transformers?

Answer: In a differential protection scheme, the currents entering and leaving the transformer are compared using CTs. Under normal operating conditions, the incoming and outgoing currents should be equal. A difference (above a preset threshold) indicates a fault within the transformer, causing the protective relay to trip the circuit breaker.

10. What is the importance of an earthing system in substations?

Answer: The earthing system provides a path for fault currents to safely dissipate into the ground, reducing the risk of equipment damage and ensuring safety for personnel. It helps in stabilizing the voltage levels of the power system, and minimizes overvoltage situations due to lightning strikes or switching surges.

11. What is the purpose of busbar protection?

Answer: Busbar protection is used to protect the busbars in a substation. Busbars are a critical part of the substation, as they connect incoming and outgoing transmission lines. If a fault occurs on a busbar, it can lead to widespread outages. Differential relays are typically used for busbar protection.

12. How do you test a relay in a substation?

Answer: Relay testing involves checking the functionality and calibration of the relay. This can be done through:
- Primary injection testing: Applying a real-time fault current to test the entire protection scheme.
- Secondary injection testing: Simulating fault conditions by applying a signal directly to the relay's secondary winding to verify its operation.
- Functional testing: Ensures the relay operates correctly within the preset limits.

13. What is a Breaker Failure Protection (BFP) scheme?

Answer: The Breaker Failure Protection (BFP) scheme ensures that if a circuit breaker fails to open during a fault, backup breakers will operate to isolate the fault. The BFP relay monitors the breaker’s condition and sends a trip signal to backup breakers if the primary breaker fails.

14. Explain the role of SCADA in substation protection.

Answer: Supervisory Control and Data Acquisition (SCADA) systems are used to monitor and control substation equipment remotely. They gather real-time data, detect faults, and allow operators to remotely trip or close breakers. SCADA enhances the efficiency of substation operation by providing critical information for decision-making.

15. What is a protection coordination study?

Answer: A protection coordination study ensures that protective devices like relays, fuses, and circuit breakers operate in a coordinated manner, ensuring that the smallest possible section of the power system is isolated during a fault. This minimizes the impact of outages and ensures system reliability.

16. What are the primary protections for transformers in a substation?

Answer: The primary protections for transformers include:
- Differential protection: To detect internal faults.
- Buchholz relay: For detecting internal gas formation or oil movement due to faults.
- Overcurrent protection: To protect against overloads.
- Temperature protection: For detecting overheating in transformer windings or oil.

These are some of the core questions and answers that candidates should prepare for when attending an interview related to substation protection. Knowing these concepts demonstrates an understanding of both the theoretical and practical aspects of electrical protection systems in substations.

Electrical Substation Switchyard Interview Questions and Answers

Here are some commonly asked questions in an interview related to electrical substations and switchyards, along with their possible answers:

1. What is a substation, and what is its purpose?

Answer: A substation is a part of the electrical generation, transmission, and distribution system that transforms voltage levels and facilitates the transfer of power between the grid and consumers. The primary purpose is to step up or step down voltage levels, ensure power quality, and control the flow of electrical power.

2. What are the major components of a substation?

Answer: The key components of a substation include:

Transformers: Used to step up or step down the voltage.
Circuit breakers: Protect the system by breaking the circuit in case of a fault.
Busbars: Conduct electricity within the substation, connecting different circuits.
Isolators/Disconnectors: Used for isolating the circuit when needed.
Current and voltage transformers (CTs & VTs): Used for measurement and protection purposes.
Protection relays: Detect and isolate faults.
Surge arresters: Protect equipment from over-voltage surges.
Control and monitoring systems: Used for controlling and monitoring the substation.

3. What is the function of a switchyard in a substation?

Answer: The switchyard is the part of a substation where power is switched between different parts of the system. It contains switching devices like circuit breakers and disconnectors, which help control the flow of electricity and protect the system from faults. It serves as a hub for routing electricity to different transmission lines or distribution networks.

4. What is the difference between a circuit breaker and an isolator?

Answer:

Circuit Breaker: A circuit breaker is a protective device that can break the circuit under load conditions, either manually or automatically, to protect the system from faults.
Isolator (Disconnector): An isolator is a device used to disconnect a part of the circuit under no-load conditions for maintenance or isolation purposes. It does not have any arc-extinguishing capability.

5. What is a busbar, and what is its function?

Answer: A busbar is a metallic strip or bar made of copper or aluminum that conducts electricity within a substation. It acts as a central point for connecting incoming and outgoing transmission or distribution lines. Busbars allow power to be distributed to multiple circuits efficiently.

6. What are the types of substations?

Answer: Substations are categorized based on their purpose and voltage levels. Types include:

Step-up substations: Increase voltage levels to transmit power over long distances.
Step-down substations: Decrease voltage levels for distribution to end-users.
Distribution substations: Distribute power at lower voltage levels to consumers.
Switching substations: Used for switching operations without altering the voltage.
Converter substations: Convert AC to DC or vice versa, usually in HVDC systems.

7. What is the role of protective relays in a substation?

Answer: Protective relays are devices that detect abnormal conditions like overcurrent, under-voltage, over-voltage, or faults within the system. When a fault is detected, the relay sends a signal to the circuit breaker to isolate the faulty section, ensuring the safety of equipment and personnel.

8. Explain the difference between current transformers (CT) and voltage transformers (VT)?

Answer:

Current Transformer (CT): A CT reduces high current levels to a lower, more manageable level for measurement and protection purposes. It provides a proportional current that can be used by relays or meters.
Voltage Transformer (VT): A VT steps down high voltage levels to a safer level for measurement and protection, allowing accurate monitoring of system voltages.

9. What are the different types of circuit breakers used in substations?

Answer: Some common types of circuit breakers include:

Air Circuit Breaker (ACB): Uses air as an arc-quenching medium.
Oil Circuit Breaker (OCB): Uses oil to extinguish the arc.
SF6 Circuit Breaker: Uses sulfur hexafluoride (SF6) gas to quench the arc.
Vacuum Circuit Breaker (VCB): Uses a vacuum to extinguish the arc.

10. What is earthing, and why is it important in substations?

Answer: Earthing refers to the process of connecting electrical equipment and systems to the ground to prevent electric shocks and protect the system from overvoltages due to lightning or switching surges. It provides a safe path for fault currents, preventing damage to equipment and ensuring personnel safety.

11. How do surge arresters protect equipment in a substation?

Answer: Surge arresters protect electrical equipment by limiting over-voltages that can occur during lightning strikes or switching operations. They absorb and safely dissipate excess energy, preventing it from damaging sensitive components like transformers and circuit breakers.

12. What are the different busbar configurations used in substations?

Answer: Some common busbar configurations include:

Single Busbar: Simple and cost-effective, but less reliable.
Double Busbar: Provides flexibility and redundancy.
Ring Busbar: Offers higher reliability, with the ability to isolate faults while maintaining power flow.
Mesh Busbar: Highly reliable but complex and costly to implement.

13. What are the main safety concerns in a substation?

Answer: Key safety concerns include:

High voltage risks: The danger of electrical shock or arc flash.
Fire hazards: Due to equipment faults or oil-based transformers.
Faults and short circuits: Can lead to system damage and safety hazards.
Mechanical failures: Risk of equipment malfunction.
Proper earthing and grounding: To avoid electrocution or damage during faults.
Personal protective equipment (PPE): Use of appropriate gear for electrical work.

14. What is the difference between a power transformer and a distribution transformer?

Answer:

Power Transformer: Used in transmission networks, typically with higher voltage ratings (above 33 kV) and capacities. Its primary function is to step up or step down voltage levels in transmission lines.
Distribution Transformer: Found in distribution networks, it steps down voltage levels to make power suitable for domestic or industrial use. Typically operates below 33 kV.

15. What is the significance of load shedding in substations?

Answer: Load shedding is a process of deliberately reducing the load on the electrical system to prevent overloading and maintain grid stability during periods of high demand or when there is a shortfall in power generation. It helps avoid widespread blackouts.

By preparing for these questions, candidates can show their technical expertise and understanding of how electrical substations and switchyards function, demonstrating their capability to operate and maintain these systems effectively.

When preparing for an interview related to electrical substation troubleshooting, it’s important to be familiar with the core concepts and practical knowledge that interviewers typically focus on. Here's a guide to some common questions and their potential answers:

1. What are the major components of a substation?

Answer:
The major components of a substation include:

Transformers (step-up or step-down voltage levels)
Circuit Breakers (interrupt the current flow to protect the system)
Busbars (conducting bars for power distribution)
Isolators/Disconnectors (for isolating sections of the substation)
Relays and Protection Systems (for detecting faults and triggering breakers)
Capacitor Banks and Reactors (for power factor correction and voltage regulation)
Current and Voltage Transformers (CTs and VTs) (for measurement and protection)
Earthing Systems (for safety)

2. How do you troubleshoot a circuit breaker that fails to trip?

Answer:
If a circuit breaker fails to trip, follow these steps:

Check the control power supply: Ensure that the breaker’s control circuit is receiving adequate voltage.
Inspect the protection relays: Verify if the relays are working properly and are correctly set.
Check mechanical components: There could be a mechanical failure, like a stuck mechanism.
Examine the trip coil: The trip coil may be faulty or damaged.
Test the breaker manually: Conduct manual operation to see if the breaker can trip mechanically.

3. What is a protection relay and how does it work?

Answer:
A protection relay monitors electrical parameters such as current, voltage, and frequency. When it detects an abnormal condition (like overcurrent, undervoltage, or a fault), it sends a signal to a circuit breaker to disconnect the faulty section. Protection relays prevent equipment damage by isolating faulted areas quickly.

4. What is the purpose of a transformer differential relay?

Answer:
A transformer differential relay is used to protect transformers from internal faults. It compares the current entering and leaving the transformer. If there is a difference between the two currents (indicating a fault inside the transformer), the relay will trigger and isolate the transformer to prevent further damage.

5. How do you diagnose a transformer overheating issue?

Answer:
For transformer overheating:

Check the cooling system: Ensure that cooling fans or oil pumps are working.
Examine the load: Overloading could be causing excessive heat.
Check the oil level and quality: In oil-cooled transformers, low or degraded oil can reduce cooling efficiency.
Monitor winding and oil temperature sensors: Faulty sensors may give inaccurate temperature readings.
Perform infrared thermography: This can help identify hotspots in the transformer.

6. What are the common causes of a substation blackout?

Answer:
Some common causes include:

Equipment failure (e.g., transformers, circuit breakers, etc.)
Relay misoperation
Incorrect settings or failure of protection schemes
Cable or line faults
Grid instability or overloading
Human error during switching operations

7. What steps would you take if a power transformer trips frequently?

Answer:
If a transformer trips frequently:

Analyze trip logs and relay reports to identify the cause.
Check for short circuits or overloading conditions.
Inspect the condition of bushings and insulation for any signs of deterioration.
Verify correct relay settings to avoid nuisance tripping.
Examine cooling systems to ensure proper transformer cooling.
Perform insulation resistance tests to check the health of windings.

8. What is the role of an isolator in a substation?

Answer:
An isolator is a mechanical switch used to isolate a section of the substation when it is de-energized. It ensures safety during maintenance by providing visible separation between the live parts and the section being worked on. Unlike circuit breakers, isolators cannot interrupt the current.

9. What would you do if you suspect an earth fault in the substation?

Answer:
If an earth fault is suspected:

Use an earth fault relay to confirm the fault location.
Inspect the grounding system for any broken connections or deteriorated conductors.
Check the insulation resistance of equipment to identify where the fault might be occurring.
Isolate the faulty section and carry out repairs before re-energizing the system.

10. How do you perform an insulation resistance test?

Answer:
An insulation resistance test is done using a megohmmeter:

Disconnect the equipment from the power supply.
Connect the megohmmeter leads to the terminals of the equipment.
Apply the recommended test voltage (500V, 1kV, etc.).
Measure the resistance; a high resistance indicates good insulation, while a low resistance indicates insulation breakdown or moisture ingress.
Record the value for comparison against the manufacturer's specifications.

11. What could cause voltage fluctuations in a substation?

Answer:
Voltage fluctuations can be caused by:

Load changes: Sudden large loads or load shedding.
Faulty voltage regulators: Issues with automatic voltage regulation systems.
Capacitor banks malfunctioning: Incorrect operation of capacitor banks may cause voltage instability.
Transformer tap changer issues: Problems with the on-load tap changer (OLTC) could cause voltage variations.
Transmission line faults: Ground or line-to-line faults could lead to voltage dips or spikes.

12. What is SCADA, and how is it used in substations?

Answer:
SCADA (Supervisory Control and Data Acquisition) is a system used for remote monitoring and control of substations. It allows operators to:

Monitor the status of substation equipment in real time.
Control devices like breakers and transformers remotely.
Collect data for trend analysis and fault diagnosis.
Respond to alarms and notifications about abnormal conditions.

13. How do you address harmonics in a substation?

Answer:
Harmonics can cause overheating and inefficiency. To address harmonics:

Install harmonic filters to reduce the effects of harmonic currents.
Use transformers with K-factor ratings that are designed to handle harmonic loads.
Monitor the system for harmonic levels using power quality meters and analyze the data for corrective actions.

This guide should give you a solid foundation to answer technical questions during an electrical substation troubleshooting interview. Always emphasize your hands-on experience and safety procedures while troubleshooting.

Electrical Substation Maintenance Interview Questions and Answers

Preparing for an interview for a substation maintenance role involves understanding both technical knowledge and practical applications of electrical systems. Below are some common interview questions and model answers to help prepare for such a role:

1. What are the essential components of a substation?

Answer: A substation consists of several key components:

Transformers: Step-up or step-down voltages.
Circuit Breakers: Protect the system by interrupting current flow during faults.
Busbars: Distribute electrical power to multiple circuits.
Isolators/Disconnectors: Isolate sections for maintenance.
Capacitors/Reactors: Manage power quality, reactive power, and voltage regulation.
Instrument Transformers: Include Current Transformers (CT) and Voltage Transformers (VT) for metering and protection.
Protection Relays: Detect faults and trigger circuit breakers.

2. What are the typical types of maintenance performed in substations?

Answer: Substation maintenance includes:

Preventive Maintenance: Regular inspections, testing, and servicing to prevent failure.
Predictive Maintenance: Using tools like thermography, insulation tests, and oil analysis to predict failures.
Corrective Maintenance: Repairing or replacing equipment after failure.
Condition-Based Maintenance (CBM): Maintenance decisions based on the actual condition of equipment, often monitored with sensors.

3. How do you ensure safety while working in a substation?

Answer: Safety is critical in substations. Key measures include:

Lockout/Tagout (LOTO) procedures to de-energize equipment.
Personal Protective Equipment (PPE) like gloves, insulated tools, hard hats, and arc-flash gear.
Grounding Equipment: To ensure that the working area is grounded to prevent electric shocks.
Clearance from live parts: Maintain safe distances from energized components.
Regular training and adherence to safety standards, such as NFPA 70E and OSHA regulations.

4. What is a transformer’s Dissolved Gas Analysis (DGA), and why is it important?

Answer: Dissolved Gas Analysis (DGA) is a diagnostic method used to assess the health of transformers by analyzing gases dissolved in transformer oil. These gases are byproducts of insulation degradation and oil breakdown. Common gases monitored include hydrogen, methane, ethane, and acetylene. Detecting specific gas levels can help identify potential faults like overheating, arcing, or partial discharges before catastrophic failure occurs.

5. What is a relay, and what are its functions in a substation?

Answer: A relay is an electromechanical or electronic device that detects abnormal electrical conditions (like overcurrent, undervoltage, etc.) and initiates a control action, typically opening or closing circuit breakers. In substations, relays protect equipment by identifying faults and isolating affected areas to prevent damage and maintain system stability.

6. How do you test a Circuit Breaker?

Answer: Testing a circuit breaker typically involves the following:

Contact Resistance Test: Measuring the resistance across the breaker’s contacts to ensure proper conductivity.
Insulation Resistance Test: Checking insulation strength between the breaker’s conductive parts and the earth.
Timing Test: Measuring the opening and closing time of the breaker to ensure it operates within the specified range.
Trip Test: Simulating fault conditions to verify the breaker trips correctly and promptly.
SF6 Gas Analysis (for SF6 breakers): Analyzing the gas for purity and pressure to ensure the dielectric properties are intact.

7. What is the role of SCADA in substation maintenance?

Answer: SCADA (Supervisory Control and Data Acquisition) systems monitor and control electrical substations remotely. SCADA helps in:

Real-time monitoring of system performance.
Fault detection and diagnosis through data collection.
Automated control of equipment (like circuit breakers) in response to detected faults or anomalies.
Historical data analysis for predicting failures and planning maintenance schedules.

8. What is the importance of earthing in a substation?

Answer: Earthing in a substation ensures that all exposed conductive parts are kept at zero potential. Its importance includes:

Personnel Safety: Prevents electrical shocks by directing fault currents to the ground.
Equipment Protection: Limits over-voltages caused by lightning or switching surges.
Ensures Reliable Operation: Stabilizes voltage levels during normal operation and fault conditions.

9. What is an SF6 Circuit Breaker, and why is it used?

Answer: An SF6 (Sulfur Hexafluoride) Circuit Breaker uses SF6 gas to quench the arc formed when interrupting high voltage circuits. SF6 has excellent insulating properties, allowing for compact design and high breaking capacities. It's widely used in high-voltage substations for:

Arc quenching: SF6 gas absorbs free electrons and quickly extinguishes the arc.
High Dielectric Strength: Better than air or oil, which means equipment can be smaller.
Low Maintenance: SF6 breakers require less maintenance compared to air or oil circuit breakers.

10. How do you perform a transformer insulation resistance test?

Answer: To perform an insulation resistance test:

De-energize and isolate the transformer.
Connect a megger or insulation resistance tester between the windings and ground.
Measure resistance by applying a test voltage (typically 500V, 1000V, or higher depending on equipment ratings).
Evaluate the results based on standard insulation values. A significant drop in insulation resistance could indicate moisture, contamination, or insulation breakdown.

11. What is the significance of power factor correction in a substation?

Answer: Power factor correction in substations is used to reduce reactive power, improve efficiency, and minimize losses. A poor power factor increases the current load on equipment, leading to higher losses in transformers, cables, and switchgear. Capacitor banks are commonly used for correcting power factor by supplying reactive power locally, reducing the total current demand on the system.

These are just some of the potential questions that could be asked in an electrical substation maintenance interview. Preparing with both technical knowledge and practical experience is key to performing well.

Preparing for an interview for a position involving electrical substations requires a solid understanding of key concepts, technical knowledge, and problem-solving skills specific to substation design, operation, and maintenance. Below are common interview questions for electrical substation positions along with possible answers that can help you prepare effectively.

1. What is an Electrical Substation?

Answer:
An electrical substation is a part of an electrical generation, transmission, and distribution system where voltage is transformed from high to low or the reverse using transformers. It also contains switching, protection, and control equipment to ensure reliable and safe operation of the power grid.

2. What are the types of substations?

Answer:
The types of substations include:

Transmission Substation: Used to connect two or more transmission lines.
Distribution Substation: Steps down voltage from the transmission system to the distribution level.
Switching Substation: Used to connect or disconnect parts of the power system without changing the voltage.
Converter Substation: Converts AC to DC or vice versa, commonly found in HVDC systems.

3. What are the main components of a substation?

Answer:

Transformer: Steps up or steps down voltage.
Circuit Breaker: Protects the substation from faults by interrupting the current.
Isolator: Disconnects parts of the circuit for maintenance.
Busbar: Conducts electricity within the substation and connects incoming and outgoing lines.
Capacitors and Reactors: Manage power factor and voltage stability.
Relays: Used for protection and control.
Instrument Transformers: Measure voltage and current for metering and protection.

4. What is the role of a Transformer in a Substation?

Answer:
A transformer in a substation is used to step up (increase) or step down (decrease) the voltage levels. It plays a critical role in transmission and distribution of electrical power, helping reduce losses during transmission over long distances by stepping up voltage and stepping it down for safe distribution to consumers.

5. Explain the difference between a circuit breaker and an isolator?

Answer:
A circuit breaker is a protection device that can automatically interrupt the electrical flow when it detects a fault, such as an overload or short circuit. It can operate under load conditions. An isolator, on the other hand, is a mechanical switch used to disconnect a portion of the circuit for maintenance purposes. It operates only in no-load conditions and does not provide fault protection.

6. What is the importance of earthing in substations?

Answer:
Earthing in substations ensures the safety of personnel and equipment by preventing voltage build-up in non-current carrying conductive parts. It provides a path for fault currents to flow into the ground, minimizing damage and reducing the risk of electric shock.

7. What is meant by SCADA in substations?

Answer:
SCADA (Supervisory Control and Data Acquisition) is a control system used to monitor and control the equipment in substations remotely. It allows operators to observe real-time data from the substation, execute commands like opening and closing breakers, and receive fault or status alarms to maintain grid stability and performance.

8. What are protective relays and why are they essential in substations?

Answer:
Protective relays are devices that detect abnormal conditions such as faults and initiate the tripping of circuit breakers to isolate the faulty section of the electrical system. They are essential to protect equipment, ensure the safety of operators, and prevent widespread power outages.

9. What is the function of CT (Current Transformer) and PT (Potential Transformer) in a substation?

Answer:
CT (Current Transformer): Used to step down high current to a lower, measurable value for metering and protective relays. PT (Potential Transformer): Used to step down high voltage to a lower, safe value for the operation of meters, relays, and other control devices.

10. What is Busbar Protection and why is it needed?

Answer:
Busbar Protection is a protection scheme that isolates a faulty section of the busbar system to prevent damage to equipment and minimize system disruption. Busbars are critical components as they interconnect multiple circuits in a substation. Protecting them ensures the continuity and reliability of the entire power system.

11. How do you handle load shedding in substations?

Answer:
Load shedding is implemented when there is an imbalance between supply and demand. In substations, SCADA systems or manual controls can shed load by disconnecting non-essential circuits or feeders to ensure grid stability. The goal is to maintain system frequency and prevent complete blackout.

12. What is the importance of insulation in substations?

Answer:
Insulation in substations prevents unintended electrical contact between conductive parts and the ground or other equipment. This is vital for preventing short circuits, ensuring safe operation, and maintaining the reliability of power delivery. Insulators can be made from materials like porcelain, glass, or polymer.

13. What is a Gas Insulated Substation (GIS)? How does it differ from AIS?

Answer:
A Gas Insulated Substation (GIS) uses sulfur hexafluoride (SF6) gas as an insulating medium instead of air, which is used in an Air Insulated Substation (AIS). GIS systems are more compact and reliable, allowing for installation in areas with limited space, but are more expensive compared to AIS.

14. How do you test the performance of a substation transformer?

Answer:
Transformer performance testing includes:

Insulation Resistance Test: Using a megger to check the insulation between windings and earth.
Transformer Turns Ratio (TTR) Test: Verifying the turns ratio to check for winding issues.
Oil Testing: Checking the dielectric strength and quality of the transformer oil.
Load and No-load Testing: To check efficiency and operational performance under various load conditions.

15. What safety protocols must be followed in a substation?

Answer:

Proper grounding and earthing of all equipment.
Use of personal protective equipment (PPE) such as insulated gloves, helmets, and rubber mats.
Regular maintenance and inspection to prevent accidents.
Following lockout/tagout (LOTO) procedures to ensure circuits are de-energized before maintenance.
Training personnel in emergency procedures and handling high-voltage equipment safely.

Conclusion

Preparing for an interview on electrical substations involves understanding the equipment and systems involved, including transformers, protective devices, SCADA, relays, and safety protocols. Demonstrating hands-on experience and problem-solving abilities in substation operation, maintenance, and safety will also improve your chances of success in the interview.

A job interview for a position at a grid substation (whether you're applying for an engineer, technician, or operator role) will often focus on both technical knowledge and practical skills related to substation design, maintenance, and operation. Below are common interview questions and sample answers to help prepare:

1. What is a substation, and what is its role in the power grid?

Answer: A substation is an integral part of an electrical power system where voltage is transformed from high to low, or vice versa, using transformers. Its main role is to transmit and distribute electricity efficiently from power generation plants to homes and businesses, ensuring the voltage is appropriate for end-use applications.

2. What are the main components of a substation?

Answer: The key components of a substation include:

Power Transformers: Change the voltage level to suit transmission and distribution needs.
Circuit Breakers: Protect the system by isolating faulty sections in case of a fault.
Busbars: Serve as a common connection point for multiple circuits.
Isolators: Disconnect sections of the substation for maintenance purposes.
Lightning Arresters: Protect the substation from lightning strikes.
Control Panels: Monitor and control equipment in the substation.

3. What types of substations are there?

Answer: Substations can be classified into:

Step-up Substations: Increase voltage for long-distance transmission.
Step-down Substations: Reduce high transmission voltages to levels suitable for distribution.
Distribution Substations: Lower voltage from transmission levels to be distributed to homes and industries.
Switching Substations: These do not change voltage but manage the connection and isolation of transmission lines.
Underground Substations: Located in cities, they manage power distribution in limited space.

4. Explain the difference between a power transformer and a distribution transformer.

Answer: A power transformer is designed to operate at high voltage levels (typically above 33 kV) and is used primarily in transmission networks. It is meant for transmitting power over long distances. A distribution transformer, on the other hand, operates at lower voltage levels (typically less than 33 kV) and is used to supply electricity to end consumers.

5. What are the different types of circuit breakers used in substations?

Answer: Common types of circuit breakers used in substations include:

Air Circuit Breaker (ACB): Used for low voltage applications.
Vacuum Circuit Breaker (VCB): Suitable for medium voltage applications.
SF6 Circuit Breaker: Uses sulfur hexafluoride gas for arc quenching in high-voltage applications.
Oil Circuit Breaker: Immerses its contacts in oil for arc suppression.

6. What safety measures must be followed in a substation?

Answer: Safety in substations is critical and includes:

Ensuring that all equipment is properly grounded.
Using personal protective equipment (PPE) such as insulated gloves and shoes.
Following lockout/tagout (LOTO) procedures before working on de-energized equipment.
Maintaining proper clearances for live equipment.
Regular training on emergency response and fire safety protocols.

7. How would you handle a fault in the substation?

Answer: In case of a fault, I would:

Immediately isolate the faulty section by opening the appropriate circuit breakers.
Analyze fault indicators or alarms to identify the cause.
Report the fault to the control center and follow standard operating procedures.
Assist in restoring normal operations by fixing the fault or coordinating with field teams.

8. What is the role of SCADA in substation management?

Answer: SCADA (Supervisory Control and Data Acquisition) systems are used in substations to monitor and control electrical equipment remotely. It allows operators to:

View real-time data, such as voltage levels, currents, and breaker positions.
Control devices, such as circuit breakers and transformers, from a remote location.
Receive alerts and alarms for any abnormalities, aiding in quick fault detection and response.

9. Explain the difference between earthing and grounding in a substation.

Answer: Earthing refers to connecting electrical equipment and devices directly to the earth to protect against electrical surges or faults. Grounding, on the other hand, refers to the process of connecting parts of an electrical system (like neutral points) to the ground to maintain system stability and safety.

10. How do you ensure the reliability of power supply in a substation?

Answer: To ensure reliability, regular maintenance and inspections of substation equipment are necessary. This includes:

Conducting preventive maintenance on transformers, breakers, and protective relays.
Implementing redundancy through backup systems and circuit paths.
Monitoring system parameters using SCADA to detect early signs of equipment degradation.
Ensuring timely responses to outages and faults to minimize downtime.

11. What is the importance of a switchgear in a substation?

Answer: Switchgear is critical in a substation as it helps control, protect, and isolate electrical equipment. It ensures that in case of a fault, only the faulty part is disconnected without affecting the rest of the system, thus minimizing disruption and damage.

12. What steps would you take to commission a new substation?

Answer: To commission a new substation, I would:

Ensure all equipment is installed according to design specifications.
Conduct testing on all equipment such as transformers, circuit breakers, and protective relays.
Perform insulation resistance tests and grounding system checks.
Confirm proper operation of control systems, including SCADA.
Coordinate with the grid operator to integrate the substation into the wider power network.

13. What is a Load Tap Changer (LTC), and why is it important?

Answer: A Load Tap Changer (LTC) is a mechanism in a transformer that allows voltage regulation by adjusting the transformer's turns ratio while the system is under load. This is crucial for maintaining the desired output voltage and ensuring stability in the distribution network, particularly during fluctuating demand.

14. What is a relay, and what are its types in substations?

Answer: A relay is a protective device used to detect abnormal conditions in electrical circuits and trigger circuit breakers to isolate the faulty part. Types of relays include:

Electromechanical Relays: Operate on magnetic induction principles.
Static Relays: Use electronic components instead of moving parts.
Numerical Relays: Use microprocessors for more precise and customizable protection.

15. How do you perform a transformer oil test?

Answer: A transformer oil test involves collecting an oil sample and testing for:

Dielectric Strength: The oil’s ability to withstand electrical stress.
Moisture Content: To ensure no water is contaminating the oil.
Dissolved Gas Analysis (DGA): To detect gases produced by faults inside the transformer.
Acidity and Sludge Test: To check for degradation of the oil and insulation materials.

Tips for Interview Success:

Know the Fundamentals: Brush up on electrical theory, grid operations, and substation-specific equipment.
Focus on Safety: Emphasize your knowledge of safety protocols and practices.
Practical Experience: Provide examples of any hands-on experience, whether in internships, labs, or prior jobs.

Preparation in these areas will give you confidence during a grid substation interview.

Substation Maintenance Person Role: Interview Questions and Answers

A Substation Maintenance Person is responsible for ensuring the proper functioning, safety, and reliability of electrical substations. This involves routine maintenance, troubleshooting, and repairs on substation equipment such as transformers, circuit breakers, relays, and other electrical devices. In an interview for this role, you may be asked questions to gauge your technical knowledge, problem-solving ability, and understanding of safety protocols.

Here are common interview questions and sample answers for the role:

1. Can you explain the main functions of a substation?

Answer:
A substation’s main function is to step down or step up the voltage levels from transmission lines to distribution lines or the other way around. Substations play a key role in transforming electricity from high voltage to low voltage, or vice versa, so it can be safely distributed to homes, businesses, and industries. They also help regulate power flow, isolate faults, and protect the system through protective relays and breakers.

2. What experience do you have with substation equipment?

Answer:
I have hands-on experience with a variety of substation equipment, including transformers, circuit breakers, disconnect switches, current transformers (CTs), potential transformers (PTs), and protective relays. My previous role involved routine inspections, testing, and maintenance of these devices to ensure they operate at optimal levels. I also participated in troubleshooting equipment malfunctions and helped with upgrading aging infrastructure.

3. What safety precautions should be taken during substation maintenance?

Answer:
Safety is a top priority in substation maintenance. Key precautions include:

Following lockout/tagout (LOTO) procedures to ensure the equipment is de-energized.
Wearing appropriate personal protective equipment (PPE), such as arc-rated clothing, rubber gloves, and face shields.
Keeping a safe distance from live equipment and maintaining clear communication with team members.
Ensuring grounding of equipment before performing any maintenance tasks.
Adhering to the company’s safety guidelines and OSHA regulations to mitigate the risk of electrical hazards and arc flashes.

4. How would you troubleshoot a circuit breaker that is not operating correctly?

Answer:
I would start by reviewing the operational history of the breaker and any recent maintenance records. Then, I would conduct a visual inspection to check for obvious signs of damage, wear, or environmental factors like moisture. Next, I would test the breaker’s control circuit, operating mechanism, and protective relays using diagnostic tools. If necessary, I’d disassemble the breaker to check for internal problems such as loose connections, damaged components, or issues with lubrication. After identifying the problem, I would repair or replace faulty parts and conduct post-repair testing to ensure proper operation.

5. What types of maintenance do you perform on power transformers?

Answer:
For power transformers, regular maintenance includes:

Oil sampling and analysis: Checking for moisture content, dissolved gases, and insulation properties.
Visual inspections: Looking for leaks, cracks, or signs of overheating.
Electrical testing: Conducting tests such as insulation resistance, transformer turns ratio (TTR), and power factor testing.
Cooling system maintenance: Ensuring that cooling fans, pumps, and radiators are functioning correctly.
Bushing and tap changer checks: Inspecting for wear, damage, or malfunction.

6. How do you handle a high-voltage situation in a substation?

Answer:
In a high-voltage situation, my first step is to maintain a calm and systematic approach. I would isolate the affected section by opening breakers and following established switching procedures. It’s critical to maintain clear communication with the control room and other team members. I would use appropriate high-voltage tools, such as hot sticks and insulated gloves, and follow all safety protocols to avoid any electrical contact. After ensuring that the area is de-energized and safe, I would inspect and address the cause of the issue.

7. What role do protective relays play in a substation, and how do you test them?

Answer:
Protective relays are essential for detecting faults and isolating problem areas to protect equipment and maintain system stability. They monitor current, voltage, and frequency and act to trip circuit breakers during abnormal conditions like short circuits, overloads, or overvoltages. To test them, I would perform:

Functional testing: Ensuring the relay trips when intended.
Calibration: Adjusting the settings to match the relay's design and operational requirements.
Secondary injection testing: Simulating fault conditions to verify proper relay performance without taking the system offline.

8. Describe a time when you faced a critical equipment failure. How did you handle it?

Answer:
In a previous role, we experienced an unexpected transformer oil leak that posed a risk of overheating. I immediately reported the issue to the control room and followed emergency procedures to isolate the transformer. Working with my team, we quickly assessed the leak, applied a temporary fix, and arranged for a full oil containment and repair to be performed. Throughout the process, we adhered to safety protocols to avoid potential hazards, and the transformer was back online within a reasonable time frame, minimizing downtime.

9. How do you keep up with changes in substation technology and maintenance practices?

Answer:
I stay updated by attending training programs, reading industry publications, and participating in online courses related to substation equipment and electrical engineering. Additionally, I collaborate with colleagues to share knowledge and learn from hands-on experiences. I also review the latest standards and practices from organizations like IEEE, NFPA, and NETA.

10. How do you prioritize tasks during a busy maintenance schedule?

Answer:
I prioritize tasks based on the criticality of the equipment and the potential impact on system reliability. For instance, high-voltage equipment or equipment with a history of issues takes precedence. I also consider deadlines for regulatory compliance and safety inspections. Regular communication with the operations team is crucial to align priorities with the needs of the grid.

Conclusion

The role of a Substation Maintenance Person is crucial for maintaining electrical grid reliability and safety. During an interview, it’s important to demonstrate a solid understanding of substation equipment, troubleshooting methods, and safety protocols. Be prepared to share specific examples of past experiences, as practical knowledge will be highly valued.

Substation Power Factor Interview Questions and Answers

Power factor is a crucial concept in electrical systems, especially in substations, as it affects the efficiency of power distribution. Here are some common interview questions and answers related to power factor in the context of substations.

1. What is Power Factor?

Answer: Power factor (PF) is the ratio of real power (kW) to apparent power (kVA) in an electrical system. It indicates how effectively the electrical power is being used. Mathematically, it is expressed as: $PF = \frac{\text{Real Power (kW)}}{\text{Apparent Power (kVA)}}$ A power factor of 1 (or 100%) means all the power is being effectively used, while a low power factor indicates inefficiency.

2. What Causes Low Power Factor in a Substation?

Answer: Low power factor is often caused by inductive loads such as motors, transformers, and other inductive equipment. These devices draw more reactive power, which lowers the overall power factor. Poorly maintained equipment or oversized transformers can also contribute to a low power factor.

3. Why is Maintaining a Good Power Factor Important in a Substation?

Answer: Maintaining a high power factor is crucial for several reasons:
- Efficiency: A poor power factor leads to higher energy losses in the transmission and distribution systems.
- Cost: Utilities may charge penalties for customers with a low power factor because it requires more generation capacity.
- Capacity Utilization: A low power factor means that the substation must handle more apparent power (kVA), reducing its capacity to supply useful power (kW).

4. What Are Some Methods to Improve Power Factor in a Substation?

Answer: Power factor can be improved by reducing the amount of reactive power in the system. This is commonly achieved through:
- Capacitor Banks: These provide reactive power compensation by offsetting the inductive effects of the load.
- Synchronous Condensers: These machines can generate or absorb reactive power and help regulate the power factor.
- Phase Advancers: These devices improve the power factor by improving the phase angle in induction motors.

5. What is the Impact of Low Power Factor on Transformer Sizing?

Answer: A low power factor requires transformers to be oversized to accommodate the higher apparent power (kVA). Even though the actual power (kW) being used is the same, the extra capacity for reactive power means the transformer must handle more overall power, increasing its size and cost.

6. Explain the Power Triangle and its Relation to Power Factor.

Answer: The power triangle represents the relationship between real power (kW), reactive power (kVAR), and apparent power (kVA). It forms a right triangle where:
- Real Power (kW): The horizontal axis, representing useful power.
- Reactive Power (kVAR): The vertical axis, representing power that doesn’t perform useful work but is necessary for maintaining the electric and magnetic fields in inductive loads.
- Apparent Power (kVA): The hypotenuse, representing the total power.
The power factor is the cosine of the angle between real power and apparent power: $PF = \cos(\theta)$

7. How Do You Calculate Power Factor Correction for a Substation?

Answer: Power factor correction involves determining the size of the capacitor bank needed to bring the power factor closer to 1. The required capacitor size can be calculated using the formula: $Q_c = P \left( \tan(\theta_1) - \tan(\theta_2) \right)$ Where:
- $P$ is the real power (kW),
- $\theta_1$ is the current power factor angle,
- $\theta_2$ is the desired power factor angle,
- $Q_c$ is the required reactive power for correction.

8. What is the Typical Range of Power Factor in a Substation?

Answer: In substations, power factor is typically maintained between 0.95 to 1.0. Utilities may aim for a slightly leading or lagging power factor depending on their system’s needs, but power factor below 0.85 may result in penalties from utility companies due to inefficiencies.

9. What is the Role of Power Factor Correction Equipment in a Substation?

Answer: Power factor correction equipment like capacitor banks and synchronous condensers help to reduce the amount of reactive power in the system, thereby increasing the efficiency of power transmission and reducing losses. This also helps to avoid penalties and ensures that the substation operates within its designed capacity.

10. Can Power Factor be Leading in a Substation? What Causes It?

Answer: Yes, power factor can be leading when there is a predominance of capacitive loads. This occurs when there is more capacitive reactive power than inductive reactive power. Power factor correction equipment, such as capacitor banks, may cause a leading power factor if they are oversized or improperly managed.

11. How Does a Variable Power Factor Affect Substation Protection Systems?

Answer: A fluctuating power factor can affect the accuracy of relays and protection equipment in a substation. Protective devices are typically calibrated based on certain load conditions, and if the power factor changes, it can impact the operation of these devices, leading to improper protection or nuisance tripping.

12. What Are Power Factor Penalties and How Do They Affect Substations?

Answer: Power factor penalties are additional charges imposed by utilities when the power factor falls below a specified threshold, often 0.85 or 0.9. In substations, if the power factor drops, more apparent power is needed to deliver the same real power, resulting in higher demand and associated costs. Substations may be equipped with correction devices to avoid these penalties.

13. Explain the Difference Between Leading and Lagging Power Factor.

Answer:
- Lagging Power Factor: Occurs when the current lags behind the voltage, typically due to inductive loads like motors and transformers.
- Leading Power Factor: Occurs when the current leads the voltage, usually due to capacitive loads or overcompensation from capacitor banks.

These questions and answers cover the essential knowledge around power factor in the context of substation operations. Interviewees should have a thorough understanding of how power factor impacts efficiency, equipment sizing, and cost management in substations.

When attending an interview related to substation voltage levels in India, candidates are often asked technical and practical questions regarding power systems, substation components, and voltage levels based on Indian standards. Below are some common interview questions along with model answers:

1. What are the common substation voltage levels in India?

Answer: In India, common substation voltage levels are as follows:

400 kV: Mainly used for bulk power transmission in the grid.
220 kV: Used for regional power transmission between states.
132 kV and 110 kV: These are sub-transmission levels used between regional substations.
66 kV and 33 kV: These are used for power distribution at local levels.
11 kV: A distribution voltage level that supplies power to end consumers.
415 V: Common for local distribution in residential and commercial areas.

2. Why do we have multiple voltage levels in substations?

Answer: Multiple voltage levels exist to ensure efficient power transmission and distribution. Higher voltages are used to transmit power over long distances with minimal losses, while lower voltages are used for distributing power to the end consumers. By stepping down voltages through substations, we can optimize the cost, safety, and reliability of the electrical network.

3. What factors influence the selection of voltage levels in a substation?

Answer: The following factors influence voltage level selection:

Distance of power transmission: Higher voltages reduce losses over long distances.
Power demand: Larger loads require higher voltages for efficient transmission.
System stability: Maintaining grid stability often requires certain voltage levels.
Cost efficiency: Higher voltage equipment is more expensive, so a balance between cost and efficiency is crucial.
Reliability: Certain voltage levels are chosen based on the reliability of the supply in that region.

4. What is the highest voltage level used in India, and why is it necessary?

Answer: The highest voltage level used in India is 765 kV (Ultra High Voltage), and it is necessary to transmit very large amounts of power over long distances with minimum transmission losses. With increasing power demand and generation from renewable sources located far from consumption centers, higher voltages like 765 kV are critical to maintaining an efficient and stable power grid.

5. Explain the difference between a step-up and step-down transformer in a substation.

Answer: A step-up transformer increases the voltage level from the generation level to a higher transmission level (e.g., from 11 kV to 400 kV) to reduce losses during long-distance transmission. A step-down transformer, on the other hand, reduces the high transmission voltage to lower levels (e.g., from 220 kV to 33 kV) to supply power to local distribution networks or consumers.

6. What is a Busbar, and what role does it play in a substation?

Answer: A busbar is a metallic strip or bar in a substation that conducts electricity within the substation itself. It serves as a connection point for incoming and outgoing transmission lines, distributing power between them. It ensures that different voltage levels can be connected and that power flows can be managed efficiently.

7. How do protection relays work in substations?

Answer: Protection relays monitor electrical parameters (like current, voltage, and frequency) and trigger protective actions when abnormal conditions are detected, such as over-current, over-voltage, or short-circuit. These relays ensure the safe operation of the substation by isolating faulty sections of the grid to prevent damage to equipment and maintain grid stability.

8. What is the importance of grounding (earthing) in a substation?

Answer: Grounding or earthing in a substation is crucial for:

Safety: It protects personnel from electric shocks by ensuring that any fault current is safely directed into the ground.
Equipment protection: It safeguards electrical equipment by providing a path for fault currents during lightning strikes or insulation failures.
System stability: Proper earthing helps maintain voltage stability in the system.

9. What are the main components of a substation?

Answer: Key components of a substation include:

Transformers: For stepping up or down voltage levels.
Circuit breakers: To isolate faults in the system.
Isolators: To disconnect parts of the system during maintenance.
Busbars: For distributing power between incoming and outgoing circuits.
Current and Voltage Transformers (CTs and PTs): For monitoring and metering.
Relays: For protection and automation.
Capacitors/Reactors: For voltage regulation and power factor correction.

10. What challenges are involved in maintaining a substation?

Answer: Maintaining a substation involves several challenges:

Equipment aging: Constant monitoring and timely replacement of aging components are necessary.
Environmental conditions: Dust, temperature, and humidity can affect the efficiency and lifespan of equipment.
Power demand fluctuations: High power demand or fluctuating loads can stress transformers and switchgear.
Fault detection: Quick and accurate detection of faults is essential for preventing equipment damage and maintaining system stability.

Conclusion:

Substation voltage levels play a crucial role in India's power grid. Understanding the various voltage levels and their roles in transmission and distribution, along with knowledge of substation components and protective systems, is essential for performing well in technical interviews.
