Hydraulic Interview Questions and Answers -1

Hydraulics is a branch of engineering concerned with the mechanical properties of liquids, particularly their flow and pressure in systems. When preparing for an interview for a hydraulic-related position, expect technical questions that assess your understanding of fluid mechanics, hydraulic systems, and troubleshooting techniques. Below are common hydraulic interview questions along with their answers:

1. What is hydraulics, and how does it work?

Answer: Hydraulics is the use of fluid power to perform work. In a hydraulic system, fluid is transmitted through pumps, valves, and cylinders to create motion or force. The system relies on Pascal's law, which states that pressure exerted on a confined fluid is transmitted equally in all directions, allowing for force multiplication.

2. What is Pascal’s Law, and how is it applied in hydraulics?

Answer: Pascal's Law states that when pressure is applied to a confined fluid, the pressure is transmitted uniformly in all directions. In hydraulics, this principle is used to multiply force in devices like hydraulic presses, jacks, and lifts, enabling small forces to create larger forces by using different cylinder sizes.

3. Can you explain the difference between hydraulic and pneumatic systems?

Answer: The main difference is the working medium. Hydraulic systems use liquids (such as oil), while pneumatic systems use gases (usually air). Hydraulic systems are generally used for heavy loads and require precise control, while pneumatic systems are used for lighter, faster applications. Hydraulic systems operate at higher pressures and provide greater force, while pneumatic systems are cleaner and safer due to the use of air.

4. What are some common components of a hydraulic system?

Answer:
- Pump: Creates flow in the system.
- Reservoir: Holds the hydraulic fluid.
- Valves: Control the direction, pressure, and flow rate of the fluid.
- Actuators (Cylinders and Motors): Convert hydraulic energy into mechanical energy.
- Filters: Keep the hydraulic fluid clean by removing contaminants.
- Piping and Hoses: Transmit fluid between system components.

5. What types of hydraulic fluids are used in hydraulic systems?

Answer: Common hydraulic fluids include:
- Mineral oil-based fluids: Most widely used in general-purpose systems.
- Water-based fluids: Used in fire-resistant environments.
- Synthetic fluids: Used for specialized applications requiring specific chemical properties, such as extreme temperature or pressure resistance.

Hydraulic fluids need to have good lubrication properties, thermal stability, and anti-wear features.

6. What are the main advantages of hydraulic systems?

Answer: Hydraulic systems have several advantages, including:
- High power density: They can transmit a large amount of power through small components.
- Precision control: Hydraulic systems offer precise control over speed, force, and position.
- Force multiplication: Using different cylinder sizes allows for the multiplication of force.
- Durability and reliability: Properly maintained hydraulic systems are highly durable and reliable.

7. What causes cavitation in hydraulic systems?

Answer: Cavitation occurs when the pressure in a hydraulic system drops below the vapor pressure of the fluid, causing bubbles to form and collapse. This can result in noise, vibration, and damage to components like pumps. Cavitation is often caused by restricted inlet conditions, excessive pump speed, or low fluid levels.

8. How do you troubleshoot a hydraulic system that has low pressure?

Answer: To troubleshoot low pressure in a hydraulic system, you can follow these steps:
- Check for leaks: Ensure there are no visible leaks in the system.
- Inspect the pump: Check for damage or wear that might affect performance.
- Examine the fluid level and quality: Ensure there is enough fluid and that it’s not contaminated.
- Test pressure relief valves: Ensure the relief valve is not stuck open or malfunctioning.
- Check for blockages or restrictions: Look for obstructions in the system piping or filters.

9. What is the role of a hydraulic accumulator?

Answer: A hydraulic accumulator stores energy in the form of pressurized fluid. It is used to:
- Absorb hydraulic shocks or fluctuations.
- Maintain pressure in a system.
- Provide extra fluid flow when needed during peak demand.
- Improve the system’s efficiency by reducing pump load during periods of low demand.

10. How would you maintain a hydraulic system?

Answer: Key steps in maintaining a hydraulic system include:
- Regular fluid checks: Monitor and maintain proper fluid levels and quality.
- Filter maintenance: Replace or clean filters to prevent contamination.
- Inspect hoses and seals: Check for wear, cracks, or leaks and replace them as needed.
- Check system pressures: Ensure the system is operating at the correct pressure levels.
- Lubricate components: Proper lubrication of moving parts ensures smooth operation.

11. What could cause a hydraulic cylinder to fail?

Answer: Hydraulic cylinder failure can result from:
- Seal wear or failure: Caused by fluid contamination or improper installation.
- Bent rod: Due to side loading or overextension.
- Piston damage: From cavitation or improper fluid.
- Fluid contamination: Can cause wear, blockages, or chemical breakdown of components.

12. Explain the difference between open-loop and closed-loop hydraulic systems.

Answer:
- Open-loop system: Fluid is drawn from a reservoir, passed through the system, and returned to the reservoir. It is simpler and often used for low-precision applications.
- Closed-loop system: Fluid circulates continuously between the pump and actuators, without returning to a reservoir. This system offers greater control and efficiency, especially in high-precision applications.

13. What safety measures are necessary when working with hydraulic systems?

Answer:
- Wear protective gear: Use gloves, goggles, and other protective equipment.
- Release pressure before servicing: Always release system pressure before maintenance to avoid injury.
- Check for leaks: Leaks, especially under high pressure, can lead to serious injury.
- Use proper lifting techniques: Hydraulic components can be heavy, so use appropriate lifting equipment.
- Regular maintenance: Regularly inspect hoses, seals, and other components to prevent failure during operation.

14. What is the difference between a single-acting and a double-acting hydraulic cylinder?

Answer:
- Single-acting cylinder: Fluid pressure is applied to one side of the piston to create movement in one direction, with the return being handled by a spring or external force.
- Double-acting cylinder: Fluid pressure is applied alternately to both sides of the piston, allowing for controlled movement in both directions. This type is more versatile and used in a wide range of applications.

15. Why is it important to use the correct hydraulic fluid viscosity?

Answer: Using the correct viscosity ensures the hydraulic fluid flows properly through the system, providing sufficient lubrication and minimizing wear. If the viscosity is too high, the fluid can create excessive friction and heat. If it’s too low, it may not provide adequate lubrication, leading to premature wear of components.

These questions and answers cover the fundamental aspects of hydraulic systems and are designed to prepare you for both entry-level and advanced positions in hydraulic engineering or maintenance.

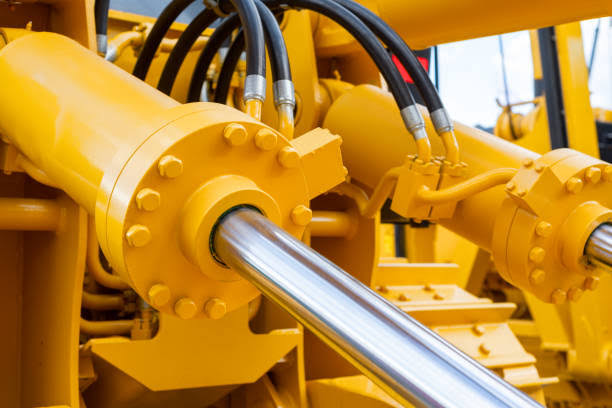

Hydraulic Cylinders Interview Questions and Answers

When preparing for an interview about hydraulic cylinders, it’s important to cover both technical aspects and practical applications. Below are some common interview questions related to hydraulic cylinders, along with appropriate answers.

1. What is a Hydraulic Cylinder?

Answer:
A hydraulic cylinder is a mechanical actuator that provides unidirectional force through a unidirectional stroke. It converts hydraulic energy into mechanical energy, typically used for lifting, pushing, pulling, or applying force in a linear direction.

2. What are the main components of a hydraulic cylinder?

Answer:
The primary components of a hydraulic cylinder include:

Cylinder barrel: Holds the cylinder pressure.
Piston: Transmits force from the hydraulic fluid to the rod.
Piston rod: Connects the hydraulic actuator to the machine part.
Seal: Prevents fluid leakage.
End caps: Close the cylinder ends and house connections.

3. How does a hydraulic cylinder work?

Answer:
A hydraulic cylinder works by pumping hydraulic fluid into the cylinder through a control valve. As pressure builds in one chamber, it pushes the piston to move, creating linear motion. The piston moves either forward or backward, depending on the direction of fluid flow.

4. What are the different types of hydraulic cylinders?

Answer:
The most common types of hydraulic cylinders include:

Single-acting cylinders: Hydraulic pressure is applied on one side of the piston, and the return is typically due to an external force (such as a spring or gravity).
Double-acting cylinders: Hydraulic pressure is applied on both sides of the piston, allowing control of both the forward and backward movement.
Telescopic cylinders: Have multiple stages that extend in a telescoping motion, useful for applications requiring long strokes.

5. What factors affect the performance of a hydraulic cylinder?

Answer:
Several factors influence the performance, such as:

Pressure rating: Determines how much force the cylinder can generate.
Stroke length: Affects how far the piston can travel.
Seal condition: Seals prevent fluid leakage and maintain pressure.
Fluid cleanliness: Contaminated hydraulic fluid can damage components and reduce efficiency.

6. How do you calculate the force exerted by a hydraulic cylinder?

Answer:
The force exerted by a hydraulic cylinder can be calculated using the formula:
$\text{Force} = \text{Pressure} \times \text{Area of the piston}$
Where:

Pressure is the hydraulic fluid pressure (in Pascal or PSI).
Area is the cross-sectional area of the piston (calculated using $\pi r^2$ where $r$ is the radius of the piston).

7. What could cause a hydraulic cylinder to fail?

Answer:
Common reasons for hydraulic cylinder failure include:

Seal failure: Due to wear, contamination, or improper installation.
Rod scoring: Caused by contaminants or lack of lubrication.
Overloading: Operating the cylinder beyond its pressure limits.
Corrosion: Exposure to corrosive fluids or environments.

8. What is the purpose of cushioning in hydraulic cylinders?

Answer:
Cushioning is used to slow down the piston movement near the end of the stroke, reducing the impact force and preventing damage to the cylinder and machine. This is especially important in high-speed applications to extend component life.

9. How do you ensure proper maintenance of hydraulic cylinders?

Answer:
To ensure proper maintenance:

Regularly inspect the seals and replace them if necessary.
Keep the hydraulic fluid clean and free of contaminants by using filters and changing fluid when needed.
Lubricate moving parts as required.
Inspect for leaks or signs of wear, especially in the piston rod and connections.

10. What are the differences between pneumatic and hydraulic cylinders?

Answer:

Medium: Hydraulic cylinders use pressurized liquid (oil), while pneumatic cylinders use compressed air.
Force: Hydraulic cylinders can generate much higher forces compared to pneumatic ones.
Speed: Pneumatic cylinders operate faster than hydraulic cylinders.
Applications: Hydraulic cylinders are used for heavy-duty applications, whereas pneumatic cylinders are used for lighter tasks.

11. How can you identify and fix leaks in hydraulic cylinders?

Answer:

Identification: Leaks can be identified by reduced cylinder performance, visible hydraulic fluid, or reduced system pressure.
Fix: Check for worn or damaged seals and replace them. Ensure that the piston rod is not scored or damaged. Properly torque fittings and connections to prevent fluid escape.

12. What safety precautions should you take when working with hydraulic cylinders?

Answer:

Ensure that the hydraulic system is depressurized before performing any maintenance.
Use proper tools for assembly and disassembly.
Regularly inspect for wear and damage to prevent sudden failure.
Follow the manufacturer’s guidelines for operation and pressure limits to avoid overloading.

13. How do you choose the right hydraulic cylinder for an application?

Answer:
When selecting a hydraulic cylinder:

Consider the load capacity and pressure rating.
Determine the required stroke length.
Analyze the mounting requirements.
Ensure the seal material is compatible with the operating environment.
Check for the availability of features like cushioning or adjustable stroke lengths if necessary.

14. What is the role of seals in a hydraulic cylinder?

Answer:
Seals play a crucial role in preventing the leakage of hydraulic fluid and maintaining pressure within the cylinder. They also prevent contaminants from entering the cylinder, which can cause wear and reduce the lifespan of the cylinder.

15. What are some common troubleshooting steps for hydraulic cylinders?

Answer:

Check for fluid leaks: Inspect seals, connections, and the piston rod for any visible fluid leakage.
Test pressure levels: Ensure the hydraulic fluid pressure is within the required range for the application.
Inspect for worn components: Check for wear on the seals, piston rod, and barrel.
Verify alignment: Ensure the cylinder is properly aligned to avoid uneven wear or damage.

Conclusion

Hydraulic cylinder interview questions typically test your technical knowledge, practical experience, and problem-solving skills. Having a solid understanding of the working principles, common issues, and troubleshooting techniques will help you prepare effectively for such interviews.

A Directional Control Valve (DCV) is a crucial component in hydraulic systems, as it directs the flow of hydraulic fluid between different components. In an interview focusing on hydraulic DCVs, questions are typically aimed at testing both theoretical knowledge and practical understanding. Below are some common interview questions about hydraulic DCVs and suggested answers.

1. What is a Directional Control Valve (DCV)?

Answer: A Directional Control Valve (DCV) is a device used to control the direction of hydraulic fluid flow in a system. It typically helps to direct the fluid between pumps, actuators, and other components to ensure proper functioning of the hydraulic circuit.

2. What are the different types of Directional Control Valves (DCVs)?

Answer: The main types of DCVs are:

2-way valve: Controls the start/stop of fluid flow.
3-way valve: Manages fluid flow between pressure and tank ports.
4-way valve: Used to reverse the flow of fluid in a double-acting cylinder.
5-way valve: Often used in pneumatic systems to control cylinders with dual exhaust.

3. How does a 4/3 DCV function?

Answer: A 4/3 DCV has four ports (pressure, tank, and two work ports) and three positions (center, extend, and retract). The center position can be configured as open, closed, or in various configurations to manage flow and pressure when the valve is in a neutral state. This valve is commonly used to control a double-acting cylinder.

4. What is meant by the term "spool" in a DCV?

Answer: The spool is the internal moving part of a directional control valve that shifts to different positions to direct the hydraulic fluid. The spool’s position determines which ports are connected and allows the valve to control fluid direction.

5. What are the different methods used to actuate DCVs?

Answer: DCVs can be actuated in various ways, including:

Manual: Hand lever or foot pedal.
Mechanical: Actuated by a cam or roller.
Solenoid/Electrical: Uses electric current to move the spool.
Hydraulic/Pneumatic pilot: Uses fluid pressure to shift the spool.

6. What is a pilot-operated DCV?

Answer: A pilot-operated DCV uses a smaller valve to control the flow to the main valve. The pilot valve directs hydraulic pressure to one side of the main spool to shift it, which allows the use of smaller forces to operate larger valves in the system.

7. What is a tandem center in a 4/3 DCV?

Answer: In a tandem center configuration, when the valve is in its neutral position, the pressure port is blocked, but the work ports are connected to the tank. This configuration is often used in systems where the pump needs to unload during idle states to prevent overheating and save energy.

8. Explain the difference between an open center and a closed center DCV.

Answer:

Open Center DCV: When in the neutral position, the pressure port is connected to the tank, allowing the pump flow to circulate freely, reducing energy consumption.
Closed Center DCV: In the neutral position, all ports are blocked. This design maintains system pressure, and no fluid flows until the valve is shifted.

9. What is the purpose of a detent in a DCV?

Answer: A detent is a mechanism that locks the valve spool in a specific position without continuous operator input. This is useful in applications where the valve must remain in a certain position until deliberately shifted again.

10. What causes DCV leakage, and how can it be prevented?

Answer: Leakage in a DCV is often due to worn or damaged seals, improper spool alignment, or contamination in the hydraulic fluid. To prevent leakage, regular maintenance is required, including proper seal replacement, ensuring clean hydraulic fluid, and ensuring precise valve alignment.

11. What is the difference between a soft shift and a hard shift DCV?

Answer:

Soft Shift DCV: Provides a gradual movement of the spool, reducing shock or pressure spikes in the system.
Hard Shift DCV: The spool moves quickly, creating faster responses but can lead to sudden pressure changes, which may cause system shocks.

12. How do you troubleshoot a DCV in a hydraulic system?

Answer: Troubleshooting steps for a DCV:

Check for any external signs of wear or damage.
Verify the actuator is functioning properly (manual, solenoid, etc.).
Inspect for contamination or blockages within the valve.
Measure pressure at various points to identify any fluid restriction or leaks.
Ensure proper electrical signals are reaching the solenoid if the valve is electrically actuated.

13. What is the role of O-rings in a DCV?

Answer: O-rings are used in DCVs to prevent fluid leakage between the valve body and spool. They create a seal that keeps hydraulic fluid within the proper channels and prevent cross-leakage between ports.

14. What happens if a DCV spool gets stuck?

Answer: If the spool gets stuck, it could block fluid flow or send fluid to the wrong port, causing the system to malfunction. This can happen due to contamination, excessive wear, or improper lubrication. The valve should be cleaned or replaced, and filters should be checked.

15. How does a proportional DCV differ from a standard DCV?

Answer: A proportional DCV provides variable control of fluid flow or pressure by adjusting the spool position based on an input signal, allowing for more precise control. Standard DCVs are usually binary (either open or closed), while proportional DCVs can vary the amount of flow.

These are some of the key questions and answers you might encounter in an interview about Hydraulic Directional Control Valves. Being well-prepared for these will demonstrate both technical understanding and problem-solving abilities when working with hydraulic systems.

Hydraulic oil plays a crucial role in the smooth functioning of hydraulic systems by transmitting power, lubricating components, and dissipating heat. Interviews for hydraulic system-related roles often include questions about hydraulic oil to assess your understanding of its properties, uses, and maintenance requirements. Below are some common interview questions about hydraulic oil, along with possible answers:

1. What is hydraulic oil, and why is it important?

Answer:
Hydraulic oil is a fluid used in hydraulic systems to transfer power. It is vital because it enables the efficient functioning of hydraulic machinery, lubricates moving parts to reduce wear, and dissipates heat. It also serves as a sealant within the system, minimizing the possibility of leakage.

2. What are the key properties of hydraulic oil?

Answer:
The key properties of hydraulic oil include:

Viscosity: The thickness of the oil, which affects its flow and performance.
Thermal stability: The ability of the oil to maintain its performance under varying temperatures.
Oxidation resistance: Prevents the oil from degrading or thickening over time.
Demulsibility: The oil’s ability to separate from water, which is important for preventing system contamination.
Anti-wear properties: To protect hydraulic components from wear and tear.

3. How do you choose the right hydraulic oil for a system?

Answer:
Choosing the right hydraulic oil depends on factors such as:

Operating temperature range: The oil should have a viscosity that performs well under the expected temperature conditions.
Viscosity index: Higher viscosity index oils are better for systems with a wide temperature range.
Environmental conditions: If the system operates in harsh environments, special oils like biodegradable or fire-resistant hydraulic oils may be needed.
OEM specifications: Always follow the manufacturer’s recommendations for oil type and grade.

4. What is the difference between mineral-based hydraulic oil and synthetic hydraulic oil?

Answer:
Mineral-based hydraulic oil is derived from refining crude oil, while synthetic hydraulic oil is chemically engineered to provide superior performance. Synthetic oils generally have better stability at extreme temperatures, higher resistance to oxidation, and longer service life compared to mineral-based oils. However, synthetic oils are usually more expensive.

5. What can cause hydraulic oil to degrade, and how can you prevent it?

Answer:
Hydraulic oil degrades primarily due to:

Heat: Excessive temperatures can cause oil oxidation.
Contamination: Dirt, water, or other contaminants can reduce the oil’s effectiveness.
Aging: Over time, oil loses its properties and becomes less effective.

To prevent degradation, regular maintenance like changing filters, monitoring oil temperature, and performing regular oil analysis for contaminants and wear particles are crucial.

6. What are the consequences of using the wrong hydraulic oil in a system?

Answer:
Using the wrong hydraulic oil can lead to several issues, including:

Increased wear: Oil with inadequate anti-wear properties can result in faster degradation of system components.
Poor system efficiency: Oil that is too thick or too thin can reduce the efficiency of power transmission.
Overheating: Oils that lack thermal stability can cause the system to overheat.
Corrosion and contamination: Incorrect oil may not have the right properties to prevent corrosion or separation from contaminants like water.

7. How can you identify hydraulic oil contamination, and what steps should be taken to address it?

Answer:
You can identify contamination through oil analysis or visual inspection for water, dirt, or discoloration. Common steps to address contamination include:

Filtering the oil: Using high-efficiency filters to remove particulates.
Replacing the oil: In cases of severe contamination, it may be necessary to drain and replace the hydraulic oil.
Fixing the root cause: Identify the source of contamination, such as a leaking seal or inadequate filtration, and address it.

8. What is the significance of viscosity in hydraulic oil?

Answer:
Viscosity refers to the thickness of the oil and its ability to flow. The viscosity of hydraulic oil is critical because it affects the performance of the hydraulic system. If the viscosity is too high (oil is too thick), it can cause sluggish operation, higher energy consumption, and difficulty in cold starting. If it is too low (oil is too thin), it may lead to poor lubrication, excessive wear, and overheating.

9. What are common additives in hydraulic oil, and what are their purposes?

Answer:
Common additives in hydraulic oil include:

Anti-wear agents: To protect metal surfaces from friction and wear.
Antioxidants: To prevent oxidation and extend oil life.
Corrosion inhibitors: To protect internal components from rust and corrosion.
Anti-foam agents: To prevent foam formation, which can cause erratic operation.
Detergents/Dispersants: To keep contaminants suspended in the oil, preventing them from depositing on parts.

10. How often should hydraulic oil be changed, and what factors influence this?

Answer:
The frequency of hydraulic oil changes depends on factors such as system usage, operating conditions, and oil type. A general guideline is to perform an oil change every 1,000 to 2,000 hours of operation. However, extreme conditions like high temperatures, high pressures, or contamination risks might necessitate more frequent changes. Regular oil analysis can help determine the exact timing for oil replacement.

Conclusion:

Understanding hydraulic oil is essential for anyone working with hydraulic systems. The interview questions above reflect the fundamental knowledge you need to maintain and operate hydraulic systems efficiently. Being able to discuss properties, selection criteria, maintenance, and troubleshooting related to hydraulic oil will showcase your expertise in this critical area.

Common Hydraulic Pump Interview Questions and Answers

When interviewing for a position related to hydraulic pumps, whether as a technician, engineer, or operator, you may encounter a variety of technical and theoretical questions to assess your knowledge of hydraulics. Below are some common questions and sample answers that can help you prepare for such an interview:

1. What is a hydraulic pump, and how does it work?

Answer: A hydraulic pump converts mechanical energy into hydraulic energy. It moves hydraulic fluid (usually oil) through a system, creating flow and pressure that powers hydraulic machinery. Hydraulic pumps operate by creating a vacuum at the pump inlet, allowing atmospheric pressure to push the fluid from the reservoir into the pump, and then forcing it into the hydraulic system through an outlet.

2. What are the different types of hydraulic pumps?

Answer: There are three main types of hydraulic pumps:

Gear Pumps: Simple and inexpensive, used for low-pressure applications.
Vane Pumps: More efficient than gear pumps, used in moderate pressure systems.
Piston Pumps: Highly efficient, used in high-pressure systems, often in industrial applications.

Other types include axial piston pumps, radial piston pumps, and bent axis pumps.

3. How do you determine the size of a hydraulic pump?

Answer: The size of a hydraulic pump is determined by its displacement, which is the amount of fluid it can move per revolution, typically measured in cubic centimeters (cc) or cubic inches per revolution. To size a pump, you need to consider the system's required flow rate, operating pressure, and the available input power. The formula to calculate the required flow rate is:

$Q = V * N$

Where:

$Q$ = Flow rate (Liters per minute)
$V$ = Displacement (cc per revolution)
$N$ = Pump speed (RPM)

4. What is cavitation, and how can it affect a hydraulic pump?

Answer: Cavitation occurs when the hydraulic fluid vaporizes within the pump due to low pressure or high suction, forming bubbles. These bubbles collapse when they move to a high-pressure area, causing noise, vibrations, and damage to the pump's components. Cavitation can lead to reduced efficiency, pitting, and eventual pump failure. To avoid cavitation, it's important to maintain proper suction conditions, avoid low fluid levels, and ensure the fluid's viscosity is appropriate for the operating conditions.

5. What is the difference between fixed displacement and variable displacement pumps?

Answer:

Fixed Displacement Pump: Delivers a constant flow of fluid regardless of pressure or system demands. Common in simpler systems where constant flow is needed, such as gear or vane pumps.
Variable Displacement Pump: Adjusts the flow rate and pressure according to the system's requirements. These pumps are more energy-efficient and are typically used in applications that require precise control of fluid flow, such as piston pumps.

6. What are the common causes of hydraulic pump failure?

Answer: Common causes of hydraulic pump failure include:

Contaminated Fluid: Dirt or debris can damage internal components.
Cavitation: Caused by improper suction conditions, leading to wear and damage.
Overheating: Excessive temperature can degrade the hydraulic fluid and damage seals.
Improper Installation: Misalignment or incorrect assembly can cause premature wear.
Wear and Tear: Pumps have moving parts that degrade over time, leading to reduced efficiency.

7. How do you troubleshoot a hydraulic pump that isn’t working correctly?

Answer: Troubleshooting a hydraulic pump typically involves checking the following:

Fluid Levels and Quality: Ensure there’s enough hydraulic fluid and that it is clean.
Air in the System: Check for air leaks, as this can cause aeration and reduce pump efficiency.
Pump Alignment: Ensure that the pump is properly aligned with the motor or prime mover.
Pressure Settings: Verify that the pump is generating the correct pressure as per the system's specifications.
Cavitation Signs: Listen for unusual noises and check for signs of cavitation.
Temperature Checks: Ensure that the system is not overheating.

8. What is pump efficiency, and how is it calculated?

Answer: Pump efficiency is a measure of how well a hydraulic pump converts mechanical energy into hydraulic energy. It has three components:

Volumetric Efficiency: The ratio of actual output flow to theoretical flow.
Mechanical Efficiency: The ratio of theoretical torque to actual torque required to drive the pump.
Overall Efficiency: A combination of both, defined as:

$\text{Overall Efficiency} = \frac{\text{Output Hydraulic Power}}{\text{Input Mechanical Power}}$

Pump efficiency can be reduced by factors like leakage, friction, and mechanical wear.

9. What is the purpose of a hydraulic reservoir in a system?

Answer: The hydraulic reservoir serves several key functions:

Fluid Storage: Holds the hydraulic fluid used in the system.
Heat Dissipation: Allows the hydraulic fluid to cool down as it circulates.
Contaminant Removal: Allows particles to settle, reducing the risk of contamination.
Air Separation: Allows trapped air bubbles to escape before the fluid re-enters the pump.

10. How do you perform preventive maintenance on a hydraulic pump?

Answer: Preventive maintenance involves regular checks and servicing to keep the hydraulic pump in good working order. Key steps include:

Checking fluid levels and quality regularly.
Inspecting and replacing worn seals and O-rings.
Monitoring for leaks, unusual noises, or vibrations.
Cleaning or replacing filters as necessary.
Checking system pressure and temperature gauges for abnormal readings.
Ensuring all connections and fittings are tight.

11. What is the role of a hydraulic accumulator in a system with a hydraulic pump?

Answer: A hydraulic accumulator stores energy in the form of hydraulic fluid under pressure. It acts as a buffer to smooth out pressure fluctuations, store excess fluid for later use, and provide backup energy in case of pump failure or to supply additional flow during peak demand. Accumulators also help in dampening hydraulic shocks and maintaining system pressure.

12. How does temperature affect hydraulic pump performance?

Answer: High temperatures can cause the hydraulic fluid to thin, leading to lower viscosity, reduced lubrication, and increased wear on the pump’s components. Low temperatures, on the other hand, can cause the fluid to thicken, making it harder for the pump to move the fluid, resulting in higher energy consumption and potential pump failure. It’s important to use hydraulic fluids with the appropriate viscosity range for the operating temperature of the system.

Preparing for these and related questions can help you demonstrate a solid understanding of hydraulic systems and pump operation during your interview. Be ready to provide specific examples of your experience, where possible, to show your practical knowledge of hydraulic pump maintenance and troubleshooting.

Hydraulic pressure relief valves are crucial components in hydraulic systems that help regulate and maintain pressure levels, ensuring that equipment operates safely and efficiently. Below are some common interview questions related to hydraulic pressure relief valves, along with suggested answers:

1. What is a hydraulic pressure relief valve?

Answer:
A hydraulic pressure relief valve is a safety component designed to limit the maximum pressure in a hydraulic system. It opens when the system pressure exceeds a pre-set level, allowing fluid to flow through the valve and back to the tank or reservoir, preventing system overpressure and potential damage.

2. How does a hydraulic pressure relief valve work?

Answer:
The valve works by using a spring-loaded mechanism. Under normal conditions, the system pressure is below the valve's set pressure, keeping the valve closed. When the pressure exceeds the set value, it pushes against the spring, opening the valve and allowing excess fluid to flow out, reducing pressure until it returns to normal.

3. What are the main components of a pressure relief valve?

Answer:

Valve body: Houses the internal components and provides the pathway for fluid.
Spring: Opposes the hydraulic pressure, setting the pressure at which the valve will open.
Poppet or Spool: Moves in response to hydraulic pressure and allows or blocks fluid flow.
Adjusting screw or knob: Allows the operator to set or adjust the valve’s pressure setting.

4. What are the common types of hydraulic pressure relief valves?

Answer:

Direct-acting relief valves: Use a spring directly opposed by the system pressure to control the valve’s opening.
Pilot-operated relief valves: Use a smaller pilot valve to control the operation of a larger main valve, which is typically more precise and used for higher pressure applications.

5. What factors influence the selection of a hydraulic pressure relief valve?

Answer:

System pressure: The valve must be rated for the maximum pressure in the system.
Flow rate: The valve needs to handle the system’s maximum flow rate when it is fully open.
Response time: How quickly the valve responds to overpressure situations.
Material compatibility: The valve must be made of materials that can handle the fluid being used in the system.

6. Why is it important to set the pressure relief valve correctly?

Answer:
Setting the valve too low may cause it to open too frequently, resulting in pressure drops and system inefficiency. Setting it too high could prevent it from opening in time during overpressure conditions, leading to potential system failure or component damage.

7. What is the difference between a pressure relief valve and a pressure reducing valve?

Answer:
A pressure relief valve limits the maximum pressure in the system by diverting excess fluid when pressure exceeds the set point. A pressure reducing valve, on the other hand, maintains a lower, controlled pressure in a specific part of the system, regardless of fluctuations in the upstream pressure.

8. How do you adjust the set pressure on a pressure relief valve?

Answer:
To adjust the set pressure, the adjusting screw or knob on the valve is either tightened or loosened. Tightening increases the spring force, raising the set pressure, while loosening reduces the spring force and lowers the set pressure. The system should be monitored closely to ensure the correct set pressure is achieved.

9. What could be the cause of a hydraulic pressure relief valve malfunctioning?

Answer:

Contamination: Dirt or debris in the hydraulic fluid can block or damage valve components.
Spring fatigue or damage: Over time, the spring may weaken or break, affecting the valve’s ability to maintain pressure.
Improper installation: Incorrect installation may cause leaks or prevent the valve from functioning correctly.
Seal failure: Worn or damaged seals may result in leakage, reducing the valve’s effectiveness.

10. How do you maintain a hydraulic pressure relief valve?

Answer:

Regular inspection: Visually check for leaks or damage to the valve body and seals.
Fluid maintenance: Keep the hydraulic fluid clean and free from contaminants that could damage the valve.
Performance testing: Periodically test the valve by applying pressure to ensure it opens and closes at the correct set point.
Replace worn components: Replace any worn or damaged parts, such as springs or seals, to ensure the valve operates effectively.

11. What are common signs of a failing hydraulic pressure relief valve?

Answer:

Pressure fluctuations or instability: The system may exhibit erratic pressure readings.
Continuous valve opening: If the valve opens too frequently, it may indicate an issue with the set pressure or the valve itself.
Leakage: External leaks from the valve body or fittings could signal seal damage or improper installation.

12. What is cavitation in hydraulic pressure relief valves?

Answer:
Cavitation occurs when pressure drops rapidly, causing the fluid to form vapor bubbles that collapse and can cause damage to valve components. This is often accompanied by a noise similar to gravel passing through the system and may lead to erosion of the valve’s internal parts.

These questions are designed to assess an interviewee's understanding of hydraulic pressure relief valves, including their function, operation, and maintenance. Having a deep understanding of these aspects will help candidates demonstrate their expertise during an interview.

Hydraulic Pressure Interview Questions and Answers

Hydraulics is a field that deals with the mechanical properties of liquids, primarily used in industrial and mechanical systems. Below are some common interview questions related to hydraulic pressure, along with their answers:

1. What is hydraulic pressure?

Answer: Hydraulic pressure is the force per unit area exerted by a liquid in a hydraulic system. It is usually measured in Pascals (Pa) or pounds per square inch (PSI). In a hydraulic system, this pressure is used to generate mechanical motion or force.

2. Explain Pascal’s Law and its significance in hydraulics.

Answer: Pascal’s Law states that "pressure applied to a confined fluid is transmitted undiminished in all directions throughout the fluid." This principle is fundamental to hydraulic systems, as it allows small forces applied at one point in the system to generate larger forces at another point, enabling devices like hydraulic presses and lifts.

3. What are the key components of a hydraulic system?

Answer: Key components include:

Hydraulic pump: Generates the flow of fluid.
Hydraulic fluid: Transmits the force.
Valves: Control the flow and pressure of the fluid.
Actuators: Convert hydraulic energy into mechanical motion (e.g., hydraulic cylinders).
Reservoir: Stores the hydraulic fluid.
Filters: Maintain the cleanliness of the hydraulic fluid.

4. What factors affect hydraulic pressure in a system?

Answer: Factors that affect hydraulic pressure include:

Flow rate: The speed of fluid movement.
Resistance in the system: Caused by narrow pipes, bends, or control valves.
Fluid viscosity: Affects the ease of flow.
Pump efficiency: Determines how well the pump maintains pressure.

5. How do you calculate hydraulic pressure?

Answer: Hydraulic pressure can be calculated using the formula:

$\text{Pressure} = \frac{\text{Force}}{\text{Area}}$

Where:

Pressure is in Pascals (Pa) or PSI.
Force is in Newtons (N) or pounds (lbs).
Area is in square meters (m²) or square inches (in²).

6. What is cavitation in a hydraulic system, and how can it be prevented?

Answer: Cavitation occurs when hydraulic fluid vaporizes in low-pressure areas of the system, forming bubbles that collapse when entering higher-pressure zones. This can damage components like pumps and valves. Prevention methods include:

Ensuring proper fluid levels.
Using the correct fluid viscosity.
Reducing sharp bends and obstructions in the hydraulic lines.

7. What are the common causes of hydraulic system failures?

Answer: Common causes include:

Contaminated hydraulic fluid: Dirt, water, or air can affect performance.
Overheating: Leads to fluid degradation and component damage.
Leakages: Cause loss of pressure and inefficient system operation.
Component wear and tear: Can result in inefficient system function.

8. How do you troubleshoot a hydraulic system with low pressure?

Answer: Steps for troubleshooting include:

Check for leaks: Inspect hoses, seals, and connections for fluid leaks.
Inspect the pump: Ensure it’s functioning properly and generating enough flow.
Examine the valves: Look for blockages or malfunctions that could restrict flow.
Check the hydraulic fluid level and condition: Low levels or dirty fluid can reduce pressure.
Review the system for air pockets: Air in the system can cause low pressure.

9. What is the function of a hydraulic accumulator?

Answer: A hydraulic accumulator stores hydraulic energy in the form of compressed gas or spring force and releases it when needed. It helps to maintain pressure, absorb shocks, and compensate for fluid leakage in a system.

10. What is the difference between hydraulic pressure and hydraulic flow?

Answer:

Hydraulic pressure is the force exerted by the fluid within the system, typically measured in PSI or bar.
Hydraulic flow is the rate at which the hydraulic fluid moves through the system, usually measured in gallons per minute (GPM) or liters per minute (LPM). Pressure determines the system’s force, while flow determines the speed of operation.

11. How do you ensure hydraulic safety?

Answer: To ensure hydraulic system safety:

Regular maintenance: Check for leaks, wear, and proper fluid levels.
Proper training: Ensure that operators are trained in hydraulic system operation.
Use the correct fluid: Always use the manufacturer-recommended hydraulic fluid.
Avoid overloading the system: Don’t exceed the recommended pressure and flow rates.
Use proper protective equipment (PPE): To protect against high-pressure fluid injection injuries.

12. What is hydraulic power, and how is it calculated?

Answer: Hydraulic power is the power transmitted through hydraulic fluid, typically measured in Watts or Horsepower (HP). It is calculated as:

$\text{Hydraulic Power} = \text{Pressure} \times \text{Flow Rate}$

Where:

Pressure is in Pascals or PSI.
Flow rate is in cubic meters per second (m³/s) or gallons per minute (GPM).

13. What is the role of a pressure relief valve in a hydraulic system?

Answer: A pressure relief valve is a safety device designed to limit the maximum pressure in a hydraulic system. When pressure exceeds the preset limit, the valve opens to release excess fluid and protect the system from damage.

14. What is the purpose of hydraulic fluid, and what are its characteristics?

Answer: Hydraulic fluid transmits power within a hydraulic system. Its key characteristics include:

Viscosity: Determines the fluid’s resistance to flow.
Lubrication: Reduces friction between components.
Thermal stability: Resists breaking down under heat.
Contamination resistance: Prevents wear and damage to system parts.

These questions and answers provide a solid foundation for preparing for a hydraulic pressure-related interview, focusing on fundamental concepts and practical troubleshooting.

Hydraulic check modular valves are essential components in hydraulic systems that ensure fluid flows in one direction and prevent backflow. During an interview for a role involving hydraulic systems, especially modular check valves, you might face technical and conceptual questions. Below are common interview questions and their answers.

1. What is a Hydraulic Check Modular Valve?

Answer: A hydraulic check modular valve is a valve that allows fluid to flow in one direction and prevents backflow in a hydraulic system. It is often used to protect components like pumps and cylinders from reverse flow.

2. Can you explain how a hydraulic check valve works?

Answer: A hydraulic check valve works by allowing fluid to flow through it in one direction. It typically has a ball, poppet, or disc that is pushed open by the pressure of fluid flowing in the correct direction. When fluid tries to flow in the reverse direction, the poppet or ball is pushed against the seat, blocking the flow.

3. What are the key components of a hydraulic check valve?

Answer: The main components include:
- Valve Body: Houses all internal components.
- Popppet or Ball: The moving part that blocks or allows flow.
- Spring: In some designs, helps the poppet or ball return to its seated position.
- Seat: The area where the poppet or ball seals to prevent reverse flow.

4. Where are hydraulic check valves typically used in a hydraulic system?

Answer: Hydraulic check valves are used in various parts of a system where backflow needs to be prevented. Common locations include pump outlets, cylinder lines, or other critical components where backflow could cause damage or inefficiency.

5. What is the difference between a check valve and a pressure relief valve?

Answer: A check valve allows fluid to flow in one direction and prevents reverse flow, while a pressure relief valve opens when system pressure exceeds a set limit to protect the system from overpressure.

6. What types of check valves are commonly used in hydraulic systems?

Answer: Common types of check valves include:
- Ball Check Valve: Uses a ball to block the reverse flow.
- Poppet Check Valve: Uses a poppet to block reverse flow.
- Pilot-Operated Check Valve: Allows reverse flow when pressure is applied to a pilot port.

7. What are some common failures in hydraulic check valves, and how would you troubleshoot them?

Answer: Common failures include:
- Internal Leakage: Often caused by dirt or damage to the valve seat or poppet/ball.
- Sticking Valve: Caused by contamination or corrosion; can be resolved by cleaning or replacing parts.
- Reverse Flow: Indicates damage to the valve seat or wear in the poppet/ball, which requires inspection and replacement if needed.

8. How would you size a hydraulic check valve for a specific application?

Answer: Sizing a hydraulic check valve depends on the system’s flow rate and pressure requirements. Consider the valve’s maximum flow rate, pressure rating, and the type of fluid being used to ensure proper performance without excessive pressure drop.

9. What is the cracking pressure of a check valve, and why is it important?

Answer: Cracking pressure is the minimum pressure required to open the valve and allow fluid to flow. It’s important because it ensures the valve stays closed until the desired pressure is reached, maintaining system integrity and preventing unwanted flow.

10. Explain the advantages and disadvantages of pilot-operated check valves.

Answer:
- Advantages: They allow reverse flow when a pilot signal is applied, offering better control in applications such as holding loads in cylinders.
- Disadvantages: They are more complex and expensive than standard check valves and require a pilot line for operation.

11. What is the significance of modular valve design in hydraulic systems?

Answer: Modular valve designs are used in hydraulic systems for easy assembly and maintenance. They can be integrated into a hydraulic manifold system, simplifying piping and reducing the risk of leakage. Modular valves also offer flexibility, as they can be easily replaced or reconfigured.

12. What would you check if a hydraulic system is experiencing backflow despite having a check valve installed?

Answer: I would first check the integrity of the valve seat and the condition of the poppet or ball. Contamination could be preventing proper sealing. Also, ensure that the valve is correctly installed in the right direction of flow. In a pilot-operated check valve, I would verify the pilot pressure is functioning correctly.

13. What materials are typically used in the construction of hydraulic check valves?

Answer: Hydraulic check valves are often made of materials such as:
- Steel or Stainless Steel: For durability and resistance to high pressures and corrosive environments.
- Brass: Common in low-pressure or less corrosive applications.
- Seals: Made from elastomers like Nitrile (NBR), Viton, or Teflon for compatibility with hydraulic fluids.

14. How do you maintain hydraulic check valves to ensure long-term reliability?

Answer: Regular maintenance involves:
- Inspecting the valve for wear or damage.
- Cleaning the valve to remove any contaminants.
- Checking for proper sealing by testing for leaks.
- Replacing seals and internal components as necessary.

15. What factors affect the performance of hydraulic check valves?

Answer: Several factors affect performance, including:
- Flow rate: If the flow exceeds the valve’s capacity, it may cause damage.
- Pressure: Operating outside the valve's rated pressure can lead to failure.
- Fluid cleanliness: Contaminants can damage internal components and lead to leakage or valve failure.

Conclusion:

Understanding the working principles, components, and troubleshooting techniques for hydraulic check modular valves is key for any role dealing with hydraulic systems. Thorough preparation on these topics will help you handle technical questions confidently in an interview setting.

Here are some common hydraulic hose interview questions along with suggested answers:

1. What is a hydraulic hose, and what are its main functions?

Answer: A hydraulic hose is a flexible tube designed to transport hydraulic fluids in a hydraulic system. Its main functions include transferring high-pressure fluids, providing flexibility in system design, and absorbing vibrations and movement.

2. What are the common materials used in hydraulic hoses?

Answer: Hydraulic hoses are typically made from synthetic rubber, thermoplastic, or metal. Reinforcement materials, such as steel wire or polyester, are often used to enhance strength and durability.

3. Can you explain the difference between low-pressure and high-pressure hydraulic hoses?

Answer: Low-pressure hoses are designed for applications with pressure ratings below 150 psi, typically used in return lines. High-pressure hoses can handle pressures ranging from 1,000 psi to over 5,000 psi, suitable for pumps and hydraulic actuators.

4. How do you determine the appropriate size and type of hydraulic hose for a specific application?

Answer: Selecting the right hose involves considering factors such as the working pressure, temperature, fluid compatibility, bend radius, and the environment in which the hose will operate. It’s important to refer to manufacturer specifications and guidelines.

5. What are some common causes of hydraulic hose failure?

Answer: Common causes include abrasion, kinking, excessive pressure, temperature extremes, and improper installation. Regular inspections and maintenance can help prevent these failures.

6. How would you troubleshoot a leaking hydraulic hose?

Answer: First, I would identify the source of the leak by inspecting the hose for visible damage or wear. Then, I would check the fittings and connections for proper tightness. Depending on the severity, I would either repair or replace the hose as necessary.

7. What safety precautions should be taken when working with hydraulic hoses?

Answer: Important safety precautions include wearing appropriate personal protective equipment (PPE), ensuring the system is depressurized before working on hoses, and regularly inspecting hoses for signs of wear or damage.

8. Describe the process of replacing a hydraulic hose.

Answer: To replace a hydraulic hose, I would:

Turn off the machinery and relieve pressure in the system.
Disconnect the old hose from its fittings.
Measure and cut the new hose to the correct length.
Attach the new hose to the fittings, ensuring a secure connection.
Test the system to check for leaks before resuming operation.

9. What testing methods are used to ensure the integrity of hydraulic hoses?

Answer: Common testing methods include hydrostatic testing, which involves pressurizing the hose with water to check for leaks and structural integrity, and visual inspections to identify wear and tear.

10. How do you stay updated on the latest technologies and standards in hydraulic systems?

Answer: I stay updated by reading industry publications, attending workshops and seminars, participating in online forums, and following manufacturers’ updates and training programs.

These questions and answers can help candidates prepare for an interview related to hydraulic hoses, focusing on technical knowledge and practical experience.

Here are some common interview questions and answers related to hydraulic flow control valves:

1. What is a hydraulic flow control valve?

Answer: A hydraulic flow control valve is a device used to regulate the flow rate of hydraulic fluid in a hydraulic system. It allows for precise control of the speed of hydraulic actuators, such as cylinders or motors, by adjusting the flow path.

2. Explain the working principle of a flow control valve.

Answer: A flow control valve operates by adjusting the size of the flow path. When the valve is opened, fluid can flow freely; when it is partially closed, it restricts the flow, thus controlling the speed of the actuators. The pressure drop across the valve is what creates the flow control.

3. What are the types of flow control valves?

Answer: Common types of flow control valves include:

Fixed Orifice Flow Control Valves: These maintain a constant flow rate regardless of pressure changes.
Variable Orifice Flow Control Valves: These allow for adjustable flow rates.
Pressure Compensated Flow Control Valves: These maintain a constant flow rate even under varying pressure conditions.

4. What is the difference between a flow control valve and a pressure relief valve?

Answer: A flow control valve regulates the flow rate of hydraulic fluid, while a pressure relief valve protects the system by diverting excess pressure to prevent damage. The flow control valve influences speed, while the pressure relief valve ensures safety.

5. How do you select the right flow control valve for a hydraulic system?

Answer: Selection involves considering the flow rate, pressure ratings, fluid type, and specific application requirements. It's important to match the valve to the system's specifications to ensure optimal performance.

6. What are common issues with flow control valves, and how can they be diagnosed?

Answer: Common issues include leaks, sticking, and flow irregularities. Diagnosing these issues typically involves checking for blockages, inspecting seals, and using pressure gauges to monitor flow rates. Regular maintenance can help prevent these problems.

7. Can you explain the term “flow rate” and its significance in hydraulic systems?

Answer: Flow rate refers to the volume of hydraulic fluid that passes through a valve per unit time, typically measured in liters per minute (L/min). It’s significant because it determines the speed and performance of hydraulic actuators and overall system efficiency.

8. What role does a flow control valve play in energy efficiency?

Answer: By precisely controlling the flow rate, flow control valves can optimize the use of hydraulic power, reducing energy consumption and wear on components. Properly sized and controlled valves can lead to significant energy savings in hydraulic systems.

These questions can help candidates demonstrate their understanding of hydraulic flow control valves during an interview.
