Cable Size and Voltage Drop Calculation

When we talk about cable size and voltage drop in electrical systems, we are discussing two important factors that ensure safe and efficient power distribution.

What is Cable Size?

Cable size refers to the thickness of the wire used to carry electricity from one point to another. The size is important because it affects how much electricity the cable can handle safely. If a cable is too small, it can overheat, leading to damage, fire hazards, or a failure in the system.

Larger cables can handle more current (electricity flow), while smaller cables are designed for less current. The size is measured in units like square millimeters (mm²), and different cables are selected based on the amount of current they need to carry and the distance they need to cover.

What is Voltage Drop?

Voltage drop is the reduction in electrical potential as electricity moves along a wire. As electricity travels through a cable, resistance (a type of electrical friction) causes some of the energy to be lost as heat, which lowers the voltage. If the voltage drop is too high, the devices at the end of the cable won’t get enough power to work correctly.

For example, if you send 230 volts of electricity from one end of a long cable and by the time it reaches the other end, it's only 210 volts, that 20-volt difference is the voltage drop.

Why is Voltage Drop Important?

A high voltage drop can result in inefficient systems. Devices that rely on a specific voltage might not work properly if too much voltage is lost. This is especially important in long cable runs, like in large buildings, where the distance causes a larger voltage drop.

How to Calculate Cable Size and Voltage Drop

To calculate the correct cable size and voltage drop, several factors need to be considered:

Current (Amps): How much electricity will flow through the cable? More current requires a thicker cable.
Distance (Length): How far will the electricity travel? Longer distances increase voltage drop, so thicker cables are needed for long runs.
Resistance of the Cable: Different materials (like copper or aluminum) have different levels of resistance. Copper has lower resistance, meaning less voltage drop over a given distance.
Acceptable Voltage Drop: Electrical standards usually specify the maximum voltage drop allowed. In many systems, a 2-5% voltage drop is considered acceptable.

The basic formula for voltage drop is:

\text{Voltage Drop (V)} = \frac{2 \times \text{Current (I)} \times \text{Resistance of cable (R)} \times \text{Distance (L)}}{1000}

Conclusion

By carefully choosing the right cable size and calculating the voltage drop, we can design electrical systems that are safe, efficient, and reliable. If the cable is too small, it might overheat or not provide enough voltage at the end of the line, while using a cable that is too large may be unnecessary and costly. The goal is to balance cost with safety and efficiency in electrical installations.

Imagine you are using a garden hose to water plants. The longer the hose, the less water pressure you get at the end. Similarly, when electricity travels through a cable, the longer or thinner the cable, the more energy (voltage) gets "lost" along the way. This loss of voltage is called a voltage drop.

To make sure everything works well, especially for things that need electricity (like lights, machines, etc.), we need to calculate two things:

Cable Size: How thick the cable should be.
Voltage Drop: How much energy we lose when electricity flows through the cable.

1. Cable Size Calculation

The size of the cable depends on a few important factors:

Current (Amps): How much electricity is flowing through the cable.
Length of Cable: How far the electricity needs to travel.
Material of the Cable: Copper and aluminum are common materials. Copper conducts electricity better, so it usually needs a smaller size.
Temperature: Higher temperatures affect how well electricity flows through the cable.

Why is Cable Size Important?

If the cable is too thin, it might overheat or burn out because it can’t handle the amount of electricity going through it. A thicker cable can carry more current safely.

To choose the correct cable size, we use a formula or reference a table (often called a cable sizing chart), but the main idea is:

More current = thicker cable.
Longer distance = thicker cable.

2. Voltage Drop Calculation

Voltage drop tells us how much voltage is lost as electricity moves through the cable. If the voltage drop is too high, devices like lights might not work properly because they don’t get enough power.

Voltage Drop Formula:

$V_{drop} = (I \times L \times R)$

Where:

$I$ = Current (in amps)
$L$ = Length of the cable
$R$ = Resistance of the wire (depends on material like copper or aluminum)

How to Keep Voltage Drop Low

Use thicker cables: Thicker cables have less resistance, so they lose less voltage.
Shorter cables: The shorter the cable, the less energy gets lost.
Use materials with better conductivity: Copper has less resistance than aluminum, so it’s better at reducing voltage drop.

Why Does This Matter?

If you don't calculate the right cable size and voltage drop:

Devices may not work properly.
The cable might get too hot, creating a fire hazard.
You may waste energy and money.

In summary:

Cable Size is like the thickness of a pipe. Bigger pipes (thicker cables) carry more water (electricity).
Voltage Drop is how much "pressure" (voltage) is lost as electricity travels through the cable.

Make sure to calculate these values correctly to ensure safety and efficiency in electrical systems.

Types of Electrical Cables Explained Simply

Electrical cables are like the highways for electricity. They carry electricity from one place to another. There are many types of electrical cables, each designed for different uses. Let’s break them down into easy-to-understand categories:

1. Single-Core Cables

What It Is: A single-core cable has just one conductor (the wire that carries electricity) inside it. The conductor is usually made of copper or aluminum.
Where It’s Used: These cables are simple and often used for internal wiring in devices, appliances, and small circuits.
Key Feature: Only one electrical path.

2. Multi-Core Cables

What It Is: A multi-core cable has multiple individual wires (cores) inside a single outer covering. Each core is a conductor that can carry electricity.
Where It’s Used: These are commonly used in places where multiple electrical connections are needed, like in power tools, home wiring, or data cables.
Key Feature: Multiple conductors inside one cable.

3. Armored Cables

What It Is: These cables are covered with a metal layer (armor) to protect them from damage.
Where It’s Used: Armored cables are used in places where the cables might get damaged, like underground or in industrial settings.
Key Feature: Extra protection against physical damage.

4. Coaxial Cables

What It Is: A coaxial cable has a central wire, a layer of insulation, and a metallic shield around it. This shield helps protect the signal from interference.
Where It’s Used: These are commonly used for transmitting TV signals, internet connections, and radio signals.
Key Feature: Special design for carrying data signals with minimal interference.

5. Twin and Earth Cables

What It Is: This cable has two insulated wires and an uninsulated ground wire. One wire carries the electrical current, the other returns it, and the ground wire adds safety.
Where It’s Used: This type of cable is commonly used in home electrical systems.
Key Feature: Ground wire for added safety.

6. Flexible Cables

What It Is: Flexible cables are made from many small, thin strands of wire that are bundled together. This makes them flexible and easy to bend.
Where It’s Used: These are used in appliances like washing machines, refrigerators, or any equipment that might need to move around.
Key Feature: Flexibility and durability.

7. Underground Cables

What It Is: Underground cables are specially designed for burying underground. They are typically thicker and more durable to withstand moisture, pressure, and temperature changes.
Where It’s Used: These cables are used for electrical power transmission in cities and rural areas where overhead cables are not possible.
Key Feature: Strong insulation and protection from the environment.

8. Shielded Cables

What It Is: Shielded cables have a protective layer, like foil or mesh, wrapped around the internal wires to block interference from outside sources.
Where It’s Used: These are used in areas with lots of electrical noise, such as industrial environments, or in sensitive equipment like medical devices.
Key Feature: Extra protection against interference.

9. Fire-Resistant and Flame-Retardant Cables

What It Is: These cables are designed to keep working even in the event of a fire or to prevent the spread of fire.
Where It’s Used: They are used in places where fire safety is critical, such as hospitals, airports, or skyscrapers.
Key Feature: Can withstand high temperatures without catching fire or failing.

10. Ethernet Cables (Cat5, Cat6, etc.)

What It Is: Ethernet cables are used to connect devices in a computer network. They come in different categories (like Cat5, Cat6), which tell you how fast they can transmit data.
Where It’s Used: These are used to connect computers, routers, and other network devices.
Key Feature: Designed for fast data transmission.

Materials Used in Cables

Copper: Most common because it conducts electricity very well.
Aluminum: Used in larger cables for long-distance power transmission because it's lighter and cheaper than copper.
PVC Insulation: Common insulating material used to cover the conductors for safety.
Rubber: Used for flexible cables that need extra durability.

Conclusion

There are many types of electrical cables, each designed for a specific use. When choosing a cable, it's important to think about where it will be used, how much power or data it will carry, and how protected it needs to be from physical damage or interference. The right cable makes sure electricity flows safely and efficiently.

Electrical Cable Laying Methods (Simply Explained)

When we install electrical cables, there are different ways to "lay" them depending on the location, environment, and purpose. Here are the main methods, explained in a simple way:

1. Direct Buried (Underground Laying)

What It Is: The cable is placed directly into a trench dug in the ground, usually with some protective covering like sand or warning tape.
Where It’s Used: This method is used for outdoor power distribution, often in areas where overhead cables aren’t practical.
Key Points:
- The trench is dug, the cable is placed, and then the trench is filled.
- The cable is insulated well to avoid damage from moisture or soil.

2. In Conduits (Pipes)

What It Is: The cable is run inside protective tubes (conduits) made of plastic or metal. This protects the cable from physical damage and weather.
Where It’s Used: Common in homes, buildings, or areas with harsh conditions (underground, in walls, or outdoors).
Key Points:
- The conduit shields the cable and allows for easier replacement or repair.
- Used indoors and outdoors, above or below ground.

3. Cable Trays

What It Is: Cables are placed on metal or plastic trays that support and protect them.
Where It’s Used: Usually in commercial or industrial buildings to organize and support cables.
Key Points:
- Provides easy access for maintenance.
- Ideal for places where many cables are needed.

4. Suspended (Overhead Laying)

What It Is: Cables are strung up on poles, just like the power lines you see outside.
Where It’s Used: Often used for long distances, like electrical lines that deliver power to homes or between buildings.
Key Points:
- Good for spanning large distances.
- Exposed to weather, so the cables are specially designed to handle it.

5. Tunnels or Trenches

What It Is: In some cases, especially for large projects like power plants or cities, cables are laid in tunnels or deep trenches with access for future maintenance.
Where It’s Used: Large infrastructure projects where multiple cables need to be laid in a safe, organized way.
Key Points:
- Provides extra protection and room for multiple cables.
- More expensive due to the construction of the tunnel.

6. Ducts

What It Is: Cables are laid in pre-installed underground ducts. These ducts are hollow tubes made of materials like plastic or concrete.
Where It’s Used: Urban areas where roads and buildings already exist, allowing cables to be added or replaced without digging new trenches.
Key Points:
- Cables can be easily replaced by pulling them through the ducts.
- Good for areas with lots of foot or vehicle traffic.

7. Surface Laying

What It Is: Cables are laid along walls, ceilings, or floors, often using clamps or fasteners to keep them in place.
Where It’s Used: Indoors, in buildings where it's easy to access the cables (like workshops, basements, or utility rooms).
Key Points:
- Easy to install and maintain.
- Visible, so not usually used in decorative areas.

Conclusion

The method used to lay electrical cables depends on the environment, how much protection the cables need, and how easy they should be to access for maintenance. Each method helps ensure that electricity is delivered safely and efficiently.

Electrical Cable Derating Factor Explained Simply

Imagine you're carrying a heavy backpack. On a cool day, it might feel fine, but on a hot day, carrying the same weight feels much harder. Electrical cables are like that too! When conditions change (like the temperature), cables can’t handle as much current (electricity) safely. This reduction in the cable’s ability to carry current is called derating.

What is the Derating Factor?

The derating factor is a number used to adjust the current-carrying capacity of a cable when the conditions aren't ideal. It helps prevent overheating and damage. If a cable is exposed to higher temperatures, or if many cables are bundled together (which traps heat), you have to "derate" or lower the amount of current it can carry.

Why Do We Use the Derating Factor?

Temperature: Cables can carry less electricity when it’s hot because they can overheat more easily.
Cable Bundling: When multiple cables are bundled together, they can’t release heat as easily, so they need to be derated.
Altitude: Higher altitudes have thinner air, which affects the cable’s ability to cool down.

How Does it Work?

You multiply the cable’s normal current capacity by the derating factor to find out how much current it can carry in specific conditions.

For example, if a cable can carry 100 amps in normal conditions but is exposed to higher temperatures with a derating factor of 0.8, it can now only safely carry:

100 \text{ amps} \times 0.8 = 80 \text{ amps}

This means the cable can now only handle 80 amps safely in that hotter environment.

When Do You Apply Derating?

Hot climates: Cables outside in very hot weather need to be derated.
In ceilings or conduits: Spaces with poor ventilation cause cables to heat up faster.
Underground or buried cables: Cables can overheat more easily when buried, especially if there’s not enough space for heat to escape.

Conclusion

The derating factor helps ensure that electrical cables don’t overheat and fail in different conditions. It’s like adjusting your load based on the weather — when things heat up or cables are grouped together, they need a lighter load to stay safe!

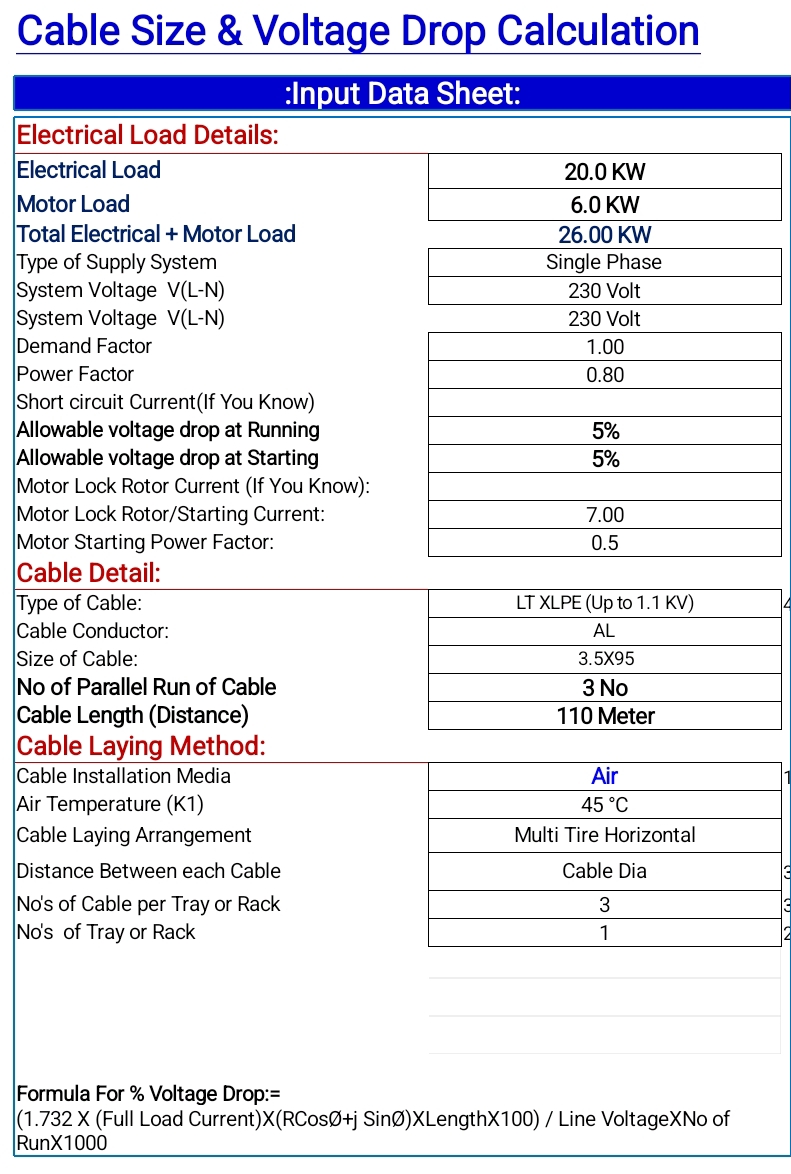

Excel Spreadsheets

👇👇👇👇
