Hydraulic Cylinder Design and Maintenance

Cylinder Design and Maintenance

Cylinders are fundamental components in hydraulic and pneumatic systems, responsible for converting fluid power into linear motion and force. Proper cylinder design and maintenance are essential for the efficient and reliable operation of these systems.

Cylinder Design

The design of hydraulic and pneumatic cylinders involves key considerations to ensure they can withstand the operating conditions and deliver the required performance. Important aspects include:

1. Cylinder Types:

   • Single-Acting Cylinder: Uses pressure to move the piston in one direction, with a spring or external force returning it to its starting position. Ideal for applications requiring force in only one direction.
   • Double-Acting Cylinder: Uses fluid pressure to move the piston in both directions, providing greater control and versatility, often used in more complex systems.
   • Telescopic Cylinder: Consists of multiple stages that extend in sequence, allowing for longer strokes in compact spaces. Common in heavy machinery, such as dump trucks.

2. Materials and Strength:

   • Cylinder materials must withstand the high pressures and wear in hydraulic and pneumatic applications. Common materials include steel for strength, aluminum for lightweight applications, and stainless steel for corrosion resistance in harsh environments.
   • The strength of cylinder materials and design parameters (e.g., wall thickness) are calculated based on maximum operating pressure, temperature, and load requirements to avoid failure under stress.

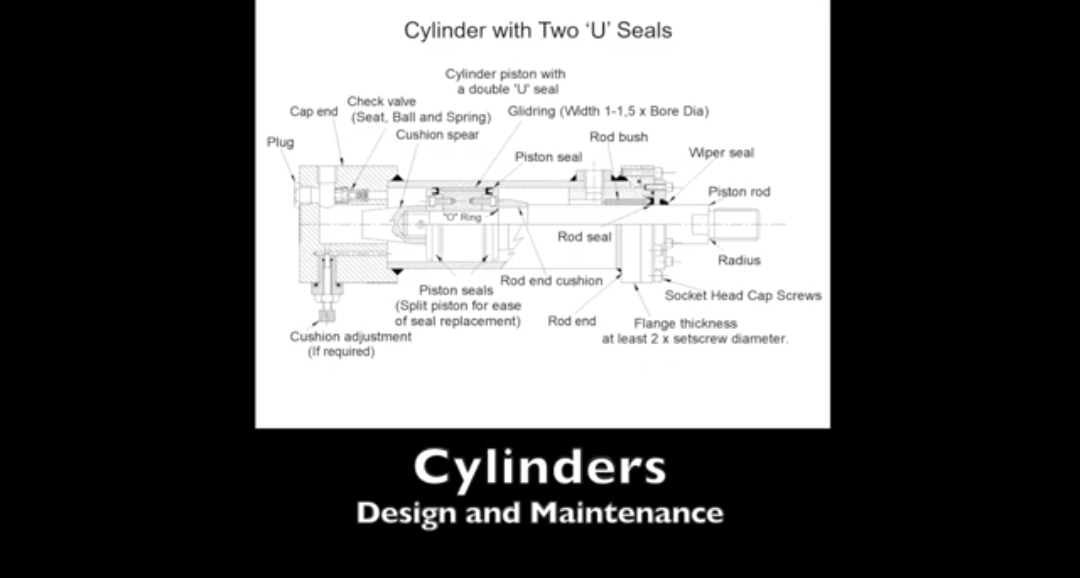

3. Seal Design:

   • Seals prevent fluid leakage and protect the cylinder internals from contamination. Rod seals, piston seals, and wiper seals are used at different points to ensure integrity.
   • Seal materials are chosen based on operating pressure, temperature, and the type of fluid, with common options including Nitrile (NBR) for moderate conditions, Fluoroelastomer (FKM) for high temperatures, and Polyurethane (PU) for abrasion resistance.

4. Mounting Options:

   • Proper mounting is critical for cylinder alignment and load handling. Mounting options include flange mounting, trunnion mounting, clevis mounting, and foot mounting, each suited to specific applications and load directions.
   • Mounting misalignment can cause side loading, resulting in wear on seals and cylinder walls, thus reducing cylinder life.

5. Cylinder Sizing:

   • Bore size (diameter of the cylinder) and stroke length (distance the piston travels) are calculated based on the force and motion requirements of the application.
   • Proper sizing ensures the cylinder provides the necessary output force without overstraining system components.

---

Cylinder Maintenance

Regular maintenance of hydraulic and pneumatic cylinders is essential to maximize their lifespan and ensure safe, efficient operation. Key maintenance practices include:

1. Inspection:

   • Regularly inspect cylinders for visible wear and leaks around seals, rod, and fittings. Inspecting for scratches or scoring on the piston rod helps detect potential contamination or misalignment.
   • Examine mounts, bushings, and bearings for any looseness or misalignment, as these issues can cause uneven wear and reduced efficiency.

2. Seal Replacement:

   • Cylinder seals degrade over time due to high pressure, temperature fluctuations, and contamination. Regularly inspect seals and replace them if they show signs of wear, hardening, or cracks.
   • Using the correct replacement seals compatible with the system's operating conditions helps prevent premature failure.

3. Rod and Tube Maintenance:

   • Keep the cylinder rod clean and free from contamination to prevent dirt and debris from entering the cylinder and damaging the seals. Wipers and dust boots protect the rod, but regular cleaning ensures additional protection.
   • Check for piston rod straightness, as bent rods can damage seals and cause misalignment.

4. Lubrication:

   • Proper lubrication reduces friction, preventing wear and overheating in the cylinder. In pneumatic systems, an air-line lubricant may be added to the air supply to lubricate internal components.
   • Use only compatible lubricants to avoid chemical damage to seals and other cylinder parts.

5. Fluid Quality Control:

   • In hydraulic systems, monitor fluid cleanliness to prevent contamination from damaging cylinder surfaces and seals. Particulate contamination can score the cylinder barrel and wear out seals.
   • Regularly check hydraulic fluid levels and replace or filter fluids if contamination is detected. Clean fluids also ensure consistent performance and extend component life.

6. Preventing Corrosion:

   • Protect cylinders from moisture, especially in outdoor or humid environments, to prevent corrosion. Applying corrosion-resistant coatings or using stainless steel components for critical parts is effective.
   • Store cylinders in a dry, controlled environment when not in use to prevent rusting or contamination.

Conclusion

Thoughtful cylinder design and rigorous maintenance contribute significantly to the reliability and efficiency of hydraulic and pneumatic systems. By selecting appropriate materials, sizes, and mounting methods during design, and following regular inspection and upkeep practices, cylinder performance can be optimized and downtime minimized. These practices ensure cylinders can handle high loads, resist wear, and operate smoothly in demanding applications.

Calculation of Hydraulic Cylinder Design

Designing a hydraulic cylinder involves various calculations to ensure it can handle the desired loads, pressures, and motions while maintaining safe and efficient operation. Key considerations include the cylinder's bore size, rod diameter, stroke length, and material selection.

1. Determining the Bore Size

The bore diameter of a hydraulic cylinder is crucial as it directly impacts the force output. According to the basic principle of hydraulics, the force exerted by the cylinder is a product of the pressure and the piston area:

$$F = P \times A$$

Where:

• $F$: Force output (N).
• $P$: Hydraulic pressure applied (Pa).
• $A$: Piston area (m²), which depends on the bore diameter.

The area $A$ of the piston can be calculated as:

$$A = \pi \times \left( \frac{D}{2} \right)^2 = \frac{\pi D^2}{4}$$

Where:

• $D$: Bore diameter (m).

Rearrange the formula to find the required bore diameter $D$ for a given force:

$$D = \sqrt{\frac{4F}{\pi P}}$$

2. Rod Diameter

The rod diameter must be large enough to withstand the compressive force without buckling. The rod diameter calculation typically considers the force, length, and type of mounting. The Euler’s buckling formula is often used for slender rods to avoid buckling:

Where:

• $F_{\text{critical}}$: Critical buckling load (N).
• $E$: Modulus of elasticity of the material (Pa).
• $I$: Moment of inertia of the rod (m⁴), for a circular cross-section $I = \frac{\pi d^4}{64}$.
• $K$: Column effective length factor (depends on end conditions, usually 1 for pinned ends).
• $L$: Unsupported length of the rod (m).

Solving for $d$ gives the minimum rod diameter needed to resist buckling.

3. Stroke Length

The stroke length is the distance the piston moves within the cylinder. Stroke length affects cylinder design, mainly determining the overall cylinder length. The required stroke depends on the application and should be chosen to provide the desired movement range.

For total cylinder length:

4. Hydraulic Pressure Selection

The working pressure is crucial for hydraulic cylinder design, as it dictates the material strength and sealing requirements. Hydraulic systems commonly operate at pressures ranging from 1000 to 5000 psi (approximately 70 to 350 bar). The chosen pressure must be within the capacity of the cylinder material and seals.

5. Material Selection

Materials for hydraulic cylinders are selected based on strength, corrosion resistance, and wear characteristics. Common materials include:

• Cylinder Body: Steel, stainless steel, or aluminum for high strength.
• Rod: Hardened steel or chrome-plated steel for wear resistance.
• Seals: Rubber, polyurethane, or Teflon, chosen based on temperature and pressure requirements.

6. Cylinder Mounting Types

Mounting type influences the design of end connections and the cylinder’s stability under load. Common types include:

• Clevis Mount: Allows pivoting and is often used in applications with linear misalignment.
• Flange Mount: Provides robust stability; ideal for fixed or rigid mounting.
• Trunnion Mount: Offers rotation at the trunnion axis and is suited for applications with angular movement.

Example Calculation

Suppose we need a hydraulic cylinder to produce a force of 10,000 N at a working pressure of 20 MPa. The calculation for the bore diameter would be:

1. Bore Size:

   $$D=\sqrt{\frac{4\times 10000}{\pi \times 20\times 10^6}}=0.0252\text{m or 25.2 mm}$$

1. Rod Diameter: Using the buckling formula, calculate the diameter to ensure stability based on the length and loading.

By calculating these parameters—bore size, rod diameter, and stroke length—a designer can ensure the hydraulic cylinder meets the force and dimensional requirements of the application.
