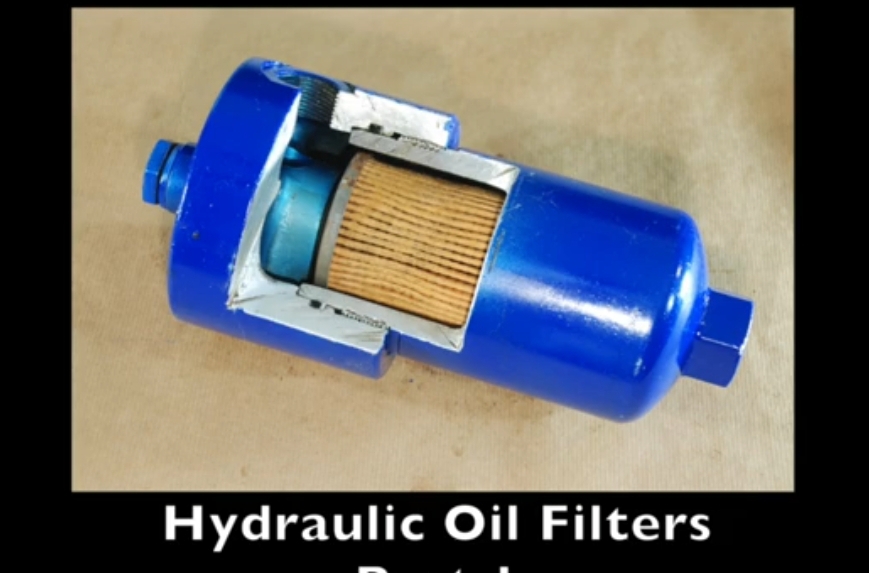

Hydraulic Oil Filters

Hydraulic oil filters are essential components in hydraulic systems, designed to remove contaminants from the oil and ensure it remains clean and efficient. Because hydraulic systems rely on precise, high-pressure fluid movement, even small particles or impurities can cause significant wear, damage, or even failure. Hydraulic oil filters improve system reliability, extend component lifespan, and reduce maintenance costs, making them a critical aspect of hydraulic system maintenance.

1. Purpose of Hydraulic Oil Filters

Contaminant Removal: Hydraulic oil filters remove particles, dust, metal shavings, and other contaminants from the hydraulic fluid. These impurities, if left unchecked, can scratch or damage sensitive components, causing wear and tear, blockages, and reduced system performance.
System Efficiency and Longevity: Clean hydraulic oil ensures smooth flow and reduces friction, extending the life of components like pumps, valves, and cylinders. By removing contaminants, filters keep the system running efficiently and protect the hydraulic oil’s lubricating properties.
Reduced Downtime and Costs: Filtering the hydraulic oil helps prevent breakdowns and unscheduled maintenance. A clean system means fewer repairs and less downtime, ultimately saving on maintenance costs and ensuring reliable operation.

2. Types of Hydraulic Oil Filters

Hydraulic filters come in various designs, each suited to specific applications and filtering needs. Key types include:

Suction Filters: Located on the intake line before the pump, suction filters protect the pump by removing large particles from the oil before it enters the system. These filters have a coarse mesh to avoid restricting flow, as they operate at lower pressures compared to downstream filters.
Pressure Filters: Positioned after the pump on the high-pressure side of the hydraulic circuit, pressure filters remove contaminants generated by the pump or other components under pressure. They are crucial for protecting valves, actuators, and other downstream parts and are typically made of materials that can withstand high pressures.
Return Line Filters: Found on the return line to the reservoir, return filters capture contaminants before oil is recirculated back to the system. By filtering the fluid before it reenters the reservoir, they prevent contamination buildup in the tank and help maintain overall oil cleanliness.
Off-Line or By-Pass Filters: These filters operate in a separate circuit, cleaning the oil continuously without interrupting the main hydraulic flow. Off-line filtration is effective for maintaining cleanliness over time and can be used to supplement other filters in critical or high-demand systems.

3. Filter Media Types

The filter media is the material inside the filter that traps contaminants. The choice of filter media affects the filter’s performance, lifespan, and efficiency.

Cellulose: Cellulose filters are made from natural fibers and are relatively cost-effective. They provide good filtration efficiency for larger particles but have limited effectiveness with finer contaminants.
Synthetic Fiber: Synthetic filters use man-made fibers, offering higher filtration efficiency and durability than cellulose. These filters are effective at trapping smaller particles and are commonly used in high-demand applications.
Metal Mesh: Metal mesh filters are durable and can withstand high pressures. They are often used in suction filters or other applications where flow rate is prioritized over fine filtration. Metal mesh filters are reusable and can be cleaned periodically.
Microglass: Microglass filters are made from ultra-fine glass fibers that provide high filtration efficiency and can trap very small particles. They are often used in precision systems where fine filtration is essential.

4. Filter Ratings and Performance Metrics

Micron Rating: The micron rating of a filter indicates the size of particles it can capture. For example, a 10-micron filter can remove particles as small as 10 microns in size. Filters are chosen based on the application requirements, with fine filters used for precision equipment and coarser filters for general purposes.
Beta Rating: The beta rating measures a filter’s efficiency at capturing particles of a specified size. For instance, a beta ratio of 200 at 10 microns (β10 = 200) means the filter captures 99.5% of particles 10 microns or larger. A higher beta ratio indicates better filtering performance.
Dirt Holding Capacity: This metric shows how much contamination a filter can hold before it becomes clogged. Filters with a higher dirt-holding capacity last longer between replacements, reducing maintenance needs.
Flow Rate: Filters must allow the required flow rate to avoid pressure drops or flow restriction. The design and media type impact the filter’s flow rate, making it essential to choose filters that match the hydraulic system’s needs.

5. Maintenance and Replacement of Hydraulic Oil Filters

Regular maintenance and timely replacement of hydraulic oil filters are essential to maintaining system performance and preventing contamination buildup.

Monitoring Differential Pressure: As a filter becomes clogged, the pressure difference across the filter (differential pressure) increases. Many systems have sensors or indicators that alert operators when differential pressure is too high, signaling that it’s time to replace the filter.
Regular Inspections: Filters should be inspected regularly for signs of wear or clogging. Dirty or damaged filters should be replaced immediately to prevent contaminants from entering the system.
Replacement Intervals: Manufacturers typically recommend filter replacement intervals based on system usage and environment. However, operating conditions, such as temperature, load, and contamination level, can influence the replacement frequency. In critical systems, filters may require more frequent replacement.

6. Choosing the Right Hydraulic Oil Filter

Selecting the appropriate hydraulic filter is crucial to ensure optimal system performance and protection.

Application Requirements: Consider the specific requirements of the system, including pressure, flow rate, and cleanliness standards. For example, high-precision machinery may require fine filtration, while heavy-duty equipment may prioritize high flow rates.
Operating Conditions: Factors like temperature, contamination risk, and system demand influence the choice of filter. Systems exposed to harsh environments or high contamination require filters with higher dirt-holding capacity and durability.
Filter Ratings and Specifications: Choosing a filter with the right micron and beta rating ensures effective filtration for the intended application. It’s essential to balance filtration efficiency with flow and pressure demands.

7. Benefits of Using High-Quality Hydraulic Oil Filters

Extended Equipment Lifespan: Effective filtration reduces wear and tear, extending the life of critical components like pumps, valves, and actuators.
Enhanced System Reliability: Clean oil prevents clogging and erratic performance, ensuring consistent, smooth operation and reducing the risk of unexpected breakdowns.
Cost Savings: Preventive maintenance through regular filter replacement helps avoid costly repairs and downtime, providing long-term savings on maintenance costs.
Improved Efficiency and Productivity: Clean hydraulic oil enables efficient power transfer, reducing energy consumption and improving overall system productivity.

Conclusion

Hydraulic oil filters play a vital role in maintaining the cleanliness of hydraulic oil, which is essential for the performance, efficiency, and longevity of hydraulic systems. By selecting the appropriate filter type, media, and rating, operators can protect components from contamination, reduce maintenance needs, and enhance system reliability. Regular monitoring and timely filter replacement are essential to keep hydraulic systems running smoothly and to avoid costly breakdowns and repairs. Ultimately, hydraulic oil filters are a small but significant investment in the long-term health of hydraulic equipment across industries.
