Fundamental Of Electrical Transformers: Testing and Diagnostics


What you'll learn

What Causes Transformer to “Age”?
Problem Solving and Failure Analysis
Insulation Degradation
Manufacturer Transformer Testing
Ratio, Polarity And Phase Relation Test
Insulation Condition
Dielectric Withstand
High Frequency Transient Dielectric Tests
Low Frequency Transient Dielectric Tests
No Load And Load Loss Measurements
Short Circuit Withstand Test
Winding Resistance
Partial Discharge
Dissolved Gas Analysis (DGA)
Moisture
Online Monitoring

Description

Electrical Transformers: Testing and Diagnostics is an intermediate video course where you will learn all about electrical transformers troubleshooting that are essential in working within this industry; from general failure investigation methods to specific transformer tests such as Dissolve Gas Analysis (DGA).

I have handcrafted this course to allow students to acquire fundamental troubleshooting skills on electrical transformers as well as how to apply it in the utility industry.

If you are currently or working towards a career where you need to manage/maintain/troubleshoot transformers, you will find this course of great help to get the foundations you need to kick start your professional career. If you work on the vendor/supplier side, this course will provide you with the tools to effectively and efficiently find out the root cause and to answer basic transformer issues for your clients.

Please note, this is not a Fundamentals Course! I would assume that you already have foundational knowledge on transformers. Please enroll in my “Electrical Transformers Fundamentals” to gain fundamental knowledge of Electrical Transformers if you doubt your own knowledge and experience.

So let's get started! Let's start your fulfilling journey and mark an important point of your phenomenal career!


Who this course is for:

Engineers or engineering students who are going to design, maintain and/or troubleshoot transformer issues
Professional who work in the Transformer supplier/vendor side and want to know what to look out for when their clients phone them with transformer issues

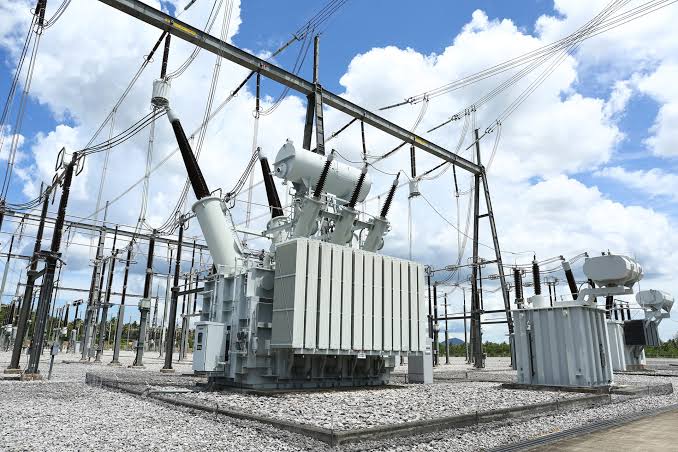

Fundamentals of Electrical Transformers: Testing and Diagnostics

Electrical transformers play a vital role in power systems, enabling the efficient transmission and distribution of electricity across long distances. They function by transferring electrical energy between circuits through electromagnetic induction, adjusting voltage levels up or down to match the requirements of the system. To ensure their reliability and efficiency, regular testing and diagnostics are essential. This process involves evaluating the transformer’s condition, identifying potential issues, and implementing corrective actions. Here's a detailed overview of the key aspects of transformer testing and diagnostics.

1. Fundamental Concepts of Electrical Transformers

  • Principle of Operation: Transformers operate on the principle of electromagnetic induction, where a varying current in the primary coil generates a magnetic flux that induces a voltage in the secondary coil. This process allows transformers to step up (increase) or step down (decrease) voltage levels.
  • Core Components:
    • Core: Usually made of laminated steel sheets to reduce eddy current losses, it provides a path for the magnetic flux.
    • Windings: Copper or aluminum coils (primary and secondary) where the voltage induction occurs.
    • Insulation System: Vital for separating windings and core components to prevent electrical faults.
    • Cooling System: Includes oil, air, or water-based cooling methods to maintain the transformer's operating temperature within safe limits.

2. Importance of Testing and Diagnostics

  • Preventive Maintenance: Routine testing helps identify potential problems before they lead to catastrophic failures, reducing unplanned outages and extending the transformer's service life.
  • Efficiency Optimization: Diagnostics help detect losses due to heating, core issues, or winding problems, allowing for corrective measures that improve transformer efficiency.
  • Safety Assurance: Early detection of faults prevents dangerous conditions like insulation breakdowns or core failures, ensuring safe operation within a power system.

3. Key Types of Transformer Tests

Transformer tests can be categorized into routine tests, type tests, and special tests.

  • Routine Tests: These tests are carried out regularly to ensure that the transformer meets operational standards. They include:

    • Insulation Resistance Test: Measures the insulation's ability to resist electrical leakage using a megohmmeter.
    • Turns Ratio Test: Ensures the correct voltage transformation by comparing the primary and secondary voltage ratio.
    • Oil Dielectric Breakdown Test: Evaluates the dielectric strength of the transformer oil, which is essential for insulation and cooling.
    • Winding Resistance Test: Determines winding resistance to identify issues like shorted turns or connection problems.
    • Excitation Current Test: Measures the current required to magnetize the core, helping to identify issues like core lamination faults.

  • Type Tests: These are carried out during the design phase or after production to verify the transformer’s performance under specified conditions. Examples include:

    • Short Circuit Test: Evaluates the transformer's behavior under fault conditions to ensure durability and safety.
    • Temperature Rise Test: Measures the rise in temperature under load conditions to ensure the cooling system's efficiency.
    • Impulse Voltage Test: Assesses the transformer's ability to withstand transient high-voltage conditions, like lightning strikes.

  • Special Tests: Performed as needed, these tests focus on diagnosing specific issues or ensuring compliance with special requirements. Examples include:

    • Frequency Response Analysis (FRA): Detects winding deformation and core displacement by analyzing the response of the transformer over a range of frequencies.
    • Partial Discharge (PD) Measurement: Identifies insulation defects and weak points by detecting discharge activity within the transformer insulation.

4. Diagnostic Techniques for Transformers

Diagnostics are critical for understanding the underlying conditions of a transformer and for planning maintenance actions. Key diagnostic techniques include:

  • Dissolved Gas Analysis (DGA): This is one of the most effective methods for assessing transformer health. It involves analyzing gases dissolved in transformer oil to detect faults like overheating, arcing, or insulation breakdown. Common gases analyzed include hydrogen, methane, ethane, and acetylene. Each gas correlates with specific types of faults, providing insights into the nature and severity of issues.

  • Thermal Imaging: Infrared cameras are used to detect hot spots on the transformer surface, indicating problems like loose connections, overheating coils, or inefficient cooling. This non-invasive method allows for quick identification of potential issues.

  • Sweep Frequency Response Analysis (SFRA): This technique detects mechanical issues like core displacement, winding deformation, and clamping issues by analyzing the frequency response of the transformer. Any deviation from a reference frequency response indicates mechanical integrity problems.

  • Power Factor (Tan Delta) Test: Measures the insulation’s dielectric losses, providing information about the insulation condition. A high power factor indicates deteriorated insulation, which could lead to failures if left unchecked.

5. Best Practices in Transformer Testing and Diagnostics

  • Regular Monitoring: Integrating online monitoring systems for parameters like temperature, oil levels, and gas content ensures real-time data collection, facilitating quicker response to emerging issues.
  • Establishing Baseline Data: Collecting baseline test data after installation helps in identifying trends in performance and detecting deviations that indicate potential problems.
  • Periodic Maintenance: Implementing a maintenance schedule based on the test results ensures that minor issues are addressed before they escalate.
  • Skilled Personnel: Employing trained and certified technicians for conducting tests and interpreting results is crucial for accurate diagnostics and maintenance decisions.

6. Challenges in Transformer Testing and Diagnostics

  • Aging Infrastructure: Older transformers often have insulation and core material degradation, making accurate diagnostics more challenging.
  • Environmental Factors: Variations in temperature, humidity, and contamination can affect test results, requiring adjustments and interpretations based on local conditions.
  • Complex Fault Diagnosis: Some issues, such as internal winding displacements or core faults, can be difficult to detect without advanced diagnostics like SFRA or DGA, which may require specialized equipment and expertise.

7. Future Trends in Transformer Diagnostics

  • Integration of IoT and AI: The adoption of Internet of Things (IoT) sensors combined with artificial intelligence (AI) algorithms enables predictive maintenance by analyzing trends in real-time data.
  • Advanced Analytics: Big data analytics applied to DGA results and thermal imaging can enhance the predictive accuracy of fault detection.
  • Remote Monitoring Systems: As power grids become more complex, remote monitoring systems allow for centralized oversight, reducing the need for on-site inspections.

Conclusion

Transformer testing and diagnostics are fundamental for maintaining the reliability, efficiency, and safety of power systems. By understanding the condition of a transformer and addressing issues proactively, operators can extend the life of the equipment and avoid costly failures. A comprehensive approach, integrating routine testing with advanced diagnostic techniques, is essential for effective transformer maintenance and management.


Electrical Transformer Insulation Degradation

Electrical Transformer Insulation Degradation

Electrical transformers are critical components in power systems, enabling the safe and efficient transmission of electrical energy by stepping up or stepping down voltage levels. A key element ensuring the reliability and longevity of a transformer is its insulation system, which protects against electrical faults, maintains proper separation between different components, and supports efficient operation. Over time, however, the insulation within a transformer can degrade, leading to reduced performance and, ultimately, potential failure if left unaddressed. Understanding the causes, effects, and management of insulation degradation is vital for maintaining the health of transformers.

1. Role of Insulation in Transformers

  • Electrical Insulation: Insulation in transformers separates conductive parts (such as windings) and prevents electrical short circuits between the primary and secondary windings or with the core. It ensures that the electrical energy is confined to the intended path within the transformer.
  • Thermal Management: Insulation materials, including paper, pressboard, and insulating oils, also play a role in managing heat dissipation within the transformer, helping to maintain the temperature within safe operating limits.
  • Mechanical Support: Insulation systems provide structural support to windings, maintaining their positions and integrity against mechanical stresses during operation.

2. Materials Used in Transformer Insulation

  • Solid Insulation: Typically composed of cellulose-based materials like kraft paper, pressboard, or other fiber-reinforced materials. These are used to wrap the windings and provide structure to the transformer.
  • Liquid Insulation: Insulating oils, such as mineral oil, are commonly used for cooling and as a dielectric medium. The oil not only cools the transformer but also fills any gaps within the windings, enhancing overall insulation.
  • Synthetic Insulation: Newer transformers may use synthetic insulation materials such as Nomex® or aramid fibers, which offer better thermal stability and longer life.

3. Causes of Insulation Degradation

Insulation degradation in transformers is a gradual process influenced by several factors:

  • Thermal Stress:

    • High operating temperatures accelerate the breakdown of cellulose and oil insulation. Elevated temperatures can cause the cellulose to lose its structural integrity, forming cracks and reducing its dielectric strength.
    • Insulation paper can become brittle, leading to a condition called thermal aging, which severely compromises its ability to insulate effectively.
    • Prolonged exposure to heat also leads to the production of moisture and gases like carbon monoxide and carbon dioxide as byproducts of cellulose degradation.

  • Electrical Stress:

    • High-voltage surges, partial discharges, and localized electric field concentrations can cause micro-discharges within the insulation, resulting in partial discharges (PD). Over time, these discharges can erode the insulation material.
    • Frequent voltage fluctuations or overloading can accelerate this breakdown, leading to insulation failure.

  • Moisture Contamination:

    • Water is one of the most detrimental contaminants in transformer insulation systems. Moisture can enter through leaks in seals or be generated internally through thermal aging.
    • Water reduces the dielectric strength of both oil and solid insulation, increasing the risk of electrical breakdown.
    • Moisture also accelerates the aging of cellulose insulation, creating a feedback loop that worsens over time.

  • Oxidation:

    • The insulating oil can oxidize in the presence of oxygen, especially if the transformer’s oil tank is not properly sealed. This oxidation leads to the formation of acids, sludge, and other byproducts, which reduce the oil's insulating properties and can damage solid insulation.
    • Sludge formation can also clog cooling channels, causing hotspots and further accelerating thermal degradation.

  • Mechanical Stresses:

    • Transformers are subject to mechanical vibrations and stresses during operation, such as during fault conditions or sudden changes in load. These stresses can cause insulation displacement, cracks, or deformation over time, weakening the insulation system.

4. Effects of Insulation Degradation

  • Reduction in Dielectric Strength: As insulation degrades, its ability to withstand electric fields without breaking down diminishes. This makes the transformer more vulnerable to dielectric failures, leading to short circuits or arcing.
  • Increased Risk of Partial Discharges: Degraded insulation often leads to voids or gas bubbles, which can be sites for partial discharges. PD activity is a precursor to larger insulation failures and can severely damage the insulation over time.
  • Moisture Accumulation: Degraded cellulose generates water as a byproduct, increasing moisture content within the transformer. This further accelerates the aging process and increases the risk of flashovers.
  • Overheating: Poor insulation can result in hot spots, where localized overheating occurs. This creates a cycle where increased temperature causes more rapid insulation breakdown, leading to further heating.
  • Shortened Transformer Lifespan: Ultimately, the degradation of the insulation system shortens the overall lifespan of the transformer, leading to costly replacements or repairs.

5. Detection and Diagnosis of Insulation Degradation

Early detection of insulation degradation is crucial for preventing failures. Common diagnostic techniques include:

  • Dissolved Gas Analysis (DGA): Analyzes the gases dissolved in transformer oil, such as hydrogen, carbon monoxide, and acetylene. Elevated levels of certain gases can indicate overheating, partial discharges, or arcing.
  • Moisture Analysis: Measuring the moisture content in transformer oil provides insights into the health of both the oil and the cellulose insulation. High moisture content is a clear sign of insulation degradation.
  • Power Factor (Tan Delta) Testing: Measures dielectric losses within the insulation, indicating how effectively the insulation resists the flow of leakage currents. High power factor values suggest aging or contaminated insulation.
  • Frequency Response Analysis (FRA): Detects changes in the mechanical integrity of windings and insulation by analyzing their frequency response, which can reveal deformations or shifts due to insulation breakdown.
  • Infrared Thermography: Uses infrared imaging to detect hot spots on the transformer’s surface, indicating areas where insulation may be failing.

6. Mitigating and Managing Insulation Degradation

  • Temperature Control: Managing operating temperatures through proper cooling, maintaining oil quality, and avoiding overloading helps slow down the rate of thermal degradation.
  • Moisture Control: Installing proper sealing and using dehydrating breathers or molecular sieve filters can help keep moisture out of the transformer. Regular oil filtration and degassing can also reduce moisture levels.
  • Oil Reclamation and Regeneration: Reclaiming the transformer oil through chemical processing or filtration removes acids and contaminants, restoring the oil’s dielectric properties and protecting the solid insulation.
  • Upgrading Insulation Materials: For older transformers, replacing cellulose with more durable synthetic materials during refurbishment can improve thermal and electrical performance.
  • Regular Testing and Monitoring: Implementing a consistent monitoring schedule using advanced diagnostic tools ensures early detection of insulation issues, allowing for timely maintenance.

Conclusion

Insulation degradation is a natural part of a transformer’s life cycle, but its effects can be mitigated through proper maintenance and monitoring. Understanding the causes and progression of degradation helps operators take preemptive actions, ensuring that transformers continue to operate safely and efficiently. By leveraging advanced diagnostic techniques and adopting best practices, the risk of unexpected failures can be minimized, leading to extended transformer service life and reduced maintenance costs.

Problem Solving Procedures
Manufacturer Transformer Testing

Manufacturer Transformer Testing

Transformer testing is a crucial step during the manufacturing process to ensure that the final product meets design specifications, industry standards, and customer requirements. Testing at this stage helps identify potential defects, verifies the quality and performance of the transformer, and ensures that it will operate reliably in the field. Manufacturer testing is divided into different categories, including routine tests, type tests, and special tests, each serving a specific purpose. Here’s an overview of these tests and their significance in the manufacturing process.

1. Overview of Manufacturer Testing

  • Purpose: The primary goal of manufacturer testing is to ensure that the transformer performs as expected under different conditions before it is delivered to the customer. This testing helps verify the quality of materials, the accuracy of construction, and compliance with national and international standards (such as IEC, IEEE, and ANSI).
  • Standards Compliance: Manufacturer testing is typically conducted according to standards such as IEC 60076 (International Electrotechnical Commission) or IEEE C57 (Institute of Electrical and Electronics Engineers). These standards outline the necessary tests and acceptable criteria for transformer performance.

2. Categories of Manufacturer Transformer Testing

Transformer testing in the manufacturing process is broadly categorized into three main types: routine tests, type tests, and special tests.

  • Routine Tests: These tests are conducted on every transformer manufactured to ensure that they meet the essential design specifications and operational requirements. Routine tests include:

    • Insulation Resistance Test: Measures the resistance of the insulation between windings and between windings and the transformer core using a megohmmeter. It ensures that the insulation is intact and effective in preventing leakage currents.
    • Turns Ratio Test (TTR): Verifies the ratio of primary to secondary voltage. It ensures that the transformer is providing the correct voltage transformation as per design. This test is crucial for maintaining proper voltage levels when the transformer is in service.
    • Winding Resistance Test: Measures the resistance of the transformer windings to detect issues such as shorted turns, loose connections, or manufacturing defects. This test is important for assessing potential load losses.
    • Leakage Test (Pressure Test): Performed on oil-filled transformers to ensure that the tank is properly sealed and there are no leaks that could lead to moisture ingress or oil loss.
    • No-Load Loss and Current Test: Evaluates the core losses (iron losses) of the transformer when it is energized without a load. It also measures the no-load current, which is the current drawn by the transformer when the secondary side is open.
    • Load Loss and Impedance Voltage Test: Measures the losses that occur when the transformer is operating under load conditions. This test is crucial for understanding the efficiency of the transformer and helps in calculating voltage drops during operation.

  • Type Tests: These tests are conducted on one or more transformers of a particular design to validate that the design meets the required performance standards. Type tests are generally more exhaustive and are often required when a new design is introduced. Examples include:

    • Temperature Rise Test: Evaluates the transformer’s thermal performance by measuring the temperature rise of the windings and oil under full load conditions. It ensures that the transformer can handle its rated load without overheating.
    • Impulse Voltage Withstand Test: Also known as a lightning impulse test, this assesses the transformer's ability to withstand high transient voltages like those caused by lightning strikes or switching surges. The test applies a high-voltage impulse to verify the integrity of the insulation system.
    • Short-Circuit Withstand Test: Simulates short-circuit conditions to evaluate the mechanical and thermal strength of the transformer. It ensures that the windings and core can withstand the mechanical forces generated during fault conditions without damage.
    • Dielectric Tests: Include power frequency withstand tests and induced overvoltage tests. These assess the dielectric strength of the insulation under high voltage, ensuring that the insulation can handle normal operating voltages as well as temporary overvoltages.

  • Special Tests: These tests are performed as per customer requirements or specific applications and are not always part of the standard testing procedures. Examples include:

    • Frequency Response Analysis (FRA): This test helps detect any mechanical displacement in the windings and core structure by analyzing the frequency response of the transformer. It is especially useful for verifying the integrity of a transformer's mechanical construction.
    • Noise Level Test: Measures the sound level of the transformer under normal operating conditions to ensure that it meets noise requirements, which can be important for installations in urban or residential areas.
    • Harmonic Analysis: Analyzes the harmonics generated by the transformer under load conditions to ensure compliance with power quality standards, especially for transformers used in applications where harmonic distortion must be minimized.

3. Importance of Each Test Type

  • Routine Tests: They are critical for ensuring that every transformer meets the basic safety and performance requirements before it leaves the factory. These tests prevent common manufacturing defects from being passed on to the customer.
  • Type Tests: Type tests are essential for validating new transformer designs or modifications to existing designs. They ensure that a particular design can perform reliably under various conditions and comply with industry standards, reducing the risk of failure during operation.
  • Special Tests: Special tests provide deeper insights into specific aspects of transformer performance that may be relevant to certain applications or customer needs. They help tailor transformers to unique operating environments and verify their suitability for challenging conditions.

4. Testing Equipment and Techniques

  • Test Equipment: The equipment used for testing includes high-voltage transformers for impulse testing, thermal sensors for temperature rise tests, power analyzers for load loss measurement, and frequency analyzers for FRA. Accurate calibration and maintenance of these testing instruments are crucial for reliable results.
  • On-Site and In-House Testing: Most routine and type tests are conducted in a controlled environment at the manufacturing facility to ensure precise conditions. Some tests, especially those that simulate real-world conditions (like short-circuit tests), may be carried out at specialized high-power testing laboratories.

5. Challenges in Manufacturer Transformer Testing

  • Maintaining Precision: Achieving precise measurement and testing conditions, such as controlling environmental temperature for thermal tests or ensuring voltage stability during dielectric tests, can be challenging but is essential for accurate results.
  • Cost of Testing: Some tests, especially type tests like short-circuit testing or impulse voltage tests, require specialized equipment and facilities, making them costly to perform. This can be a barrier, particularly for small-scale manufacturers.
  • Balancing Standards and Customization: Ensuring compliance with international standards while accommodating specific customer requirements can be complex, as it may require additional testing or adjustments in the testing process.

6. Benefits of Thorough Testing During Manufacturing

  • Quality Assurance: Manufacturer testing ensures that only transformers that meet stringent quality standards are shipped, reducing the risk of defects and failures in the field.
  • Customer Satisfaction: Thorough testing helps build customer confidence in the reliability and performance of the product, leading to long-term relationships and repeat business.
  • Reduced Warranty Claims: Identifying and addressing potential issues before installation reduces the likelihood of warranty claims and field service interventions, saving time and costs for both manufacturers and customers.
  • Extended Transformer Lifespan: Ensuring that transformers are built and tested to withstand operational stresses results in a longer lifespan, reducing the need for early replacements and contributing to overall system reliability.

Conclusion

Manufacturer transformer testing is a vital process that ensures the quality, reliability, and safety of transformers before they are deployed in power systems. By performing a combination of routine, type, and special tests, manufacturers can verify that each transformer meets the necessary standards and is capable of performing in its intended environment. Thorough testing minimizes the risk of failure, enhances customer satisfaction, and ensures that transformers contribute to a stable and efficient power grid. As power systems become more complex and the demand for reliability grows, the role of comprehensive testing in transformer manufacturing remains as critical as ever.

Ratio and Polarity Tests

Ratio and Polarity Tests in Transformers

Transformers are essential components of electrical systems, enabling the adjustment of voltage levels for efficient power transmission and distribution. To ensure that transformers operate correctly and meet their designed specifications, ratio and polarity tests are conducted. These tests validate the transformer's ability to perform its fundamental function of stepping voltage up or down and ensure the proper orientation of connections for correct operation in a power system.

1. Transformer Ratio Test

The ratio test is used to verify that the transformer’s voltage ratio corresponds to its nameplate rating. This is critical for ensuring that the transformer steps the voltage up or down as designed, which is essential for maintaining the correct voltage levels in the electrical system.

  • Purpose:

    • To ensure that the ratio of the primary to secondary windings matches the designed specifications.
    • To detect any shorted turns, inter-turn faults, or incorrect winding connections that may alter the voltage ratio.
    • To verify the overall health and efficiency of the transformer’s windings.

  • Principle:

    • A known voltage is applied to one side of the transformer (typically the primary winding), and the output voltage is measured on the secondary side.

    • The turns ratio between the primary and secondary windings should match the ratio of the applied primary voltage to the measured secondary voltage.

    • The formula for the ratio test is:

      Turns Ratio=V1V2\text{Turns Ratio} = \frac{V_1}{V_2}

      Where:

      • V1V_1 = Applied primary voltage.
      • V2V_2 = Measured secondary voltage.

  • Procedure:

    • The primary winding is energized with a low voltage.
    • Measure the secondary voltage using an appropriate meter.
    • Calculate the voltage ratio and compare it with the transformer’s rated turns ratio.
    • The measured ratio should be within a specified tolerance (typically ±0.5% to 1%) of the rated ratio to be considered acceptable.

  • Interpretation of Results:

    • A ratio that is significantly different from the specified value could indicate issues such as:
      • Short-circuited turns or winding damage.
      • Incorrect winding connections.
      • Possible insulation issues affecting the windings.

  • Applications:

    • This test is commonly performed during factory acceptance testing, installation, and routine maintenance to ensure the proper functioning of the transformer over its service life.

2. Transformer Polarity Test

The polarity test determines the relative direction of the induced voltage between the primary and secondary windings. This test ensures that transformers are connected correctly within the system, especially in configurations involving parallel connections or three-phase transformers.

  • Purpose:

    • To identify the orientation of the windings' polarity (additive or subtractive).
    • To ensure that transformers with multiple windings or connected in parallel have the same polarity, preventing phase errors and potential short circuits.
    • To determine the correct interconnection of windings in autotransformers or multi-winding transformers.

  • Principle:

    • Polarity refers to the relative instantaneous direction of voltages in the primary and secondary windings.
    • Two types of polarity are tested:
      • Additive Polarity: The voltages in primary and secondary windings add up when connected in series.
      • Subtractive Polarity: The voltages subtract when the primary and secondary windings are connected in series.
    • Identifying the correct polarity ensures that the output voltage has the proper phase relationship for the intended circuit.

  • Procedure:

    • Connect the primary and secondary windings in series, typically using a small test voltage applied to the primary side.
    • Measure the total voltage across the series connection of both windings.
    • For an additive polarity transformer, the measured voltage will be the sum of the primary and secondary voltages.
    • For a subtractive polarity transformer, the measured voltage will be the difference between the primary and secondary voltages.

  • Interpretation of Results:

    • The result determines whether the transformer has additive or subtractive polarity:
      • Additive Polarity: Typically indicated when the series voltage is higher than the individual winding voltage.
      • Subtractive Polarity: Indicated when the series voltage is lower than or close to zero, due to opposing voltages.
    • Knowing the polarity is crucial for the correct parallel operation of transformers and for ensuring the intended phase shift in three-phase systems.

  • Applications:

    • The polarity test is particularly important in situations where two or more transformers are connected in parallel, as mismatched polarity can cause circulating currents and possible damage.
    • It is also useful for verifying the correct connections of multi-winding transformers and ensuring compatibility in three-phase applications.

3. Comparison and Relationship Between Ratio and Polarity Tests

  • Ratio Test Focus: Primarily concerned with the voltage ratio between primary and secondary windings, ensuring the transformer steps up or down voltage as specified.
  • Polarity Test Focus: Aims to establish the relative orientation of the windings, ensuring proper phase alignment in multi-transformer setups.
  • Both Tests: Essential for confirming the operational integrity and ensuring that the transformer functions correctly within a power system. While the ratio test ensures that the transformer’s core and windings are functioning properly, the polarity test ensures the proper phase relationship between windings.

Conclusion

Ratio and polarity tests are fundamental for verifying the proper operation of transformers. The ratio test ensures that the voltage transformation is accurate, while the polarity test ensures correct phase relationships for safe and efficient power system integration. Regular performance of these tests during manufacturing, installation, and maintenance helps to detect potential issues early, extending the life of the transformer and preventing costly failures. By understanding and applying these tests, operators can maintain the reliability and safety of their electrical systems.

Insulation Condition
Dielectric Withstand
High Frequency Transient Dielectric Tests

Transformer High-Frequency and Low-Frequency Transient Dielectric Tests

Dielectric testing of transformers is essential to assess the strength and integrity of their insulation systems, which ensure the safe and reliable operation of the equipment. High-frequency and low-frequency transient dielectric tests are specific methods used to evaluate the transformer's ability to withstand different types of transient electrical stresses. These stresses can occur due to phenomena like switching operations, lightning strikes, and other electrical disturbances. Here’s a detailed overview of each type of dielectric test, their purpose, procedures, and interpretation of results.

1. High-Frequency Transient Dielectric Tests

High-frequency transient dielectric tests evaluate the transformer's insulation system's ability to withstand transient overvoltages that occur at higher frequencies, typically due to lightning strikes or switching surges. These tests simulate conditions where the transformer could be exposed to sudden spikes of voltage that are much higher than normal operating levels but for very short durations.

  • Purpose:

    • To assess the ability of the transformer's insulation to handle high-frequency transient overvoltages.
    • To ensure that the transformer can withstand lightning strikes or other sharp electrical surges without insulation failure.
    • To detect any potential insulation weaknesses that could lead to failures under real-world operating conditions.

  • Principle:

    • High-frequency transients involve rapidly changing voltages, which can stress the insulation differently compared to steady-state or lower frequency conditions.
    • The test typically involves applying impulse voltage waves that simulate the impact of a lightning strike or other high-frequency disturbances.
    • These impulses are characterized by steep wavefronts (rise times) and high peak voltages.

  • Common High-Frequency Test:

    • Lightning Impulse Test: This is the standard method for high-frequency testing.
      • A test impulse resembling a lightning strike is applied to the transformer. It typically has a rise time of 1.2 microseconds and a decay time of 50 microseconds.
      • The peak value of the impulse is much higher than the rated voltage of the transformer, simulating the conditions of a lightning strike.
      • The test is performed on each winding of the transformer to ensure that the insulation between windings and between windings and the core can withstand the surge.

  • Procedure:

    • The transformer is isolated from the power source, and impulse voltage is applied using a specialized impulse generator.
    • Voltage is applied in both positive and negative polarity to ensure that insulation strength is consistent in all scenarios.
    • The test equipment measures the response of the transformer to the applied impulse, capturing waveforms for analysis.
    • Any abnormalities in the waveform, such as oscillations or reflections, could indicate weaknesses or partial discharges in the insulation.

  • Interpretation of Results:

    • A successful test is indicated by the absence of significant deviations, oscillations, or sudden drops in the measured waveforms, which would suggest breakdowns or insulation failures.
    • Abnormal waveforms, such as those with dips or reflections, may indicate insulation weaknesses or partial discharge activity that needs further investigation.
    • If the transformer passes the lightning impulse test, it demonstrates the ability to handle lightning surges without failure, which is crucial for outdoor transformers exposed to such conditions.

2. Low-Frequency Transient Dielectric Tests

Low-frequency transient dielectric tests evaluate the insulation’s ability to withstand overvoltages and stresses occurring at lower frequencies. These transients can result from switching operations, faults, and resonance phenomena within the power system. Unlike high-frequency transients, which involve rapid changes, low-frequency transients have slower rise and fall times but can last longer, posing a different kind of stress on the insulation.

  • Purpose:

    • To ensure that the transformer’s insulation can withstand temporary overvoltage conditions arising from system events like switching surges or voltage spikes.
    • To identify any defects in the insulation system that might cause failures during normal operation.
    • To evaluate the insulation’s robustness against lower-frequency disturbances, which can cause dielectric heating and stress over longer periods.

  • Principle:

    • Low-frequency transients occur at frequencies close to or slightly higher than the power frequency (50 Hz or 60 Hz).
    • The insulation must be robust enough to handle such conditions without degradation, as these transients can induce dielectric heating or cause gradual weakening of the insulation over time.
    • Common low-frequency transient tests involve applying overvoltage at a frequency near the operating frequency for a specified duration.

  • Common Low-Frequency Test:

    • Power Frequency Withstand Test (AC Dielectric Test):
      • A higher-than-normal AC voltage (typically 1.5 to 2 times the rated voltage) is applied to the transformer for a specified period (often 60 seconds).
      • This test simulates conditions that might occur during switching operations or voltage surges in the power system.
      • It evaluates the insulation's ability to endure temporary overvoltage conditions without breakdown.
    • Induced Overvoltage Test:
      • The secondary winding of the transformer is excited with an increased frequency, which induces a higher voltage on the primary winding.
      • This simulates conditions of overvoltage on the primary side due to system disturbances.

  • Procedure:

    • The transformer is isolated, and the test voltage is applied gradually to prevent sudden stress on the insulation.
    • The test voltage is maintained for a set duration while monitoring for any signs of insulation breakdown, such as current spikes or partial discharge.
    • The voltage is then gradually decreased back to zero to prevent any residual stress on the transformer.

  • Interpretation of Results:

    • A successful test is indicated by the absence of insulation breakdown or partial discharge activity throughout the duration of the test.
    • If the insulation withstands the applied overvoltage without failure, it confirms that the transformer can handle similar conditions in actual service without risk.
    • Any breakdown or excessive partial discharge indicates a weak point in the insulation that must be addressed before the transformer is put into service.

3. Comparison of High-Frequency and Low-Frequency Transient Dielectric Tests

  • High-Frequency Tests:

    • Simulate fast transient conditions like lightning surges.
    • Focus on the transformer's ability to handle sharp, high-voltage spikes.
    • Use impulse waveforms with fast rise times (microseconds).

  • Low-Frequency Tests:

    • Simulate overvoltage conditions arising from switching and other system disturbances.
    • Focus on the transformer's ability to withstand longer-duration voltage stresses.
    • Use higher-than-normal power frequency voltages applied for a specified time (e.g., seconds).

  • Both Tests are crucial for ensuring the overall dielectric strength of the transformer. High-frequency tests assess the ability to withstand sharp surges, while low-frequency tests ensure robustness against sustained overvoltages.

Conclusion

High-frequency and low-frequency transient dielectric tests are key components of transformer testing, providing a comprehensive evaluation of the insulation's ability to withstand a range of transient conditions. By simulating different types of stresses, these tests help in identifying potential weaknesses, ensuring that transformers can operate safely and reliably in the field. Performing both types of tests is crucial for the long-term durability and performance of transformers, as they cover a wide spectrum of potential electrical disturbances.

No Load And Load Loss Measurements

Transformer No-Load and Load Loss Measurements

Measuring losses in transformers is essential for determining their efficiency and overall performance. Transformers, being key components of electrical power systems, convert voltage levels up or down to ensure efficient power transmission and distribution. During their operation, energy losses occur, which are typically categorized into no-load losses and load losses. Understanding and measuring these losses is critical for designing energy-efficient transformers and maintaining their optimal operation.

1. No-Load Loss Measurements

No-load losses, also known as core losses or excitation losses, occur when the transformer’s primary winding is energized but no load is connected to the secondary winding. These losses are associated with the magnetization of the transformer's core and occur continuously whenever the transformer is connected to a power source, regardless of whether it is supplying power to a load.

  • Components of No-Load Losses:

    • Hysteresis Losses: Occur due to the cyclic magnetization and demagnetization of the transformer's core material. Each time the magnetic domains in the core align with the applied magnetic field, energy is lost in the form of heat. The amount of hysteresis loss depends on the material of the core and the frequency of the alternating current.
    • Eddy Current Losses: Induced by circulating currents within the core material due to the alternating magnetic field. Laminating the core reduces these losses by restricting the path of these circulating currents. Eddy current losses depend on the square of the supply frequency and the thickness of the laminations.
    • Stray Losses: Minor losses due to leakage flux interacting with nearby conductive parts of the transformer structure, but they are usually small compared to hysteresis and eddy current losses.

  • Measurement Procedure:

    • Setup: The primary winding is energized using a power source, typically at the rated voltage, while the secondary winding is left open (no load).
    • Instruments: A wattmeter is connected to measure the power consumed by the transformer under this condition.
    • Measurements:
      • Measure the input voltage and current of the primary winding.
      • Record the wattmeter reading, which represents the total no-load losses in the transformer.
    • Correction for Temperature: No-load loss measurements are typically corrected to a standard reference temperature (e.g., 75°C or 85°C) to account for variations in the core material's properties with temperature.

  • Significance of No-Load Loss Measurements:

    • No-load losses are crucial for transformers that operate continuously, such as those in substations, as they contribute to the overall energy consumption.
    • Reducing no-load losses improves the transformer's efficiency, which is particularly important for transformers that spend a significant amount of time operating under light load conditions.
    • The measured no-load losses help in determining the transformer's performance and efficiency ratings.

2. Load Loss Measurements

Load losses, also known as copper losses or winding losses, occur when the transformer is supplying power to a load. These losses are mainly due to the resistance of the windings and vary with the square of the load current. Load losses increase as the transformer is loaded and can have a significant impact on the overall efficiency of the transformer, especially during high-demand periods.

  • Components of Load Losses:

    • I²R Losses (Copper Losses): These are the primary component of load losses and result from the resistance of the windings. As current flows through the windings, it encounters resistance, causing energy to be lost in the form of heat. The formula for these losses is:

      Copper Loss=I2×R\text{Copper Loss} = I^2 \times R

      where II is the load current and RR is the winding resistance.

    • Stray Losses: Caused by leakage flux that induces eddy currents in the windings, core clamps, and other metallic parts of the transformer. Although these losses are smaller than I²R losses, they become more significant at higher loads.

    • Eddy Current Losses in Windings: Induced currents in the winding conductors due to leakage flux can cause additional losses, which become more significant in transformers with higher load currents.

  • Measurement Procedure:

    • Setup: The transformer is tested with a controlled load or simulated load conditions. The primary side is energized, and the secondary side is short-circuited through a current source.
    • Instruments: A wattmeter, voltmeter, and ammeter are used to measure the power, voltage, and current during the test.
    • Measurements:
      • Adjust the input voltage until the rated current flows through the primary winding.
      • Measure the power using the wattmeter, which represents the total load losses.
      • The measured losses include the I²R losses and any stray losses.
      • Typically, the measured load losses are corrected to a standard reference temperature (e.g., 75°C or 85°C) to account for changes in winding resistance due to temperature variations.

  • Significance of Load Loss Measurements:

    • Load loss measurements are essential for evaluating the transformer's efficiency under various load conditions.
    • Reducing load losses improves the transformer's energy efficiency during high-load periods, which can result in significant cost savings over the transformer's life.
    • Load loss measurements also provide critical data for designing cooling systems and determining the transformer’s thermal capacity.

3. Comparison of No-Load and Load Losses

  • Nature of Losses:

    • No-Load Losses: These are constant and occur whenever the transformer is connected to the power source, regardless of load conditions.
    • Load Losses: These vary with the load and are zero when no load is connected. They increase significantly as the load increases.

  • Dependence on Operating Conditions:

    • No-Load Losses: Depend primarily on the core material and design, as well as the applied voltage and frequency.
    • Load Losses: Depend on the current through the windings and the resistance of the winding materials.

  • Impact on Transformer Efficiency:

    • No-load losses are more significant for transformers that operate under light or no-load conditions for extended periods.
    • Load losses become more significant for transformers that operate at or near full load for extended periods, as they directly impact the energy loss during power delivery.

  • Measurement Conditions:

    • No-load loss measurements are conducted with the secondary winding open and the primary winding energized.
    • Load loss measurements are conducted with the secondary winding short-circuited and current flowing through the windings to simulate actual loading conditions.

Conclusion

Understanding and measuring both no-load and load losses are critical for evaluating transformer performance. These measurements provide essential information about the transformer's efficiency, energy consumption, and operational costs. No-load losses primarily focus on the behavior of the core material under energized conditions, while load losses reflect the impact of current flow through the windings during power delivery. Accurate measurement of these losses helps manufacturers design more efficient transformers and enables operators to optimize their performance, ultimately contributing to more reliable and energy-efficient power systems.

Short Circuit Withstand Test

Transformer Short Circuit Withstand Test

The Short Circuit Withstand Test is a crucial test conducted on transformers to ensure their mechanical and thermal durability under fault conditions. Transformers in power systems are often subjected to short circuit events caused by faults in the network, such as line-to-line, line-to-ground, or phase-to-phase faults. These conditions result in high currents passing through the transformer, creating significant mechanical and thermal stresses. The short circuit withstand test is designed to verify that a transformer can withstand these extreme conditions without suffering mechanical damage or insulation failure.

1. Purpose of the Short Circuit Withstand Test

  • Mechanical Strength Verification: During a short circuit event, the high fault currents generate intense electromagnetic forces that act on the windings, potentially causing mechanical displacement, deformation, or damage. The short circuit withstand test ensures that the windings, core, and overall structural integrity of the transformer can resist these forces without permanent deformation or damage.

  • Thermal Stability Assessment: The high currents during a short circuit also generate significant heat, which can raise the temperature of the windings rapidly. The test verifies that the transformer’s insulation system can handle this temperature rise without breaking down, ensuring that the transformer can continue to operate safely after the fault is cleared.

  • Quality Assurance: The test is a standard requirement for validating the design and construction of power transformers, ensuring compliance with international standards like IEC 60076-5 or IEEE C57.12.00. It is often required as part of the factory acceptance testing before commissioning.

2. Principle of the Short Circuit Withstand Test

The short circuit withstand test involves simulating short circuit conditions on the transformer to assess its response. The test subjects the transformer to high current levels, typically 8 to 10 times the rated current, to emulate the actual conditions that could occur in the power system during a fault. It aims to replicate the mechanical and thermal stresses experienced during a real short circuit event.

  • Electromagnetic Forces: When a high current flows through the transformer windings during a short circuit, it generates substantial electromagnetic forces. These forces are proportional to the square of the current and can cause the windings to move, stretch, or compress, potentially leading to mechanical damage.

  • Thermal Effects: The high current results in rapid heating of the winding conductors, leading to a sharp rise in temperature. The insulation must withstand this thermal stress without degradation to ensure the transformer’s longevity.

3. Test Procedure

The short circuit withstand test is typically performed in a controlled environment at the manufacturer's test facility or a specialized high-power test laboratory. The test procedure includes the following steps:

  • Preparation:

    • The transformer is placed in a secure testing area, and all safety protocols are observed.
    • The winding connections are configured according to the desired test conditions, and all necessary instruments are connected for monitoring.
    • External reactors or impedance networks may be used to limit the short circuit current to the required level for safety and control.

  • Test Execution:

    • The test begins by applying voltage to the primary winding of the transformer while creating a short circuit condition on the secondary winding.
    • The voltage is adjusted to generate a short circuit current that is a specific multiple of the rated current (typically 2.5 to 10 times the rated current) to simulate fault conditions.
    • The duration of the short circuit current flow is kept short (a few seconds) to prevent excessive damage while still applying the necessary stress to the transformer.
    • During the test, critical parameters such as the short circuit current, winding temperature, voltage, and any mechanical deformation are recorded.

  • Post-Test Inspection:

    • After applying the short circuit current, the transformer is carefully inspected for any signs of damage.
    • Electrical tests such as winding resistance measurements, turns ratio tests, and insulation resistance tests are conducted to verify if the winding characteristics have changed due to the short circuit stress.
    • Mechanical inspections may include checking for visible displacement, deformation, or damage to the windings or core.
    • The transformer is also tested under normal operating conditions to confirm that its performance characteristics remain within specified limits.

4. Interpretation of Results

  • Successful Test:

    • If the transformer shows no significant mechanical deformation or displacement of the windings, and the electrical parameters such as resistance and turns ratio remain within acceptable limits, the transformer passes the short circuit withstand test.
    • A successful test indicates that the transformer can handle the physical and thermal stresses caused by a short circuit event without compromising its integrity.

  • Test Failure:

    • If there is visible mechanical damage such as bulging or displacement of windings, or if electrical tests show significant changes in winding resistance, ratio, or insulation strength, the test is considered a failure.
    • A failure may indicate inadequate mechanical bracing, poor winding design, or insufficient insulation quality, requiring redesign or reinforcement of the transformer structure.

5. Importance of the Short Circuit Withstand Test

  • Reliability and Safety: Ensuring that transformers can withstand short circuit conditions is critical for the reliability and safety of power systems. A transformer that cannot handle such conditions may fail catastrophically during a fault, leading to extended power outages and safety hazards.

  • Compliance with Standards: The short circuit withstand test is often a requirement for meeting international standards (e.g., IEC 60076-5). Passing this test demonstrates compliance with quality standards and regulatory requirements, which is crucial for manufacturers and utilities.

  • Enhancing Transformer Design: Conducting this test provides valuable insights into the mechanical and thermal performance of transformers. The data obtained helps manufacturers improve the design and build more robust transformers capable of withstanding real-world stresses.

  • Cost Savings: By ensuring that transformers can withstand short circuits, the test helps avoid the costs associated with equipment failures, unplanned maintenance, and potential downtime in power distribution networks.

Conclusion

The short circuit withstand test is a vital procedure in the evaluation of transformers, focusing on their ability to handle the severe mechanical and thermal stresses caused by short circuit events. By simulating fault conditions, the test ensures that transformers are built to last and can maintain their structural integrity and performance even under extreme conditions. The successful completion of this test is a mark of a well-designed and durable transformer, ready for safe and reliable operation within the power grid.

Tags:
Previous Post Next Post
