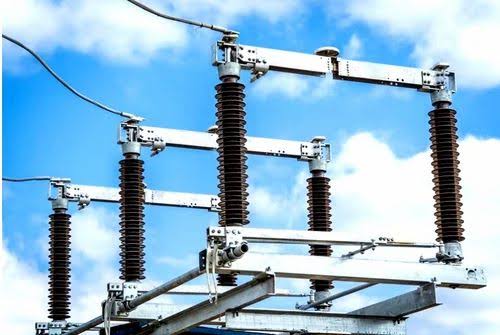

Electrical isolators are devices used in power systems to disconnect a portion of a circuit, ensuring safety for maintenance work. Interviews for positions related to electrical isolators often focus on the candidate’s technical knowledge, practical experience, and understanding of safety standards. Here are some common interview questions and suggested answers for positions related to electrical isolators:
1. What is an Electrical Isolator?
Answer: An electrical isolator is a device used to completely isolate a part of an electrical circuit from the system when maintenance or repairs are required. It ensures that the section being worked on is de-energized and prevents any accidental energization, providing safety to maintenance personnel. Unlike circuit breakers, isolators do not have an arc-quenching mechanism and should only be operated when the circuit is not carrying current.
2. What is the difference between an Electrical Isolator and a Circuit Breaker?
Answer:
- Circuit Breaker: Can open or close a circuit under load conditions and provides overcurrent protection. It has an arc-quenching mechanism to handle high fault currents.
- Electrical Isolator: Used to disconnect a circuit only when it is de-energized. It lacks an arc-extinguishing feature, making it unsuitable for breaking current under load.
3. What are the types of Electrical Isolators?
Answer: The primary types of electrical isolators include:
- Single Break Isolator: Has a single break point per phase.
- Double Break Isolator: Has two break points per phase, providing better isolation.
- Pantograph Isolator: Used in high voltage substations, it has a pantograph arm that allows vertical movement to isolate the circuit.
- Busbar Isolator: Used to isolate a busbar section for maintenance without interrupting the other sections.
4. Why are Electrical Isolators used in substations?
Answer: Electrical isolators are used in substations for:
- Safely isolating equipment such as transformers, circuit breakers, and other high-voltage devices for maintenance.
- Ensuring that certain parts of a substation can be de-energized, preventing accidental back-feed from other live parts of the circuit.
- Improving the safety of personnel working on maintenance by ensuring a visible break in the circuit.
5. What safety precautions should be taken while operating an Electrical Isolator?
Answer:
- Ensure that the isolator is operated only when the circuit is not carrying any load.
- Verify that the downstream circuit breaker is turned off before operating the isolator.
- Use proper personal protective equipment (PPE) while operating the isolator.
- Follow lock-out/tag-out (LOTO) procedures to prevent accidental re-energization.
- Ensure that all necessary grounding is in place before maintenance work starts.
6. Can an Isolator be operated under load conditions? Why or why not?
Answer: No, an isolator cannot be operated under load conditions. This is because isolators are not designed to handle high currents while being opened or closed; they lack arc-extinguishing mechanisms. Operating an isolator under load can lead to arcing, which can cause equipment damage or pose a risk to the operator.
7. What is the purpose of a Load Break Switch? How is it different from an Isolator?
Answer: A Load Break Switch is designed to make or break a circuit under load conditions. It can safely interrupt the flow of electricity in a circuit carrying current. In contrast, an isolator can only operate when the circuit is de-energized. Load break switches are used where circuits need to be opened or closed under normal operational currents, while isolators are for isolating parts of a circuit during maintenance.
8. What is a "Tag-Out" in the context of Electrical Isolation?
Answer: Tag-out is a safety procedure used in electrical isolation where a tag is placed on the isolator or other control points indicating that the equipment should not be operated. It acts as a warning to others that the device is isolated for maintenance or repair work. This prevents accidental re-energization of the isolated section during maintenance, ensuring the safety of personnel.
9. What are the factors to consider while selecting an Electrical Isolator?
Answer:
- Voltage and Current Rating: The isolator must be suitable for the voltage level of the system and have an adequate current carrying capacity.
- Type of Application: Consider whether the isolator will be used for indoor or outdoor applications and the type of switching required.
- System Configuration: Factors like the number of poles, the breaking mechanism, and the busbar arrangement are essential in selection.
- Environmental Conditions: Consider the temperature, humidity, and potential exposure to corrosive elements.
10. What is the role of Earthing in Electrical Isolation?
Answer: Earthing provides a path for the current to flow to the ground in the event of a fault, which prevents electric shock hazards and protects equipment from damage. When isolators are used for maintenance, earthing ensures that any residual or induced voltage is safely discharged, making the maintenance area safe for personnel.
11. How is a Pantograph Isolator different from other types of Isolators?
Answer: A Pantograph Isolator is typically used in high-voltage substations and has a distinctive arm that moves vertically to make or break the connection. Unlike single or double-break isolators, the pantograph design provides a compact solution for areas with limited space. Its vertical movement makes it particularly suitable for outdoor installations.
12. What are the maintenance procedures for Electrical Isolators?
Answer: Maintenance of electrical isolators includes:
- Visual Inspection: Regular checks for signs of wear, corrosion, or damage.
- Lubrication: Ensuring moving parts are properly lubricated to prevent stiffness.
- Contact Cleaning: Cleaning of contacts to remove any dirt or oxidation.
- Testing Insulation: Checking the insulation resistance to ensure there are no leakages.
- Checking the Mechanical Alignment: Ensuring that the mechanical parts are aligned properly to avoid operational issues.
These questions test a candidate’s technical understanding of electrical isolators, practical skills, and safety knowledge. Preparing answers for these questions will help candidates demonstrate their expertise in handling and maintaining electrical isolators during the interview.
Electrical isolators are crucial components used in power systems to ensure the safe disconnection of electrical circuits. Understanding isolators and their types is essential for many technical roles in the power industry. Here are some interview questions related to electrical isolators and their types, along with suggested answers:
1. What is an Electrical Isolator?
- Answer: An electrical isolator is a mechanical switch that is used to isolate a part of an electrical circuit from the rest of the system. It is used to ensure that a circuit is completely de-energized for maintenance or service. Isolators are primarily used in power systems to provide safety to workers and equipment.
2. What is the Purpose of an Electrical Isolator?
- Answer: The main purpose of an isolator is to provide a visible disconnection between the electrical circuit and the power source to ensure safety during maintenance. It is used when the circuit is not under load, as it cannot interrupt current like circuit breakers.
3. What are the Types of Electrical Isolators?
- Answer:
There are several types of electrical isolators, including:
- Single Break Isolator: Has one break point for the disconnection of the circuit.
- Double Break Isolator: Provides two break points, increasing the level of safety and reliability.
- Pantograph Isolator: Mainly used in substations, has a pantograph structure for operation.
- Vertical Break Isolator: The blades of the isolator move in a vertical direction during operation.
- Horizontal Break Isolator: The blades move horizontally to open or close the circuit.
- MVB (Motorized Vertical Break) Isolator: Operated using a motor, typically used in high-voltage systems.
4. What is the Difference Between an Isolator and a Circuit Breaker?
- Answer:
- An isolator is a manual switch that is used to disconnect a part of the circuit when it is not under load, whereas a circuit breaker can automatically break the circuit under fault conditions and can interrupt the flow of current.
- Isolators are used for safety purposes during maintenance, while circuit breakers provide protection against overloads, short circuits, and other faults.
5. How Does a Pantograph Isolator Work?
- Answer: A pantograph isolator consists of a pantograph arm mechanism that can open or close the connection between two electrical conductors. It is typically used in high-voltage substations due to its compact design and smooth operation. It offers a visible isolation point and is preferred when space constraints exist.
6. What is a Double Break Isolator and Where is it Used?
- Answer: A double break isolator has two break points, which means it provides two disconnections in the circuit. This type of isolator is used in high-voltage applications, providing better safety and reliability by reducing the risk of arcing and offering a more visible disconnection.
7. Why are Isolators Placed on the No-Load Side?
- Answer: Isolators are placed on the no-load side because they are not designed to interrupt current flow. They should only be operated when the circuit is not carrying any current, as their main function is to provide a visible disconnection rather than to break load current.
8. What Safety Precautions Should Be Taken While Operating Isolators?
- Answer:
- Ensure the circuit is not under load before operating the isolator.
- Verify that the isolator is in the open position before beginning any maintenance work.
- Use proper personal protective equipment (PPE) to guard against electrical hazards.
- Follow standard lockout and tagout (LOTO) procedures to prevent accidental re-energization.
9. Explain the Operation of a Motorized Isolator.
- Answer: A motorized isolator is equipped with an electric motor to perform the open and close operations. This allows remote control of the isolator, which is useful in high-voltage applications and substations. The motorized feature helps in operating isolators at locations that are difficult to access manually.
10. What is an Earthing Switch and How is it Related to Isolators?
- Answer: An earthing switch is used to ground the disconnected part of a circuit for safety purposes. It is often installed alongside isolators to ensure that any residual charge is safely discharged to the ground before maintenance work. This prevents accidental shocks and provides additional safety for workers.
11. How is a Vertical Break Isolator Different from a Horizontal Break Isolator?
- Answer:
- Vertical Break Isolator: The blades open or close by moving in a vertical direction. It is suitable for locations with space constraints in the horizontal direction.
- Horizontal Break Isolator: The blades open or close in a horizontal direction. It is often easier to observe the disconnection and is used where space is available in the horizontal plane.
12. What Factors Should Be Considered When Selecting an Isolator?
- Answer:
- Voltage and Current Rating: The isolator should match the voltage and current levels of the system.
- Type of Application: Different types of isolators are used for different applications like substations, transmission lines, etc.
- Space Availability: The choice between vertical and horizontal break isolators can depend on the space available.
- Safety Requirements: Features like the presence of an earthing switch and visibility of the disconnection point are important for ensuring safety.
13. What is a Busbar Isolator?
- Answer: A busbar isolator is used to isolate a busbar section from the rest of the electrical system. It is generally used in substations to isolate different sections for maintenance purposes without affecting the entire busbar.
14. Why is Visual Inspection Important Before Operating an Isolator?
- Answer: Visual inspection ensures that there is no visible damage or obstruction in the isolator's mechanism. It also helps confirm that the isolator is in the desired position (open or closed) before any operation, thus avoiding accidental energization or isolation of circuits.
15. Can Isolators be Used as a Protection Device?
- Answer: No, isolators cannot be used as a protection device. Their primary function is to isolate and de-energize a circuit for safety during maintenance. Protection devices like circuit breakers are used to interrupt the current flow during fault conditions and provide protection to the system.
These questions can help assess a candidate’s understanding of isolators, their types, and their role in electrical systems. They are commonly used in interviews for roles like electrical engineers, power system technicians, and maintenance engineers.
Here are some common interview questions and answers related to electrical isolator testing. These questions focus on concepts, principles, and practices associated with testing and maintaining electrical isolators in power systems:
1. What is an electrical isolator?
- Answer: An electrical isolator, also known as a disconnector, is a mechanical switch used to isolate a part of the circuit when it is in an off condition. Isolators ensure that a section of the electrical system is completely de-energized for maintenance or inspection purposes. They are typically used in high-voltage applications and are operated manually or automatically.
2. What is the difference between an isolator and a circuit breaker?
- Answer: The main difference is that an isolator is a mechanical switch that ensures a section of a circuit is de-energized for safety during maintenance, whereas a circuit breaker is a protective device that can automatically interrupt power flow in the event of a fault. Isolators do not have the ability to interrupt current flow, while circuit breakers can interrupt fault currents.
3. Why is isolator testing important?
- Answer: Isolator testing is crucial to ensure the reliability and safety of the power system. Proper testing helps verify the mechanical and electrical integrity of isolators, ensuring they operate as required during switching operations. It also helps detect potential issues like contact wear, misalignment, or insulation degradation, which can prevent unexpected failures and improve overall system performance.
4. What are the common types of tests performed on electrical isolators?
- Answer: The common tests include:
- Insulation Resistance Test: Measures the insulation resistance between the isolator’s terminals and ground.
- Contact Resistance Test: Measures the resistance across closed isolator contacts to ensure low resistance, indicating good contact quality.
- Visual Inspection: Checks for physical damage, proper alignment, and cleanliness.
- Operational Test: Verifies the smooth mechanical operation of the isolator.
- High-Potential (HiPot) Test: Tests the isolator's ability to withstand high voltage and ensures the insulation strength.
5. What is a Contact Resistance Test, and why is it performed?
- Answer: A Contact Resistance Test measures the resistance across the closed contacts of the isolator using a micro-ohmmeter. It is performed to ensure that the contact resistance is within acceptable limits. High contact resistance can indicate poor contact alignment, corrosion, or wear, which could lead to overheating and possible failure of the isolator during operation.
6. What are the typical insulation resistance values expected for an isolator?
- Answer: The acceptable insulation resistance values depend on the system voltage rating. Typically, for high-voltage systems, the insulation resistance should be in the range of megohms (MΩ) to gigohms (GΩ). For example, a value greater than 1,000 MΩ might be expected for a 33 kV isolator. However, these values should be compared with the manufacturer's specifications.
7. What factors can affect the insulation resistance of an isolator?
- Answer: Several factors can affect insulation resistance, including:
- Temperature: Higher temperatures can lower insulation resistance.
- Moisture/Humidity: High moisture levels can reduce insulation resistance.
- Age of Insulation: Older insulation may have reduced resistance due to degradation.
- Contaminants: Dust, dirt, or oil deposits can lower insulation resistance.
8. How is a HiPot test conducted on an isolator?
- Answer: A HiPot (High-Potential) test involves applying a high voltage between the isolator’s terminals and ground to check for any insulation breakdown or leakage current. The test voltage is usually higher than the normal operating voltage, and it is applied for a specified duration. If the isolator withstands the applied voltage without any breakdown, it is considered to have good insulation strength.
9. What safety precautions should be taken during isolator testing?
- Answer: Safety precautions include:
- Ensuring that the isolator is fully de-energized before testing.
- Using appropriate personal protective equipment (PPE) like insulated gloves, safety glasses, and flame-resistant clothing.
- Following lockout/tagout (LOTO) procedures to prevent accidental energization.
- Verifying that the testing equipment is properly calibrated and in good condition.
- Keeping a safe distance from the equipment during high-voltage testing.
10. What is an earth switch, and how does it relate to an isolator?
- Answer: An earth switch is a device used to ground the isolated section of a circuit after the isolator is opened. It ensures that any residual or induced voltage is discharged, making the section safe for maintenance work. The earth switch is usually interlocked with the isolator to prevent it from being closed when the isolator is in the closed position.
11. How do you perform an operational test on an isolator?
- Answer: An operational test involves manually or electrically operating the isolator several times to ensure smooth and proper movement. The test checks for smoothness of operation, proper contact engagement, and alignment of moving parts. It is important to observe any unusual noises or resistance during the operation, which may indicate mechanical issues.
12. What could be the cause of a high contact resistance reading in an isolator?
- Answer: High contact resistance could be caused by:
- Corrosion or oxidation on contact surfaces.
- Misalignment of contacts, leading to partial contact.
- Wear or pitting of the contacts due to arcing or extended use.
- Dirt or contaminants on the contact surfaces.
- Loose connections between contacts.
13. What is the role of dielectric strength testing in isolators?
- Answer: Dielectric strength testing determines the maximum voltage that the isolator’s insulation can withstand without breaking down. It helps ensure that the insulation can handle operational stresses and overvoltage conditions. The test involves applying gradually increasing voltage until a specified value is reached, ensuring no breakdown occurs.
14. What is the significance of interlocking in isolators?
- Answer: Interlocking prevents unsafe operations by ensuring that certain conditions are met before the isolator can be operated. For example, an isolator may have an interlock with a circuit breaker to prevent it from being opened or closed when the circuit breaker is closed. This ensures the safety of maintenance personnel and prevents equipment damage due to incorrect operation.
15. What steps would you take if you find a fault during an isolator test?
- Answer: If a fault is detected during an isolator test:
- Document the fault and the test results.
- Inform the maintenance supervisor or relevant personnel.
- Perform a detailed inspection to identify the root cause of the issue.
- Replace or repair the faulty parts if necessary.
- Re-test the isolator to confirm that the issue has been resolved.
- Follow safety procedures throughout the repair and re-testing process.
These questions and answers cover fundamental aspects of electrical isolator testing and can help prepare for an interview focusing on the operation, testing, and maintenance of isolators in power systems.
Electrical isolators, also known as disconnect switches, are essential components in power systems. They are used to ensure that a circuit is completely de-energized for service or maintenance. The design calculations for isolators involve understanding several factors, such as current-carrying capacity, short-circuit withstand capability, and mechanical strength. Here are some common interview questions related to the design and calculation of electrical isolators, along with sample answers:
1. What is an Electrical Isolator, and Why is it Used?
- Answer: An electrical isolator is a mechanical switch that isolates a part of a circuit when opened. It ensures that the equipment or circuit is de-energized and safe for maintenance or inspection. Isolators are used in power distribution and transmission systems to prevent accidental operation of equipment when maintenance is being carried out.
2. How Do You Determine the Current Rating of an Isolator?
- Answer: The current rating of an isolator is determined based on the normal operating current of the circuit in which it will be used. The isolator should be able to handle this current without overheating. Typically, a safety margin of 20-25% is considered above the normal load current to account for variations. For example, if the operating current is 800 A, the isolator's rated current should be around 1000 A.
3. What Are the Key Parameters for Designing an Electrical Isolator?
- Answer: Key parameters for designing an electrical isolator include:
- Current Rating: The maximum continuous current that the isolator can carry.
- Short-Circuit Current Rating: The isolator must withstand the short-circuit current for a specific duration (usually 1 second) without damage.
- Insulation Level: The isolator must have an insulation level suitable for the system voltage.
- Operating Mechanism: Whether manual or motor-operated, it should ensure ease of operation.
- Creepage Distance: Important for outdoor isolators to prevent flashovers.
4. How Do You Calculate the Short-Circuit Withstand Capability of an Isolator?
- Answer: The short-circuit withstand capability is calculated based on the maximum fault current that can occur in the system. This value is provided by the power system study, typically in kilo-amperes (kA). The isolator should be able to withstand this current for a defined period, usually 1 second. The calculation involves:
- Determining the prospective fault current.
- Selecting an isolator that can withstand this current for the specified duration without mechanical or thermal damage.
5. What is the Importance of Creepage Distance in Isolators?
- Answer: Creepage distance is the shortest path between two conductive parts along the insulating surface. It is crucial for outdoor isolators as it prevents flashovers due to moisture, dust, or other environmental factors. The creepage distance is determined based on the system voltage and the level of pollution in the environment. Higher voltage systems or high-pollution areas require larger creepage distances.
6. Explain How to Calculate the Mechanical Strength of an Isolator.
- Answer: The mechanical strength of an isolator must be sufficient to withstand the forces during switching operations and fault conditions. It is calculated based on:
- Wind Load: For outdoor isolators, wind pressure can affect the isolator structure, so the design should account for this.
- Terminal Load: The forces due to the conductor weight, tension, and thermal expansion need to be considered.
- Short-Circuit Forces: During short-circuit conditions, the mechanical forces generated can be high, and the isolator structure must withstand these without deformation.
7. How Do You Select an Isolator for High Voltage Applications?
- Answer: For high voltage applications, the isolator selection involves considering the voltage rating, current rating, and insulation requirements. The isolator should match the system voltage and withstand voltage levels (power frequency, lightning impulse) as per standards like IEC or IEEE. Additionally, factors like creepage distance and clearance between phases must align with the insulation requirements for high voltage systems.
8. What is the Difference Between a Load Break Switch and an Isolator?
- Answer: An isolator is designed to open or close a circuit only when there is no current flow (under no-load conditions). It is not intended to interrupt a circuit with load. A load break switch, on the other hand, is capable of interrupting a circuit even when current is flowing, making it suitable for breaking circuits under load conditions.
9. How Do You Ensure the Thermal Stability of an Isolator?
- Answer: The thermal stability of an isolator is ensured by selecting materials with proper thermal properties and considering the maximum continuous current and ambient temperature. The temperature rise due to continuous current should not exceed permissible limits. Calculations involve assessing heat dissipation and ensuring that the contacts and terminals can handle the generated heat without degradation.
10. What Standards Are Followed for Isolator Design and Testing?
- Answer: The design and testing of electrical isolators typically follow standards like:
- IEC 62271 series, which covers high voltage switchgear and controlgear, including disconnectors.
- IEEE C37 series, for high voltage switches and switchgear.
- These standards provide guidelines for current ratings, insulation levels, mechanical strength, and testing methods.
11. What Factors Affect the Selection of an Isolator for Outdoor Installation?
- Answer: Factors for selecting an outdoor isolator include:
- Environmental Conditions: Temperature, humidity, pollution levels, and UV exposure.
- Voltage Level: Determines the insulation and creepage distance.
- Space Availability: The installation space may limit the type and size of the isolator.
- Maintenance Requirements: Outdoor isolators should be designed for easy maintenance due to exposure to the elements.
12. How Do You Perform Insulation Coordination for Isolators?
- Answer: Insulation coordination ensures that the isolator can handle overvoltages like lightning strikes or switching surges. It involves selecting the Basic Insulation Level (BIL) that corresponds to the system voltage. Coordination with surge arresters is necessary to limit overvoltages and ensure that the isolator’s insulation is not stressed beyond its capacity.
13. What Are the Common Testing Procedures for Electrical Isolators?
- Answer: Common tests for electrical isolators include:
- Dielectric Tests: To verify the insulation performance under voltage stress.
- Mechanical Endurance Test: To ensure the durability of the operating mechanism.
- Temperature Rise Test: To check that the isolator can handle continuous current without excessive temperature rise.
- Short-Time Current Test: To confirm the isolator’s ability to withstand short-circuit currents.
These questions aim to test a candidate's understanding of electrical isolator design, calculation methods, and practical considerations in real-world applications. Understanding the principles and calculations involved in designing an isolator is crucial for ensuring safe and efficient power system operations.
