Power Factor Interview Questions and Answers

1. What is Power Factor?

Answer: Power factor is the ratio of real power (kW) to apparent power (kVA) in an AC electrical system. It indicates how efficiently electrical power is being used. The power factor value ranges between 0 and 1. A power factor of 1 (or 100%) is ideal, meaning all the power is being effectively converted into useful work.

2. What are Real Power, Apparent Power, and Reactive Power?

Answer:
- Real Power (kW): The actual power consumed by electrical devices to perform useful work.
- Apparent Power (kVA): The total power flowing in the system, which is a combination of real power and reactive power.
- Reactive Power (kVAR): The power that oscillates between the source and the load but does not perform any real work, primarily consumed by inductive loads like motors, transformers, etc.

3. Why is Power Factor important?

Answer: Power factor is important because it affects the efficiency of the power system. A low power factor results in higher losses in the system, increased power consumption, and higher electricity bills. It also increases the demand on the electrical infrastructure, which may require costly upgrades.

4. What causes a low Power Factor?

Answer: A low power factor is typically caused by inductive loads such as motors, transformers, and fluorescent lighting, which require reactive power in addition to real power. These devices create phase differences between voltage and current, leading to a lower power factor.

5. How can Power Factor be improved?

Answer: Power factor can be improved by using power factor correction devices such as:
- Capacitor banks: These provide reactive power locally and reduce the reactive power demand from the source.
- Synchronous condensers: These are over-excited synchronous motors that improve power factor by supplying reactive power.
- Phase advancers: Used in industries to improve the power factor of induction motors.

6. What is the formula for Power Factor?

Answer: Power factor (PF) is calculated using the formula: $PF = \frac{Real\ Power\ (kW)}{Apparent\ Power\ (kVA)}$ or $PF = \cos(\theta)$ where $\theta$ is the phase angle between voltage and current.

7. What are the types of Power Factor?

Answer:
- Leading Power Factor: Occurs when the load is capacitive, and the current leads the voltage.
- Lagging Power Factor: Occurs when the load is inductive, and the current lags behind the voltage. This is the most common type in industrial settings.

8. What is the ideal Power Factor, and why?

Answer: The ideal power factor is 1 (or unity). At unity power factor, all the electrical power is being effectively used to perform useful work, with no reactive power. This maximizes system efficiency and minimizes losses.

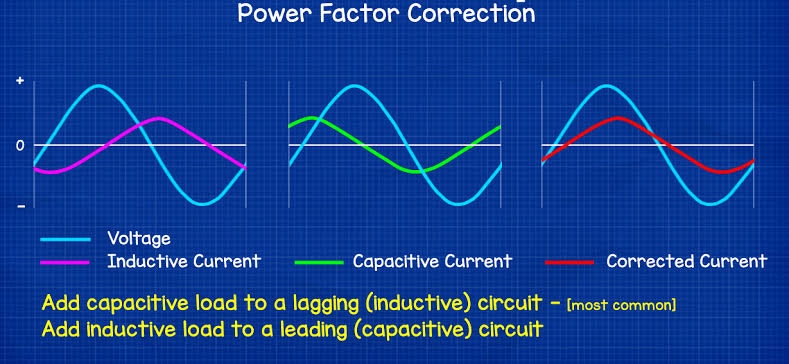

9. How do capacitors help in improving Power Factor?

Answer: Capacitors generate reactive power, which offsets the inductive reactive power drawn by the load. This reduces the total reactive power demand from the source, improving the power factor and reducing the phase angle between voltage and current.

10. What is a Power Factor Correction (PFC) unit, and where is it used?

Answer: A Power Factor Correction unit is a device used to improve power factor by adding capacitive loads to counteract the inductive loads in the system. PFC units are commonly used in industrial and commercial facilities with large motor loads, transformers, and other inductive equipment.

11. How does a low Power Factor affect energy bills?

Answer: A low power factor increases the apparent power (kVA) demand on the system, which in turn leads to higher demand charges from the utility company. Many utilities charge penalties for low power factor, which increases the total energy costs.

12. Can Power Factor be greater than 1?

Answer: No, the power factor cannot exceed 1. A power factor of 1 means that all the power is being used effectively. If the power factor appears to be greater than 1, it usually indicates a measurement or equipment error.

13. What is the difference between Power Factor and Efficiency?

Answer: Power factor refers to how effectively the electrical power is being used in the system, whereas efficiency refers to how well a system or device converts input power into useful output power. Both are important for the overall performance of an electrical system but address different aspects of power usage.

14. What are the disadvantages of having a low Power Factor?

Answer: The disadvantages include:
- Increased electricity bills due to higher demand charges.
- Reduced capacity of the electrical system because more current is required to deliver the same amount of real power.
- Increased losses in the distribution system.
- Potential overheating of equipment due to increased current flow.

15. What is the effect of harmonics on Power Factor?

Answer: Harmonics can distort the waveform of current and voltage, leading to a poor power factor. Harmonic currents do not contribute to real power but increase the apparent power, thus reducing the overall power factor. Harmonic filters may be required to correct this.

16. What is the difference between Displacement Power Factor and True Power Factor?

Answer:
- Displacement Power Factor refers to the phase shift between the fundamental component of current and voltage.
- True Power Factor includes both the effect of harmonics and the phase shift. True power factor is always lower than displacement power factor when harmonics are present.

17. How do you measure Power Factor?

Answer: Power factor can be measured using a power meter or power factor meter. These instruments measure the real power (kW), reactive power (kVAR), and apparent power (kVA) to calculate the power factor. Some advanced meters also measure harmonic distortion.

18. What is a Power Factor Penalty?

Answer: A power factor penalty is a charge imposed by utility companies on consumers whose power factor falls below a certain threshold (typically 0.85 or 0.90). This penalty compensates for the increased demand on the electrical infrastructure caused by the inefficient use of power.

19. How can you calculate reactive power (kVAR) needed for Power Factor Correction?

Answer: The reactive power needed to correct the power factor can be calculated using the formula: $Q_c = P \times \left( \tan(\cos^{-1}(PF_{initial})) - \tan(\cos^{-1}(PF_{desired})) \right)$ Where:
- $Q_c$ is the reactive power (in kVAR) required for correction.
- $P$ is the real power (in kW).
- $PF_{initial}$ is the current power factor.
- $PF_{desired}$ is the target power factor.

20. What is the role of automatic Power Factor Correction (APFC) panels?

Answer: APFC panels are used to maintain an optimal power factor by automatically switching capacitor banks in and out of the circuit based on the load's reactive power demand. This ensures that the power factor remains within the desired range without manual intervention.

These questions cover the fundamental aspects of power factor and its importance in electrical systems, which are commonly discussed during interviews for electrical engineering roles.

Understanding power factor is crucial when dealing with electrical motors, and interviewers may ask about it to assess a candidate’s knowledge. Below are some commonly asked power factor questions related to motors, along with model answers.

1. What is Power Factor?

Answer: Power factor (PF) is the ratio of real power (kW) to apparent power (kVA) in an AC electrical system. It indicates how efficiently electrical power is being used. The formula is:

$\text{Power Factor} = \frac{\text{Real Power (kW)}}{\text{Apparent Power (kVA)}}$

Power factor ranges from 0 to 1, where 1 means all the power is being used effectively.

2. Why is Power Factor important in motor systems?

Answer: A high power factor signifies that the motor is using most of the supplied energy effectively, reducing losses. A low power factor indicates wasted energy, causing higher power losses, increased demand charges, and possible overheating of equipment. Improving the power factor helps reduce energy costs and improve the efficiency of the power distribution system.

3. What is the typical power factor of an induction motor?

Answer: The power factor of induction motors typically varies with load. At full load, it is usually around 0.8 to 0.9 lagging. However, at light load or no load, the power factor can drop as low as 0.2 to 0.4 due to the predominance of reactive power.

4. How does load affect the power factor of a motor?

Answer: The power factor of a motor improves as the load increases. At no load or light load, the motor consumes more reactive power (leading to a lower power factor), but as the load increases, the motor consumes more real power, improving the power factor.

5. What causes low power factor in motors?

Answer: Low power factor in motors can be caused by:

Operating the motor under light loads
Using oversized motors
Presence of inductive components (like induction motors or transformers)
Harmonic distortions

6. What methods are used to improve the power factor of a motor?

Answer: Power factor can be improved by:

Installing capacitors to provide reactive power compensation
Using synchronous motors which can operate at leading power factor
Ensuring motors are operated closer to their rated load
Using high-efficiency motors with better power factor characteristics

7. What are the advantages of improving the power factor in motor systems?

Answer: Advantages include:

Reduced energy costs due to lower demand charges
Improved voltage regulation
Lower transmission losses
Smaller generator and transformer size requirements
Reduced carbon emissions through energy efficiency

8. What is the difference between a lagging and leading power factor in motor systems?

Answer: A lagging power factor occurs when the current lags the voltage, which is typical in inductive loads like induction motors. A leading power factor occurs when the current leads the voltage, common in capacitive loads or overexcited synchronous motors.

9. What is the effect of a low power factor on electrical distribution systems?

Answer: Low power factor increases the apparent power drawn from the supply, leading to:

Increased current in the system
Higher losses in conductors and transformers due to higher current
Larger and more expensive equipment needed to handle the increased current
Potential for voltage drops and instability in the power system

10. How do synchronous motors help improve the power factor?

Answer: Synchronous motors can be operated at leading power factor by overexciting the rotor field. When operated in this mode, they can supply reactive power to the system, helping to improve the overall power factor of the network.

11. How is power factor correction achieved in industrial motor systems?

Answer: In industrial settings, power factor correction is typically achieved by installing capacitor banks either at the motor terminals, distribution panels, or at the utility connection point. These capacitors provide the necessary reactive power, reducing the need for reactive power from the supply, thereby improving the overall power factor.

12. What is the role of Variable Frequency Drives (VFDs) in power factor improvement?

Answer: VFDs control the speed of motors by adjusting the input frequency and voltage, which can help optimize motor operation closer to its rated load, improving the power factor. Additionally, modern VFDs come with built-in power factor correction features, reducing the reactive power demand of motors.

13. Can power factor ever be greater than 1?

Answer: No, power factor cannot be greater than 1. A power factor of 1 indicates perfect efficiency, where all the power is being used for useful work. Values above 1 would imply that more power is being used than supplied, which is impossible in a physical system.

14. How does harmonics affect the power factor in motor systems?

Answer: Harmonics distort the waveforms in AC power systems, increasing the total apparent power (kVA). This reduces the power factor because the power factor calculation assumes a sinusoidal waveform. Harmonic filtering can help mitigate this effect.

Tips for Interviews:

Understand Key Concepts: Be clear on the definition of power factor, its importance, and how it applies specifically to motors.
Be Ready to Discuss Improvement Techniques: Capacitor banks, synchronous motors, and VFDs are common power factor improvement tools.
Practical Examples: If you’ve worked with power factor correction in real-world systems, share your experiences to demonstrate practical knowledge.
Calculations: Be prepared to perform basic power factor calculations, particularly to show how to improve power factor or calculate the losses due to low power factor.

Good luck with your interview!

Electrical Power Factor Losses: Interview Questions and Answers

1. What is Power Factor? Why is it important in electrical systems?

Answer:
Power factor (PF) is the ratio of real power (kW) to apparent power (kVA) in an electrical system. It measures how effectively electrical power is being used. Mathematically, it is expressed as:

$\text{Power Factor} = \frac{\text{Real Power (kW)}}{\text{Apparent Power (kVA)}}$

It is important because a high power factor indicates efficient use of electrical power, while a low power factor results in increased power losses, higher energy bills, and reduced capacity in the system.

2. What causes power factor losses in an electrical system?

Answer:
Power factor losses occur due to inductive loads such as motors, transformers, and other equipment that require a magnetizing current. Inductive loads cause the current to lag behind the voltage, resulting in a lower power factor. Common causes include:

Motors and transformers operating under light loads.
Fluorescent lighting with electromagnetic ballasts.
Welding machines and other industrial equipment.

3. How can power factor losses affect the efficiency of a power system?

Answer:
A low power factor reduces the efficiency of the power system in the following ways:

Increased energy losses: More current is required to deliver the same amount of real power, which leads to higher I²R losses (heat losses) in cables, transformers, and other electrical equipment.
Higher energy costs: Utilities often impose penalties for low power factor, resulting in higher energy bills.
Reduced system capacity: A low power factor can reduce the capacity of electrical equipment, such as transformers and generators, as they need to carry more current for the same power output.

4. What are the typical methods to correct power factor losses?

Answer:
Power factor losses can be corrected using various methods:

Capacitor banks: These provide leading reactive power that offsets the lagging reactive power from inductive loads, thus improving the power factor.
Synchronous condensers: These are over-excited synchronous motors that generate reactive power, improving the power factor.
Active power factor correction (PFC) devices: These are electronic circuits that adjust the power factor dynamically.

5. How do capacitor banks help in power factor correction?

Answer:
Capacitor banks supply reactive power to the system, which helps to neutralize the inductive reactance caused by motors and other inductive loads. By providing the necessary reactive power locally, capacitors reduce the total amount of reactive power supplied by the utility, improving the power factor and reducing the overall current flow in the system.

6. How is power factor measured, and what is considered a good power factor?

Answer:
Power factor is measured using power meters that can calculate both real power (kW) and apparent power (kVA). A power factor close to 1 (unity) is considered ideal, with values between 0.95 and 1.0 being commonly acceptable for most industries. A power factor below 0.9 is typically regarded as poor and may lead to penalties from utility companies.

7. What are the consequences of not correcting power factor in an industrial setup?

Answer:
If power factor is not corrected in an industrial setup, the following consequences may occur:

Higher energy costs: Many utility companies charge penalties for low power factor, increasing the overall energy bill.
Overloaded electrical infrastructure: Low power factor causes increased current flow, which can overload transformers, cables, and switchgear, leading to equipment overheating and possible failures.
Inefficient use of electrical capacity: More current is needed to deliver the same amount of real power, reducing the overall capacity of the system for additional loads.

8. What are power factor penalties, and how are they calculated?

Answer:
Power factor penalties are additional charges imposed by utility companies when a customer’s power factor falls below a certain threshold, usually 0.9 or 0.95. These penalties are calculated based on the ratio of reactive power (kVAR) to real power (kW). The utility charges for the extra current drawn due to low power factor, which increases the demand on the power grid.

9. Can power factor correction improve energy savings?

Answer:
Yes, power factor correction can lead to energy savings by reducing I²R losses in the electrical distribution system. Although power factor correction does not directly reduce the energy consumed by the load, it decreases the overall current in the system, leading to less heat loss in conductors and transformers. This reduces the demand on the system and, in turn, can lower energy costs.

10. What are the limitations of using capacitors for power factor correction?

Answer:
While capacitors are commonly used for power factor correction, they have limitations:

Overcorrection: If too many capacitors are installed, they can cause overcorrection, leading to a leading power factor, which can also cause issues like resonance and voltage instability.
Maintenance: Capacitors can degrade over time and require regular maintenance to ensure they are functioning properly.
Resonance: Capacitors may interact with inductive loads and cause harmonic resonance, leading to distorted waveforms and potential equipment damage.

11. How does harmonic distortion affect power factor?

Answer:
Harmonic distortion can negatively affect power factor by increasing the apparent power (kVA) without contributing to real power (kW). Harmonics introduce non-sinusoidal waveforms, which can increase reactive power and reduce the overall power factor. This results in additional losses in the system and may require harmonic filters in conjunction with power factor correction.

12. What are some industry best practices to improve power factor?

Answer:

Regularly monitor and analyze power factor using power quality meters.
Install and maintain capacitor banks or synchronous condensers to compensate for reactive power.
Use energy-efficient equipment with a higher power factor.
Reduce unnecessary inductive loads by improving the efficiency of motors and other equipment.
Implement automatic power factor correction systems that dynamically adjust reactive power compensation.

These are some of the common interview questions and answers related to electrical power factor losses. Understanding power factor and its effects on electrical systems is crucial for maintaining efficient power distribution and reducing costs in industrial and commercial setups.

Electrical Power Factor Improvement Interview Questions and Answers

Understanding the power factor and methods to improve it is important for any electrical engineer or technician working in the field. During interviews for related roles, you might be asked several questions to assess your knowledge. Below are common questions along with suggested answers:

1. What is Power Factor?

Answer:
Power factor (PF) is the ratio of real power (kW) to apparent power (kVA) in a circuit. It measures how effectively electrical power is being used. The power factor is a number between 0 and 1, and is often expressed as a percentage. A power factor of 1 (or 100%) means that all the power is being effectively converted into useful work. Low power factors indicate inefficiency.

2. What is the significance of improving the Power Factor?

Answer:
Improving the power factor has several benefits, including:

Increased efficiency: Equipment operates more efficiently, reducing energy losses.
Lower utility charges: Many utility companies charge penalties for low power factors. Improving it reduces costs.
Reduced power losses: Less energy is wasted as heat in transformers and transmission lines.
Increased capacity: Equipment like transformers and generators can handle more load when the power factor is close to 1.

3. What are the common causes of low power factor?

Answer:

Inductive loads: Devices like motors, transformers, and fluorescent lighting have inductive elements that cause the power factor to lag.
Idle or lightly loaded motors: Motors that are underloaded or running idle can have low power factors.
Harmonic distortion: Harmonics from non-linear loads like variable speed drives (VFDs) can cause power factor issues.

4. How can the Power Factor be improved?

Answer:

Capacitor banks: The most common method for power factor improvement. Capacitors provide reactive power, countering the inductive effects of the load and improving the overall power factor.
Synchronous condensers: These are synchronous machines used to supply reactive power.
Power factor correction devices: These devices, often integrated into equipment, automatically adjust for power factor issues.
Using energy-efficient equipment: Replacing inefficient motors and systems with high-efficiency models can help improve power factor.

5. What is the role of a capacitor in power factor correction?

Answer:
A capacitor provides reactive power (VARs), which counteracts the inductive effects that cause a lagging power factor. By introducing capacitive reactance, it reduces the phase angle difference between voltage and current, thereby improving the power factor.

6. What is the difference between ‘leading’ and ‘lagging’ power factor?

Answer:

Lagging power factor: Occurs when the current lags behind the voltage, typical in inductive loads like motors.
Leading power factor: Occurs when the current leads the voltage, often seen in capacitive loads. Power factor correction typically involves reducing the lagging power factor by adding capacitors to shift the current waveform closer to the voltage waveform.

7. What is the typical power factor of an industrial load without correction?

Answer:
The power factor of industrial loads without correction usually ranges between 0.7 and 0.9, depending on the type of machinery and equipment being used. Inductive loads, like motors, often cause the power factor to be lower.

8. What are the consequences of a poor power factor?

Answer:

Higher utility bills: Poor power factor results in higher apparent power (kVA), increasing demand charges.
Reduced system capacity: Equipment like transformers and generators need to supply both active and reactive power, reducing their capacity for productive work.
Higher losses: There are more energy losses in power distribution as poor power factor increases line current.
Voltage drops: Poor power factor causes larger voltage drops in the electrical system, which can affect equipment performance.

9. What is the ideal power factor?

Answer:
The ideal power factor is 1 or unity. At this point, all the power drawn from the source is being used effectively for work without any wastage in reactive power. Practically, a power factor of 0.95 or higher is often considered efficient for industrial systems.

10. What is the Power Factor Correction (PFC) method used in large industrial systems?

Answer:
In large industrial systems, automatic power factor correction (APFC) panels are commonly used. These panels consist of a set of capacitors that automatically switch in or out of the circuit depending on the load requirements, maintaining an optimum power factor.

11. How do harmonics affect power factor correction?

Answer:
Harmonics distort the waveform of the current and voltage, reducing the effectiveness of power factor correction. Standard capacitors can resonate with harmonics, leading to overvoltages and equipment damage. Harmonic filters are often added to PFC systems to counter this.

12. How do utilities penalize low power factor?

Answer:
Utilities may impose additional charges or penalties if a consumer’s power factor falls below a certain threshold (e.g., below 0.9). This is because low power factors increase the demand on the grid, requiring more infrastructure and energy to supply both real and reactive power.

13. What are synchronous condensers, and how do they improve power factor?

Answer:
Synchronous condensers are synchronous motors running without a mechanical load, absorbing reactive power from the system. They provide reactive power to the grid and improve the power factor, much like capacitors. Synchronous condensers are often used in large power grids to improve system stability.

14. What is reactive power?

Answer:
Reactive power (measured in VARs) is the component of electrical power that does no useful work but is necessary for maintaining the voltage levels in the system. It is associated with inductive and capacitive elements of a system and is essential for maintaining a healthy power system, although it causes inefficiency when there is an excess of reactive power consumption.

15. Can power factor ever exceed 1?

Answer:
No, power factor cannot exceed 1. A power factor of 1 indicates perfect efficiency, where all the energy is being used for productive work. A value above 1 is not physically possible because that would imply generating more power than is supplied, which contradicts the principles of energy conservation.

These questions cover a wide range of topics related to power factor improvement and correction, reflecting the practical and theoretical knowledge required in many electrical engineering roles.

Electrical Power Factor Penalties - Tamil Nadu

In Tamil Nadu, maintaining a good power factor is crucial for optimizing energy usage and reducing electricity bills. Power factor penalties are imposed when consumers do not maintain the prescribed power factor levels. Here's a breakdown of interview questions and answers related to power factor penalties in Tamil Nadu, often asked during job interviews for electrical engineering roles:

1. What is Power Factor, and why is it important?

Answer: Power factor (PF) is the ratio of real power (kW) to apparent power (kVA). It is a measure of how effectively electrical power is being used. A PF of 1 (or 100%) indicates all the supplied power is being effectively used. A low PF indicates poor electrical efficiency and can lead to increased energy consumption and higher electricity bills.

2. What are Power Factor Penalties in Tamil Nadu?

Answer: In Tamil Nadu, the Tamil Nadu Electricity Board (TNEB) levies penalties on industrial and commercial consumers if their power factor falls below a certain threshold, typically 0.90. This encourages efficient use of electricity and prevents overloading of the distribution network. The lower the power factor, the higher the penalty.

3. What are the prescribed power factor limits in Tamil Nadu?

Answer: The prescribed power factor limit by TNEB is usually 0.90 for industrial and commercial consumers. If the power factor falls below 0.90, penalties apply, whereas if it exceeds 0.95, consumers may receive incentives.

4. How are Power Factor Penalties calculated in Tamil Nadu?

Answer: Power factor penalties are calculated based on the difference between the actual power factor and the prescribed limit. The TNEB charges consumers an additional amount on their electricity bill if their power factor falls below 0.90. For example:

If the power factor is below 0.85, a penalty is imposed based on the excess demand recorded.
If the power factor is below 0.70, a more severe penalty is applied.

The penalty percentage increases as the power factor decreases.

5. What are the typical causes of low power factor in an electrical system?

Answer:

Inductive Loads: Equipment such as motors, transformers, and fluorescent lighting draw more reactive power, leading to a low power factor.
Overloaded Transformers or Motors: Running transformers or motors beyond their rated capacity increases reactive power consumption.
Poor Maintenance: Lack of proper maintenance of electrical equipment, especially capacitors, can result in a low power factor.

6. How can power factor be improved to avoid penalties?

Answer:

Capacitor Banks: Installing automatic power factor correction (APFC) panels with capacitors can help improve power factor.
Use of Synchronous Condensers: These can provide leading power to counteract the lagging power caused by inductive loads.
Equipment Maintenance: Regular maintenance and monitoring of electrical equipment will ensure they run efficiently and do not contribute to poor power factor.

7. What are the benefits of maintaining a high power factor?

Answer:

Reduction in Penalties: Maintaining a power factor of 0.90 or above will help avoid penalties imposed by TNEB.
Lower Energy Bills: A higher power factor leads to reduced energy consumption, as less reactive power is drawn.
Efficient Equipment Operation: Equipment runs more efficiently with a good power factor, leading to longer operational life and reduced downtime.

8. What incentives does TNEB provide for high power factor?

Answer: If the power factor exceeds 0.95, TNEB may offer incentives to consumers in the form of rebates on their electricity bill. This is to encourage consumers to optimize their power usage and maintain efficient electrical systems.

9. What happens if a consumer's power factor exceeds 1.0?

Answer: A power factor of more than 1.0 is usually the result of overcompensation, often due to the excessive use of capacitors. This can lead to a leading power factor, which may cause problems in the electrical system. Overcompensation can be just as problematic as undercompensation, and TNEB might impose a fine for such conditions.

10. Why are industrial and commercial consumers particularly affected by power factor penalties?

Answer: Industrial and commercial consumers typically use large inductive loads (such as motors and transformers) that cause a low power factor. Since these loads significantly impact the grid, TNEB imposes power factor penalties on such consumers to ensure efficient energy usage and reduce stress on the distribution system.

Conclusion

Understanding power factor and its implications is essential for industrial and commercial consumers in Tamil Nadu. By maintaining a power factor of 0.90 or higher, they can avoid penalties and even qualify for incentives. During interviews, candidates should demonstrate knowledge of how power factor correction can optimize energy usage and prevent financial penalties.

Electrical Power Factor Improvement: Interview Questions and Answers

Improving power factor is crucial in electrical systems to increase energy efficiency, reduce power losses, and avoid penalties. Below are common interview questions and answers related to Power Factor Improvement that could be asked in an electrical engineering interview.

1. What is Power Factor (PF)?

Answer:
Power factor is the ratio of real power (P) to apparent power (S) in an electrical circuit. It is a measure of how efficiently electrical power is being used. A power factor of 1 (or 100%) means that all the power is being effectively converted into useful work. In most cases, it is less than 1 due to reactive loads (inductive or capacitive).

Formula: $PF = \frac{P}{S} = \frac{\text{Real Power (kW)}}{\text{Apparent Power (kVA)}}$

2. What causes a low power factor?

Answer:
A low power factor is typically caused by inductive loads, such as motors, transformers, and inductive lighting. These loads consume reactive power, which leads to higher apparent power, causing the power factor to drop.

3. Why is it important to improve power factor?

Answer:
Improving power factor is important because it reduces power losses in electrical systems, improves voltage levels, increases the capacity of the system, reduces demand charges from utilities, and avoids penalties that are imposed for having a low power factor.

4. What are the methods of power factor improvement?

Answer:
The main methods of improving power factor are:

Capacitor Banks: Installing capacitors in parallel with the inductive load to supply reactive power.
Synchronous Condensers: Using over-excited synchronous motors that can adjust the power factor by generating reactive power.
Phase Advancers: Used for improving the power factor of induction motors.

5. Explain how capacitor banks improve power factor.

Answer:
Capacitors provide leading reactive power (VARs), which neutralizes the lagging reactive power caused by inductive loads. By supplying the reactive power locally, the apparent power is reduced, which improves the power factor. Capacitor banks are typically installed in industrial plants to correct the power factor of motor-driven loads.

6. What is the difference between active power, reactive power, and apparent power?

Answer:

Active Power (P): The actual power consumed by the equipment to perform useful work (measured in kW).
Reactive Power (Q): Power consumed by inductive and capacitive components in the circuit that does not perform useful work (measured in kVAR).
Apparent Power (S): The total power in the system, a combination of both active and reactive power (measured in kVA).

7. What are the disadvantages of a low power factor?

Answer:

Increased losses in the power system (higher I²R losses).
Higher electricity bills due to increased apparent power (kVA) demand.
Lower system capacity since more current is needed for the same amount of real power.
Voltage drops in the system, which can lead to equipment malfunction.
Penalties imposed by utility companies for maintaining a low power factor.

8. What is a synchronous condenser, and how does it work?

Answer:
A synchronous condenser is a type of synchronous motor that operates without a mechanical load. It improves power factor by adjusting its excitation. When over-excited, it generates reactive power, which improves the power factor. It is used in high-voltage transmission systems where capacitors are not sufficient.

9. What are automatic power factor correction (APFC) panels?

Answer:
APFC panels are used to automatically maintain the power factor of a system by controlling the connection of capacitor banks. The panel monitors the power factor in real time and switches capacitors on or off to maintain the desired power factor level. This helps in maintaining a steady power factor without manual intervention.

10. Can power factor ever be greater than 1?

Answer:
No, the power factor cannot exceed 1. A power factor of 1 represents an ideal situation where all the power is being effectively used. In real-world systems, it is always less than or equal to 1.

11. What is the effect of power factor on the sizing of electrical equipment?

Answer:
A low power factor increases the current in the electrical system for the same amount of real power. This results in the need for larger equipment (transformers, cables, circuit breakers, etc.) to handle the increased current. Improving the power factor reduces the current, which allows for smaller, less expensive equipment to be used.

12. What are the advantages of maintaining a high power factor?

Answer:

Reduced electrical losses (lower I²R losses).
Decreased electricity bills due to reduced demand for apparent power.
Improved voltage regulation.
Increased system capacity and efficiency.
Avoidance of penalties from utilities for having a low power factor.

13. How do inductive and capacitive loads affect power factor?

Answer:

Inductive Loads (e.g., motors, transformers): These cause the current to lag behind the voltage, resulting in a lagging power factor (less than 1).
Capacitive Loads (e.g., capacitors): These cause the current to lead the voltage, resulting in a leading power factor. Capacitors are used to correct lagging power factor caused by inductive loads.

14. What is the typical range of power factor for industrial systems?

Answer:
In industrial systems, the power factor typically ranges between 0.7 and 0.9, depending on the load. Many utilities require a minimum power factor of 0.95 to avoid penalties.

15. What is the role of power factor meters in power factor correction?

Answer:
Power factor meters measure the power factor in a system. They are critical in monitoring the system’s power factor and guiding the operator on when and how much power factor correction is needed. These meters are often integrated into APFC panels for automatic correction.

These questions and answers cover key aspects of power factor improvement and are commonly discussed during interviews for electrical engineering roles involving energy management, power systems, and plant operations.

Electrical Power Factor: Leading Interview Questions and Answers

1. What is Power Factor?

Answer: Power factor (PF) is the ratio of real power (P, measured in watts) to apparent power (S, measured in volt-amperes) in an AC electrical system. It indicates how effectively electrical power is being used. Mathematically, it is expressed as: $PF = \frac{P}{S} = \cos(\phi)$ where $\phi$ is the phase angle between voltage and current. A power factor of 1 (or 100%) is ideal, meaning all the supplied power is being effectively used.

2. What is the difference between Leading and Lagging Power Factor?

Answer:
- Lagging Power Factor: This occurs when the current lags behind the voltage, typically in inductive loads like motors and transformers.
- Leading Power Factor: This occurs when the current leads the voltage, commonly found in capacitive loads like capacitor banks or certain synchronous motors.

3. Why is a Leading Power Factor generally undesirable in power systems?

Answer: Leading power factor can result in over-voltage issues, especially when no load or light load conditions occur. It can also cause problems with voltage regulation and may result in additional operational costs due to underutilized equipment capacity.

4. How can Power Factor be corrected?

Answer: Power factor can be corrected using:
- Capacitor banks: For lagging power factor caused by inductive loads.
- Inductors: For leading power factor caused by capacitive loads. The goal is to balance reactive power to bring the power factor closer to unity (1).

5. What is the ideal Power Factor for an industrial or commercial facility?

Answer: The ideal power factor is 1 (or unity), but most systems aim for a power factor between 0.95 and 0.99 to minimize losses and avoid penalties from utility companies.

6. How does a leading power factor affect a transformer?

Answer: A leading power factor can result in the over-excitation of the transformer, causing it to operate less efficiently. In extreme cases, it can cause overheating, increase core losses, and shorten the life of the transformer.

7. What are the causes of a Leading Power Factor?

Answer: Leading power factor is usually caused by excessive capacitance in the system, such as over-compensation by capacitor banks, lightly loaded synchronous motors, or underloaded transmission lines with high capacitance.

8. How can you measure the Power Factor in an electrical system?

Answer: Power factor can be measured using:
- Power Factor Meters: Specialized instruments that directly display the power factor.
- Clamp Meters and Multimeters: These can measure current, voltage, and phase difference, allowing for power factor calculation.
- Power Analyzers: Advanced tools for detailed analysis of electrical parameters, including power factor.

9. What are the effects of a low Power Factor?

Answer: A low power factor results in:
- Increased line losses due to higher current flow.
- Overloading of equipment like transformers and generators.
- Poor voltage regulation.
- Higher electricity costs due to utility penalties for low power factor.

10. How can overcompensation with capacitors lead to a Leading Power Factor?

Answer: Overcompensation occurs when too many capacitors are added to the system to correct a lagging power factor. This can shift the power factor to leading, especially during periods of low load, as the reactive power supplied by the capacitors exceeds the reactive power demand of the inductive loads.

11. What is the difference between Displacement Power Factor and Total Power Factor?

Answer:
- Displacement Power Factor: This is based on the phase difference between the fundamental voltage and current waveform.
- Total Power Factor: This considers both the phase shift and harmonic distortions in the system, making it a more accurate reflection of power quality in systems with non-linear loads.

12. Can a Leading Power Factor cause resonance?

Answer: Yes, a leading power factor can cause resonance if the inductive and capacitive reactances in the system match, leading to oscillations at certain frequencies. This can result in equipment damage, overvoltages, and instability in the power system.

13. What penalties or issues can arise from having a poor Power Factor?

Answer: Utility companies often charge penalties for poor power factor (typically below 0.9) because it indicates inefficient use of electrical power. It also leads to higher transmission losses, reduced capacity of electrical equipment, and higher operational costs.

14. How can synchronous motors help with Power Factor correction?

Answer: Synchronous motors can be operated in an over-excited condition to provide reactive power to the system, improving the power factor. When used strategically, they can correct both leading and lagging power factors.

15. Explain the concept of Reactive Power in relation to Power Factor.

Answer: Reactive power (measured in VARs) is the portion of electricity that does not perform useful work but is necessary for maintaining the magnetic and electric fields in inductive and capacitive loads. Power factor correction focuses on minimizing reactive power to make the system more efficient. A leading power factor means excess capacitive reactive power in the system.

Conclusion:

Understanding power factor, especially in the context of leading and lagging conditions, is essential for efficient electrical system design and operation. During interviews for positions related to electrical engineering, power systems, or energy management, having a clear grasp of power factor correction techniques and their practical implications will demonstrate technical competence and problem-solving skills.

Electrical Power Factor (Lagging) - Interview Questions and Answers

What is Power Factor?
- Answer: Power factor (PF) is the ratio of real power (P) used in a circuit to the apparent power (S) drawn from the source. It indicates the efficiency with which electrical power is being used. Mathematically, it is expressed as: $\text{PF} = \frac{\text{Real Power (P)}}{\text{Apparent Power (S)}}$ It is a dimensionless number ranging between 0 and 1. A PF of 1 indicates maximum efficiency.
What is meant by lagging power factor?
- Answer: A lagging power factor occurs when the current lags behind the voltage in an AC circuit, typically in inductive loads like motors, transformers, and reactors. The phase difference between current and voltage results in reduced efficiency as some power is wasted in creating the magnetic field.
What causes a lagging power factor in electrical systems?
- Answer: Lagging power factor is mainly caused by inductive loads, such as:
  - Motors (especially asynchronous or induction motors)
  - Transformers
  - Induction heating equipment
  - Fluorescent lighting with magnetic ballasts These devices consume reactive power (VAR), which causes the current to lag behind the voltage.
How can we improve a lagging power factor?
- Answer: A lagging power factor can be corrected using:
  - Capacitor banks: Capacitors generate reactive power (leading) which can offset the inductive effect (lagging).
  - Synchronous condensers: Synchronous motors operated without load can supply reactive power.
  - Phase advancers: Used in synchronous motors to reduce the lagging power factor. The goal is to bring the power factor closer to 1, thus improving system efficiency.
Why is it important to correct a lagging power factor?
- Answer: Correcting a lagging power factor is crucial for several reasons:
  - Efficiency: A lower power factor results in higher current for the same power output, leading to energy losses in the form of heat.
  - Cost: Utility companies often charge penalties for low power factor as it increases the demand on their infrastructure.
  - Reduced equipment wear: Higher currents caused by low power factor increase wear and tear on electrical equipment like transformers, cables, and generators.
  - Voltage regulation: Improved power factor helps maintain stable voltage levels in the system.
What is the typical range of a lagging power factor in industrial systems?
- Answer: In industrial settings, the power factor can vary based on the type of equipment in use. A typical range for lagging power factor in industries with a lot of inductive loads is around 0.7 to 0.9. Power factor correction is usually aimed at bringing it to around 0.95 to 1.
Explain the difference between leading and lagging power factor.
- Answer:
  - Lagging power factor: Occurs when current lags behind the voltage, usually in inductive loads.
  - Leading power factor: Occurs when current leads the voltage, typically in capacitive loads. Both conditions indicate a phase difference between current and voltage, but the type of load determines whether the power factor is leading or lagging.
What are the disadvantages of operating a system with a low lagging power factor?
- Answer: Disadvantages include:
  - Increased losses: More power is wasted in the system due to higher current requirements.
  - Overloading of electrical infrastructure: Transformers and cables need to handle more current than necessary.
  - Higher utility costs: Many utility companies penalize customers with low power factors, increasing the electricity bill.
  - Reduced capacity: A system with a low power factor can handle less real power, limiting the total load that can be connected.
How does a lagging power factor affect generators?
- Answer: When a generator operates with a lagging power factor, it must supply not only the real power but also the reactive power required by the inductive loads. This increases the total apparent power, reducing the generator's capacity to supply real power, thus overloading the generator and reducing its efficiency.
How do capacitors correct a lagging power factor?
- Answer: Capacitors provide leading reactive power, which cancels out the lagging reactive power caused by inductive loads. This reduces the overall reactive power in the system, thus improving the power factor and reducing the total current drawn from the supply.

These questions and answers help assess an interviewee's understanding of power factor, especially in the context of power systems and electrical engineering.

Electrical Power Factor Load: Interview Questions and Answers

Understanding the power factor (PF) and how it impacts electrical systems is a key topic in many electrical engineering interviews. Here are some common interview questions on power factor, along with their answers.

1. What is Power Factor?

Answer: Power Factor (PF) is the ratio of real power (measured in kilowatts, kW) to apparent power (measured in kilovolt-amperes, kVA). It measures how efficiently electrical power is being used in a system. A high power factor indicates efficient utilization, while a low power factor indicates poor efficiency.

Formula:
Power Factor (PF) = Real Power (kW) / Apparent Power (kVA)

2. Why is Power Factor Important?

Answer: Power factor is important because it affects the efficiency of the electrical system. A low power factor can lead to higher current flow, which causes additional losses in the system, increases heat generation, and may lead to higher energy costs. Utility companies often charge penalties for low power factor to encourage consumers to improve it.

3. What are the types of Power Factor?

Answer: There are three types of power factors:

Lagging Power Factor: When inductive loads like motors, transformers, and inductors dominate, the current lags behind the voltage, leading to a lagging power factor.
Leading Power Factor: When capacitive loads dominate, the current leads the voltage, resulting in a leading power factor.
Unity Power Factor: When the load is purely resistive, the power factor is 1, meaning that all the power is being effectively used.

4. What Causes a Low Power Factor?

Answer: A low power factor is primarily caused by inductive loads, such as:

Electric motors (especially when lightly loaded)
Transformers
Induction heaters
Fluorescent lighting

These devices consume reactive power (kVAR), causing the power factor to decrease.

5. How Can Power Factor Be Improved?

Answer: Power factor can be improved by reducing the reactive power (kVAR) in the system. Common methods include:

Capacitor Banks: Adding capacitors to the system to compensate for the inductive reactive power.
Synchronous Condensers: Using over-excited synchronous motors to generate leading reactive power.
Phase Advancers: These are used to improve the power factor of induction motors.

6. What is the Ideal Power Factor?

Answer: The ideal power factor is 1 (or unity). At this value, the electrical system is 100% efficient, meaning all the power is being used effectively with no reactive losses.

7. What is the Disadvantage of a Leading Power Factor?

Answer: A leading power factor can cause over-voltage conditions in the power system, which may lead to insulation breakdown in equipment, and can also interfere with the operation of certain electrical devices, particularly motors and generators.

8. How is Power Factor Measured in a System?

Answer: Power factor can be measured using a power factor meter, or it can be calculated using the following methods:

Using a Wattmeter: Measure the real power (kW) and apparent power (kVA), then calculate the power factor as PF = kW / kVA.
Phase Angle Method: The power factor can also be determined from the cosine of the phase angle (θ) between the voltage and current.
- PF = cos(θ)

9. What are the Penalties for Low Power Factor?

Answer: Many utility companies impose penalties on consumers for maintaining a power factor below a certain threshold (typically 0.85 or 0.9). These penalties come in the form of additional charges on the utility bill because low power factors increase the overall demand on the electrical grid.

10. What is the Difference Between Active, Reactive, and Apparent Power?

Answer:

Active Power (kW): The actual usable power that does the work in the system (e.g., lighting, heating, motors).
Reactive Power (kVAR): The non-working power that flows back and forth between the source and reactive components (like inductors and capacitors), but does no useful work.
Apparent Power (kVA): The total power in the system, which is a combination of active and reactive power.
Formula:
$\text{Apparent Power} = \sqrt{(\text{Active Power}^2 + \text{Reactive Power}^2)}$
11. What is the Effect of Power Factor on Energy Billing?
Answer: A poor power factor results in higher apparent power, which increases the demand charges on energy bills. Many utility companies bill based on both real power consumption (kW) and maximum demand (kVA), so improving the power factor reduces demand charges and overall energy costs.
12. What is Power Factor Correction?
Answer: Power factor correction involves the use of devices (like capacitor banks) to increase the power factor of a system. The aim is to reduce the phase difference between voltage and current by compensating for the reactive power, thereby improving the overall efficiency of the system.
13. What is a Power Factor Controller?
Answer: A Power Factor Controller is a device that automatically adjusts the power factor of a system by switching capacitors on or off to optimize the power factor. These controllers help maintain a stable and desirable power factor under varying load conditions.
14. Explain the Difference Between Power Factor and Efficiency?
Answer:
Power Factor: It is a measure of how effectively the electrical power is being used in the system, focusing on the relationship between real power and apparent power.
Efficiency: It is the ratio of output power to input power, focusing on the effectiveness of converting input power into useful work.
Power factor affects efficiency, but they are different concepts. Low power factor can lead to reduced system efficiency because of increased losses.
15. What is a Harmonic and How Does it Affect Power Factor?
Answer: Harmonics are distortions in the electrical waveform caused by non-linear loads (e.g., variable frequency drives, computers, and fluorescent lighting). Harmonics cause additional losses in the system and reduce the power factor because they increase the apparent power (kVA) without contributing to real power (kW).
16. How Do Capacitor Banks Improve Power Factor?
Answer: Capacitor banks generate reactive power with an opposite phase to inductive loads, thereby canceling out some of the reactive power caused by these loads. This results in a higher power factor, as the ratio of real power to apparent power improves.
By preparing answers for these questions, candidates can effectively demonstrate their understanding of power factor, its importance in electrical systems, and the methods for improving it.

Power Factor Interview Questions and Answers
